63OT

on request

Honeycomb Optical Table Top

We will contact you and offer optimal options

An optical tabletop with honeycomb filling is a working platform for vibration-sensitive devices: microscopes, scales, interferometers, and laser systems.

The working surface of the tabletop is made of ferromagnetic stainless steel 5 mm thick with a grid of M6 threaded holes with a pitch of 25±0.1 mm for mounting various optical circuits and devices. The grid of holes is located at a distance of 25 mm from the edge of the tabletop.

High-precision grinding ensures the flatness of the working surface at a level of ±0.1 mm/m2. The honeycomb filling is made of aluminum or steel corrugated tape with a thickness of 0.25...0.5 mm.

To dampen acoustic vibrations, the side walls of optical tabletops are made of absorbing materials.

The standard thickness of the 63OT tabletop is 200 mm, which ensures the necessary rigidity for most tasks. Upon request, a reinforced tabletop of increased thickness can be manufactured.

How to order a tabletop of non-standard dimensions?

You can order an optical tabletop of non-standard dimensions in the following range:

length: 400...2500 mm in 50 mm increments

width: 400...1500 mm in 50 mm increments

thickness: 200, 300, 400 mm,

based on the article number

63OTYYXXZZ,

where YY = width/100, XX = length/100, ZZ = thickness/10.

For a non-magnetic version, -NM is added at the article number: a tabletop with overall dimensions of 2000×1200×300 mm in a non-magnetic version has the article No. 63OT122030-NM.

Compatible products

We recommend mounting 630T honeycomb tabletops on matching 64OTS supports. The optimal distance between the centers of the supporting elements is 1.8 times less than the tabletop dimensions; when choosing from a standard size range, it should be rounded up.

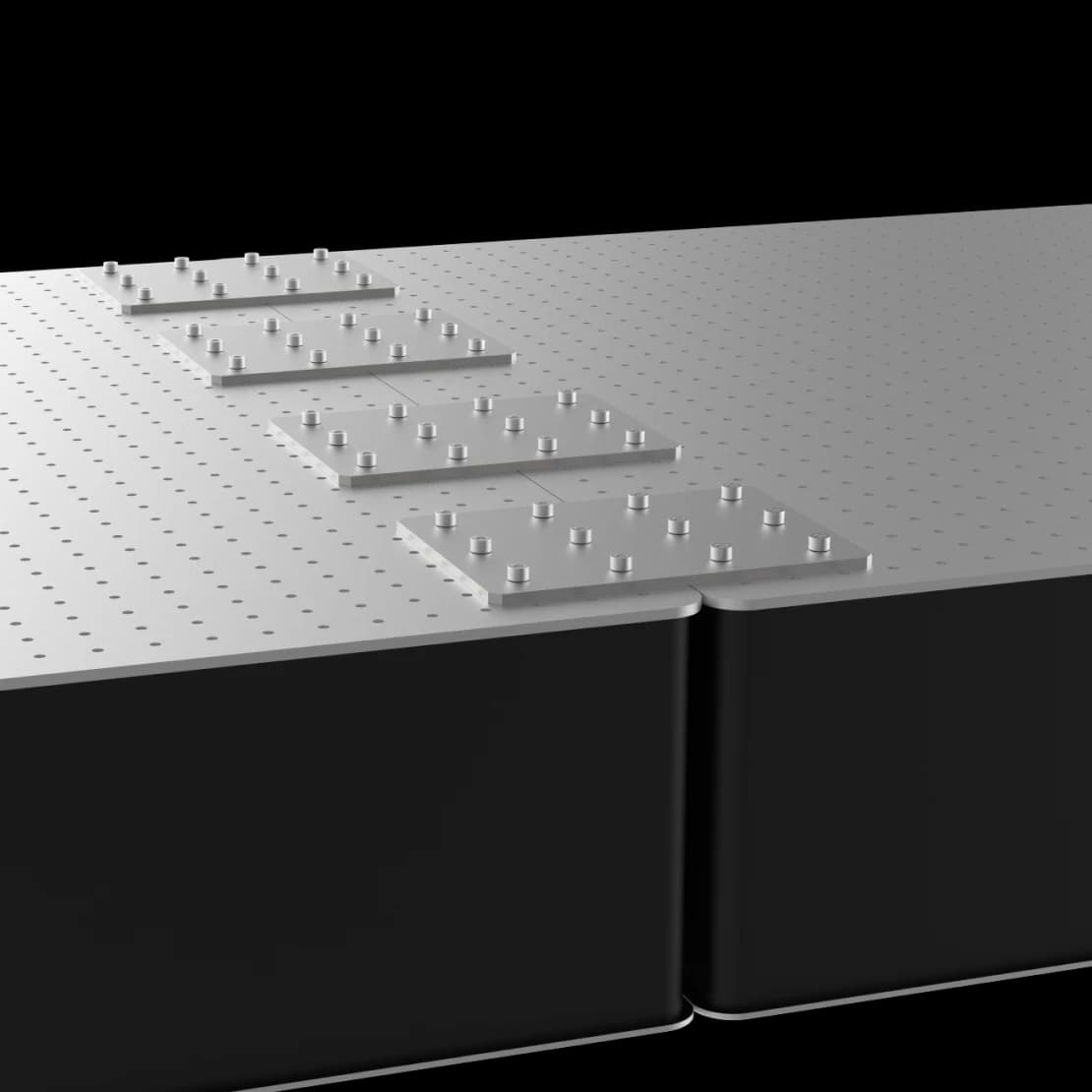

To connect tabletops, 66TC, 66RTS plates or 66TCS brackets are used. To protect the tabletop from accidental impacts, we recommend using armrests 66LB1 and 66LB2.

Section Accessories for optical tables includes protective screens, tool boxes, racks and shelves for equipment. Laminar flow workstations and Faraday cages can be found in Optional equipment section.

Similar products

Honeycomb optical tabletops of smaller thickness (40 to 150 mm) are presented in the size range of article 62НВ.

Как заказать столешницу нестандартных габаритов?


Вы можете заказать оптическую столешницу нестандартных габаритов в следующем диапазоне:

  • длина: 400…2500 мм с шагом 50 мм
  • ширина: 400…1500 мм с шагом 50 мм
  • толщина: 200, 300, 400 мм,

Ориентируясь на артикул

63OTYYXXZZ,

где YY и XX — ширина и длина столешницы в дециметрах, ZZ — толщина в сантиметрах.

Для немагнитного исполнения в артикул добавляется окончание -NM: у столешницы с габаритными размерами 2000×1200×300 мм в немагнитном исполнении артикул будет 63OT122030-NM.







Совместимые изделия

Рекомендуем устанавливать сотовые столешницы 63OT на подходящие по размеру опоры 64OTS. Оптимальное расстояние между центрами опорных элементов — в 1.8 раза меньше габаритов столешницы, при выборе из стандартного размерного ряда округлять следует в большую сторону.

Для соединения столешниц используются пластины 66TC, 66PTC или скобы 66TCS. Для защиты столешницы от случайных воздействий рекомендуем использовать подлокотники 66LB1 и 66LB2.

В разделе Аксессуары к оптическим столам представлены защитные экраны, ящики для инструментов, стеллажи и полки для оборудования. Ламинарные рабочие станции и клетки Фарадея находятся в разделе Дополнительное оборудование.







Аналогичные изделия

Сотовые оптические столешницы меньшей толщины — от 40 до 150 мм — представлены в размерном ряду артикула 62HB.
