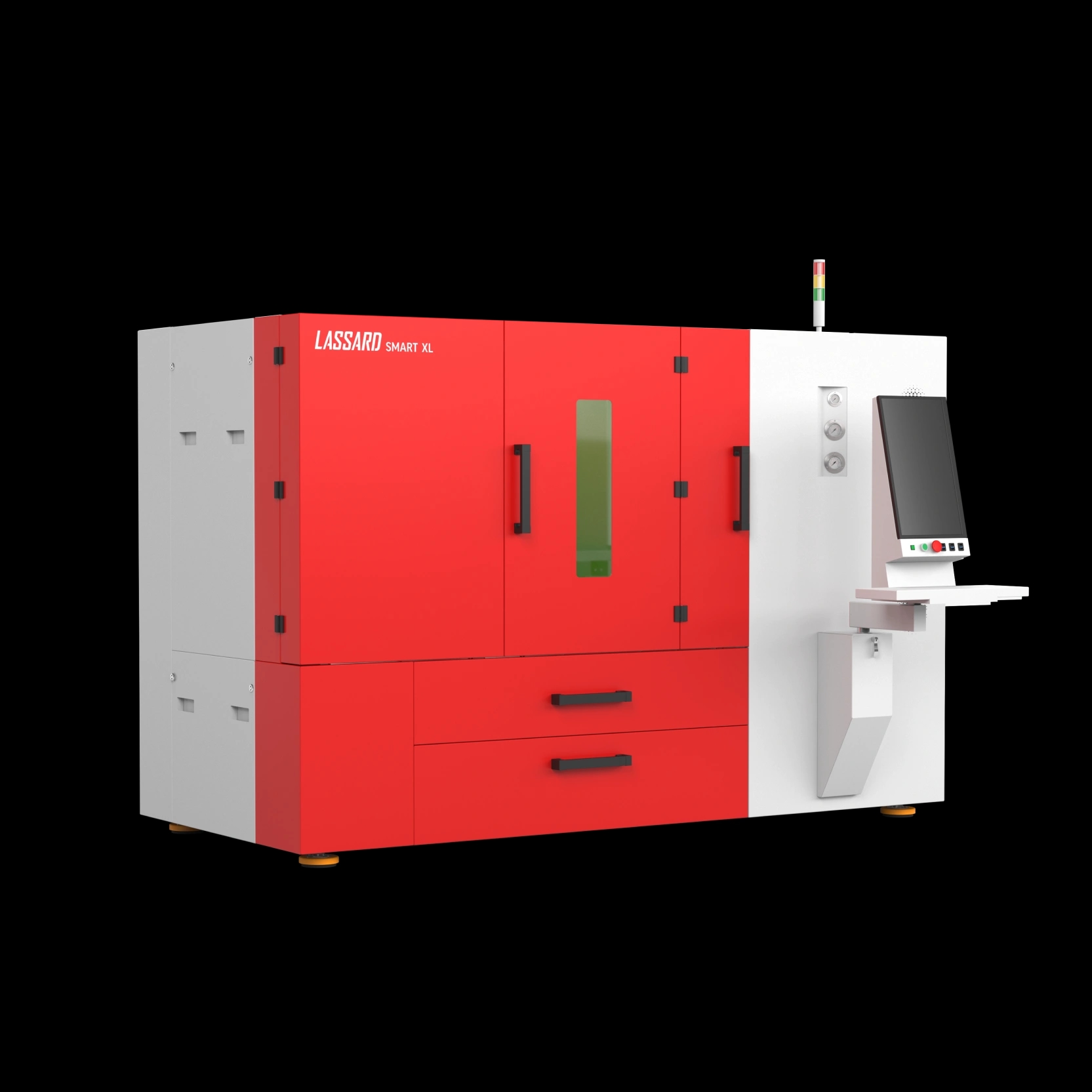

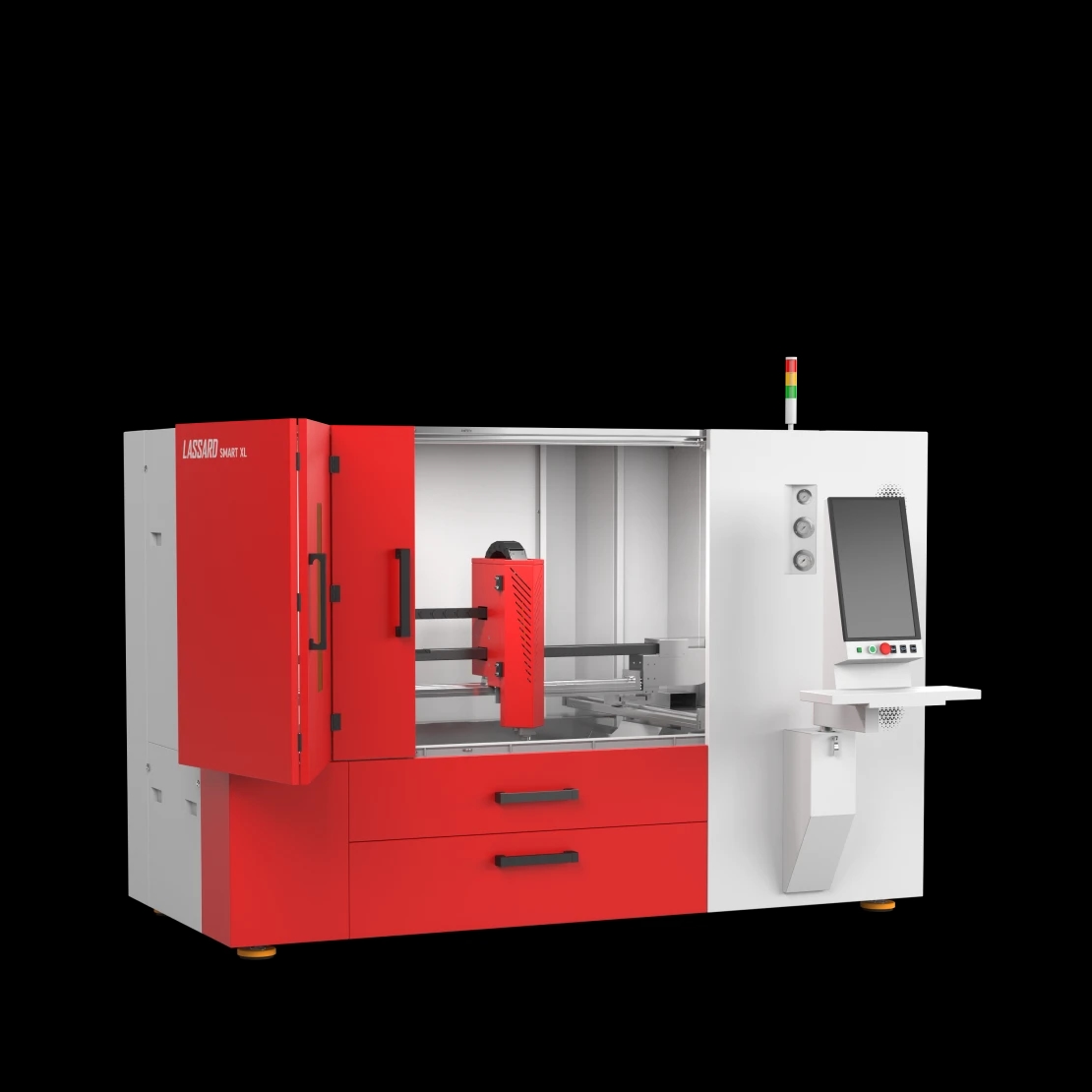

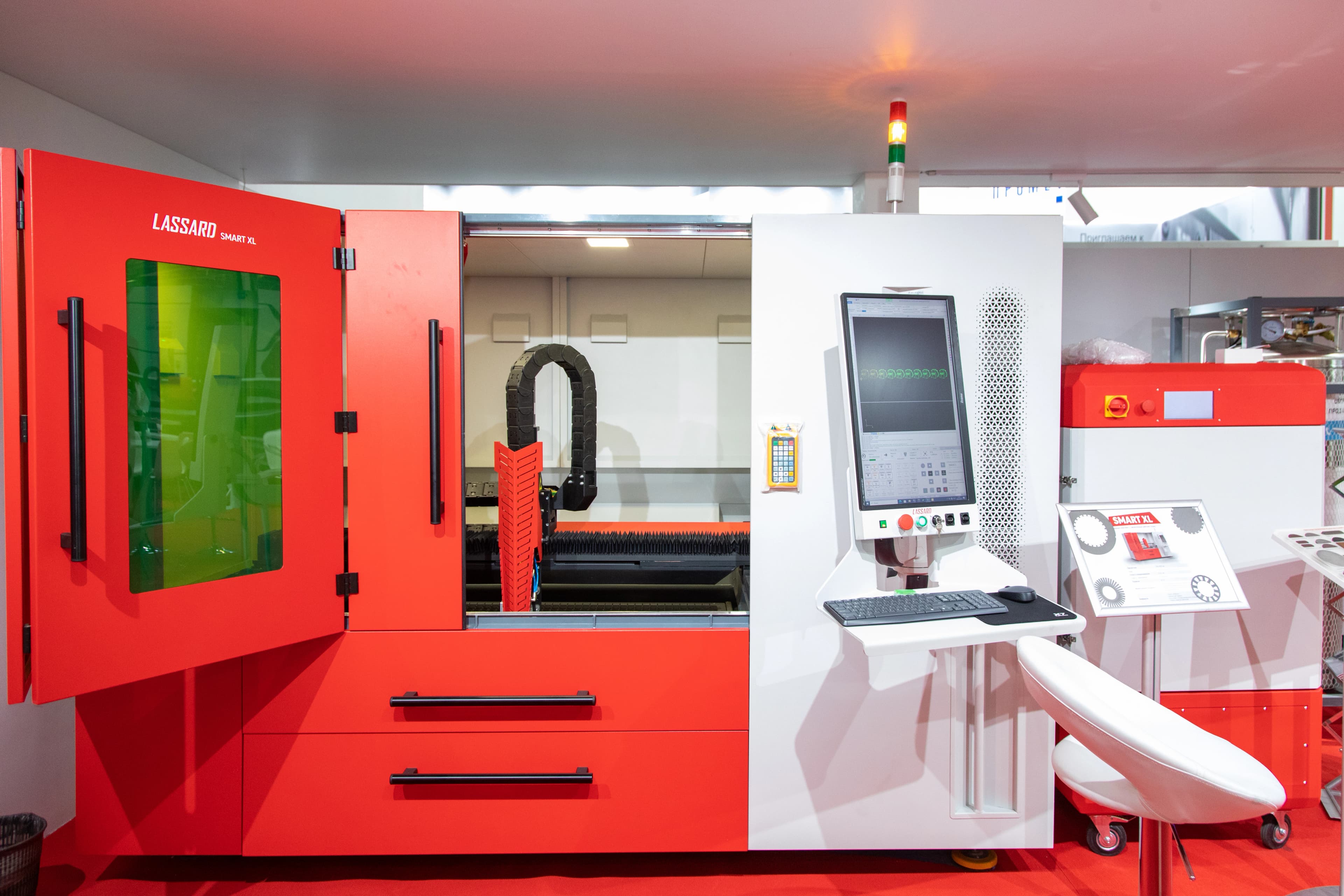

SMART XL
Machine with increased working field
SMART XL has an increased working field.
It can cut various metals and other materials: hard alloys, copper, ceramics, rubber, graphite. Power consumption is no more than 3 kW.
- SMART XL has a retractable working area of 1300×800, 1300×1000, 1300×1300 mm2 — for workpieces with large dimensions
- Precision positioning system ensures accuracy up to ±0.03 mm
- The focusing lens provides the cutting width of 100 µm
- Energy consumption — 3 kW at most
- Air cooling is available, so no need to replace fluid in the cooling system
- The machine is equipped with cabinet protection for noise insulation and safety of operating personnel
Rigid all-welded frame
Ytterbium fiber laser (LASSARD / IPG Photonics / Raycus)
Smoke exhaust system
LASSARD operator panel with 22-inch industrial LCD display
Connection module for three gas types
Workpiece collection tray
Full fire protection
Chiller
Filter ventilation unit LFILTER SMART
Compressor
Automatic gas console for 4 types of gas
Tensioning unit
Sheet material holder
Protective eyewear
| Radiation source | Fiber laser (IPG Photonics / Raycus) |
| Laser operating mode | CW, pulsed |
| Processing field, mm | 1300×800 |
| Positioning accuracy, mm | ±0.03 |
| Minimum cutting width, µm | 100 |
| Linear movement | HIWIN |
| Synchronous speed of idle movements along the XYZ axes, m/min | up to 60 |
| Acceleration along the XYZ axes | up to 1 |
| Processed sheet materials | Brass, stainless steel, aluminum alloys, gold, copper, black steel, titanium, rubber, graphite, electrical steel, beryllium bronze |
| Source power | 150/1500; 300/3000; 450/4500; 1000 |
