64OTS2020065

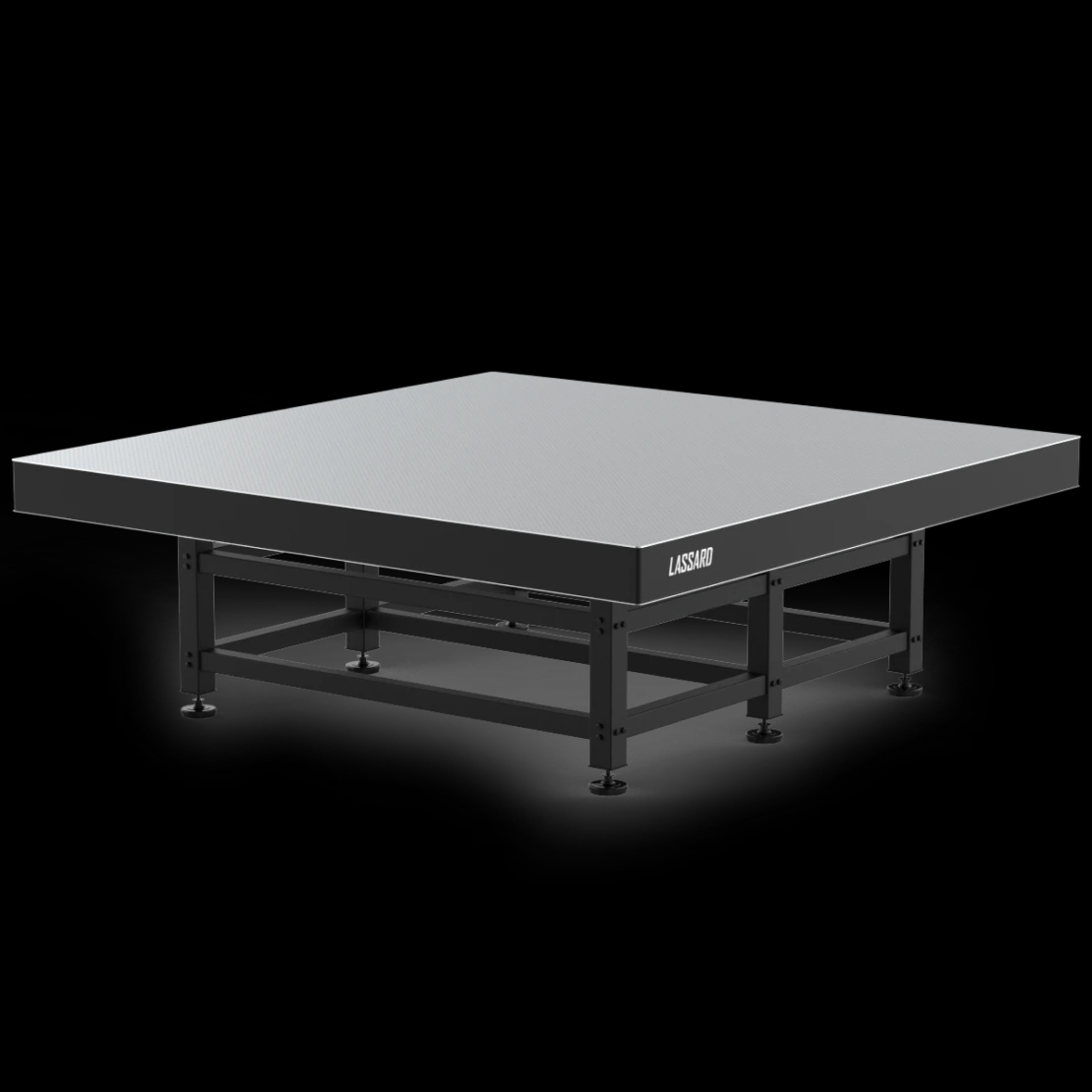

Reinforced support for large optical honeycomb tabletops
The reinforced support with an additional section is designed for mounting of large optical tabletops. The support height is 830±15 mm, the distances between the centers of the outer support elements are 1800 mm and 2000 mm. The support posts are made of square steel pipes with a width of 100 mm, the connections connecting the posts are made of square steel pipes with a width of 80 mm. The standard scope of supply includes rigid support elements (vibration mount OV-31M) - this design is used when additional damping is not required. For a vibration isolation, an elastic support element should be used (EC class shock absorber series 10050 type D (Compression)).
