14PM-01
on request

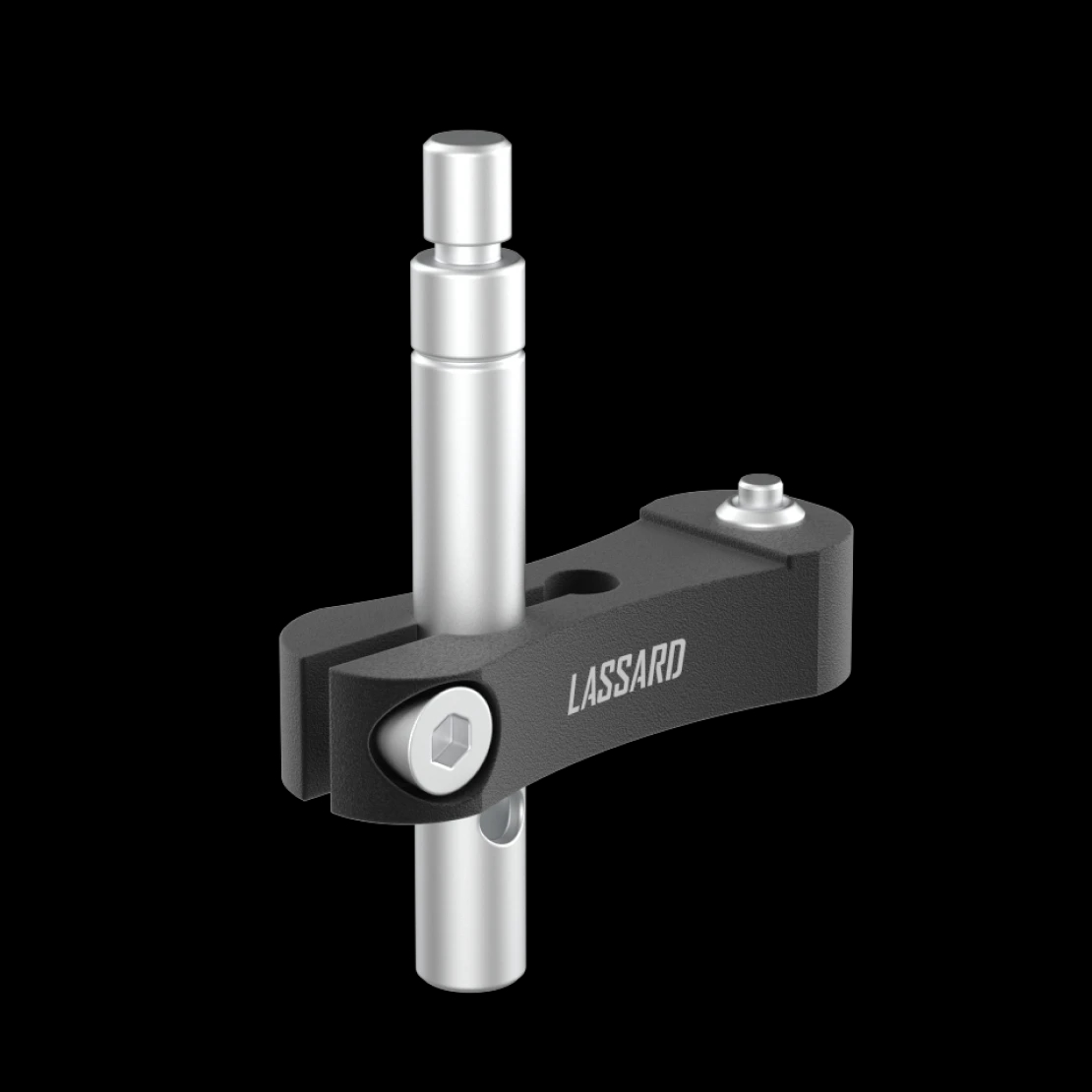

Small Adjustable Clamping Arm
We will contact you and offer
optimal options
The clamp is designed for attaching optical elements directly to optical tables and platforms with M4 threaded holes. The maximum height of the optical element is 24.6 mm (can be increased with the additional rack), the distance from the axis of the clamp rack to the M4 screw with a polymer tip which fixes the optical element is 17.5 mm.
