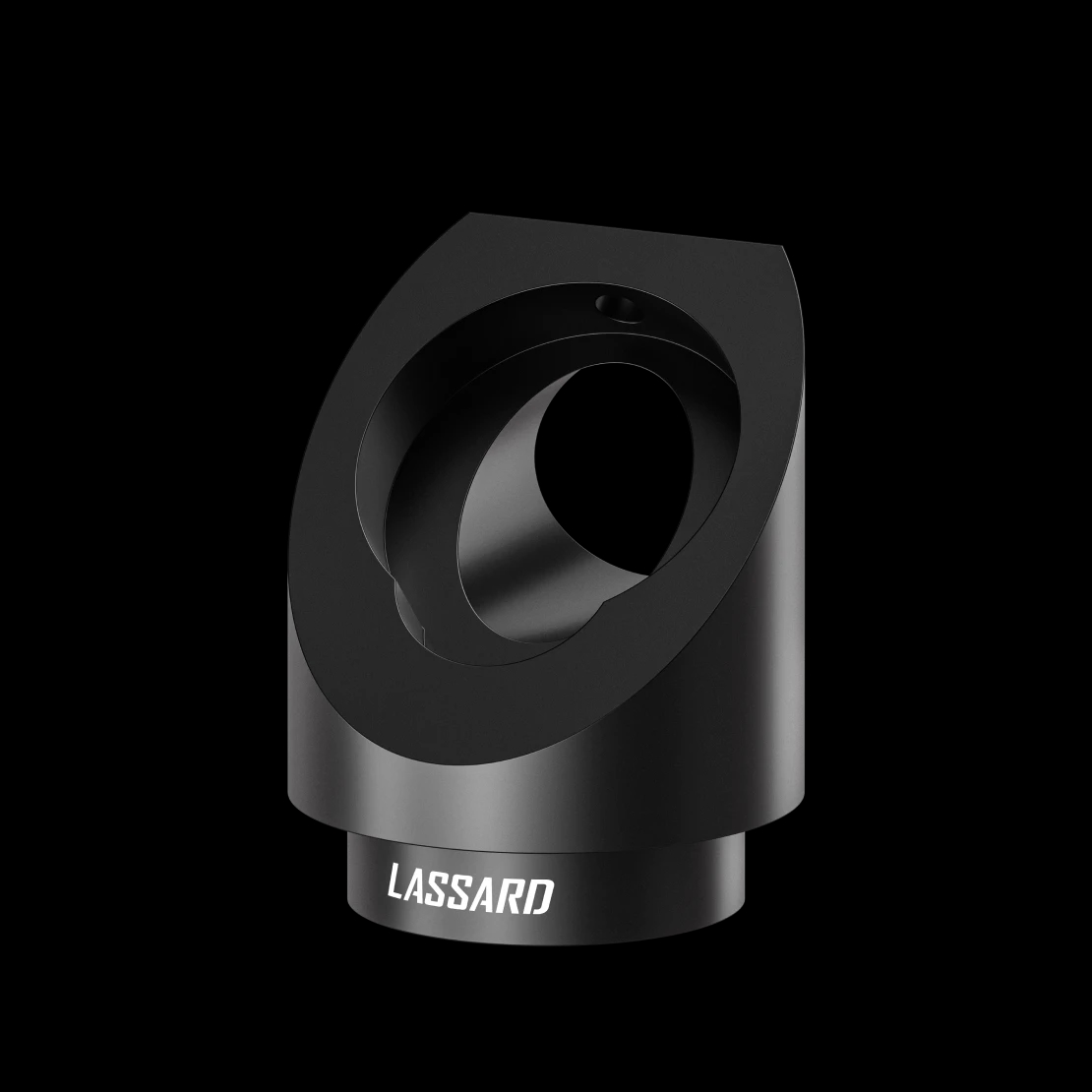

16MAD-45-1/18MAD-45-1-15
45 degree Mirror Adapters
The adapter is designed for installing mirrors at 45° to the main plane. The optical element is installed into it on two support rollers and securely fixed with M4 screw with a plastic tip (for example, 24SS4NT). The adapter can be fixed into a 1" diameter frame or onto a rod using the M6 threaded hole. Model 18MAD-45-1-15 differs by the presence of a hole with a diameter of 15 mm; 16MAD-45-1 is without additional hole.
