32KMVDS
Vertical Drive Optical Mount

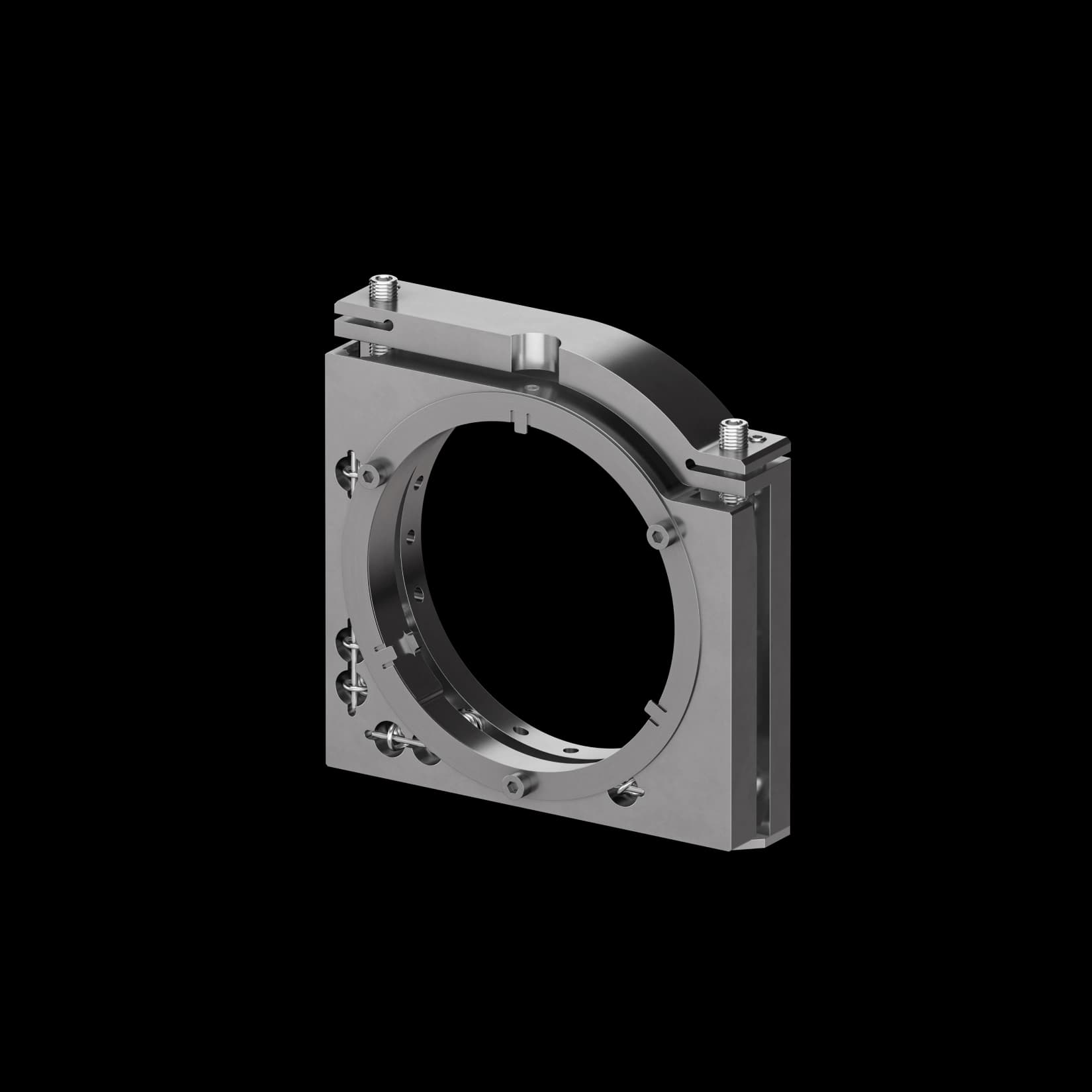

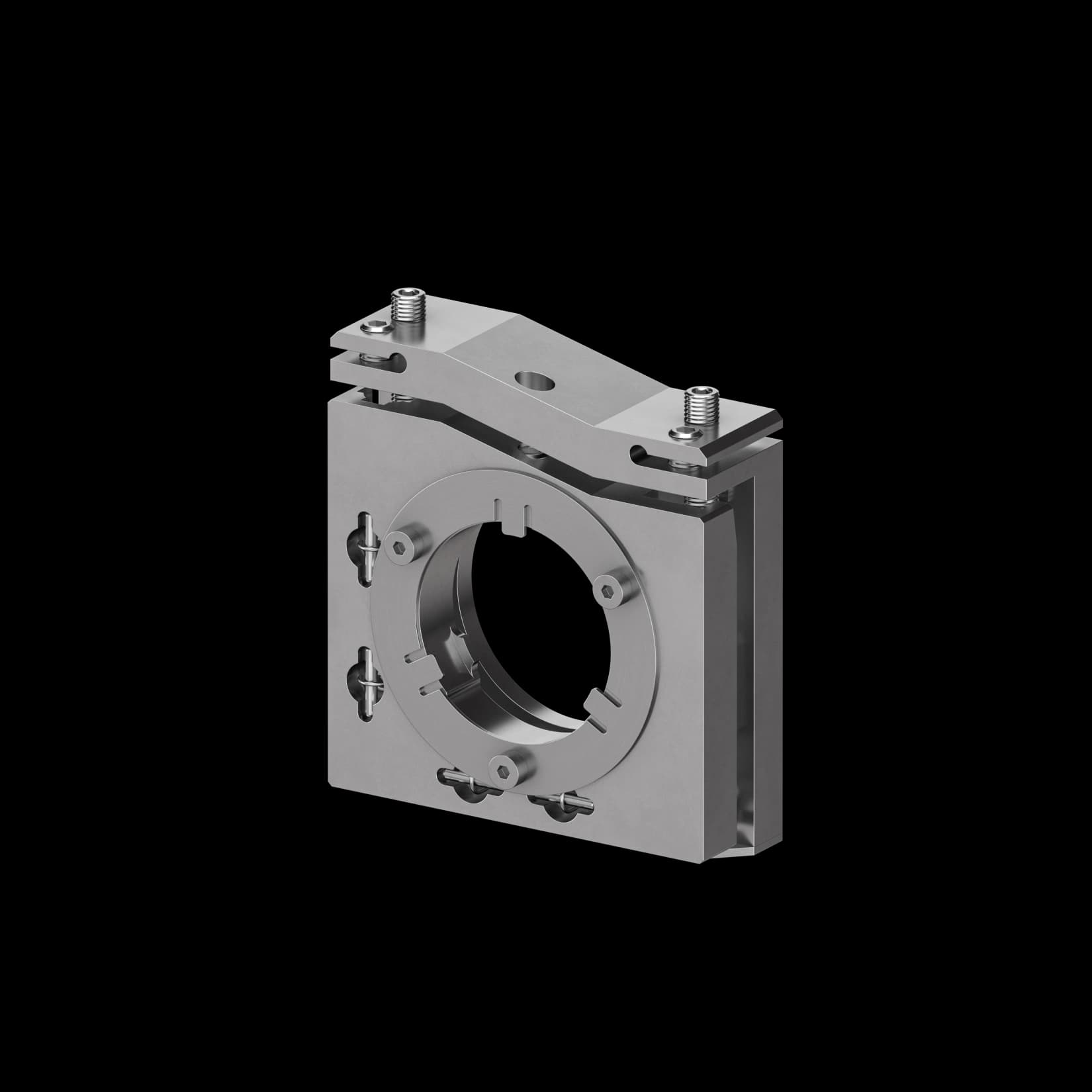

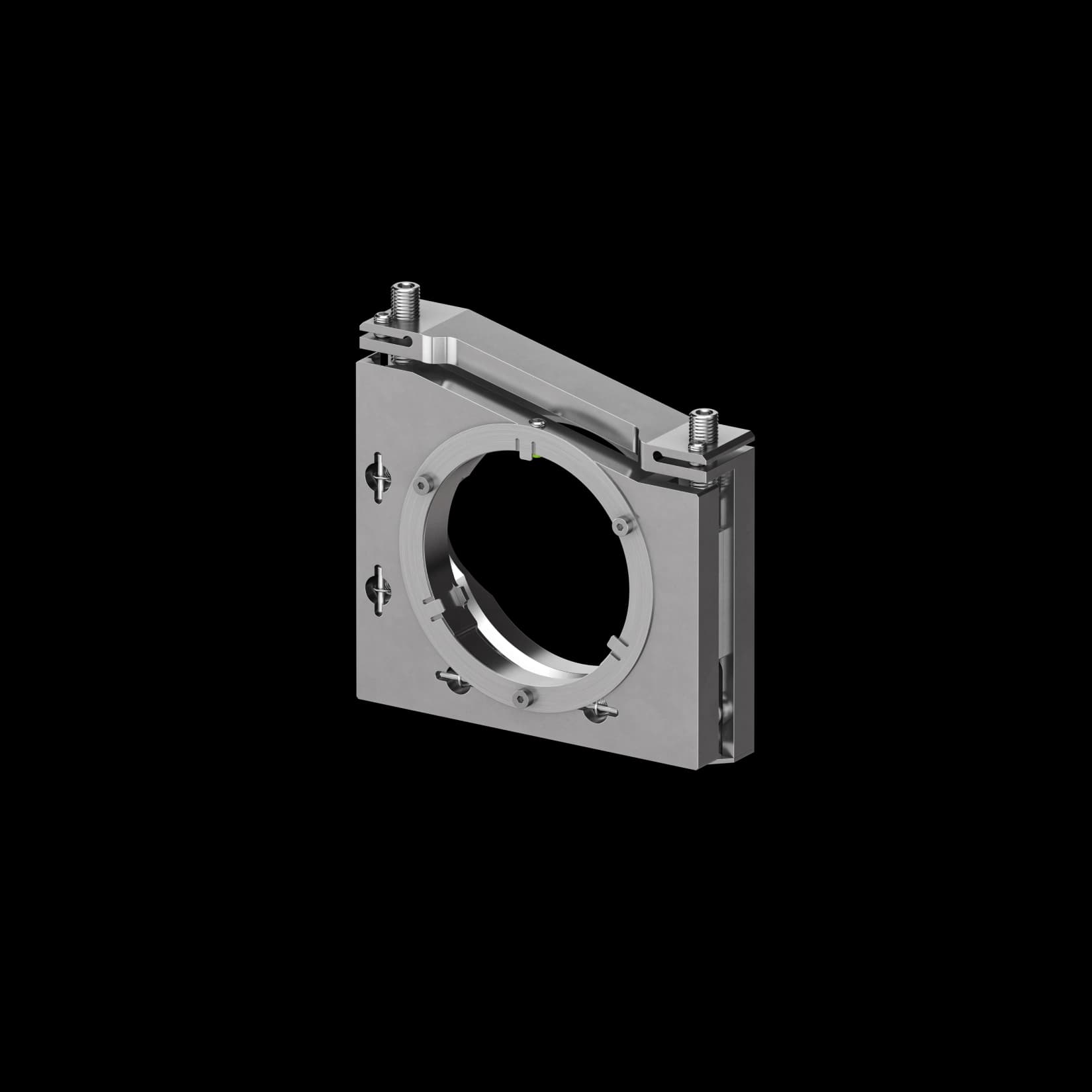

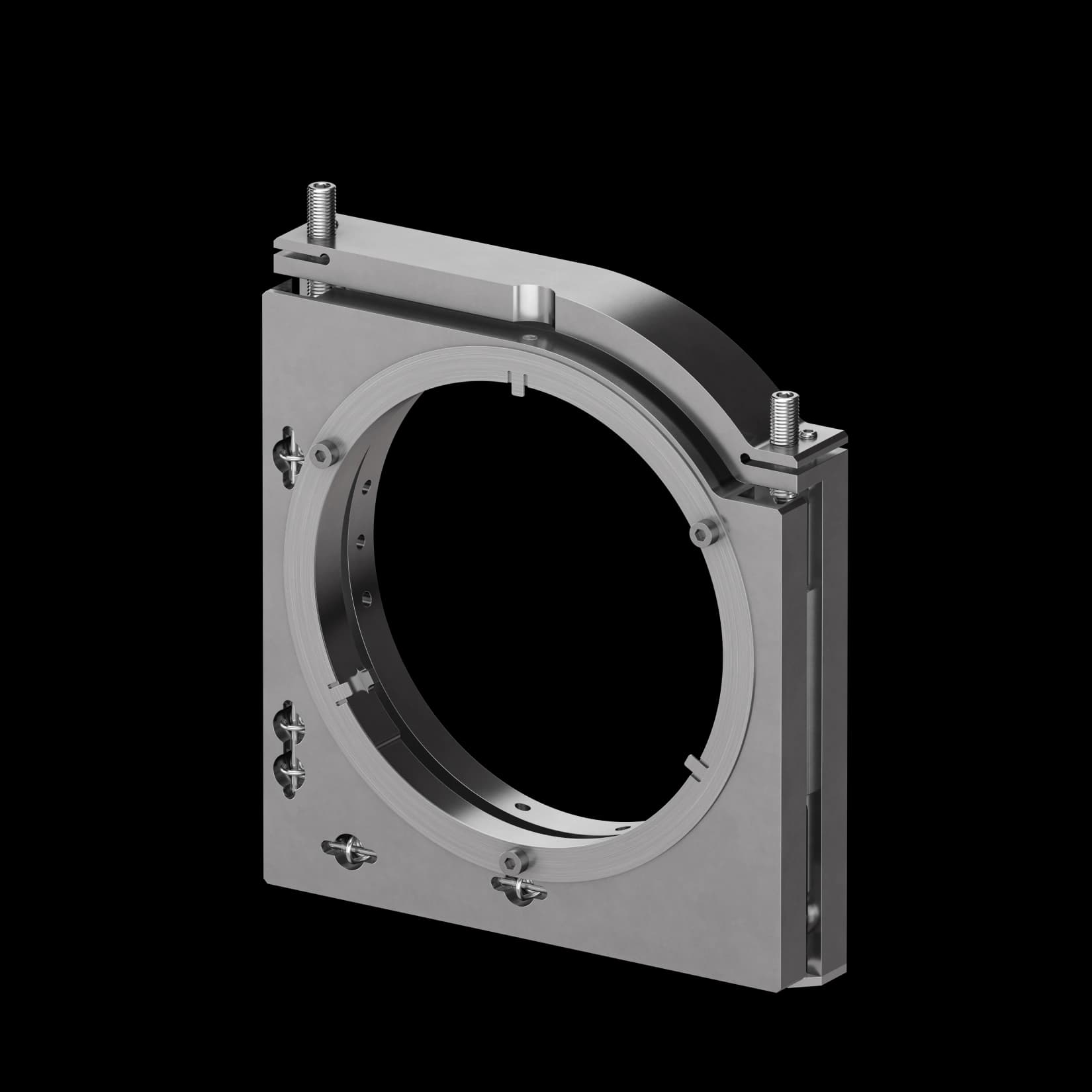

The 32KMVDS series includes steel mounts for optical elements of 1 to 4 inches in diameter with a vertical arrangement of the adjustment screws, which is convenient for compact optical systems. Screw locks are provided to prevent misalignment of the frames. In versions -A, an adapter is used to mount an optical element of greater thickness. The mounts have two M4 threaded holes and can be mounted on brackets, adapter plates, platforms and rods, and 16VDSP-1 bases.
