32KMB-1-02
on request

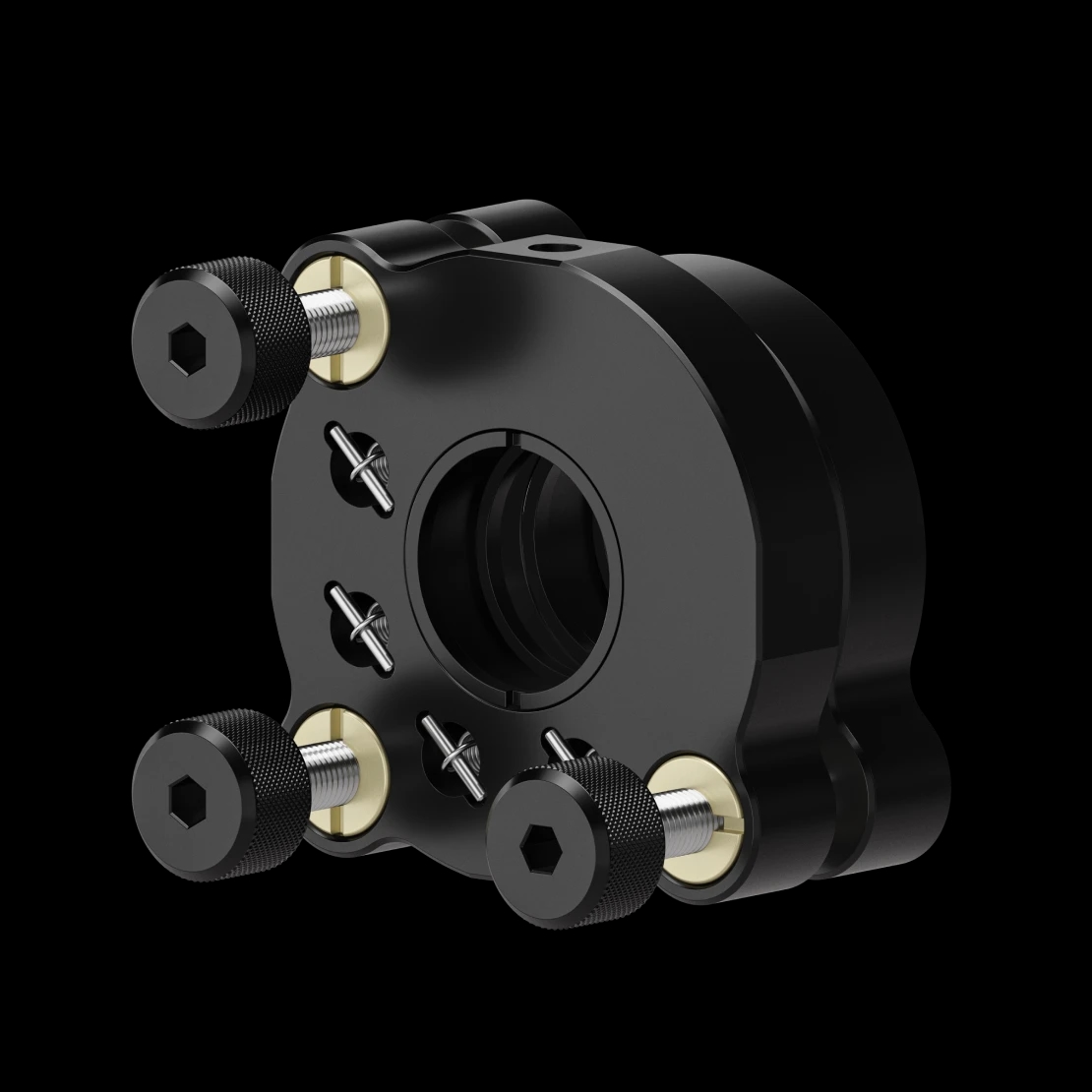

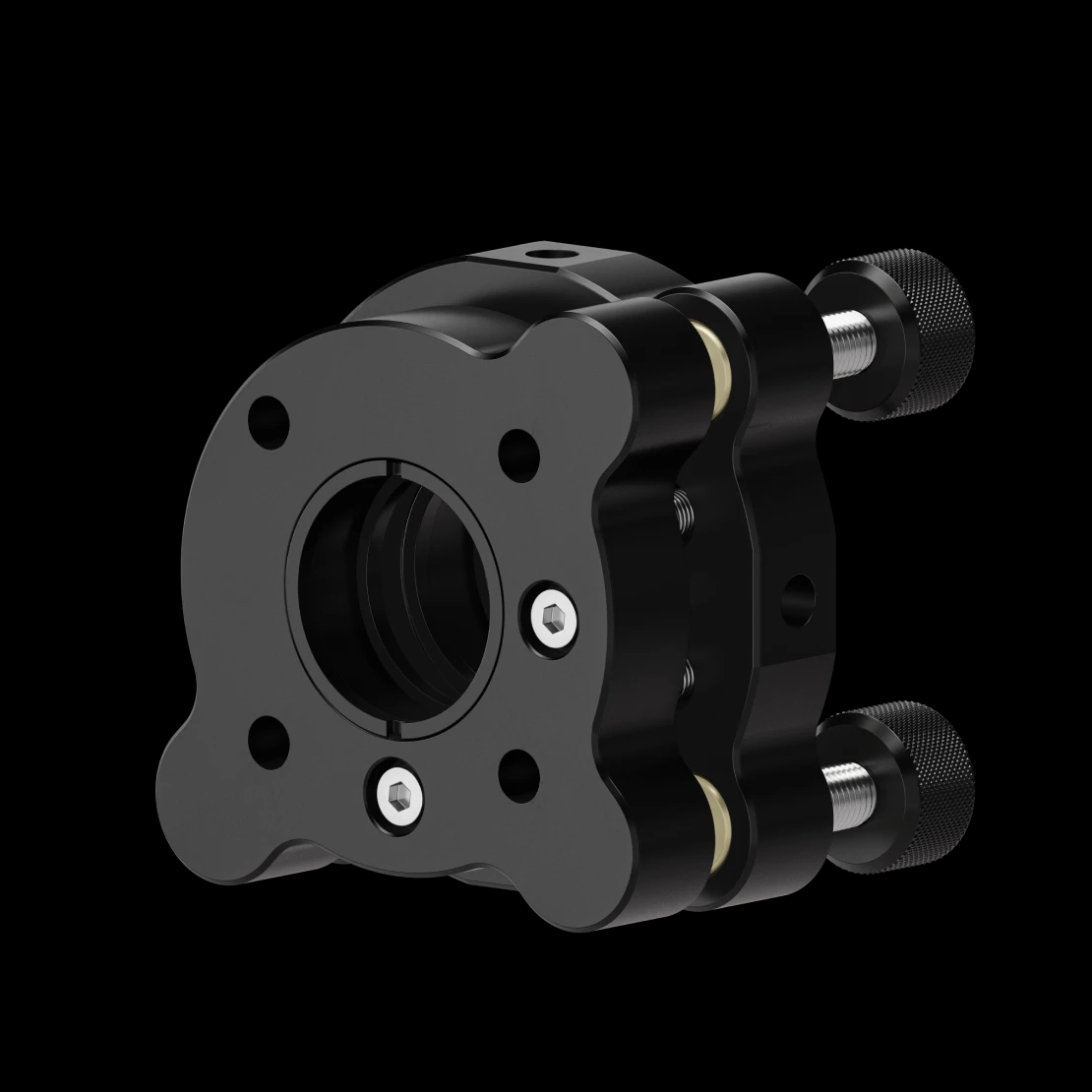

Kinematic Mount for Lens
We will contact you and offer
optimal options
The mount is designed for mounting and adjusting lenses at two angles with the possibility of linear movement along the optical axis. The pitch of the adjustment screws is 0.25 mm, due to which a sensitivity of 0.34° is achieved.
The lens is secured with locking rings in both parts of the mount, which allows the mount to be used in mount systems.
