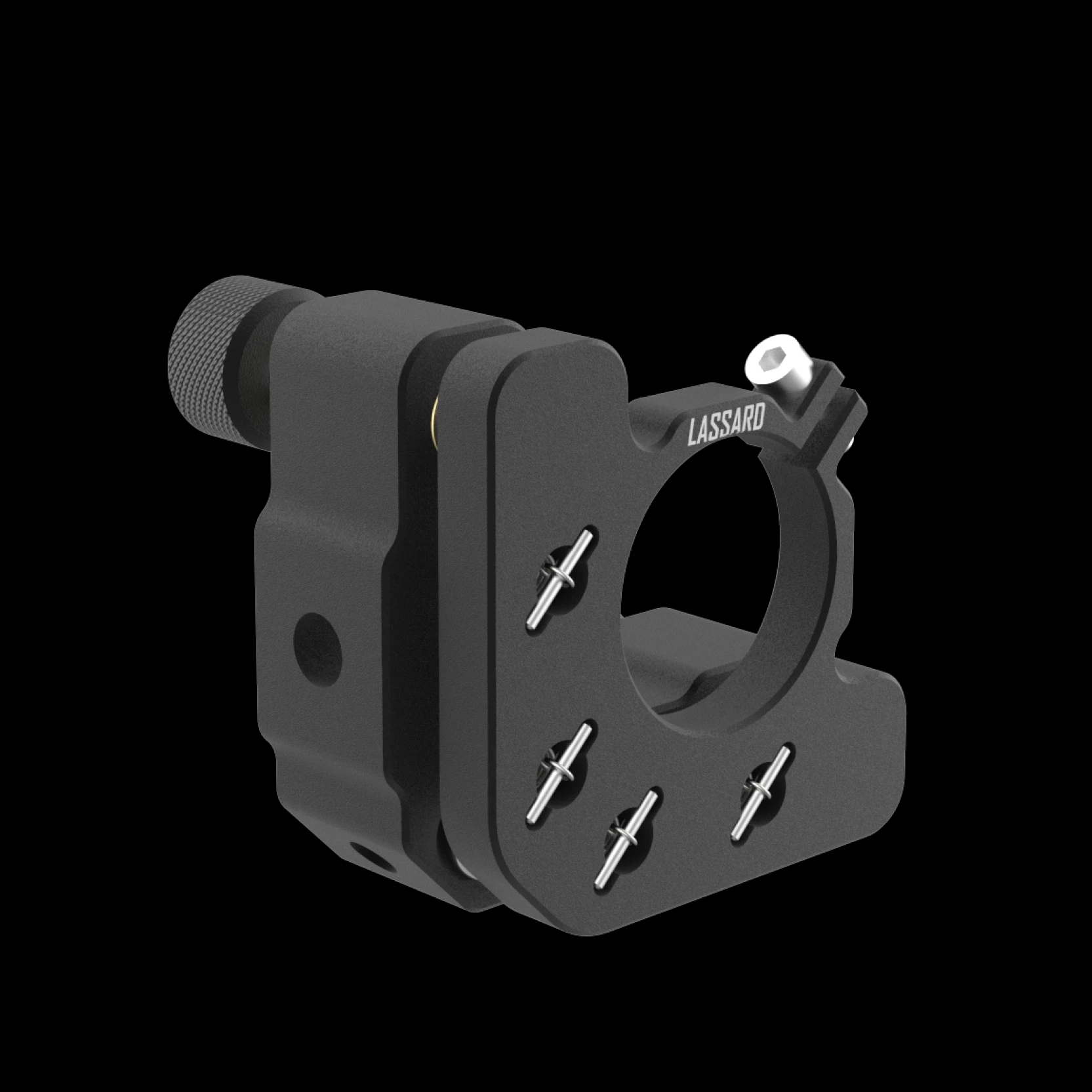

32KM-01
Kinematic Mount
The kinematic mount 32KM-01 differs from other models in the absence of a collar and an extended base. It allows mounting on a flat surface with greater precision, and use an elongated sleeve to reduce play in the screw pair. The mount is suitable for cylindrical elements like microscope objectives and lasers.
The two axis adjustment is made using two 21PS6 precision screws. The frame is attached to adapter plates, brackets and posts using M6 screw holes. It also allows installation with a 45° rotation.
