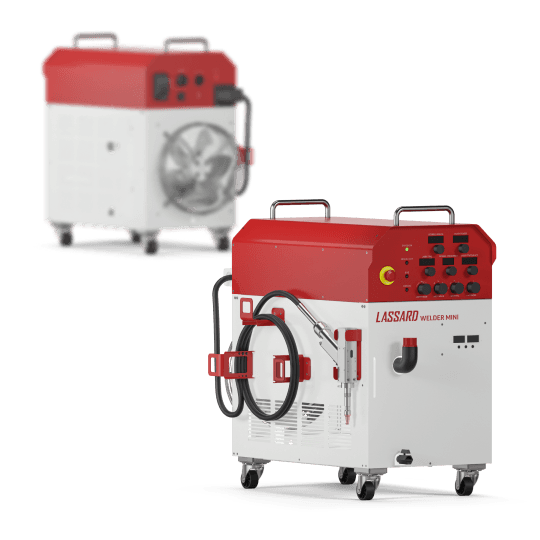

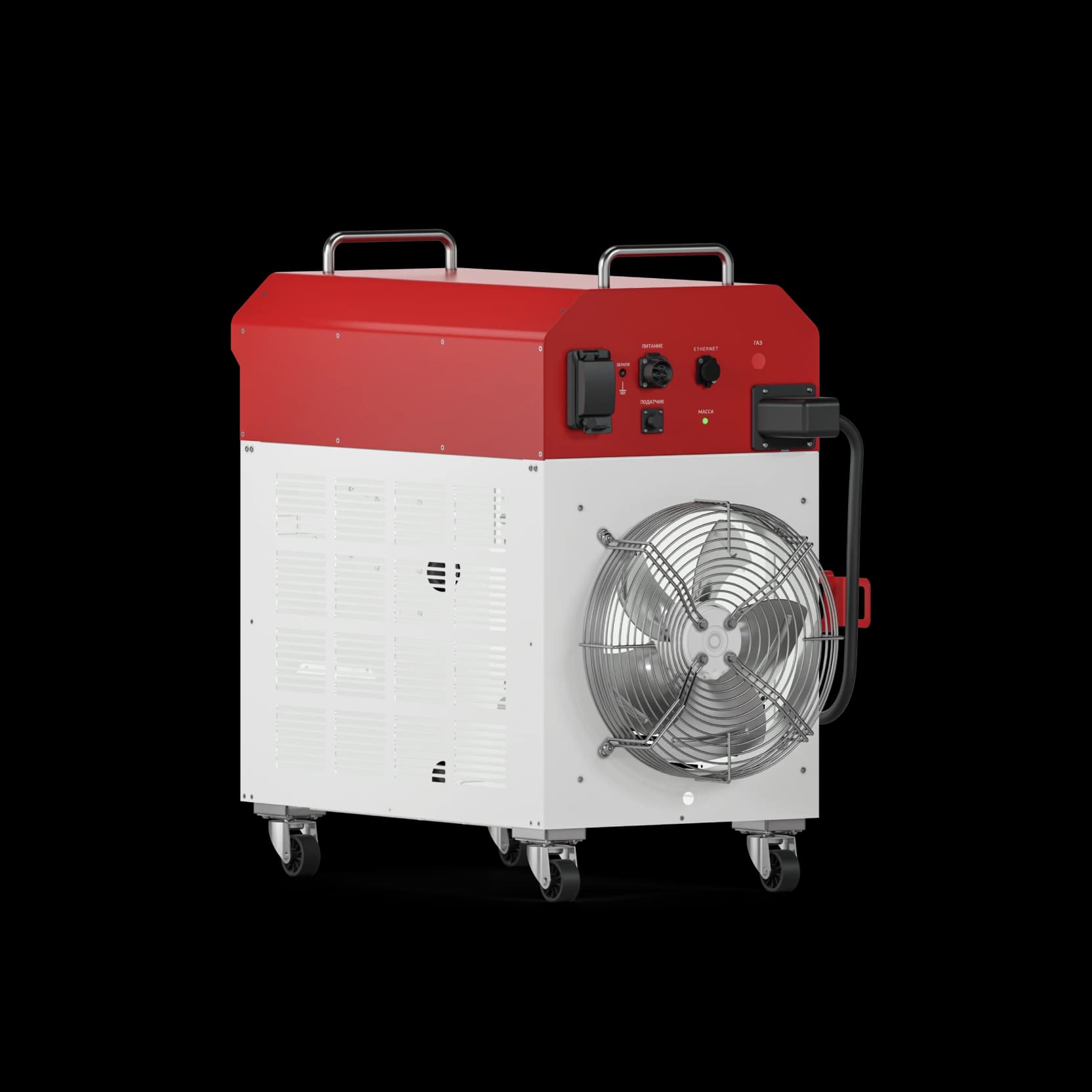

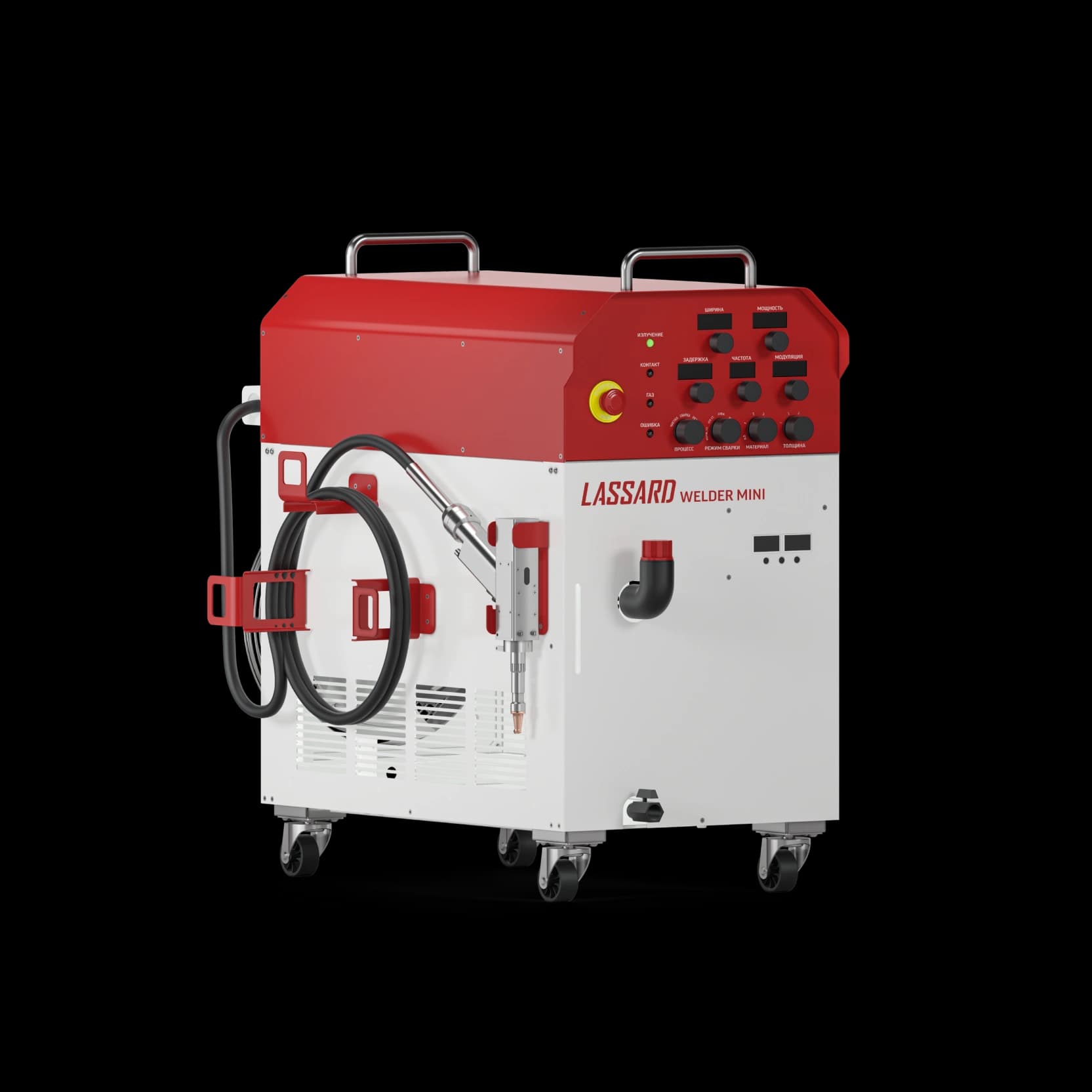

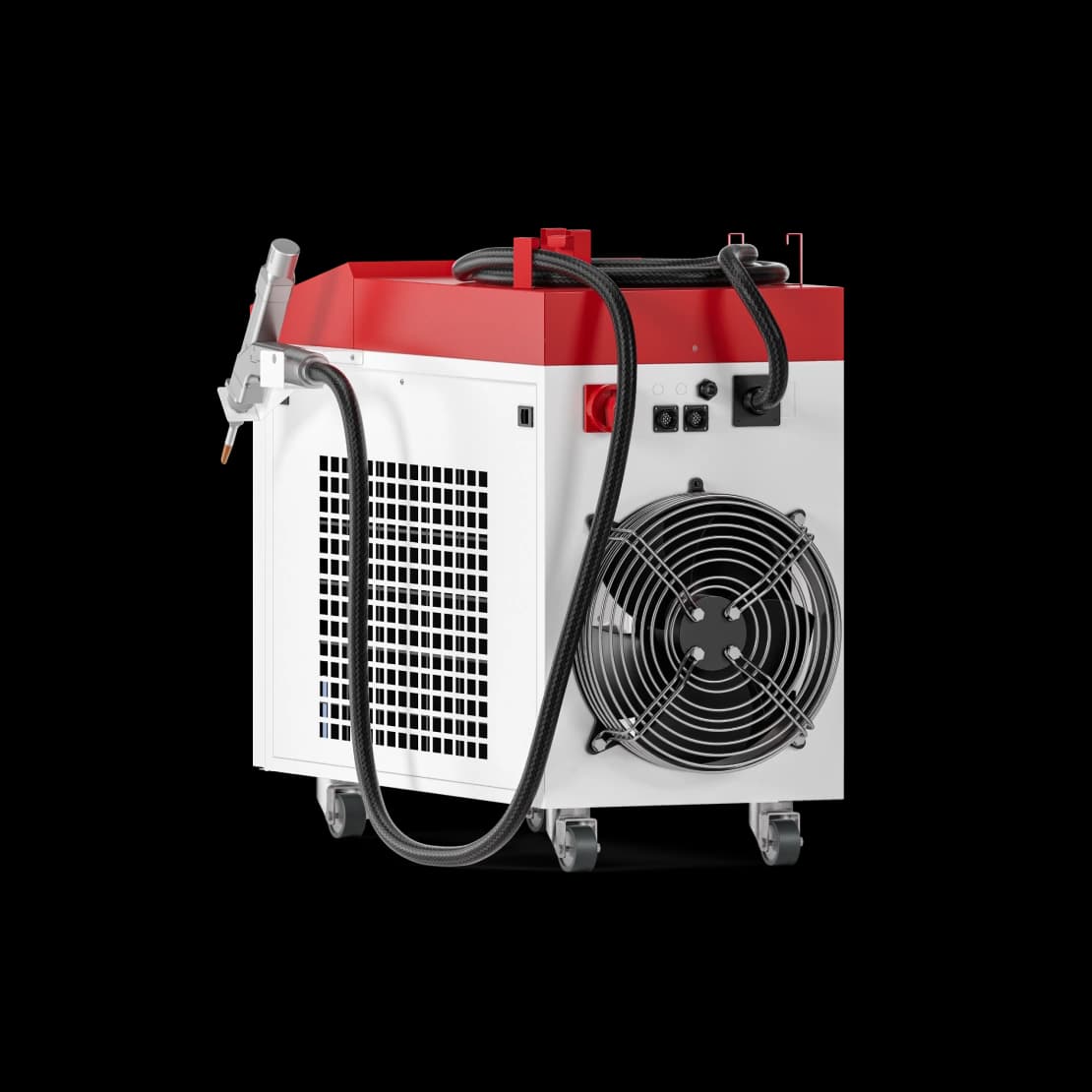

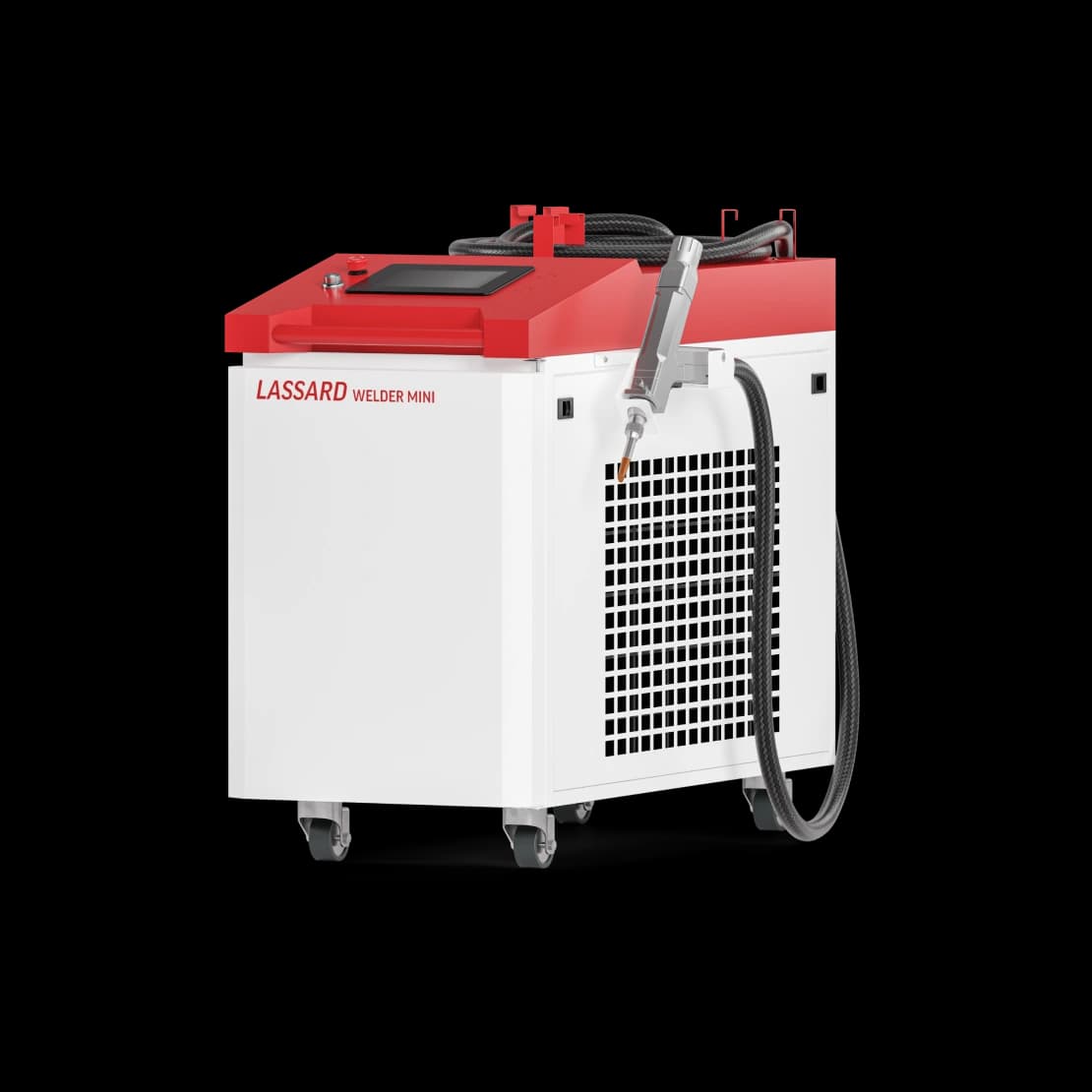

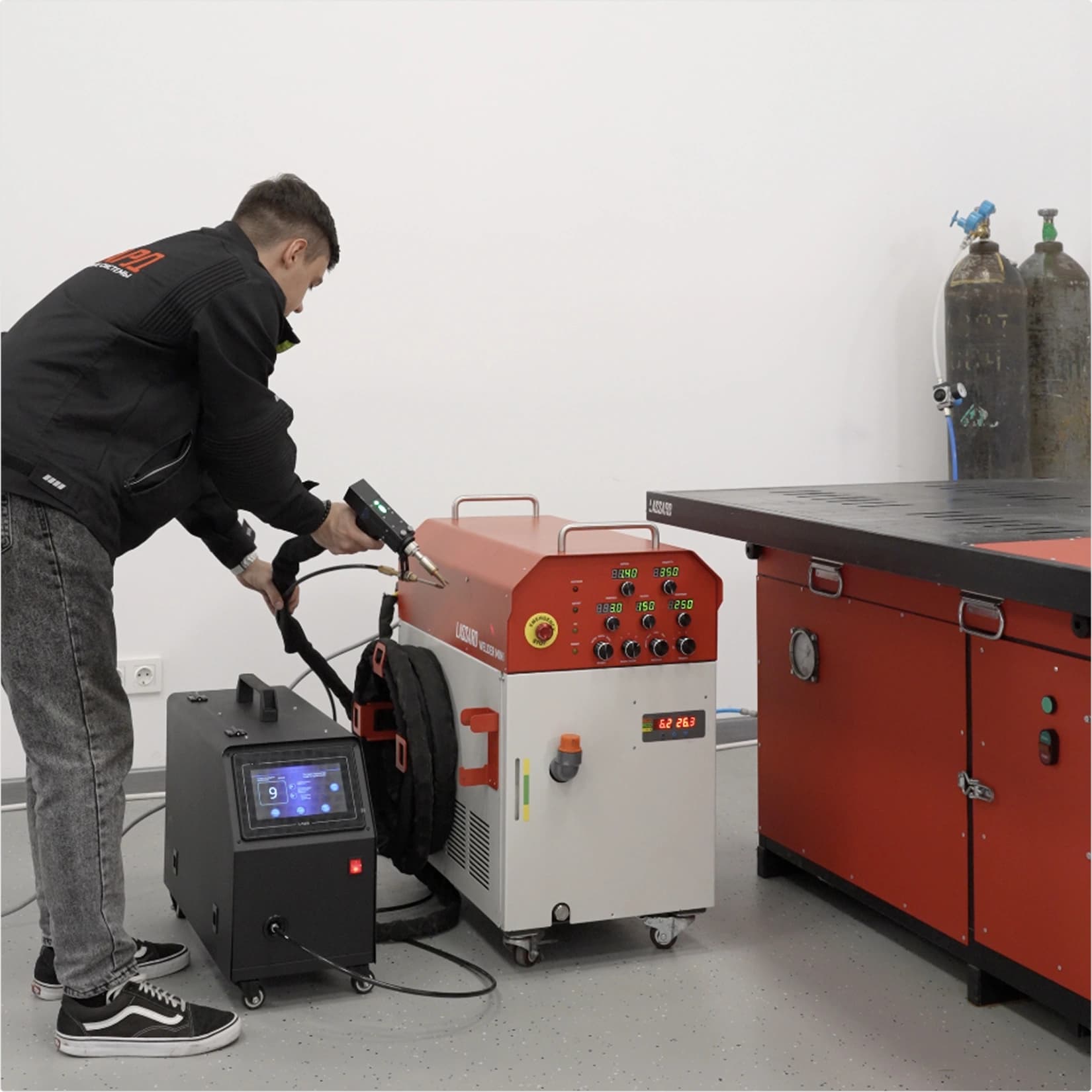

The compact WELDER MINI machine based on the fiber laser

is designed for laser welding of metal parts, making different variations of seams (butt, corner, T and ring), as well as welding using a wire feeder for incorrectly fitted products.

Compact design for working in hard-to-reach places
The machine welds in several modes: continuous and modulated

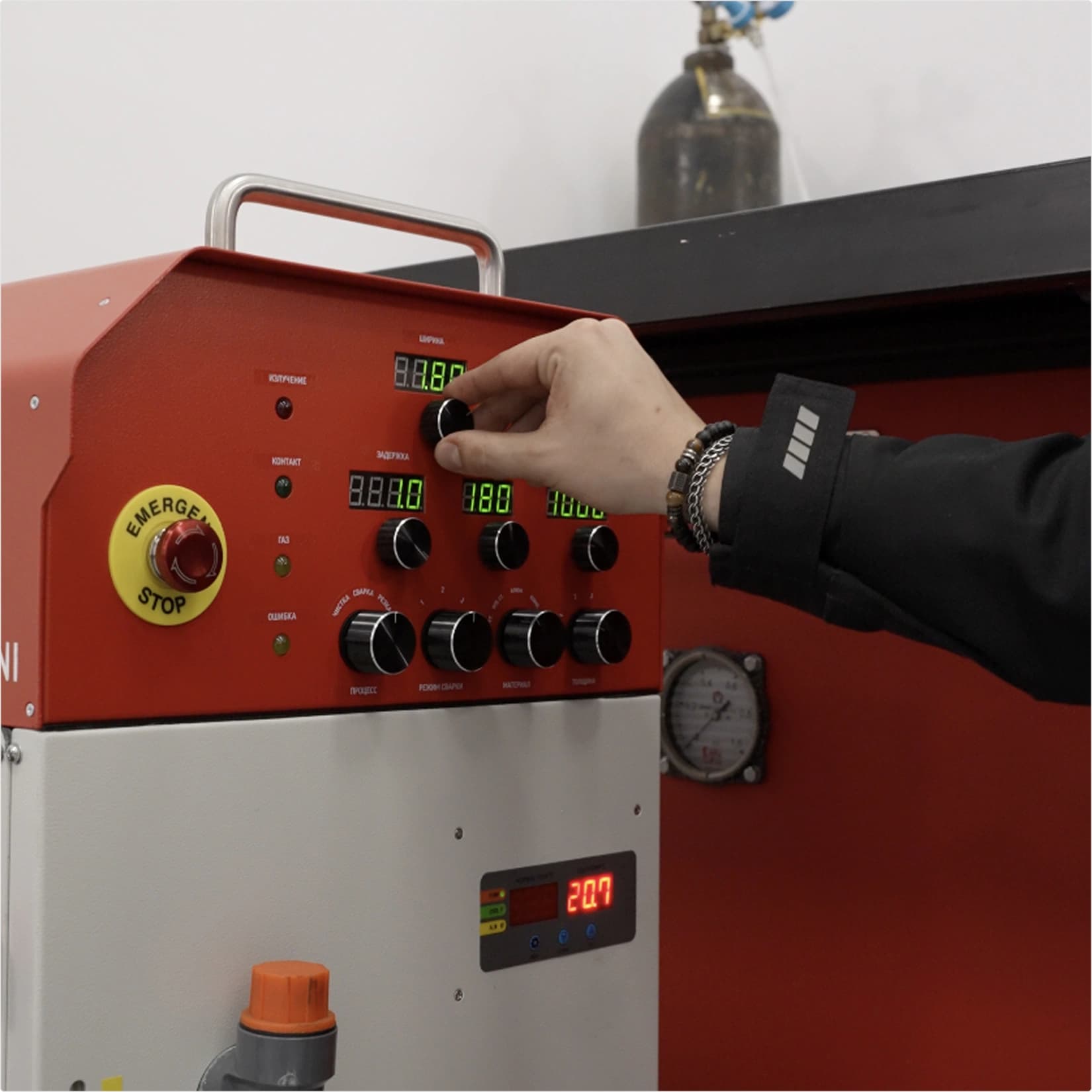

Suitable for workpieces with a thickness of 0.5 to 5 mm - the thickness value is set by the operator on the front panel
It has a wobble laser beam oscillation mode from 0.5 to 5 mm, as well as a cutting and seam cleaning mode
Maximum power consumption is 4.5 kW

Chiller

Set of nozzles for welding various seams, cutting, and cleaning

Protective lenses Ø25×3, 10 pcs

Operator goggles or welding mask

Contact clamp, power, and grounding cables

Set of replaceable contact tips for wires of different diameters

Wire feed rollers

Extended spare parts kit

Compressor

Download PDF

Radiation source	Fiber laser (Raycus)
Radiation wavelength, µm	1060
Laser operating mode	CW
Source power	1500; 2000
Cooling system	Industrial chiller with temperature control
Operating temperature, °C	15–35
Welding gap, mm	≤0.5
Thickness of welded products, mm	0.5–5
Processed sheet materials	Stainless steel, aluminum, carbon steel, galvanized steel
Cooling type	Water
Type	Manual
