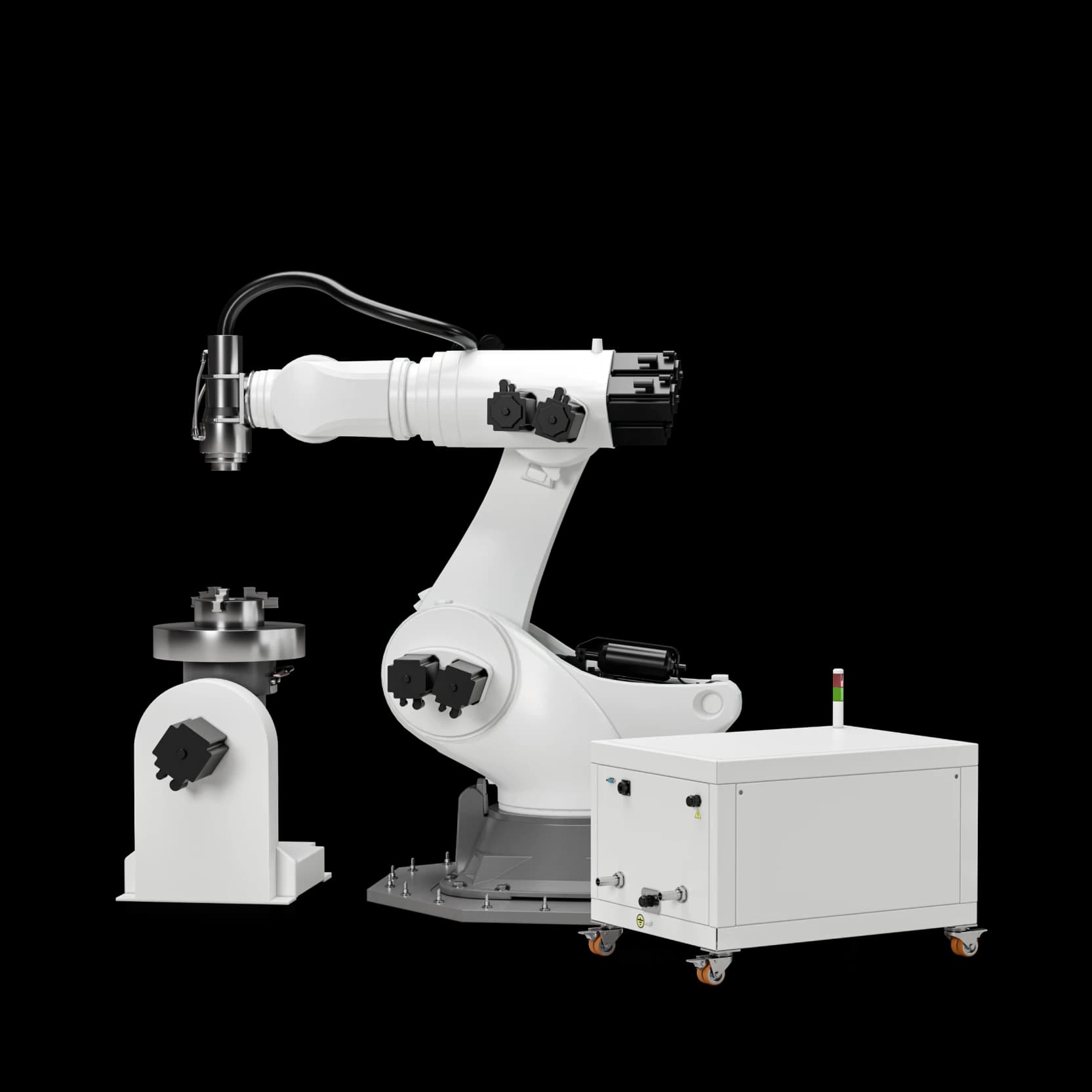

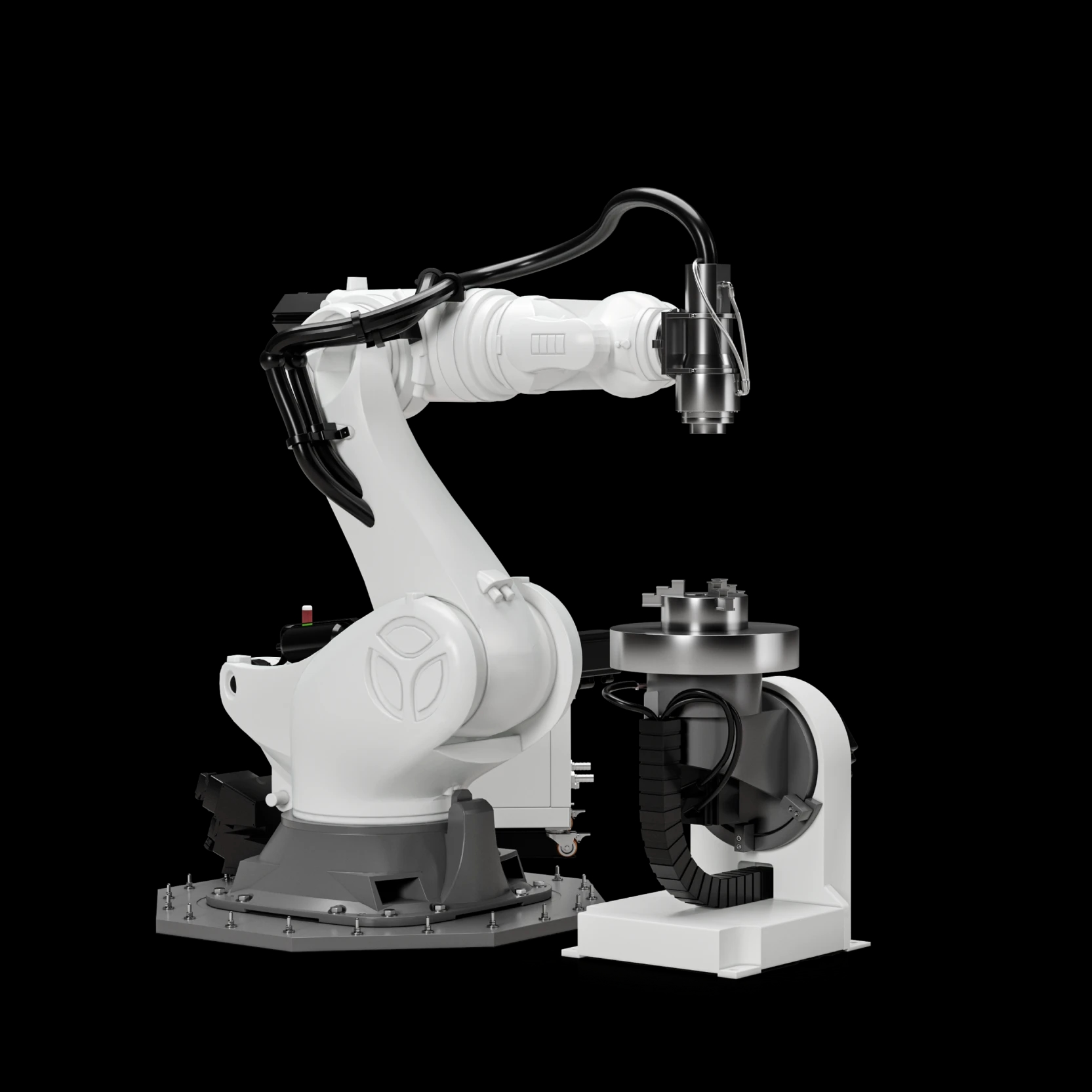

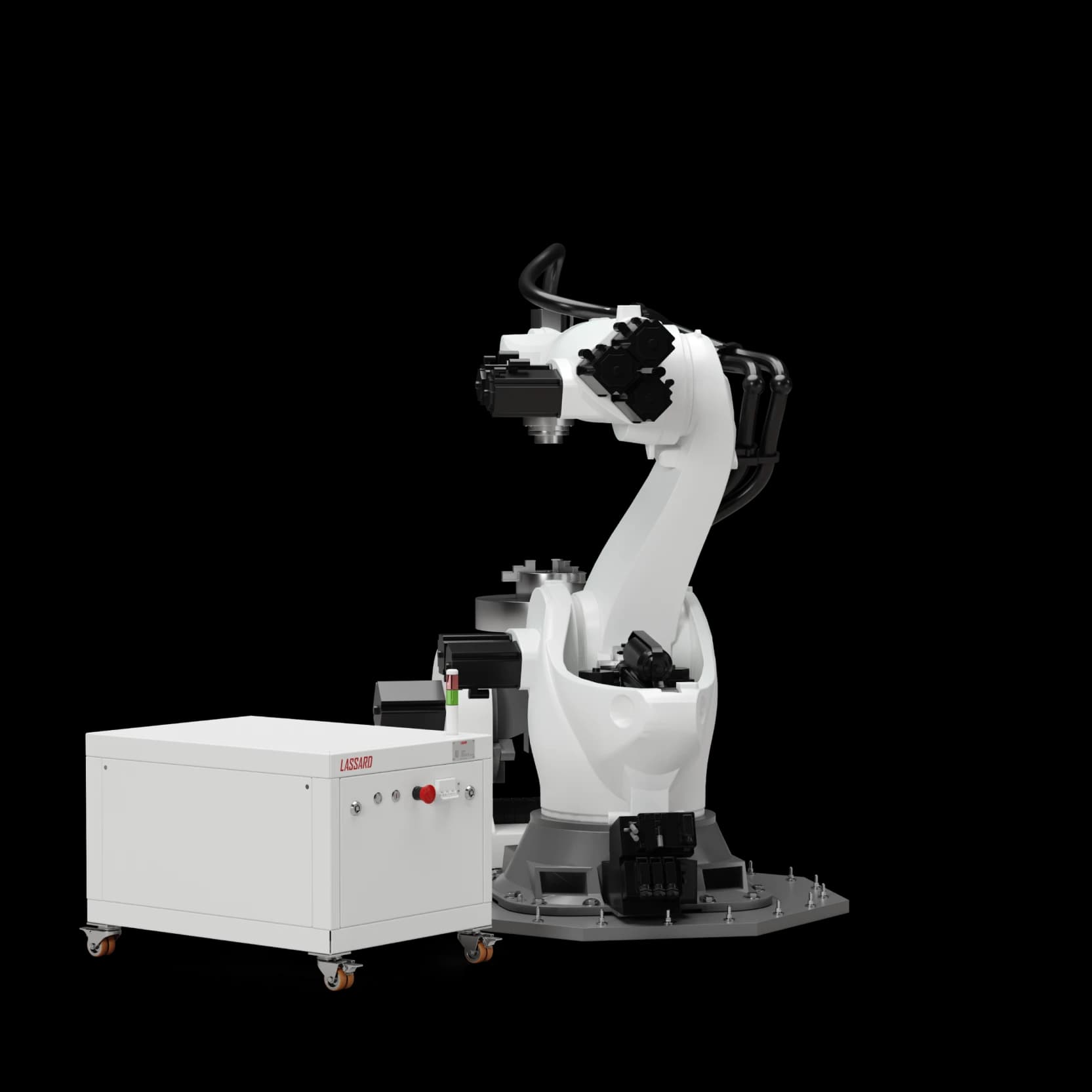

LASERHARD
Robotic laser machine for thermal hardening
LASERHARD is a robotic complex for laser thermal hardening.
It can process medium and high carbon steels, alloy tool steels, cast irons, titanium alloys.
- Provides complete automation of the process
- Technology without additional cooling medium and subsequent mechanical processing
- Heat treatment is contactless, remote and no-waste
- Local processing of large parts is possible
- High energy efficiency compared to other heat treatment methods
- Increases the hardness of the surface layer of steel up to 1.5 mm deep by 2–4 times
- Forms a uniform laser spot with variable energy profile
- 6+2 axes allow processing of parts with complex geometries
- Robotic arm ensures high positioning accuracy and repeatability
Industrial uninterruptible power supply
Protective eyewear
Filter ventilation unit
Compressor

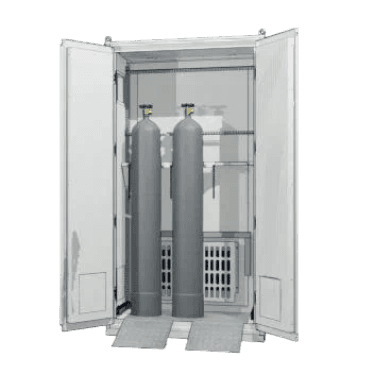

Inert gas supply system
| Radiation source | Diode laser (LASSARD) |
| Source power | 5000 |
| Radiation power control limits, % | 10–100 |
| Dimensions of laser spot at focus, mm | 5×25 |
| Manipulator reach area, mm | 1730 |
| Manipulator repeatability, mm | ±0.05 |
| Processed sheet materials | Medium-carbon steel, high-carbon steel, alloy tool steel, cast iron, titanium alloys |
| Radiation wavelength, µm | 760–980 |
