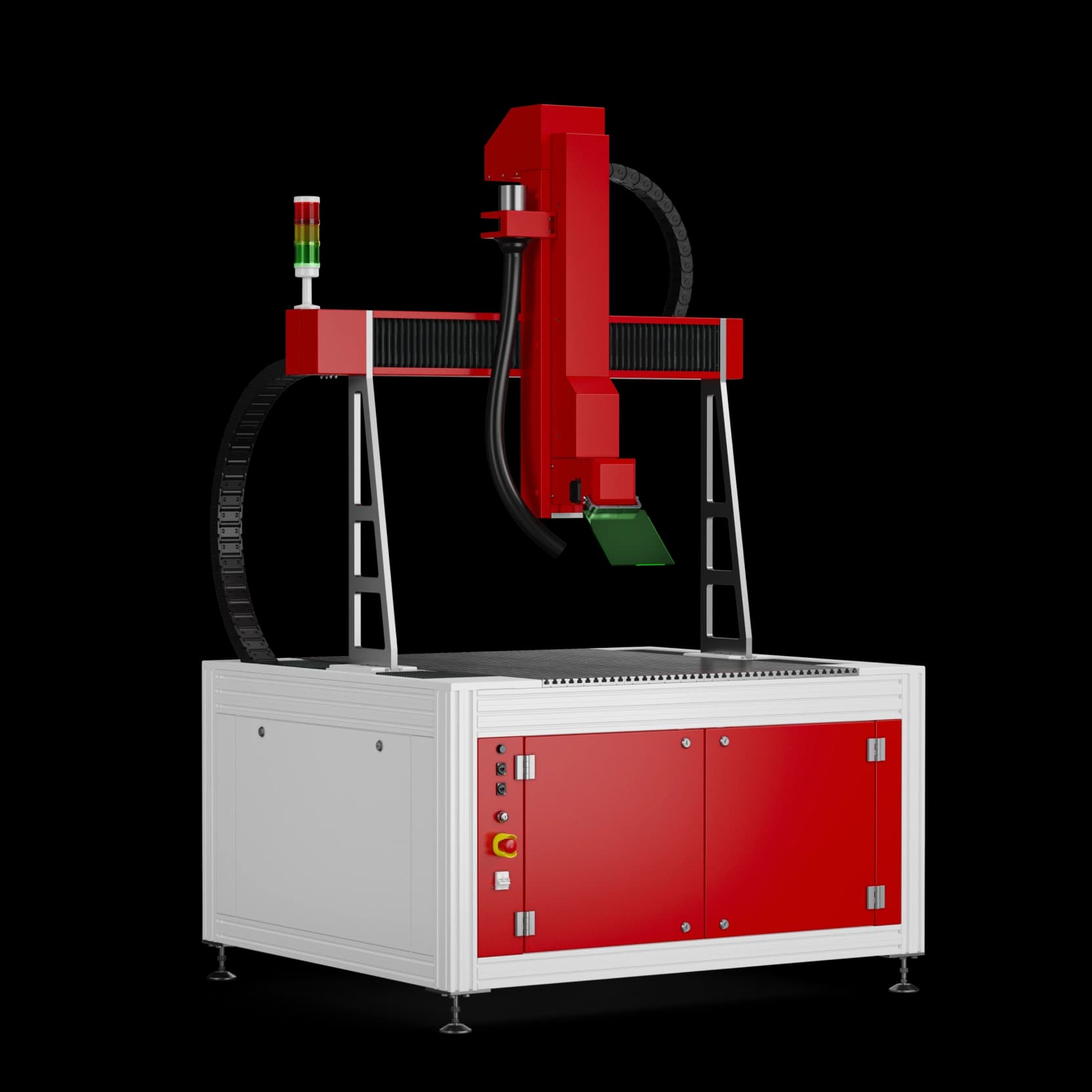

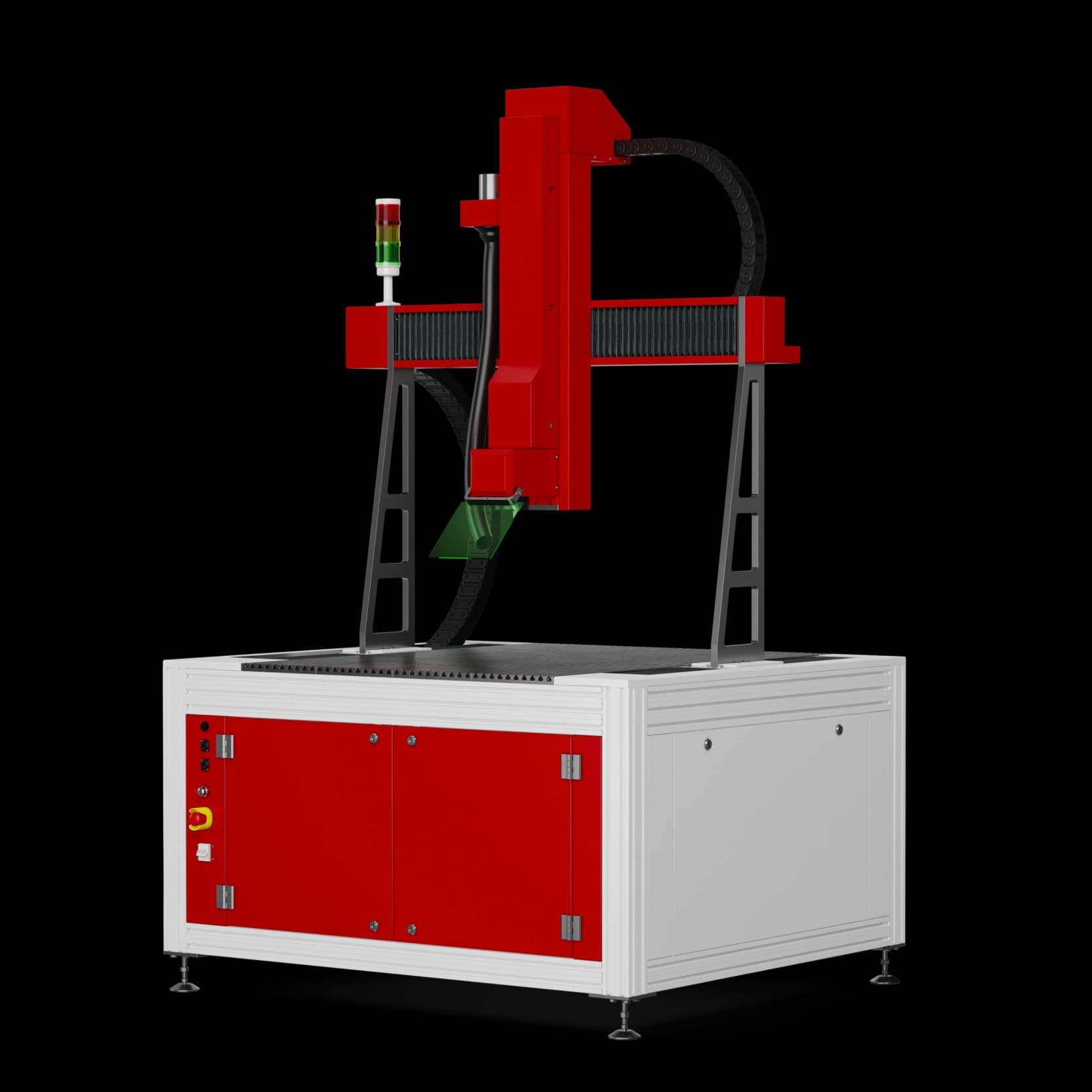

GRAVER PORTAL
Industrial laser engraver with compact gantry design
The industrial laser engraver GRAVER PORTAL with a compact portal design can apply company logos, barcodes, serial numbers, and current dates.
It is widely used in the jewelry industry, dentistry, production of advertising materials and souvenirs. It is equipped with an automatic travel system along the Z axis for processing relief products with height differences.
- GRAVER PORTAL is equipped with an automatic travel system along the Z axis for processing relief products with height differences
- An automatic system for engraving small items using the “cassette method” is provided
- GRAVER PORTAL can apply color laser markings
- Can perform contrast markings while preserving surface properties
- GRAVER PORTAL performs seamless high-speed engraving of cylindrical surfaces
- The control unit and fumes removal system are integrated into the housing
- The machine is equipped with cabinet protection for noise insulation and safety of operators
Color Laser Marking on Stainless Steel
and Surface Analysis Using a Sensofar S lynx Optical Profilometer
Fiber laser source
Height sensor
Interchangeable lens
Exhaust system
Rotator
Portal cabin enclosure
Pedal
Operator visor
Jewelry Industry
Souvenir products
Industrial production
Promotional materials
Dentistry
| Design | Portal |
| Radiation source | LASSARD, VPG Laserone, JPT, Raycus |
| Radiation wavelength, µm | 1070 |
| Laser service life, h | 100000 |
| Cooling type | Air |
| Source power | 20; 30; 50; 60; 80; 100 |
| Processing field, mm | 1300×1300; 957×893 |
| Control | 110×110; 175×175; 220×220; 300×300 |
| PC Connection, V | USB 3.0 |
| Display | Diagonal 17″ |
| Processed sheet materials | Steel, aluminum, brass, titanium, painted (anodized) surfaces, tantalum, molybdenum, tungsten, plastics, plastic, semiconductors, polymers, ceramics, silicate materials, films, concrete, stone, rubber |
| Laser operating mode | Pulsed |
| Power supply, Hz | 220_50_16 |
