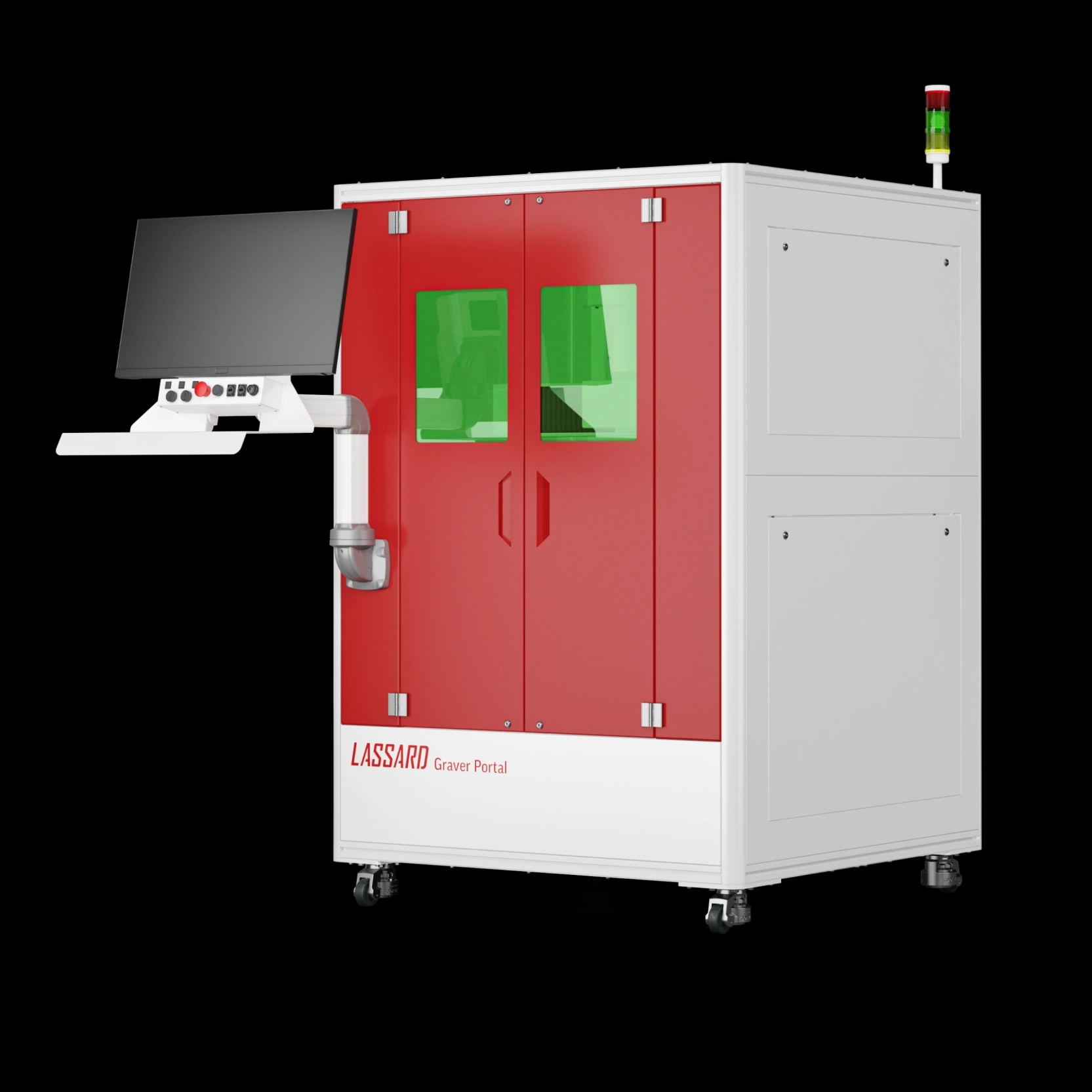

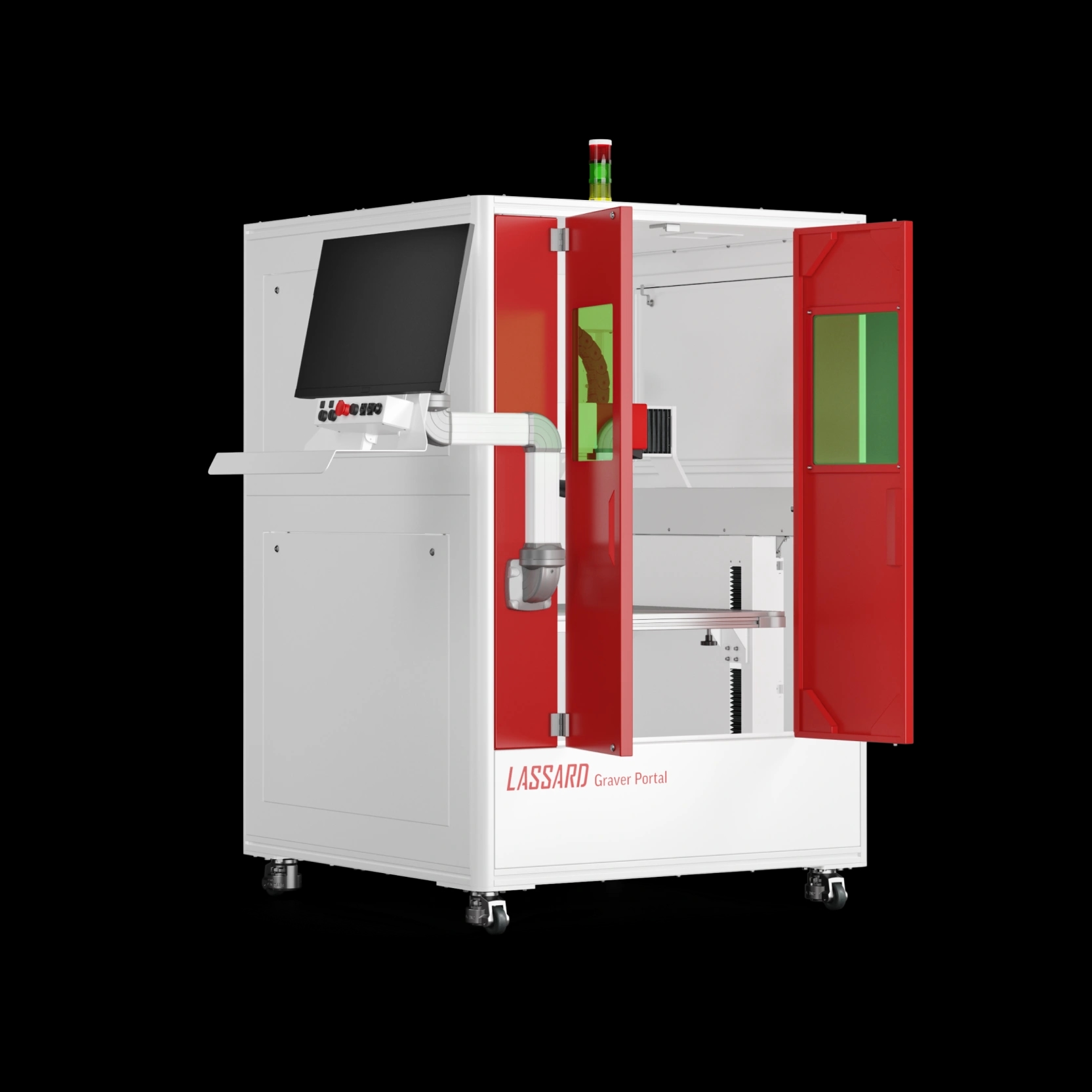

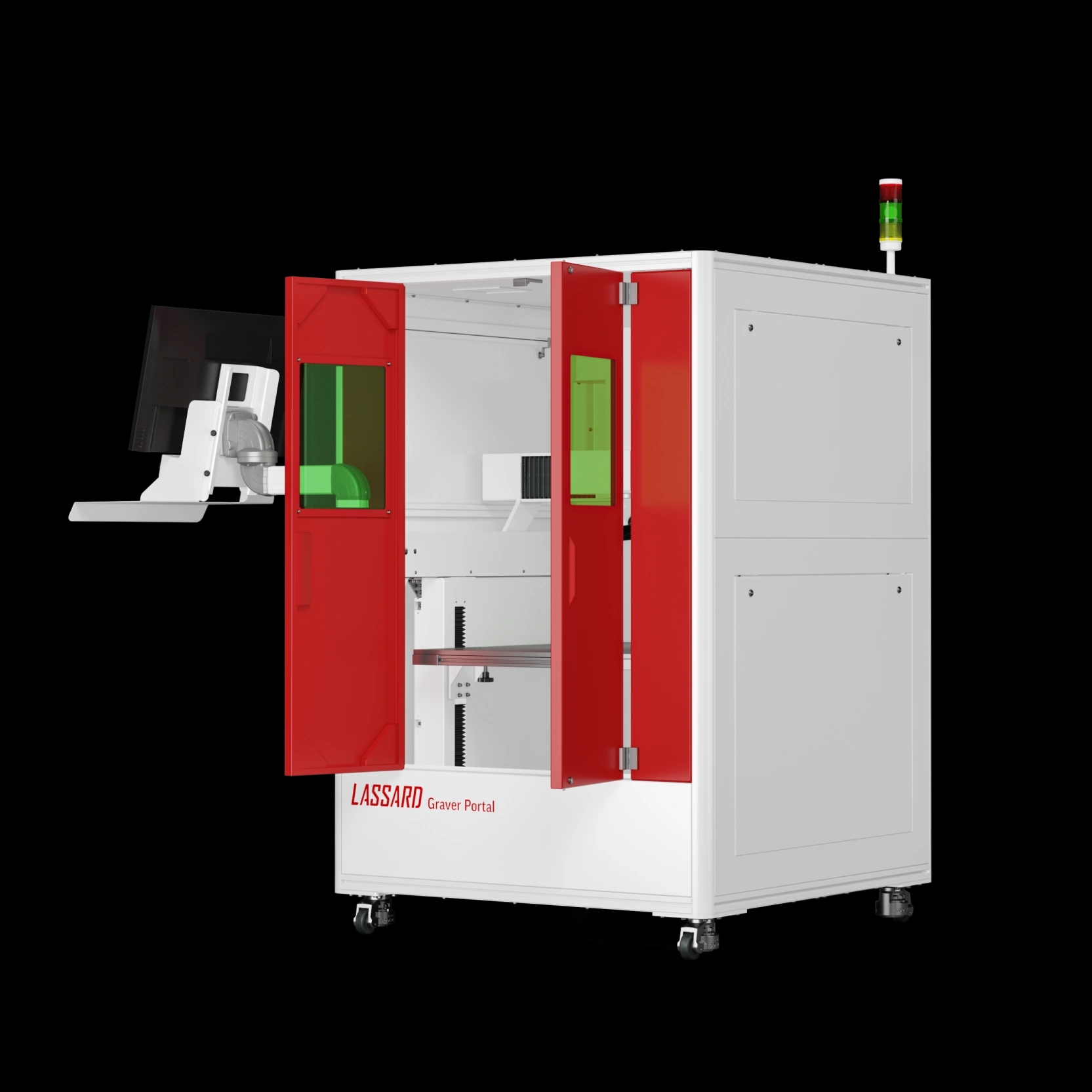

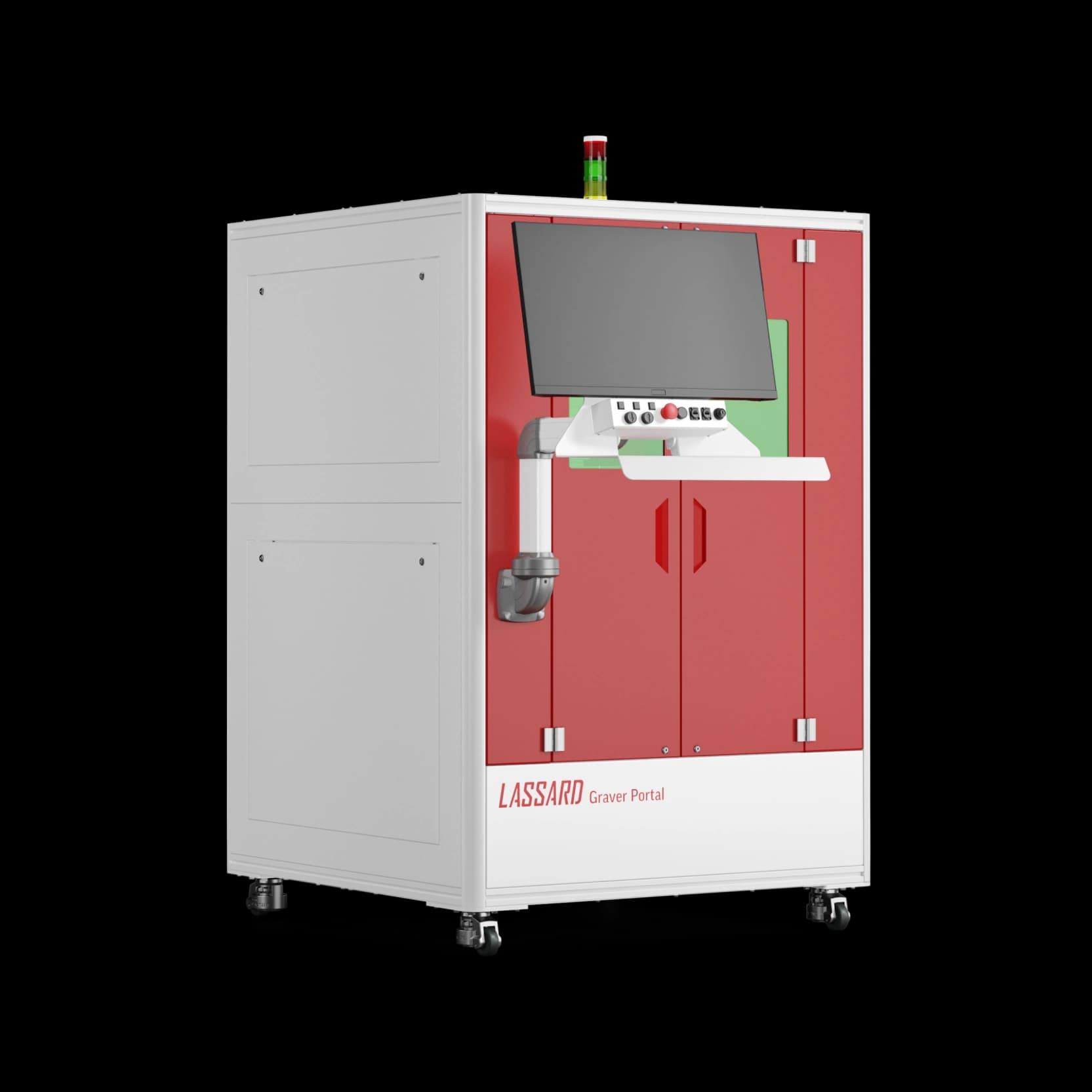

Industrial laser engraver with compact gantry design
It is widely used in the jewelry industry, dentistry, production of advertising materials and souvenirs. It is equipped with an automatic travel system along the Z axis for processing relief products with height differences.
Jewelry Industry
Souvenir products
Industrial production
Promotional materials
Dentistry
| Design | Portal |
| Radiation source | Fiber laser (IPG Photonics / Raycus / LASSARD) |
| Radiation wavelength, µm | 1064 |
| Laser operating mode | Pulsed |
| Average output power | 20, 30, 50, 100 |
| Cooling type | Air |
| Laser service life, h | 100000 |
| Processing speed, m/s | Up to 10 |
| Processing field, mm | 110×110; 175×175; 220×220; 300×300 |
| PC connection | USB 3.0 |
| Display | 17″ diagonal |
| Supported graphic formats | JPG, PNG, GIF, TGA, BMP, TIF, AI, DXF, DST, PLT, SVG |
| Supported fonts | TrueType, SHX, JSF |
| Operating temperature range, °С | 10–45 |
| Power supply, Hz | 220_50_16 |
| Processed sheet materials | Stone, rubber, steel, aluminum, brass, titanium, painted (anodized) surfaces, plastics, plastic, polymers, semiconductors, films, concrete, ceramics, silicate materials |
