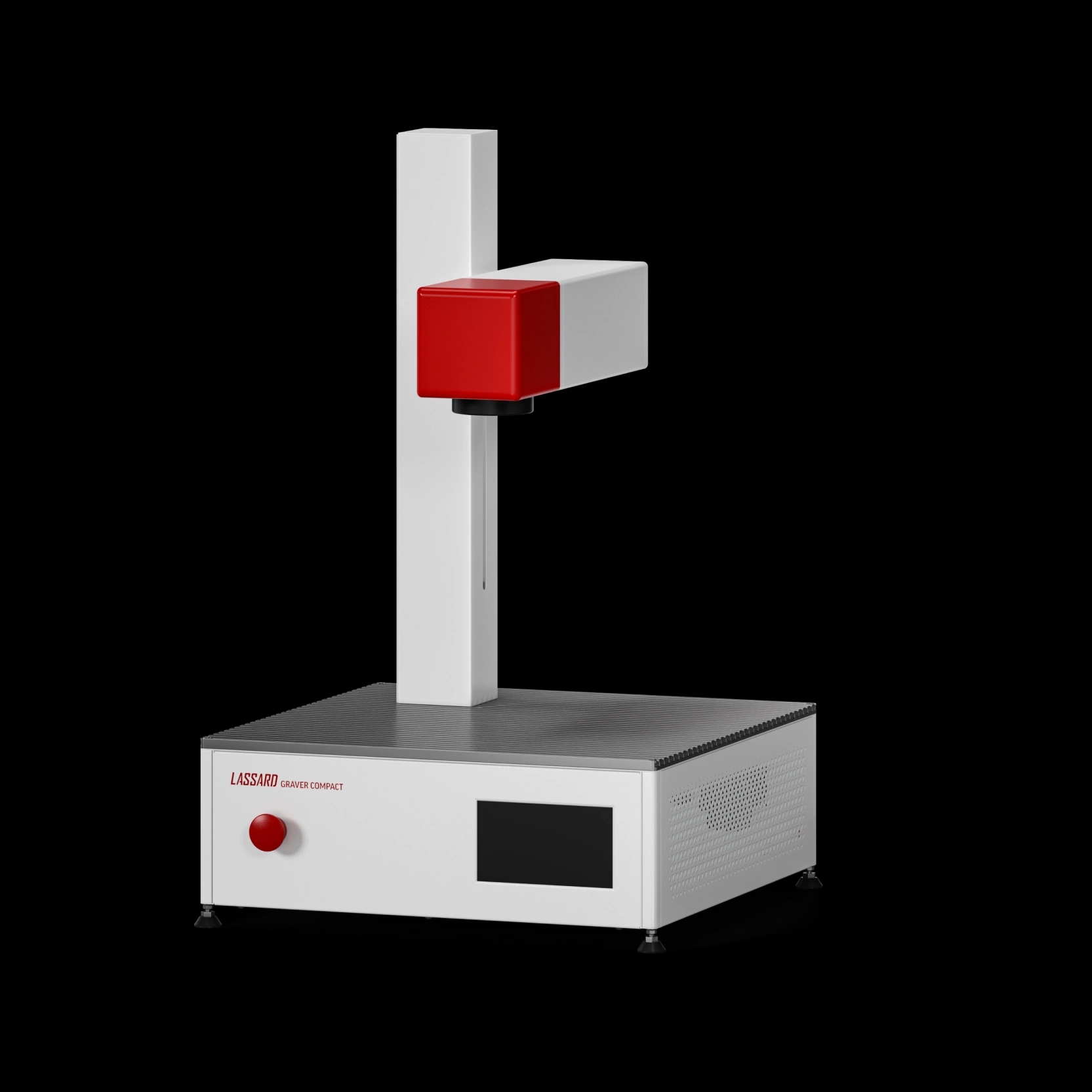

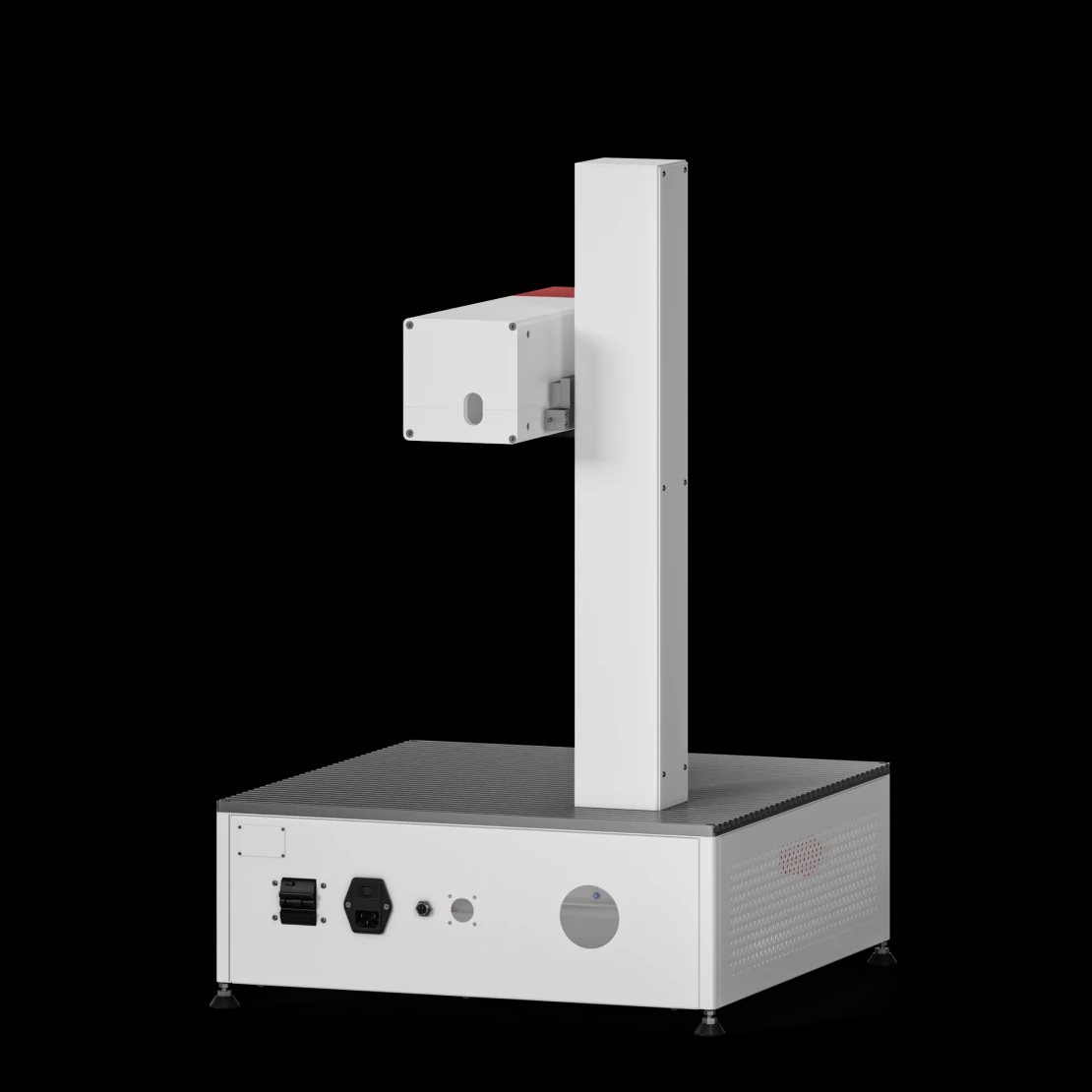

GRAVER COMPACT
Compact laser engraver
GRAVER COMPACT can apply company logos, barcodes, serial numbers, and current dates.
It can be used to produce and brand souvenirs, to create exclusive series of jewelry.
- High speed of image application with engraving line width of 0.02 mm and more
- GRAVER COMPACT performs high-contrast markings while preserving surface properties
- Seamless high-speed engraving of cylindrical surfaces

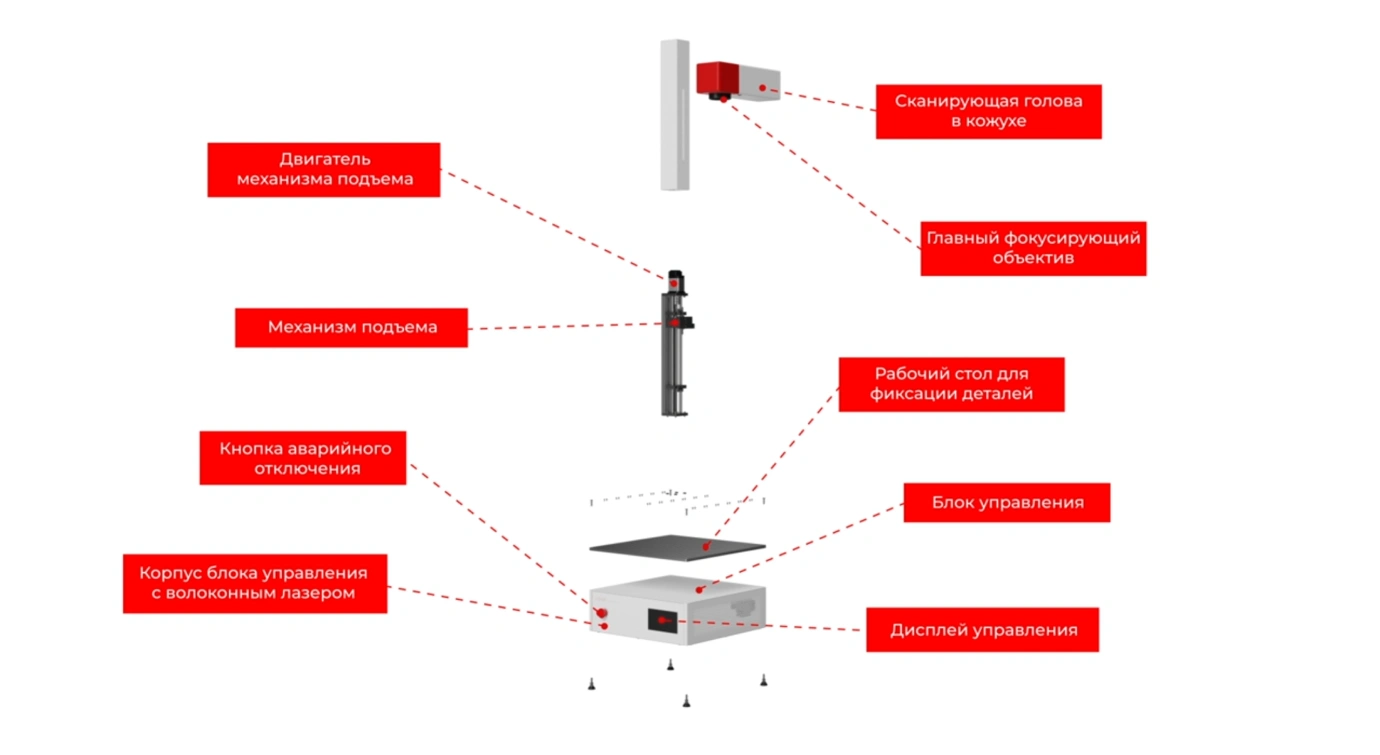

- The control unit is integrated into the housing
- Compact desktop design
Jewelry Industry
Souvenir products
Industrial production
Promotional materials
Dentistry
Fiber laser source
Protective enclosure
Rotator
Smoke exhaust system
Laptop

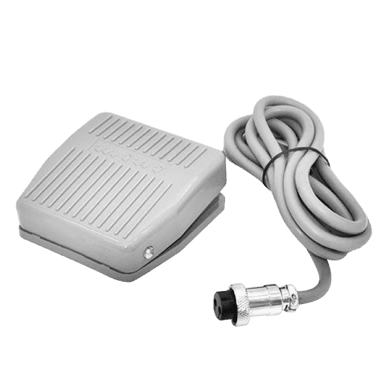

Pedal
Exhaust system
| Radiation source | Fiber laser (IPG Photonics / Raycus / LASSARD) |
| Laser operating mode | Pulsed |
| Source power | 20; 30; 50; 100 |
| Cooling type | Air |
| Marking depth (for one iteration), mm | 0.1–0.4 |
| Laser service life, h | 100000 |
| Processing speed, m/s | Up to 10 |
| Single scan field, mm | 110×110; 175×175; 220×220; 300×300 |
| PC connection | USB 3.0 |
| Display | 7″ diagonal |
| Supported graphic formats | JPG, PNG, GIF, TGA, BMP, TIF, AI, DXF, DST, PLT, SVG |
| Supported fonts | TrueType, SHX, JSF |
| Power supply, Hz | 220_50_16 |
| Operating temperature range, °С | 10–45 |
| Weight, kg | 20 |
| Processed sheet materials | Stone, rubber, steel, aluminum, brass, titanium, painted (anodized) surfaces, plastics, plastic, polymers, semiconductors, films, concrete, ceramics, silicate materials |
| Type | Desktop |
