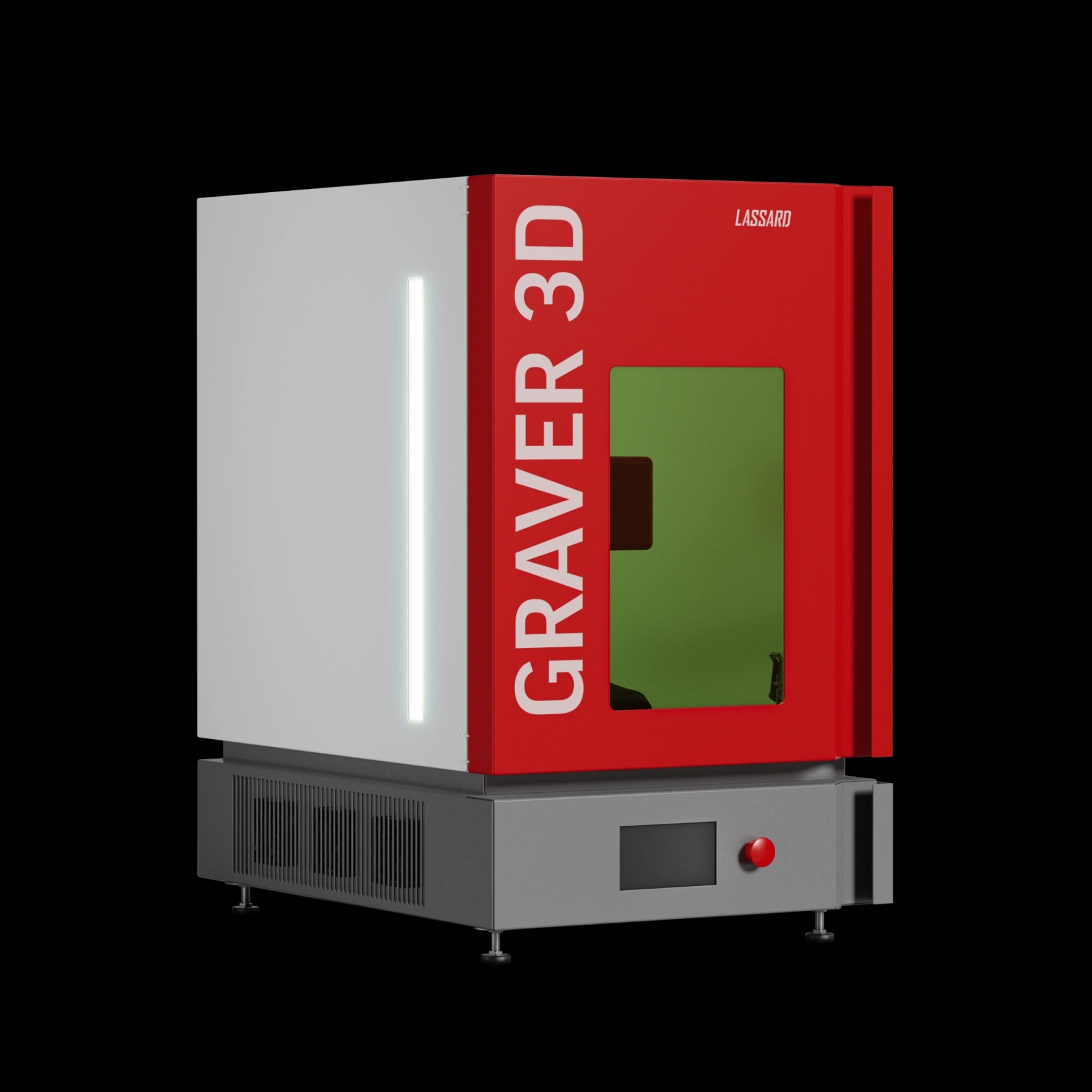

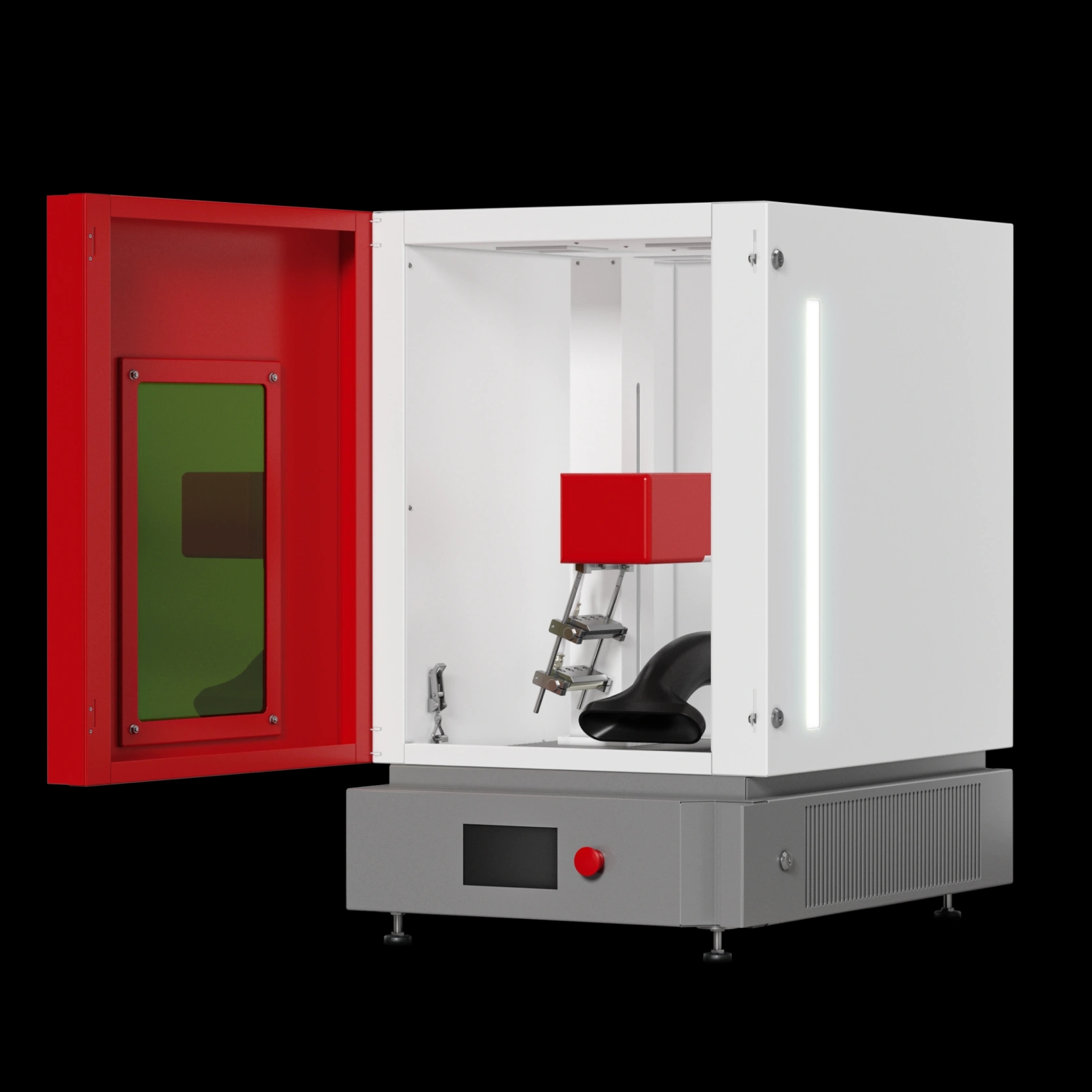

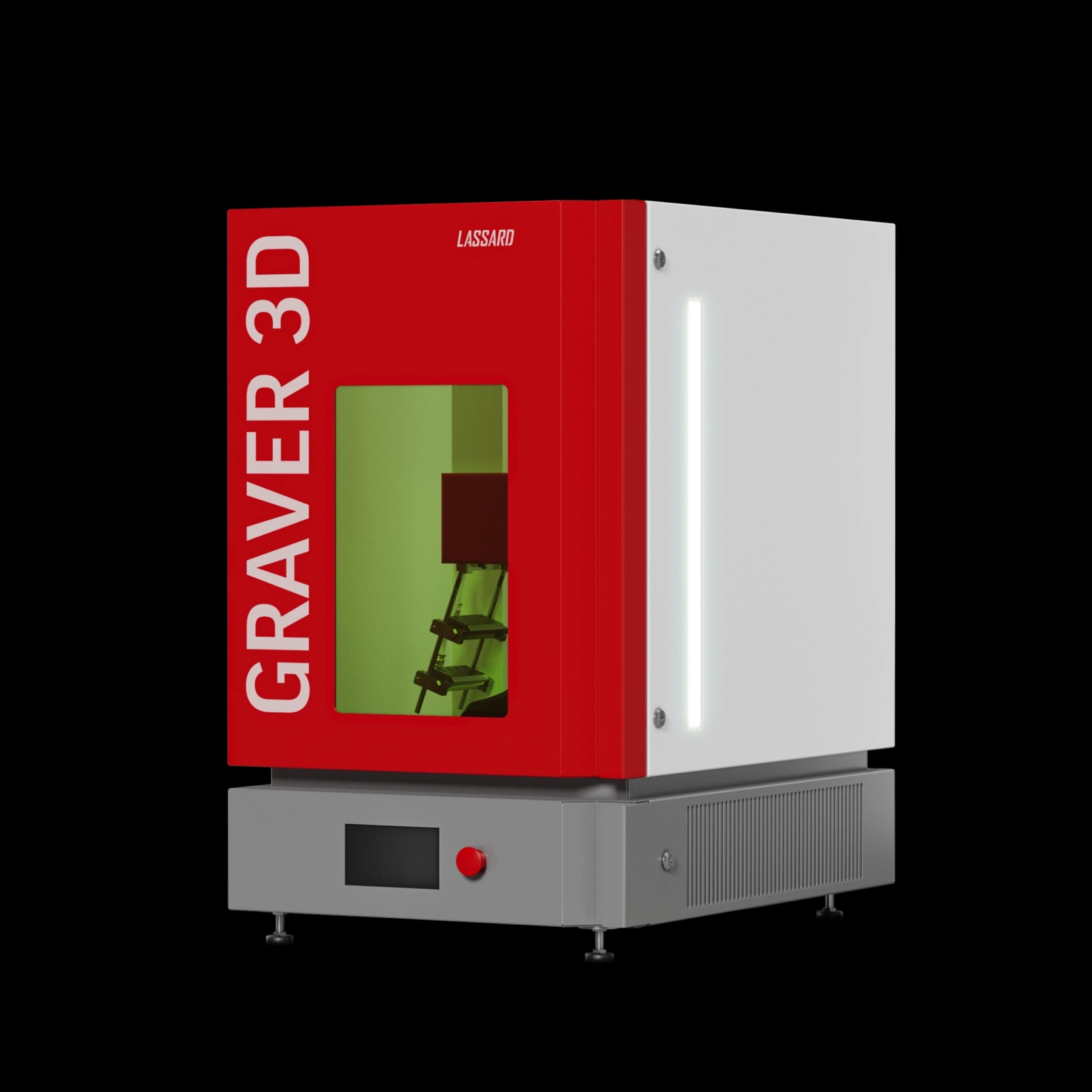

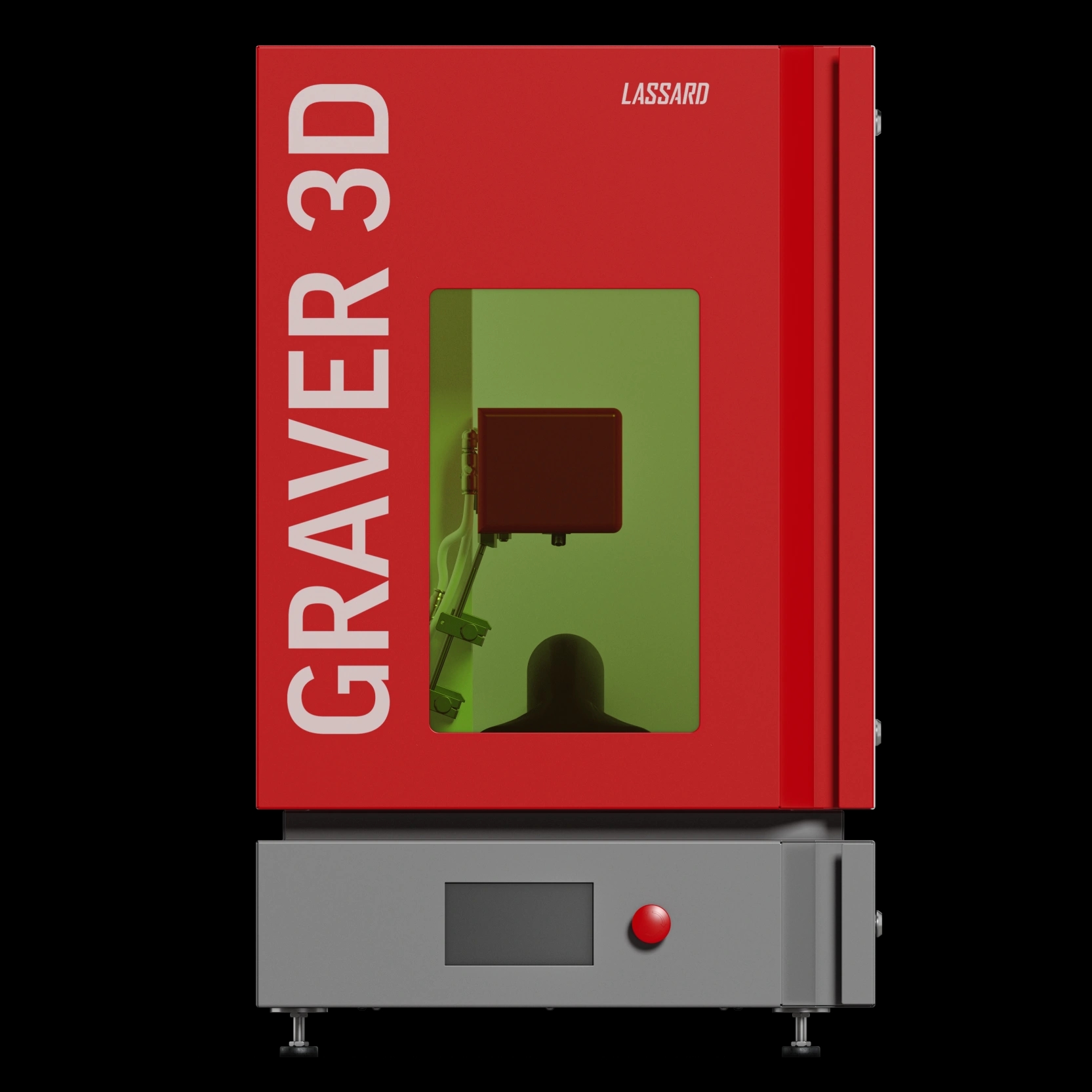

GRAVER 3D
Laser 3D engraver
GRAVER 3D is a laser complex with highly detailed relief images for 3D engraving.
It is designed for the production of dies, punches, stamps, molds, embossings, stamps and small-sized three-dimensional metal models. It uses laser erosion technology with a super-finishing surface treatment function. GRAVER 3D is used in the jewelry industry, industrial production, dentistry, advertising materials production.
- High detail of relief images during 3D engraving
- GRAVER 3D provides high-contrast markings while preserving the surface properties
- High-speed image application
- Seamless high-speed engraving of cylindrical surfaces
- Quick and error-free creation of work programs thanks to preset processing modes
- Engraving line width 0.02 mm and more
.webp&w=3840&q=75)
Jewelry Industry
Souvenir products
Industrial production
Promotional materials
Dentistry
Fiber laser source
Exhaust system
Rotator
Smoke exhaust system
Laptop
| Radiation source | Fiber laser (IPG Photonics / Raycus / Maxphotonics / LASSARD) |
| Radiation wavelength, µm | 1064 |
| Laser operating mode | Pulsed |
| Cooling type | Air |
| Source power | 30; 100 |
| Laser service life, h | 100000 |
| Processing speed, m/s | Up to 6 |
| Single scan field, mm | 200×200; 300×300 |
| PC connection | USB 3.0 |
| Display | 7″ diagonal |
| Supported graphic formats | DXF, STL |
| Supported fonts | TrueType, SHX, JSF |
| Operating temperature range, °С | 10–45 |
| Power supply, Hz | 220_50_16 |
| Processed sheet materials | Stone, rubber, steel, aluminum, brass, titanium, painted (anodized) surfaces, plastics, plastic, polymers, semiconductors, films, concrete, ceramics, silicate materials |
