SMART SPECIAL

Name: SMART SPECIAL
Brand: LASSARD
SKU: smart-special
Availability: InStock

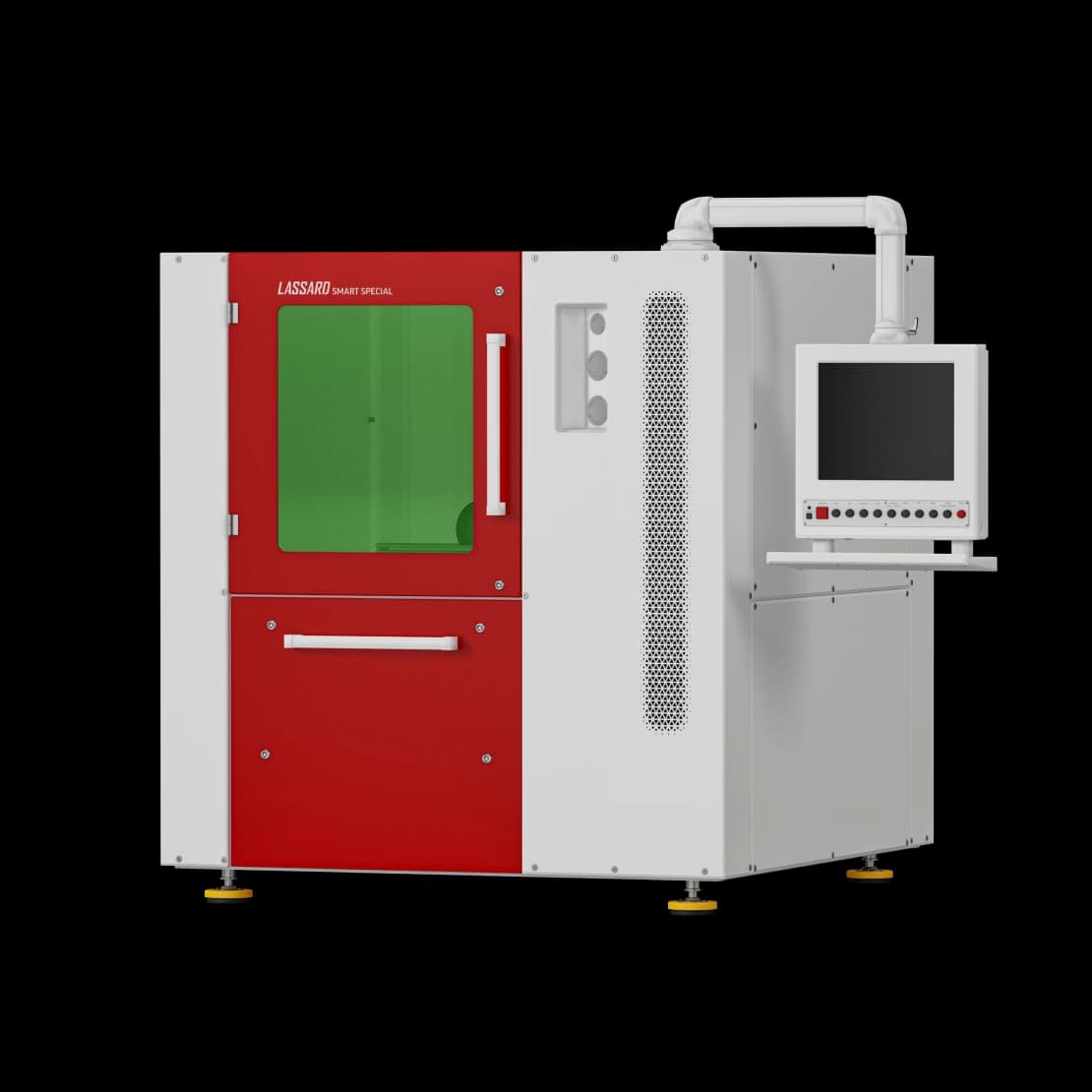

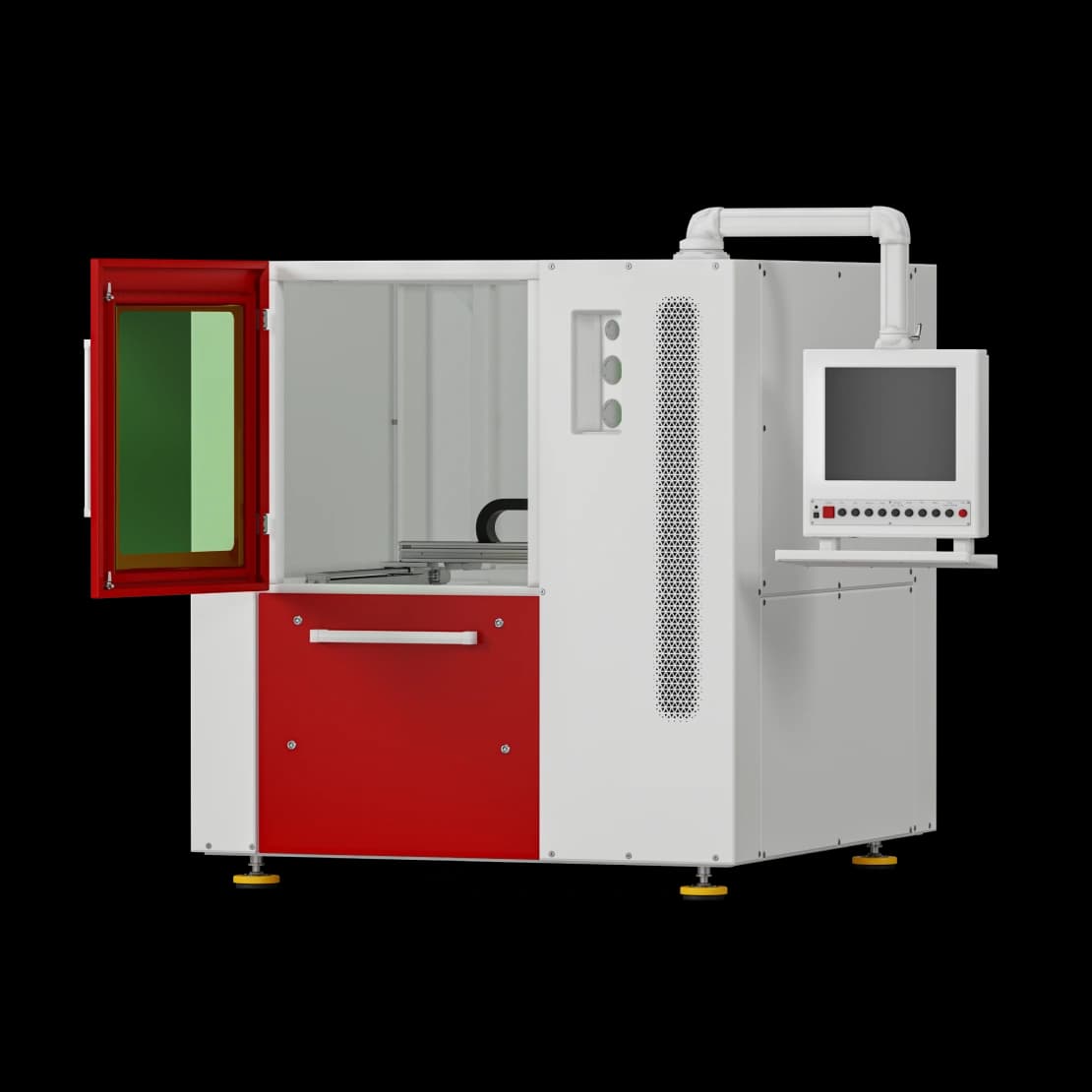

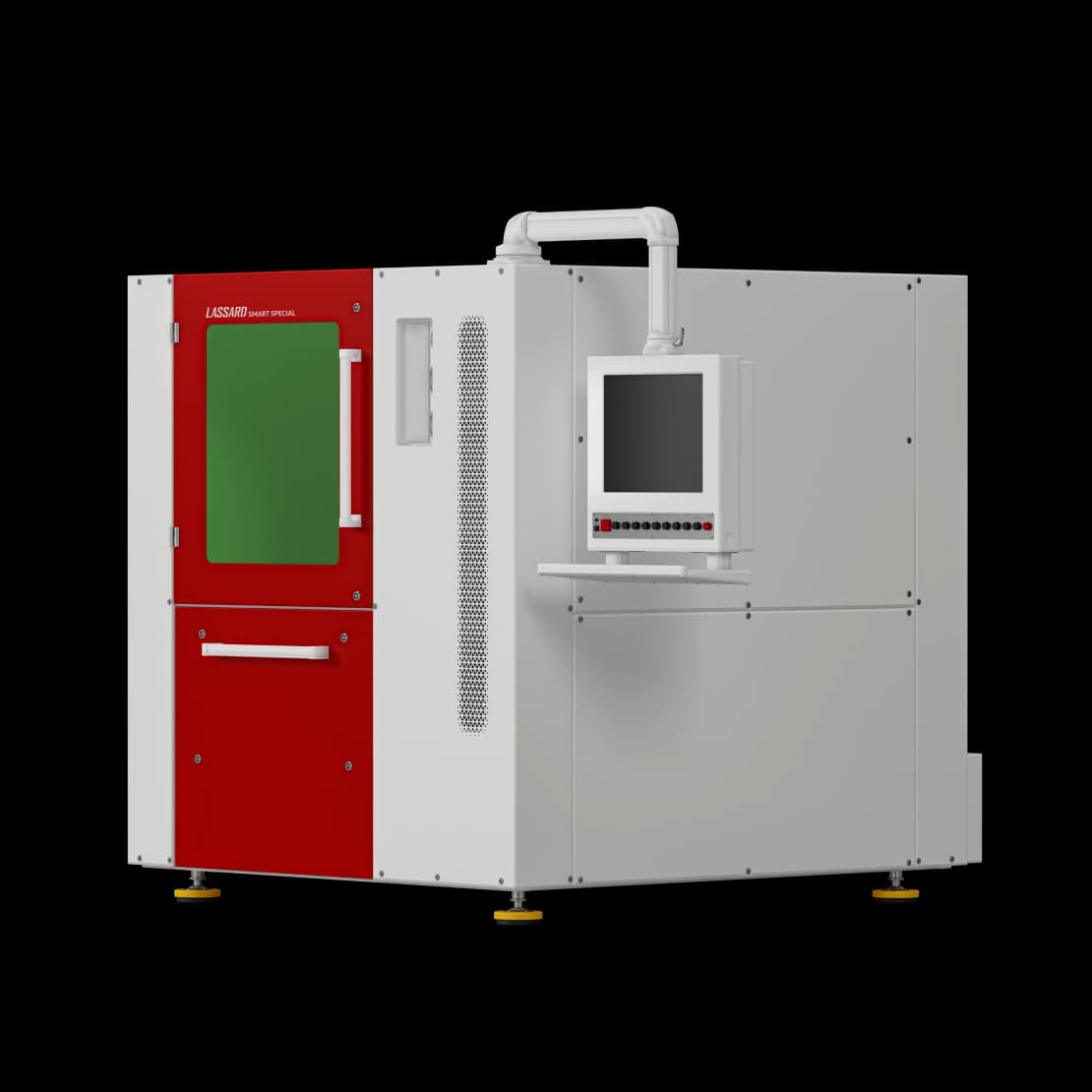

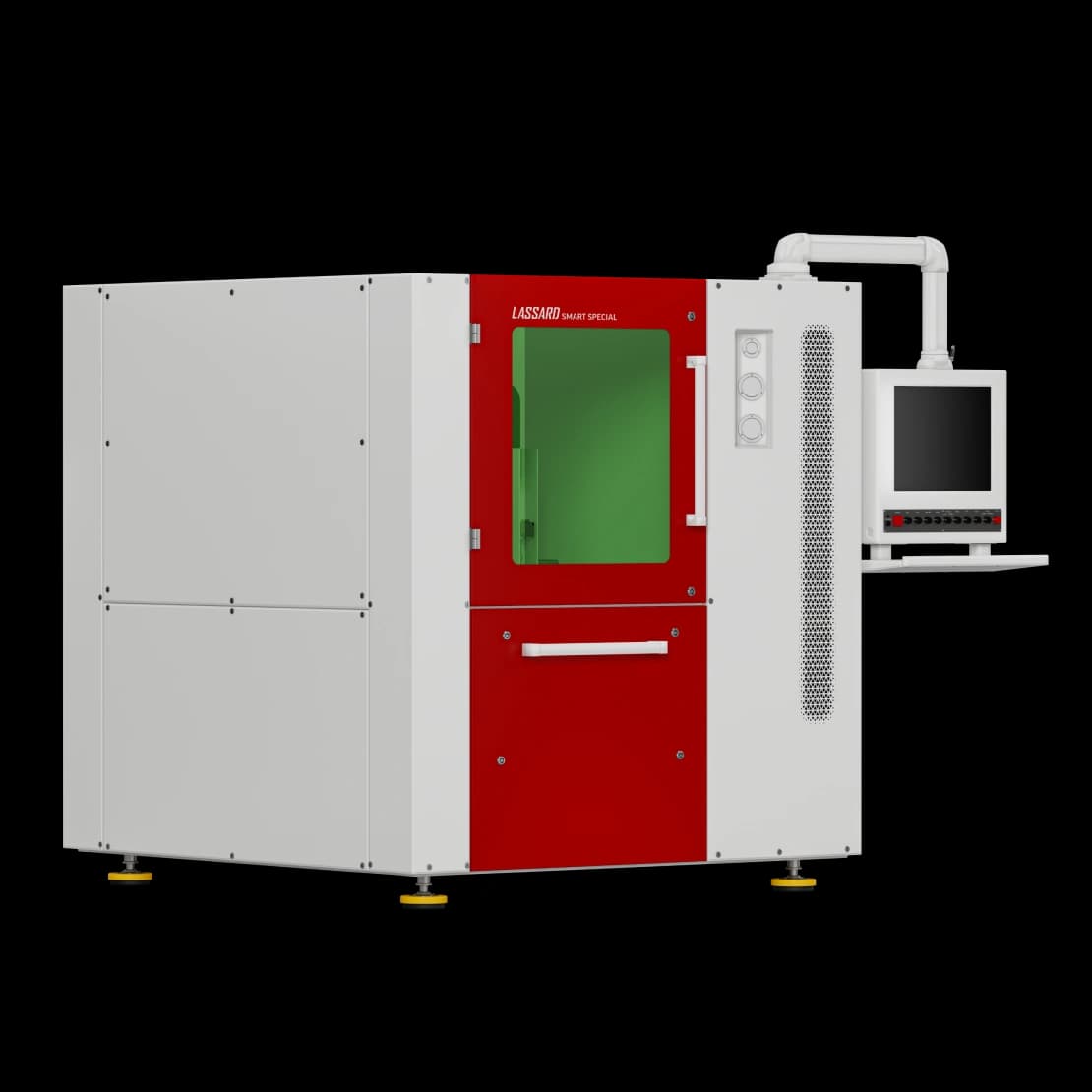

Laser station with a sealed chamber

Equipment demonstration

Service center

Machine tool leasing

Catalogs and certificates

SMART SPECIAL is equipped with a sealed chamber and can process materials in various environments:

argon, nitrogen and other neutral gases. The laser station has a built-in system for fastening parts of non-standard shape

Built-in system for fastening parts of non-standard shape
SMART SPECIAL is equipped with a sealed chamber and can process materials in various environments: argon, nitrogen and other neutral gases
Due to the high-precision positioning system the machine provides precision cutting with an accuracy of ±0.01mm
The focusing lens provides the cutting width of 100 µm
The cutting width is always fixed, since the system itself monitors the surface of the material
Air cooling is available, so no need to replace fluid in the cooling system
The machine is equipped with cabinet protection for noise insulation and safety of operating personnel

Filter ventilation unit LFILTER SMART

Compressor

Automatic gas console for 4 types of gas

Protective eyewear

Radiation source	Fiber laser (IPG Photonics / Raycus / LASSARD)
Laser operating mode	CW, pulsed
Source power	150/1500; 300/3000; 450/4500
Processing field, mm	600×600; 800×800
Positioning accuracy, mm	±0.01
Minimum cutting width, µm	100
Sealed chamber, V	Possibility of working in an inert gas environment
Linear movement	HIWIN
Processing speed, m/min	Up to 100
Acceleration along the XYZ axes	до 1
Processed sheet materials	Brass, stainless steel, black steel, copper, aluminum alloys, gold, titanium, ceramics, rubber, graphite, electrical steel, beryllium bronze

argon, nitrogen and other neutral gases. The laser station has a built-in system for fastening parts of non-standard shape

Built-in system for fastening parts of non-standard shape
SMART SPECIAL is equipped with a sealed chamber and can process materials in various environments: argon, nitrogen and other neutral gases
Due to the high-precision positioning system the machine provides precision cutting with an accuracy of ±0.01mm
The focusing lens provides the cutting width of 100 µm
The cutting width is always fixed, since the system itself monitors the surface of the material
Air cooling is available, so no need to replace fluid in the cooling system
The machine is equipped with cabinet protection for noise insulation and safety of operating personnel
