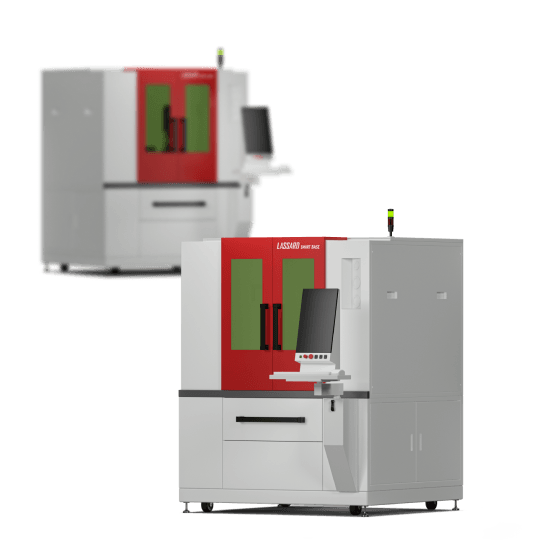

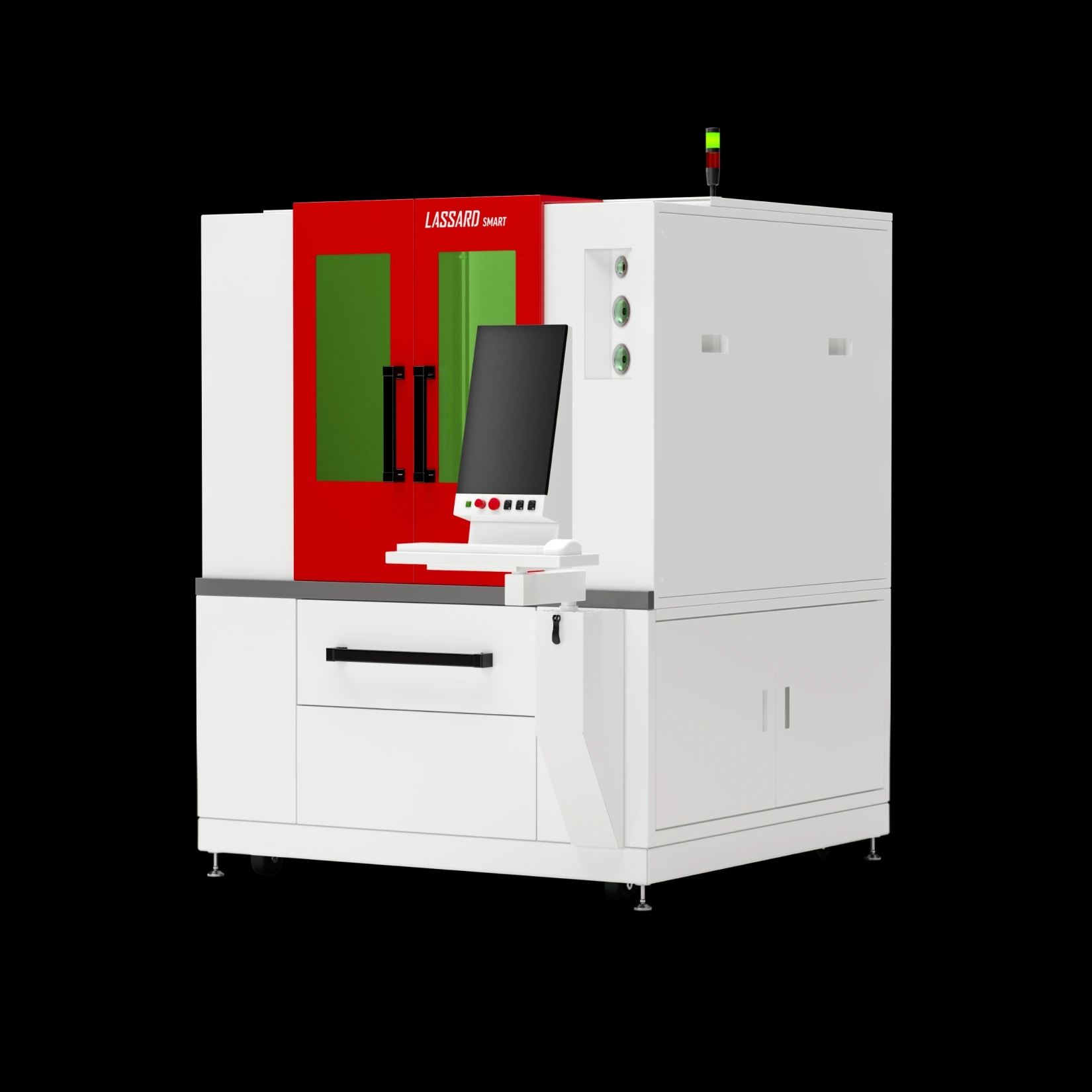

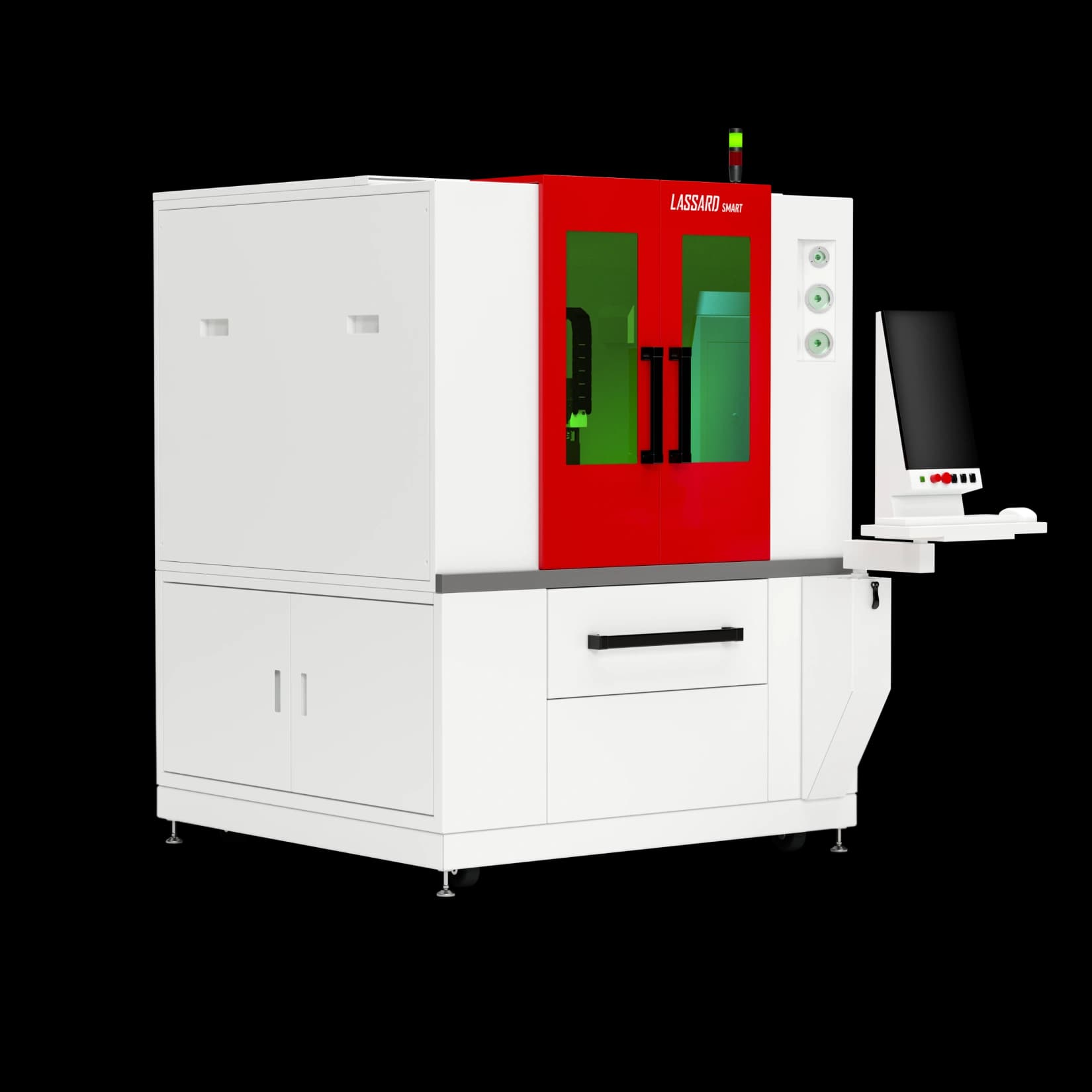

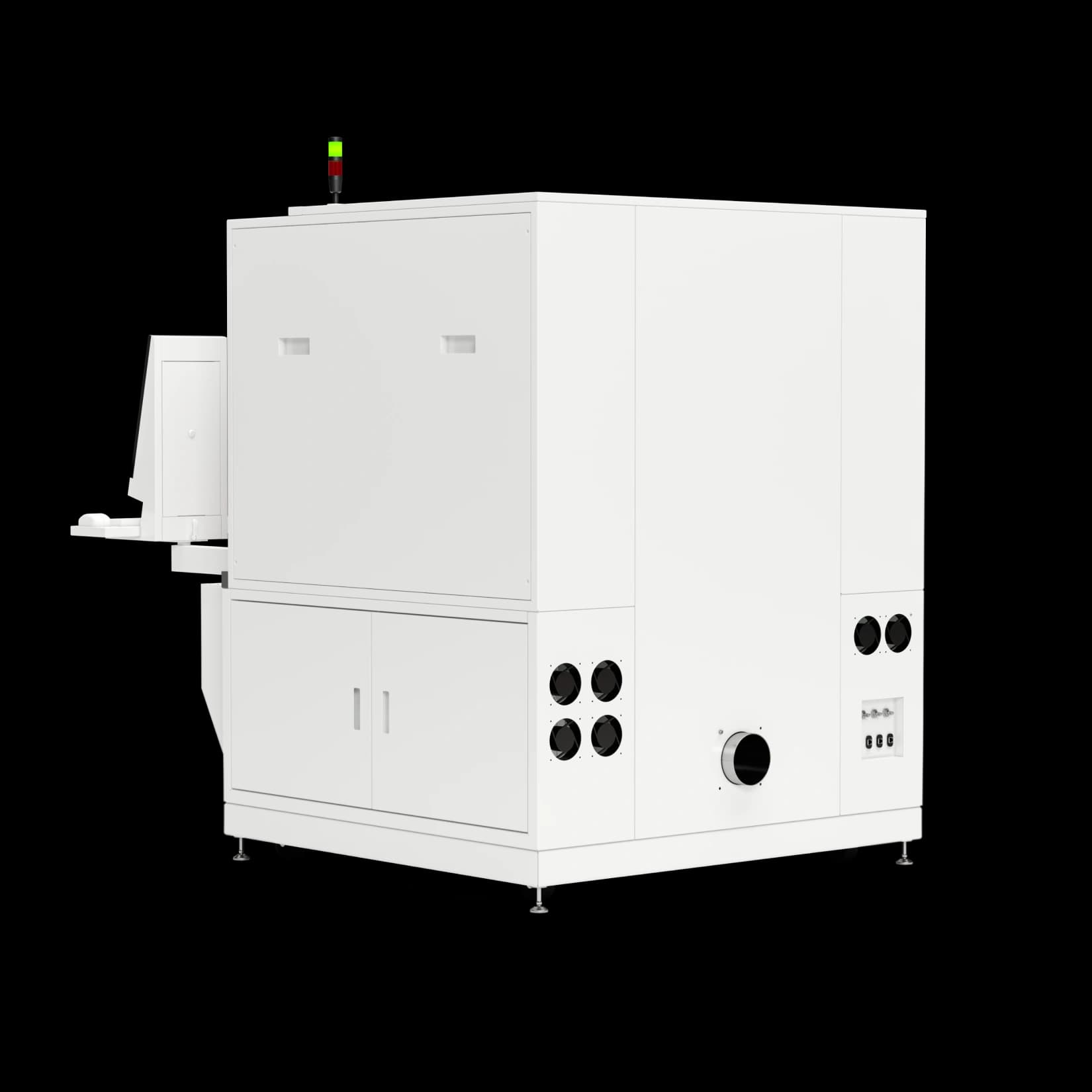

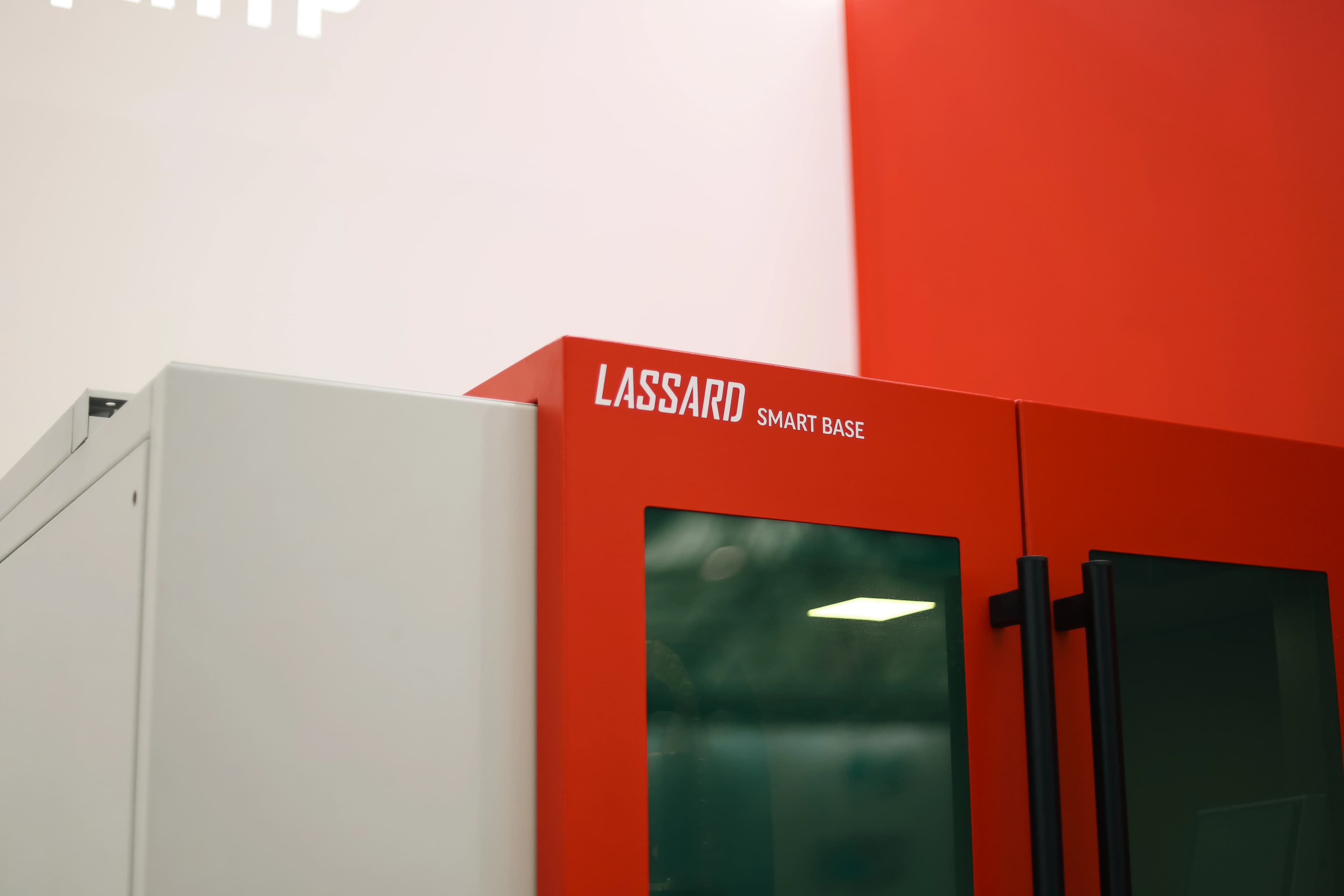

SMART BASE
Laser station for cutting of sheet materials
* The stated price refers to the machine model registered in the State Industrial Information System (GISP)
SMART BASE is a cost-effective solution when large equipment is not needed.
This is a compact and easy to operate machine with high precision. It occupies only 4 m2 in area and does not require special preparation of the room. It can cut various metals and materials: hard alloys, copper, ceramics, rubber, graphite. Power consumption is no more than 3 kW.
- Due to the high-precision positioning system SMART BASE provides precision cutting with an accuracy of ±0.01mm
- The focusing lens provides the cutting width of 100 µm
- The cutting width is always fixed, since the system itself monitors the surface of the material
- Air cooling eliminates a need to replace fluid in the cooling system
- It is equipped with cabinet protection for noise insulation and safety of operators
Ytterbium fiber laser (LASSARD / IPG Photonics / Raycus)
Rigid all-welded Smart frame
Integrated electrical cabinet
Work table
Pullout drawer
Lightweight steel gantry
HIWIN linear bearings
Full fire protection
LASSARD operator panel with 22-inch industrial LCD display

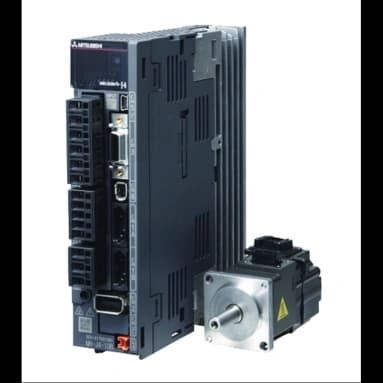

MITSUBISHI ELECTRIC / HIWIN servo drives and drivers
APEX axis-drive gearboxes
Connection module for three gas types
Chiller
Filter ventilation unit LFILTER SMART
Tensioning unit
Compressor
Sheet material holder
Protective eyewear
Automatic gas console for 4 types of gas
| Radiation source | Fiber laser (IPG Photonics / Raycus) |
| Laser operating mode | CW, pulsed |
| Processing field, mm | 800×800 |
| Positioning accuracy, mm | ±0.03 |
| Minimum cutting width, µm | 100 |
| Linear movement | HIWIN |
| Processing speed, m/min | Up to 60 |
| Acceleration along the XYZ axes | up to 1 |
| Processed sheet materials | Brass, stainless steel, black steel, copper, aluminum alloys, gold, titanium, rubber, graphite, electrical steel, beryllium bronze |
| Source power | 150/1500; 300/3000; 500; 1000 |
