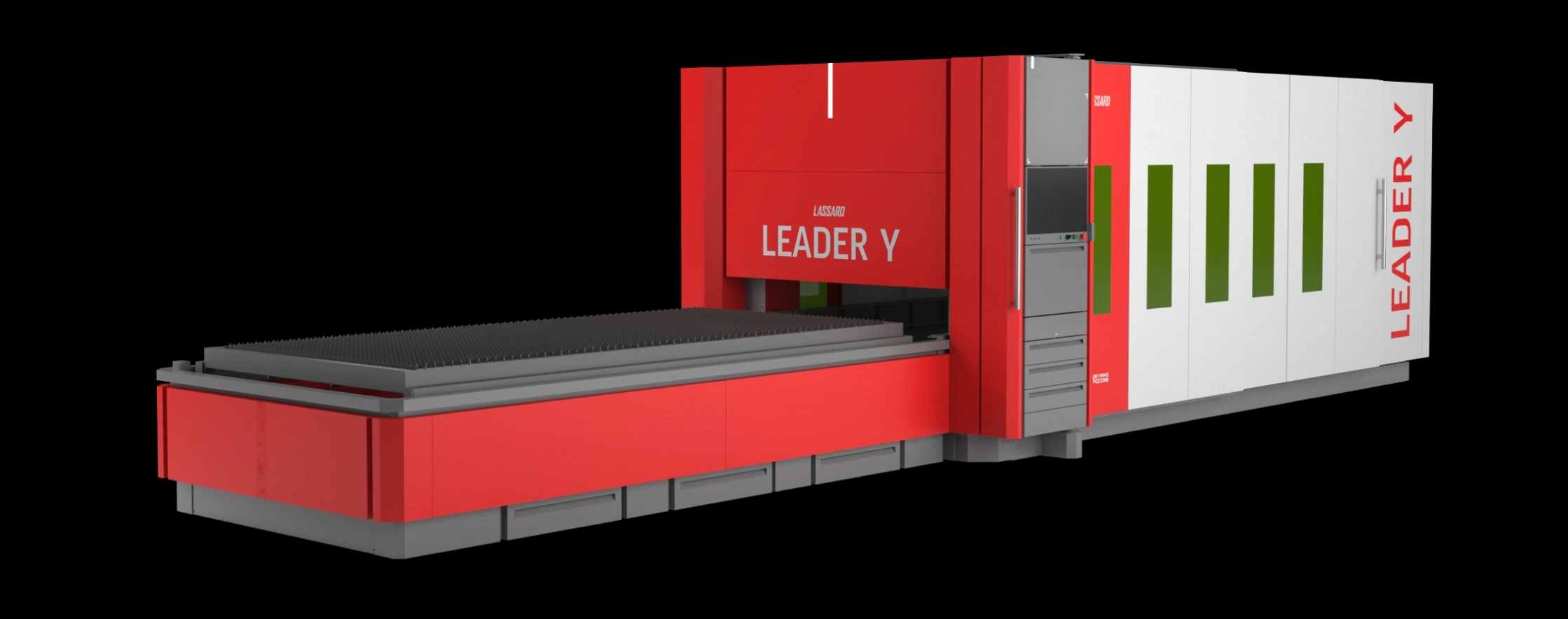

Leader Y
Composite Y-beam
Significantly lighter than comparable alternatives, enabling acceleration to higher speeds.
Automatic pallet changer
For unloading finished parts and loading new sheets.
Concrete machine bed
High rigidity and vibration damping ensure excellent processing quality and accuracy across the entire dynamic range.
Enclosed cabin with sliding doors
Protects the operator from infrared radiation, noise, and combustion byproducts.
Linear magnetic motors
Deliver excellent controllability even at the highest speeds.
"Wing" System
Advanced X‑axis drive system
Instead of the traditional gantry design, a suspended carbon‑fiber Y‑beam is used, driven by a single linear motor.
This eliminates synchronization issues associated with dual‑drive systems and enhances positioning accuracy.
60 kW Maximum laser power, cutting speed — 220 m/min
A single linear motor is used to move the cutting head along each coordinate axis, delivering excellent controllability even at the highest speeds.
O‑frame bed
creates a rigid, closed force loop around the work envelope for superior structural stability.

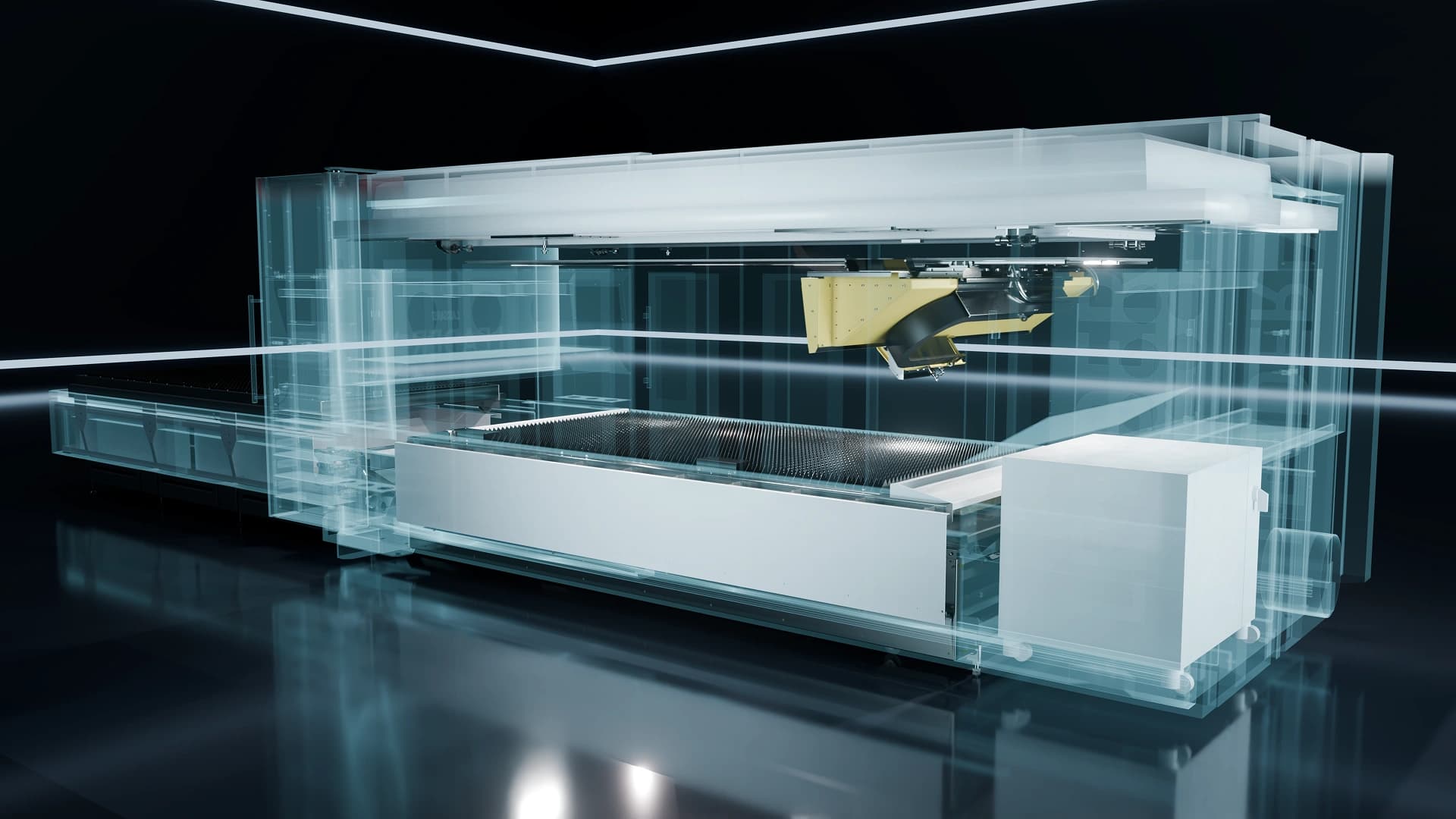

The LEADER Y is built around a rigid O‑frame bed that forms a closed load‑bearing loop around the machine's working area.
This design evenly distributes loads, reduces the impact of vibrations, and helps maintain stable machine geometry even under high‑dynamics operation.
| Radiation source | Ytterbium fiber laser (VPG Laserone / Raycus / LASSARD) |
| Source power | 2000–60000 |
| Processing field, mm | 1500×3000; 2000×6000 |
| Positioning accuracy, mm | ±0.05 |
| Cooling type, mm | 0.02 |
| Travel along X, Y axes | Linear magnetic motors |
| Travel along Z axis | Magnetic motors / Ball screw |
| Synchronous speed of idle movements along the XYZ axes, m/min | up to 300 |
| Acceleration along the XYZ axes | up to 5 |
