LEADER

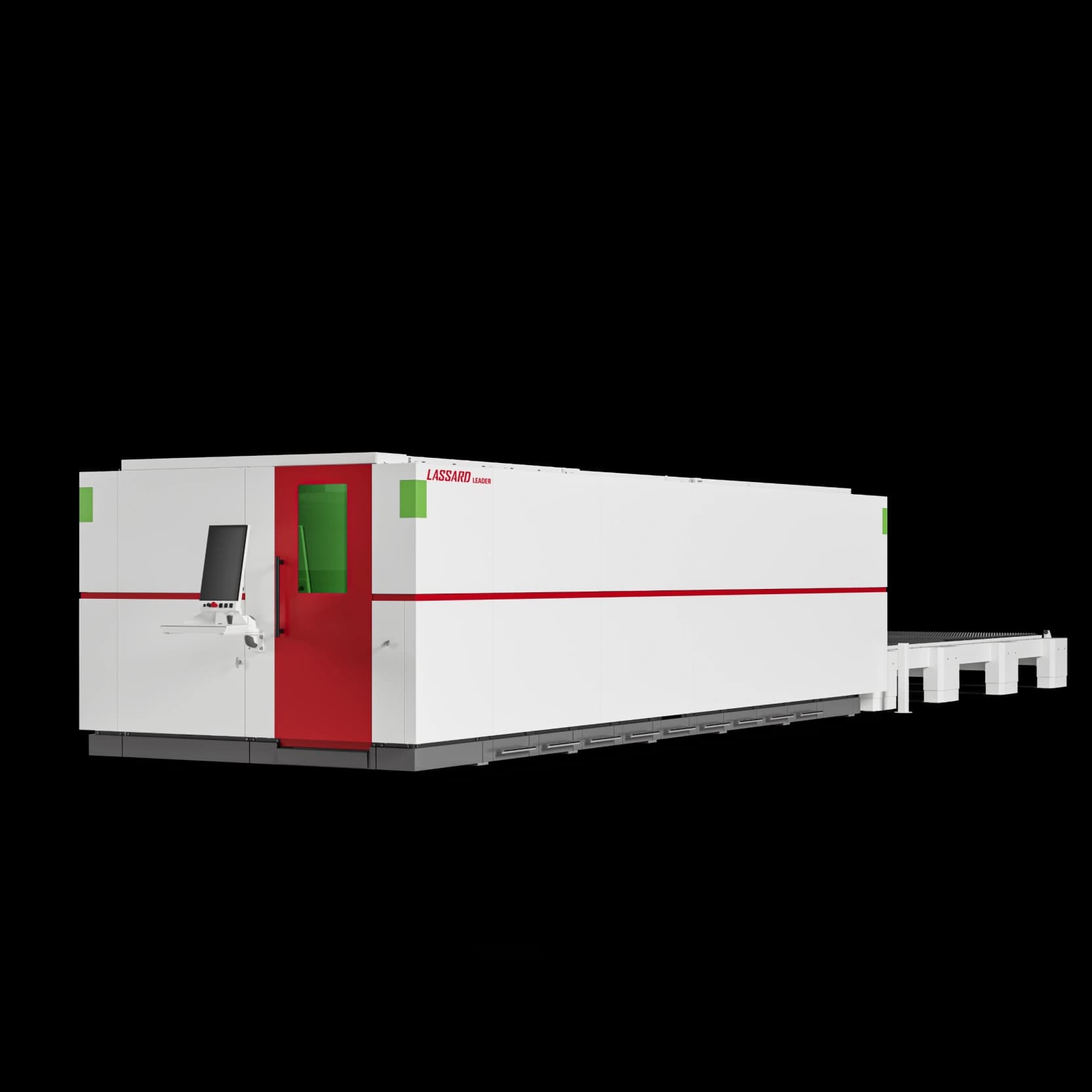

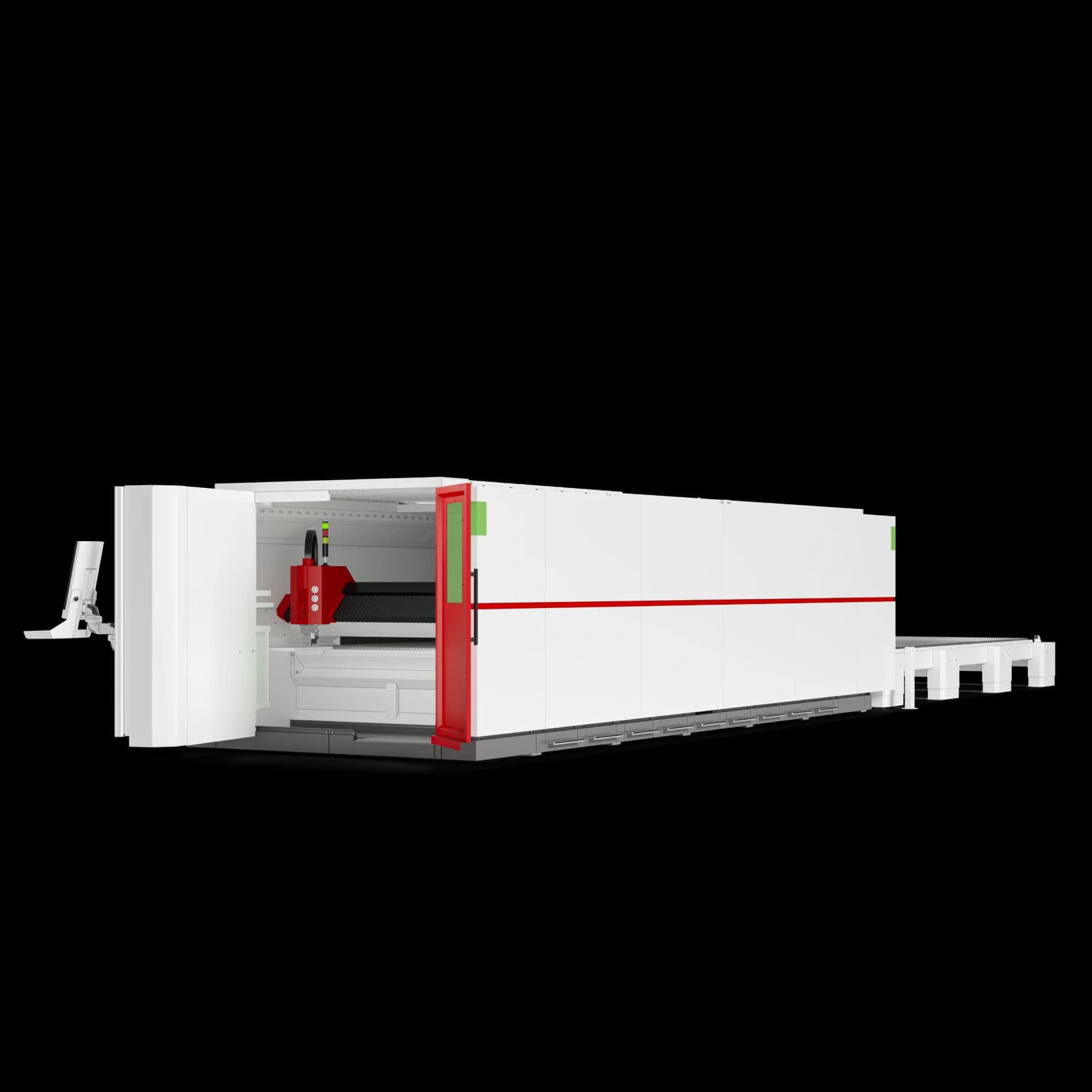

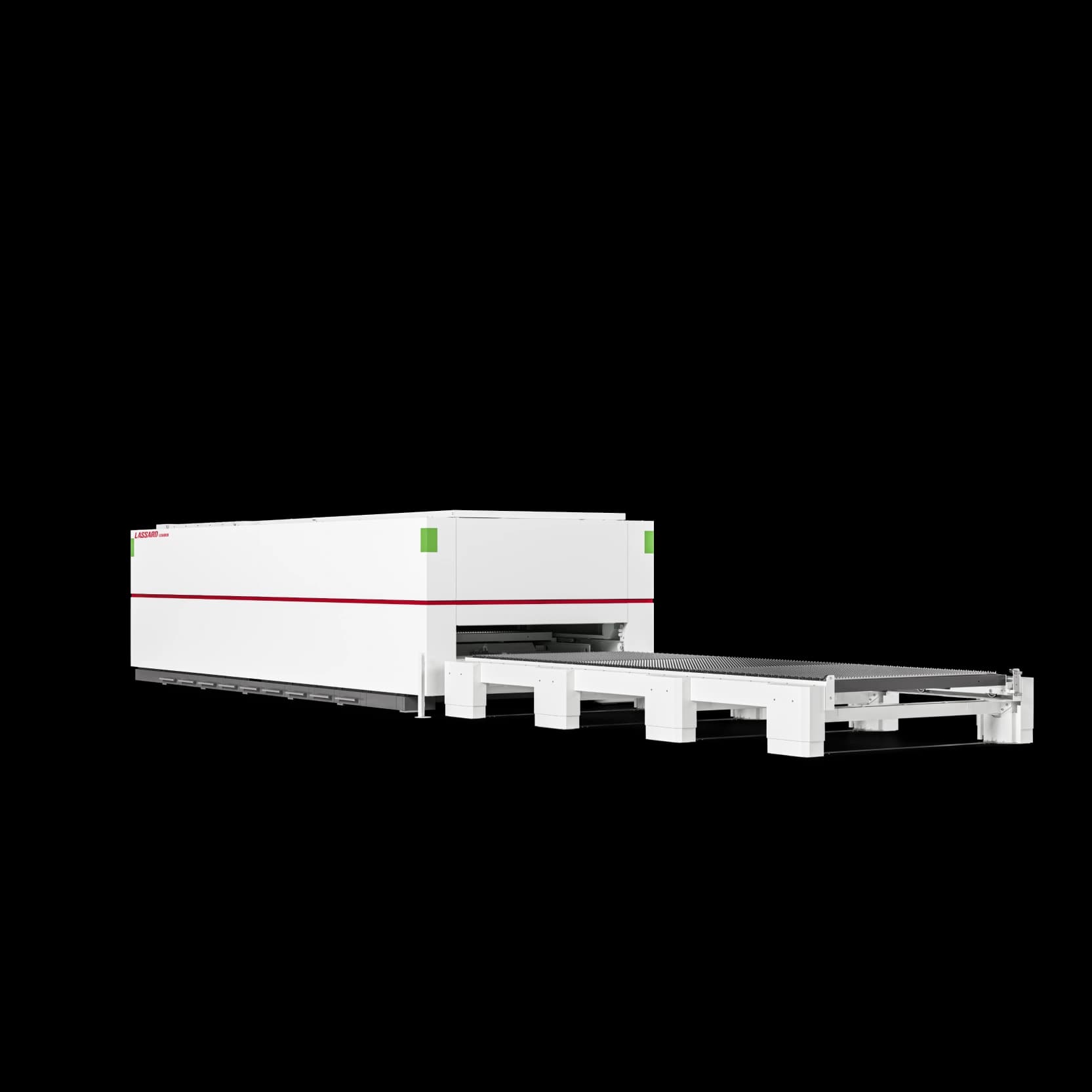

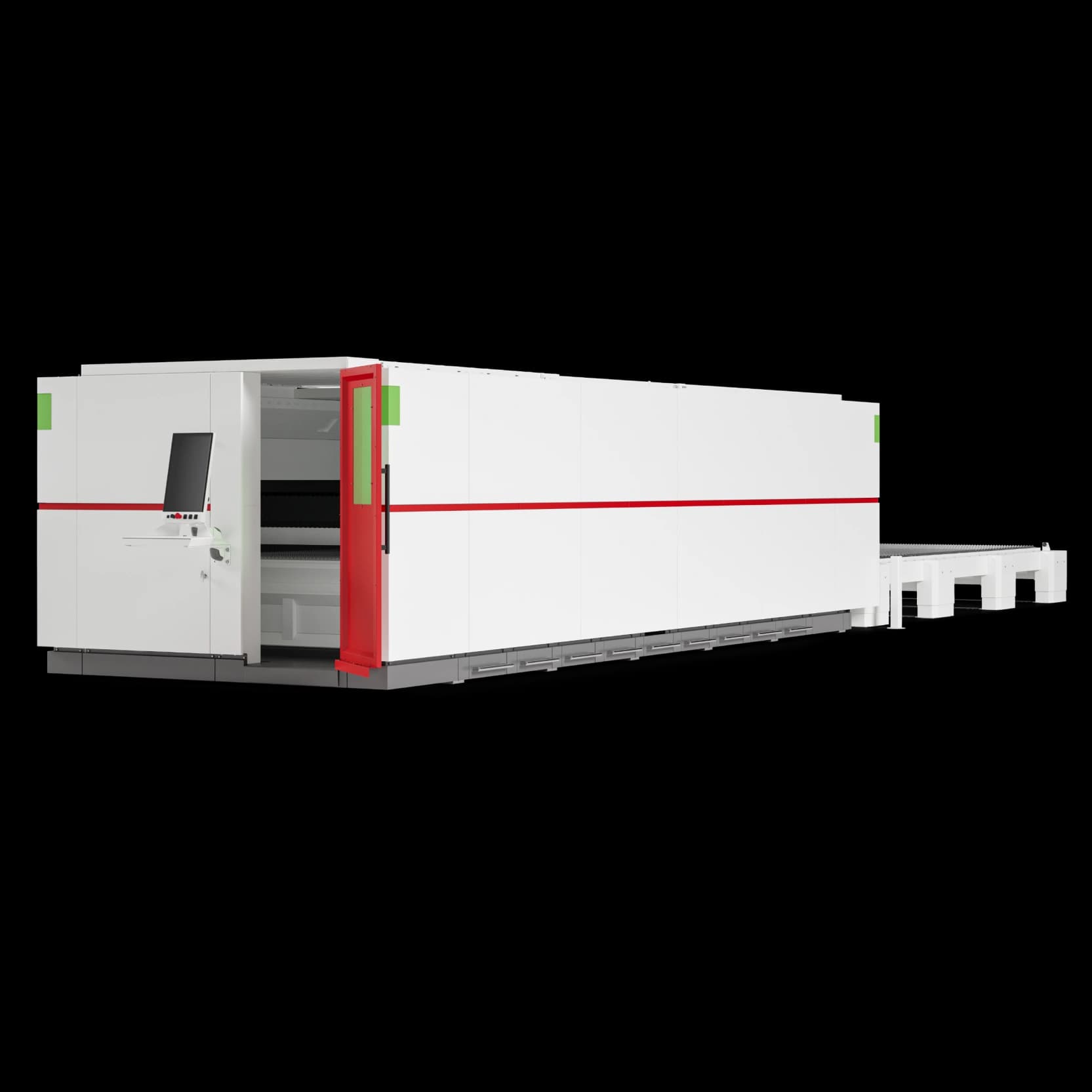

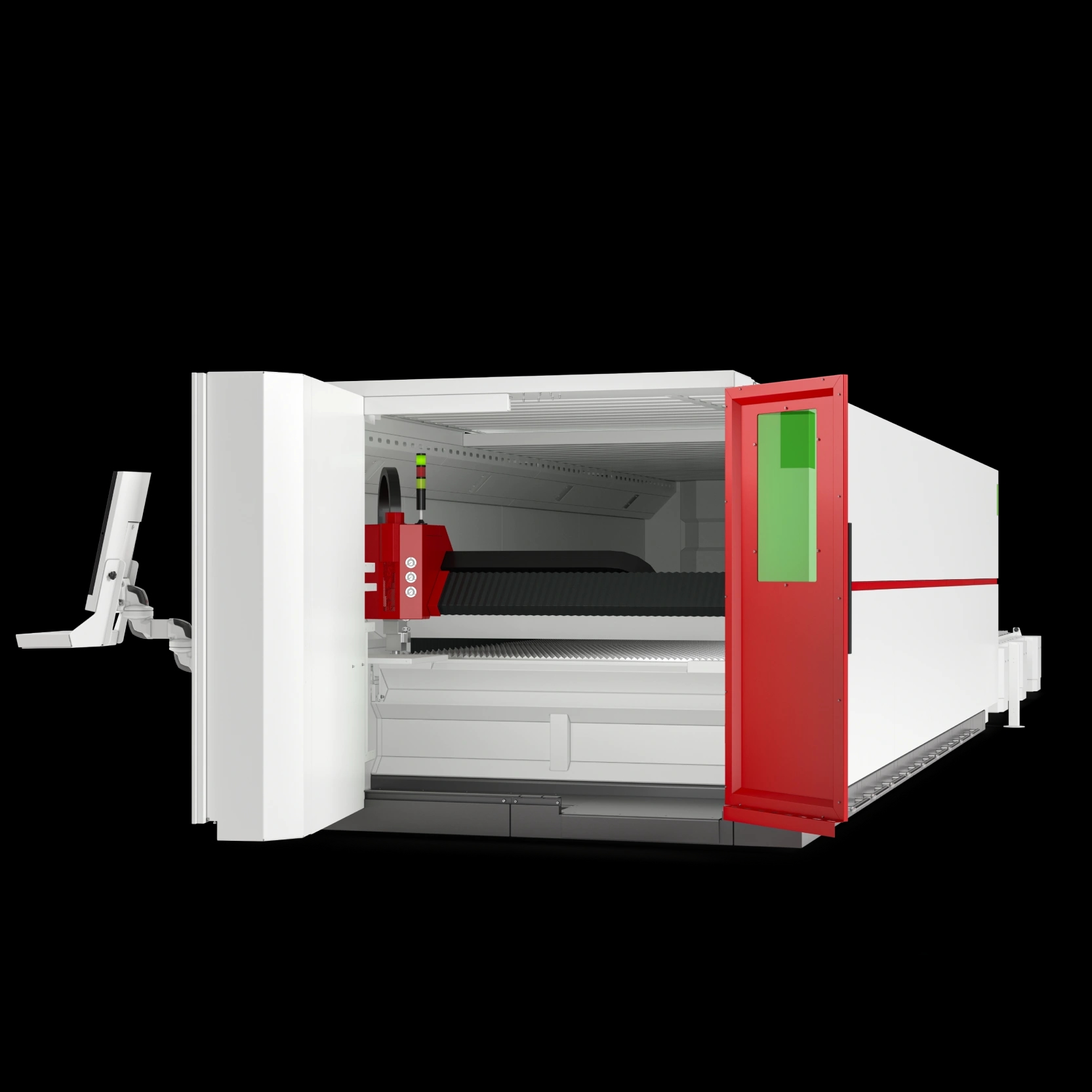

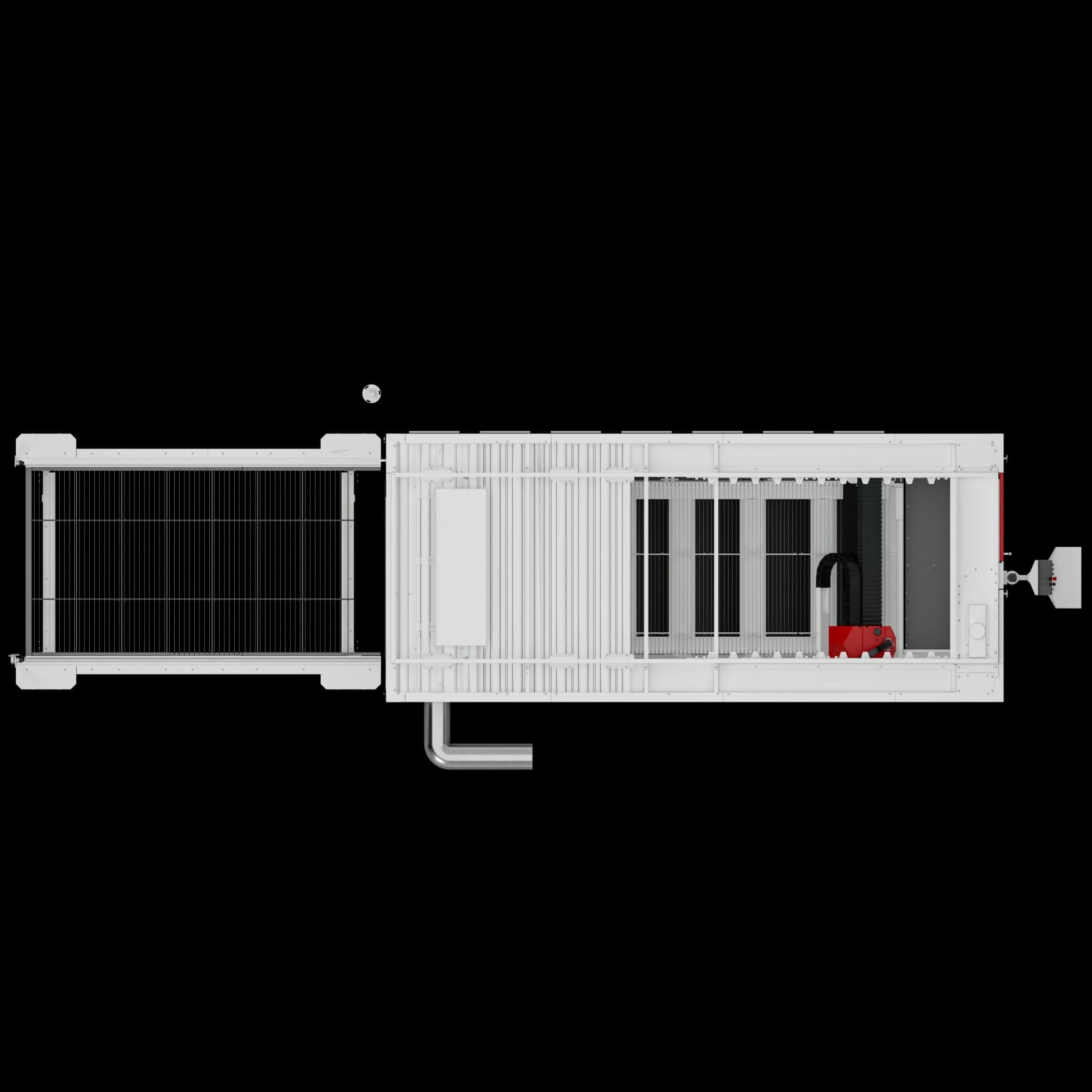

Industrial machine with cabinet protection and replaceable pallets
The industrial laser cutting complex with cabinet protection and replaceable pallets LEADER is the most productive solution in the line of our machines.
It is designed for high-speed and high-precision laser cutting of sheet materials.
- Maximum laser power is 20 kW, cutting speed is 220 m/min
- The focusing lens provides the cutting width of 100 µm
- The cutting width is always fixed, since the system itself monitors the surface of the material
- LEADER is equipped with cabinet protection for noise insulation and safety of operators
- Integrated fume removal system with automatic zone switching
| Radiation source | Fiber laser (IPG Photonics / Raycus) |
| Minimum cutting width, µm | 100 |
| Positioning accuracy, mm | ±0.05 |
| Travel along X, Y axes | Helical rack-and-pinion / Linear motors |
| Travel along Z axis | Ball screw |
| Synchronous speed of idle movements along the XYZ axes, m/min | up to 120 |
| Acceleration along the XYZ axes | up to 2.5 |
| Cooling type, mm | 0.02 |
| Source power, kW | 2–60 |
| Processing field, mm | 1500×3000; 2000×6000 |
| Optical head | BOCI, raytools |
