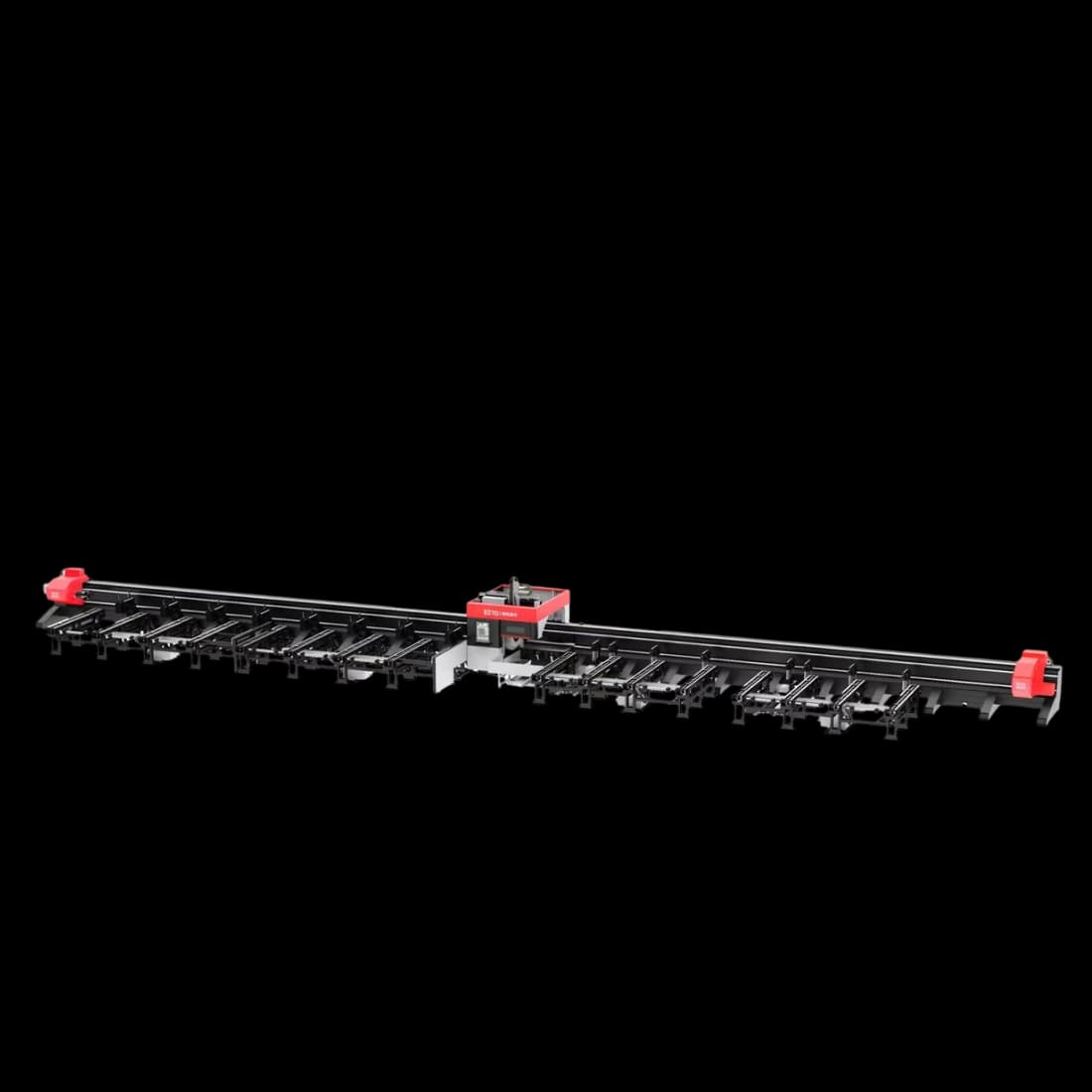

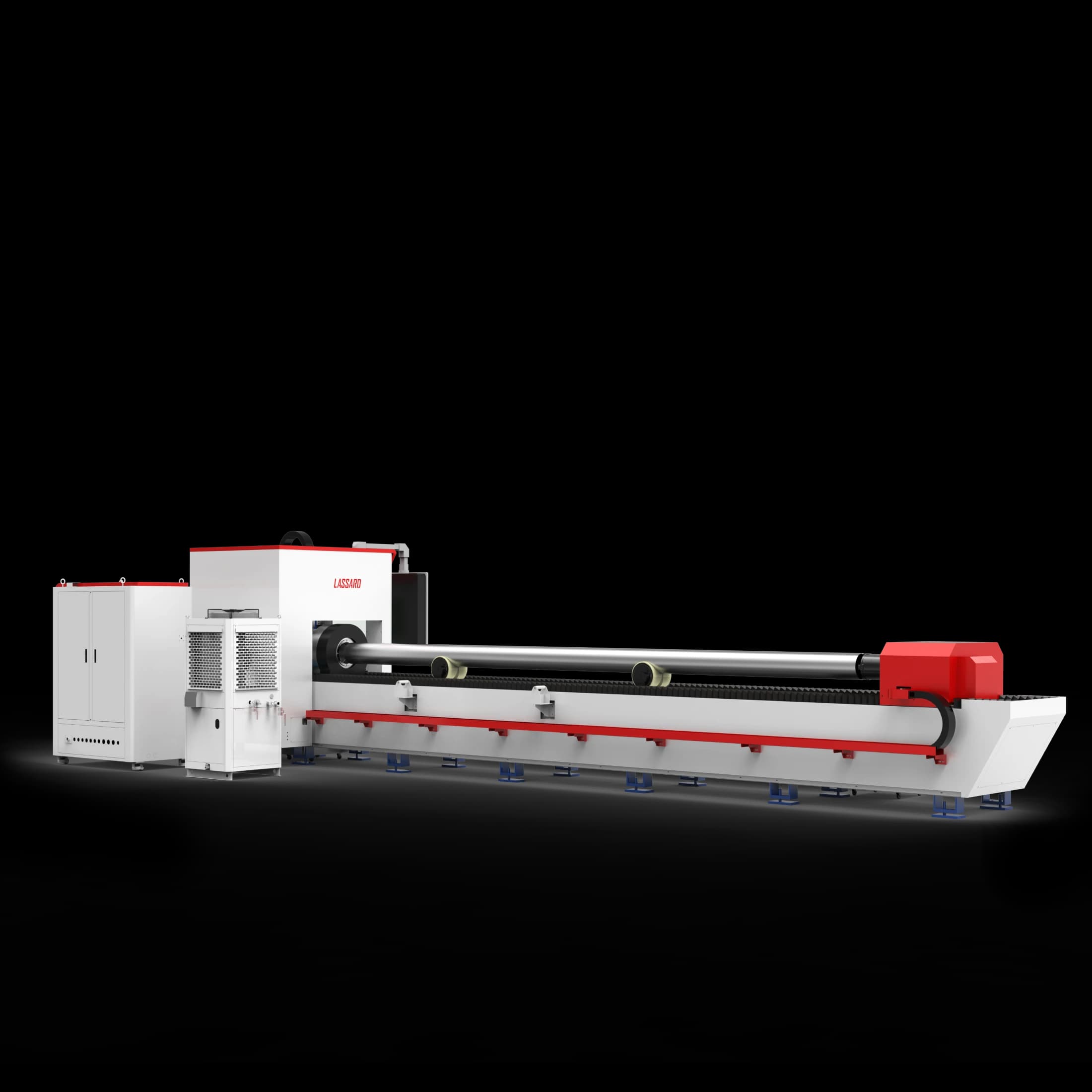

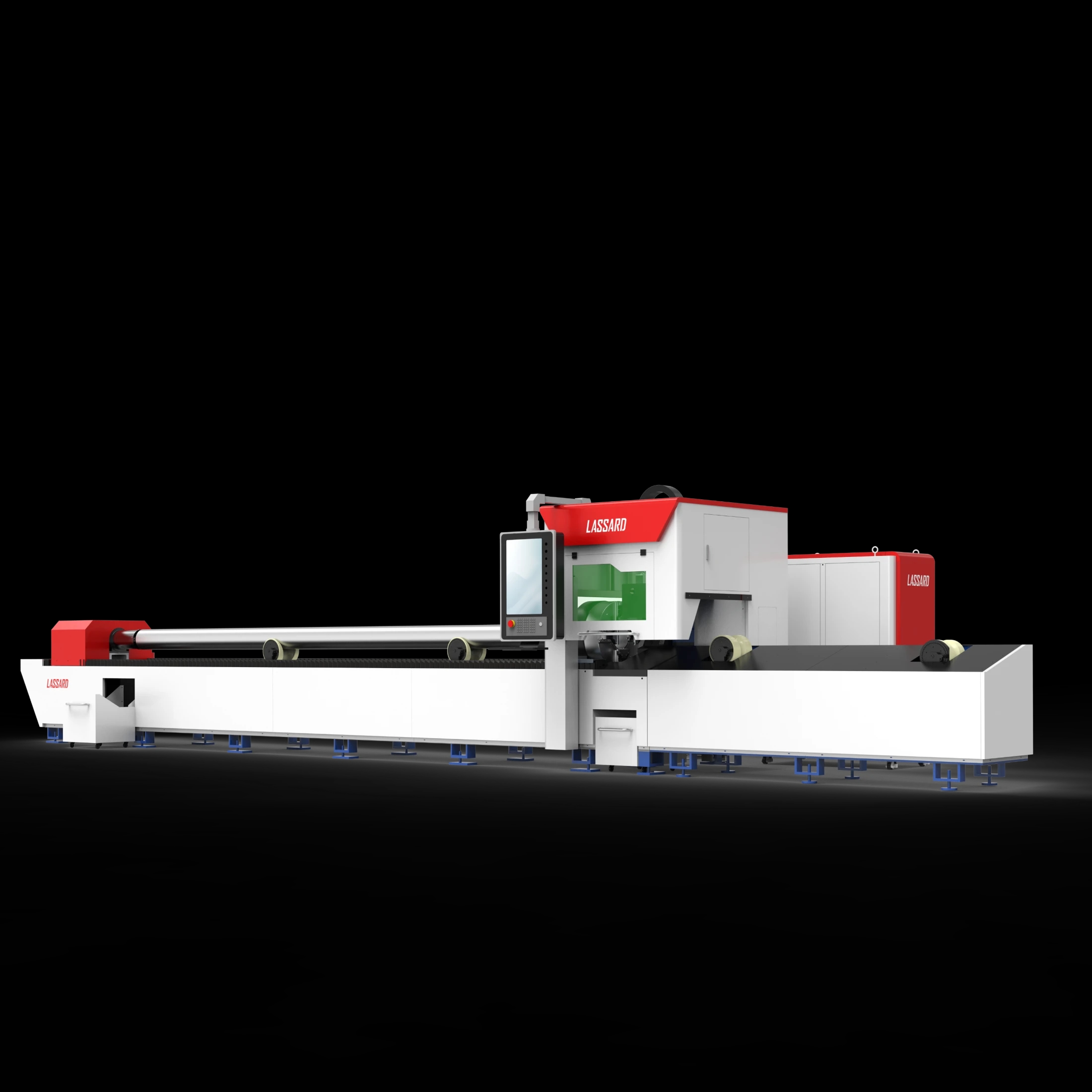

TUBE LONG
Laser cutting machine for standard tubes and pipes
TUBE LONG is a machine for high-speed cutting of pipes, channels and profiles.
It can process brass, stainless steel, black steel, copper, aluminum and aluminum alloys.
Section of processed profiles:
Closed - rectangular and ellipsoidal
Unclosed - channel, H-profile, angle
- Complete solution for cutting standard pipes, tubes and profiles
- Cuts steel pipes up to 20 mm thick and aluminum pipes up to 16 mm
- 3-chuck gripper system ensures waste-free cutting
- Equipped with cabinet protection and a window with a special light filter
Independent control console with industrial LCD display
Rigid all-welded frame
Additional set of spare parts, tools and accessories (SPTA)
Fiber laser (Raycus)
Compressor

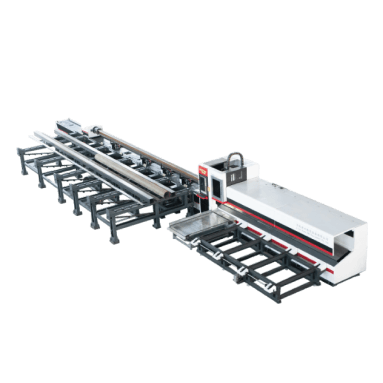

Loading and unloading system
Tilting head for chamfering prior to welding
Weld seam detection camera
Three chucks for zero-waste cutting
| Radiation source | Fiber laser (Raycus) |
| Source power | 1000–6000 |
| Compatible pipe dimensions, mm | Diameter up to 320 Length up to 6000 |
| Maximum rotation speed, rpm | Up to 0.8g |
| Positioning accuracy, mm | ±0.05 |
| Acceleration along the XYZ axes | up to 0.8 |
| Positioning accuracy, mm | ±0.05 |
| Cooling type, mm | 0.03 |
| Processed materials, % | 10 |
| Cooling type | Water |
| Laser service life, h | 100000 |
| Processed sheet materials | Brass, stainless steel, black steel, copper, aluminum, aluminum alloys |
| Power supply, Hz | 380_50 |
