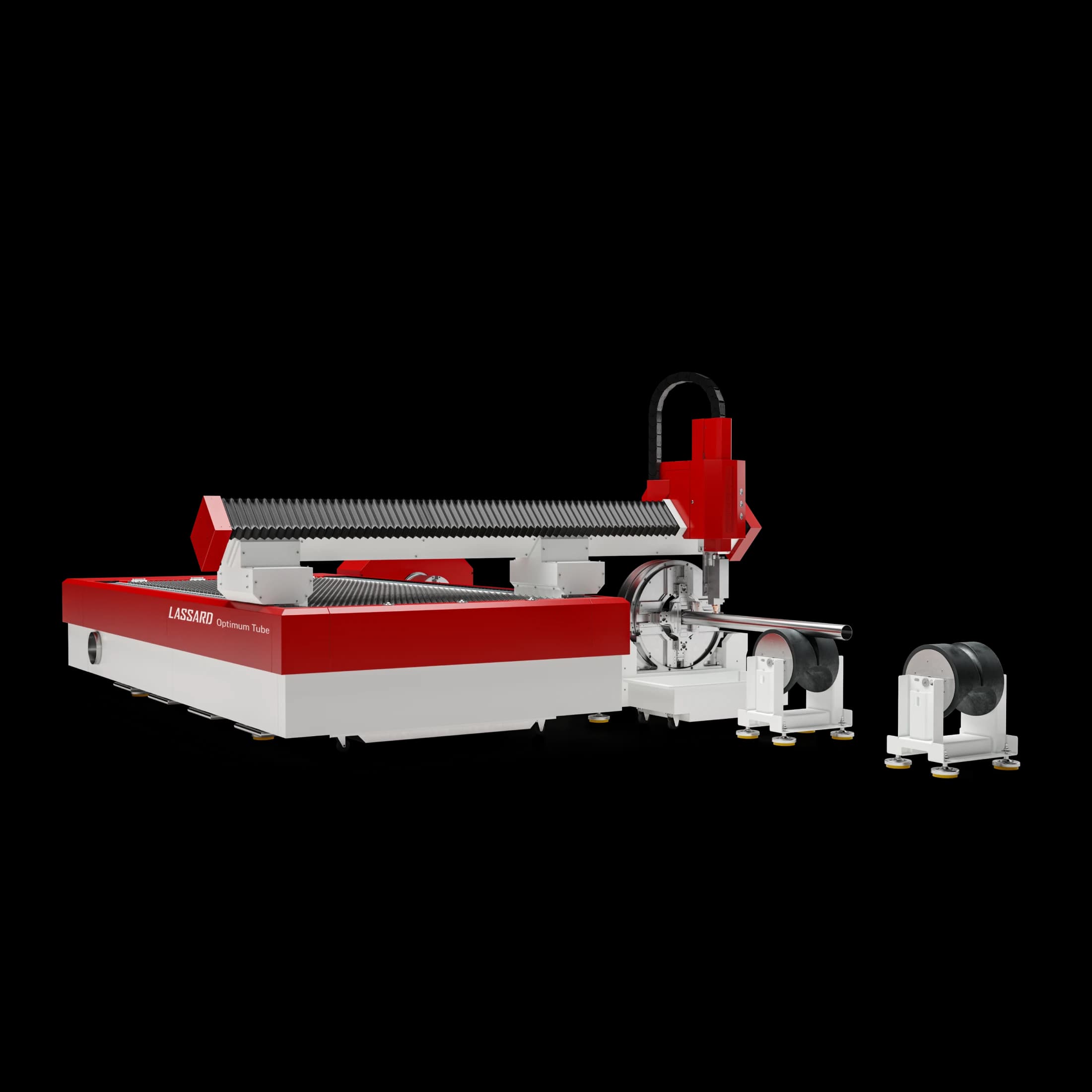

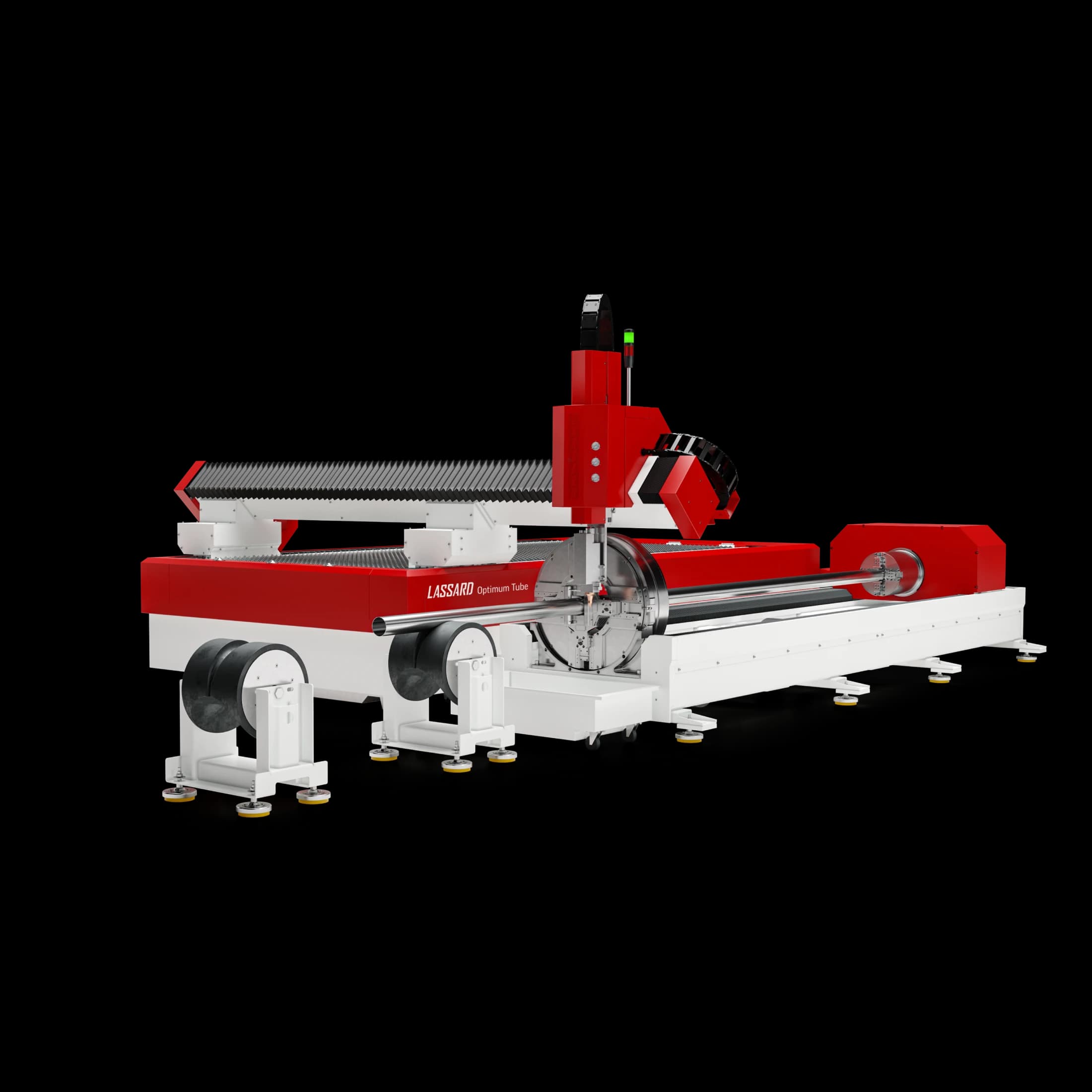

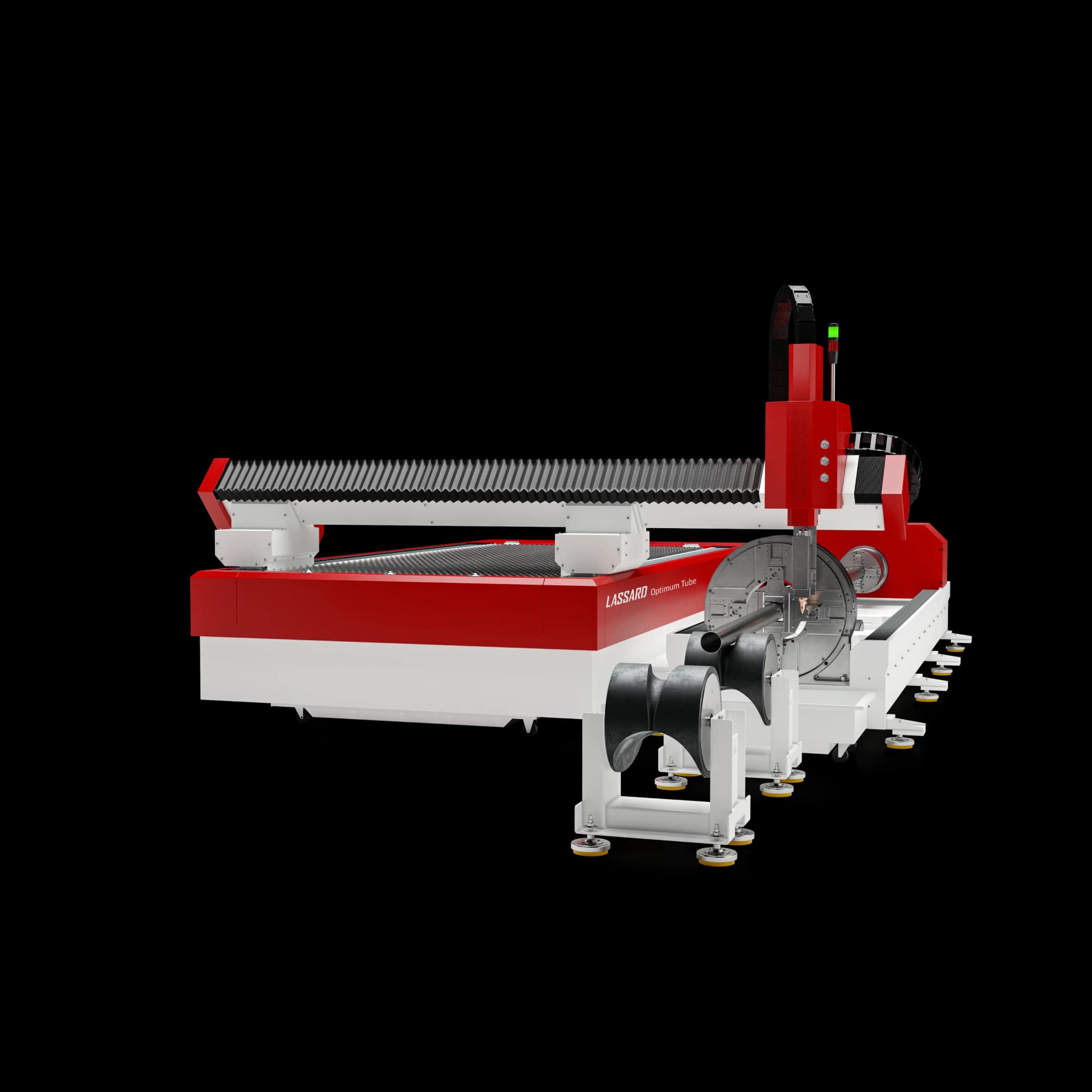

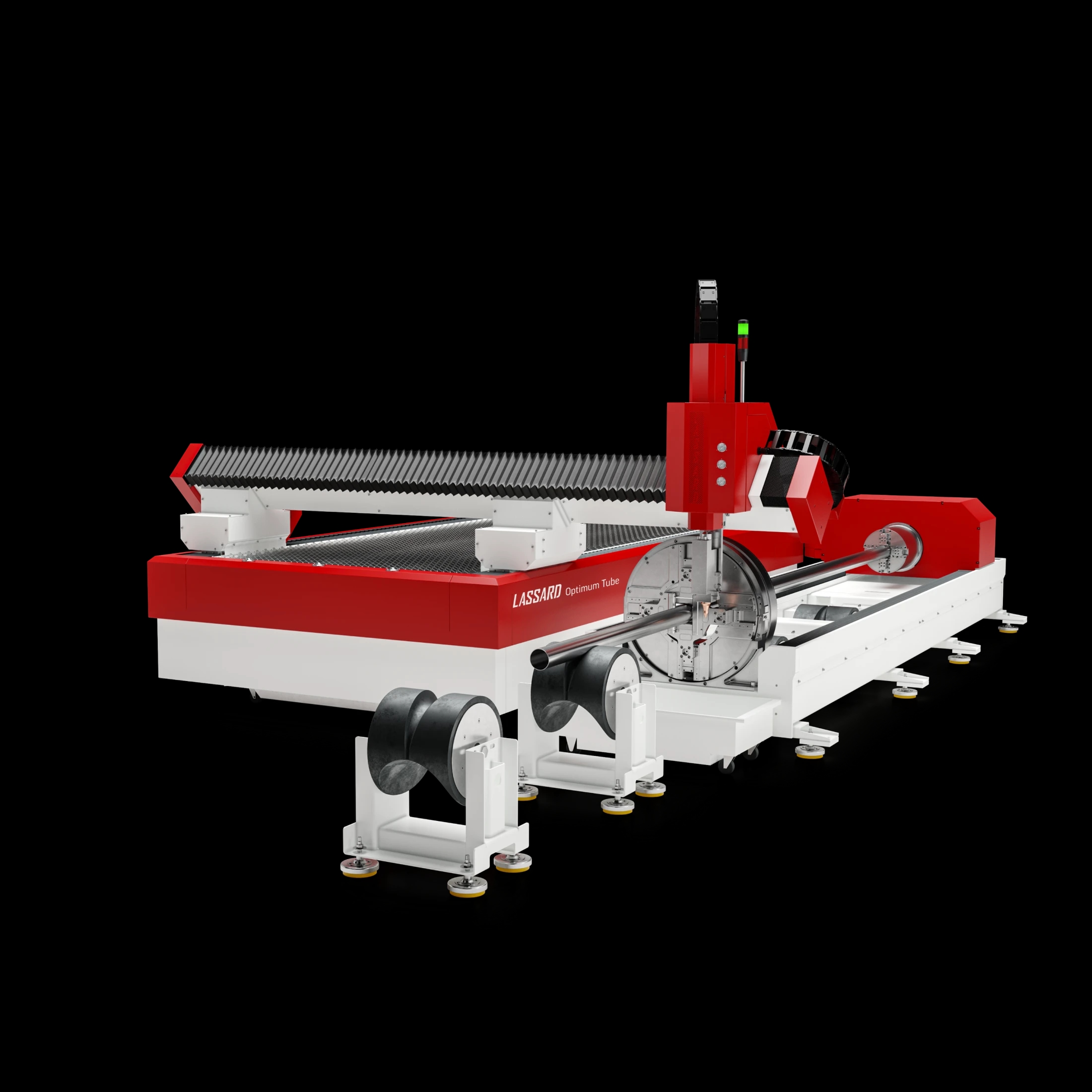

OPTIMUM TUBE
For laser cutting of sheet materials and pipes
OPTIMUM TUBE is a machine not only for high-speed cutting of pipes, but also of various sheet materials.
It can process brass, stainless steel, black steel, copper, aluminum alloys, gold, titanium, diamond coated materials, ceramics, paronite, stone.
Section of processed profiles:
Closed — rectangular and ellipsoidal
Open — channel, H-profile, angle
- OPTIMUM TUBE is equipped with a system for cutting pipes of various diameters, profiles and thicknesses
- The machine comes with pre-installed CypCut TubePro software for cutting pipes and sheet materials
- The pipe diameter can reach 220 mm, and the length can be up to 6000 mm
- The focusing lens provides the cutting width of 100 µm
- The edge of the part does not require additional processing, which significantly increases productivity
- Built-in fume removal system with automatic zone switching
Compressor
Pulling unit for coal metal
Automatic pallet changing system
Vacuum lifter
| Radiation source | Fiber laser (IPG Photonics / Raycus / Maxphotonics / LASSARD) |
| Source power | 1000–4000 |
| Processing field, mm | 1250×2500; 1500×3000; 2000×6000 |
| Minimum cutting width, µm | 100 |
| Positioning accuracy, mm | ±0.05 |
| Cooling type, mm | 0.03 |
| Travel along X, Y axes | Helical rack-and-pinion / Linear motors |
| Travel along Z axis | Ball screw |
| Synchronous speed of idle movements along the XYZ axes, m/min | up to 120 |
| Acceleration along the XYZ axes | up to 1.5 |
| Processed sheet materials | Brass, stainless steel, black steel, copper, aluminum alloys, gold, titanium, diamond-coated materials, ceramics, paronite, stone |
