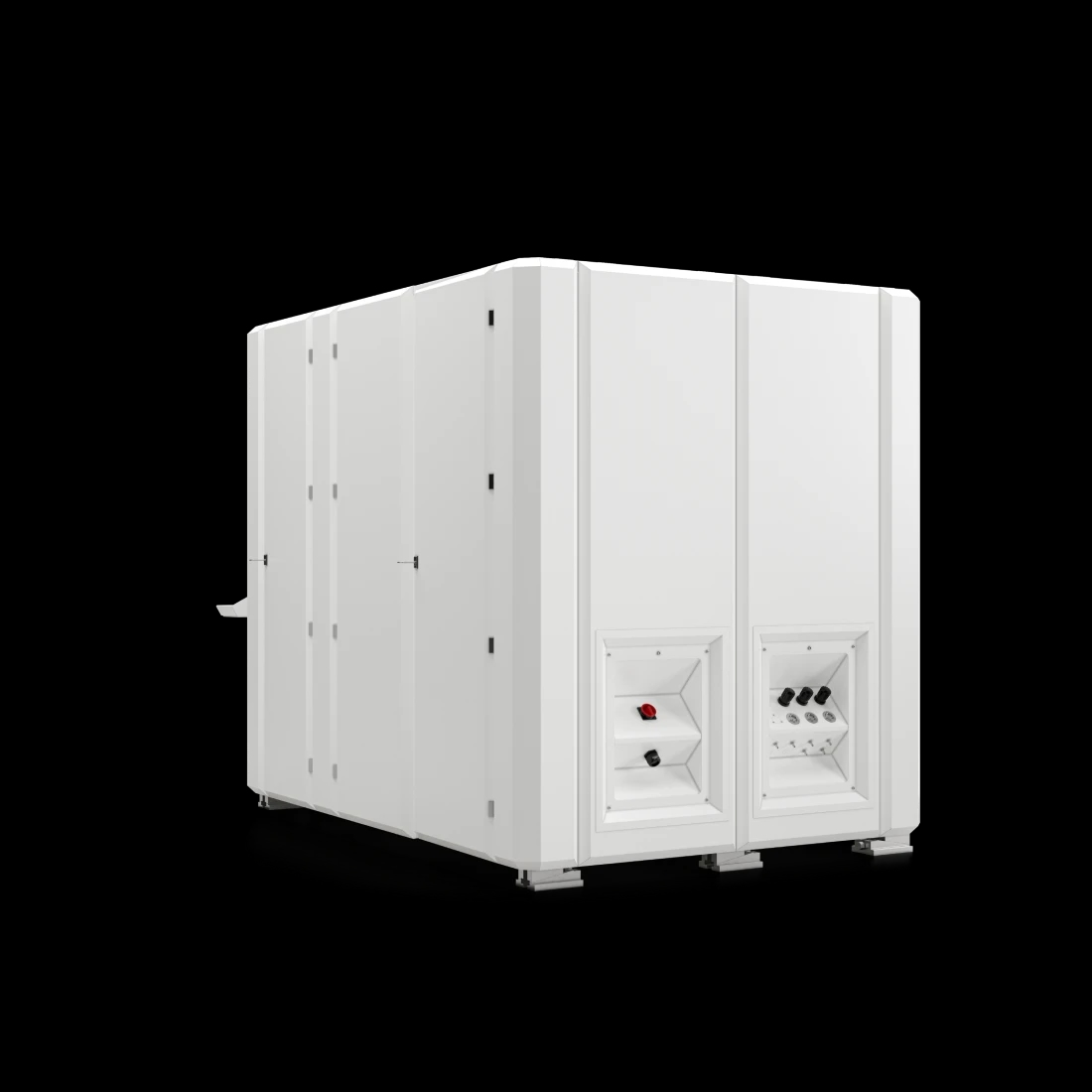

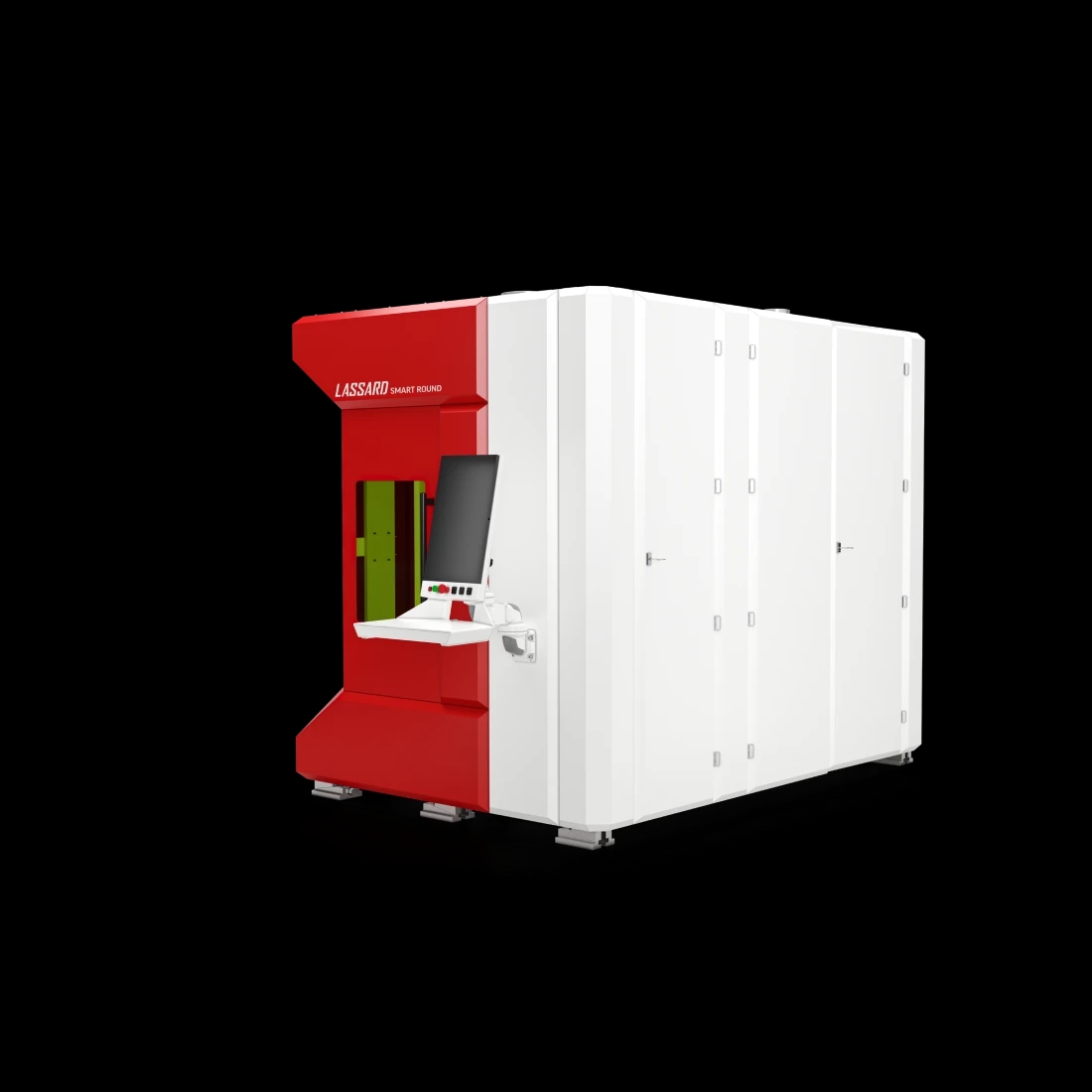

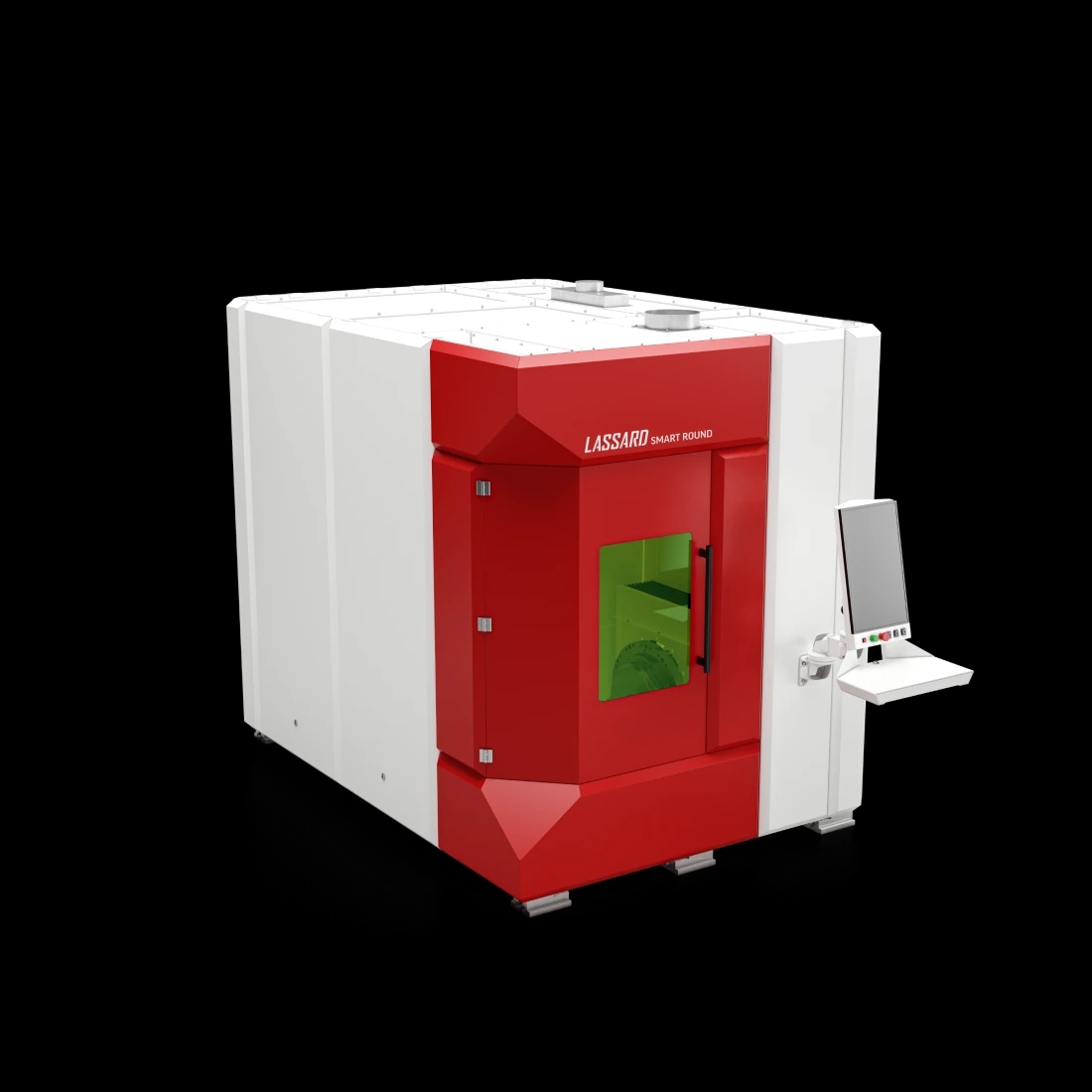

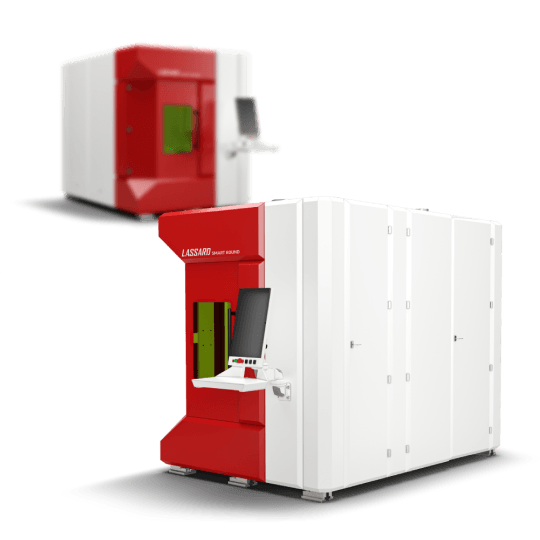

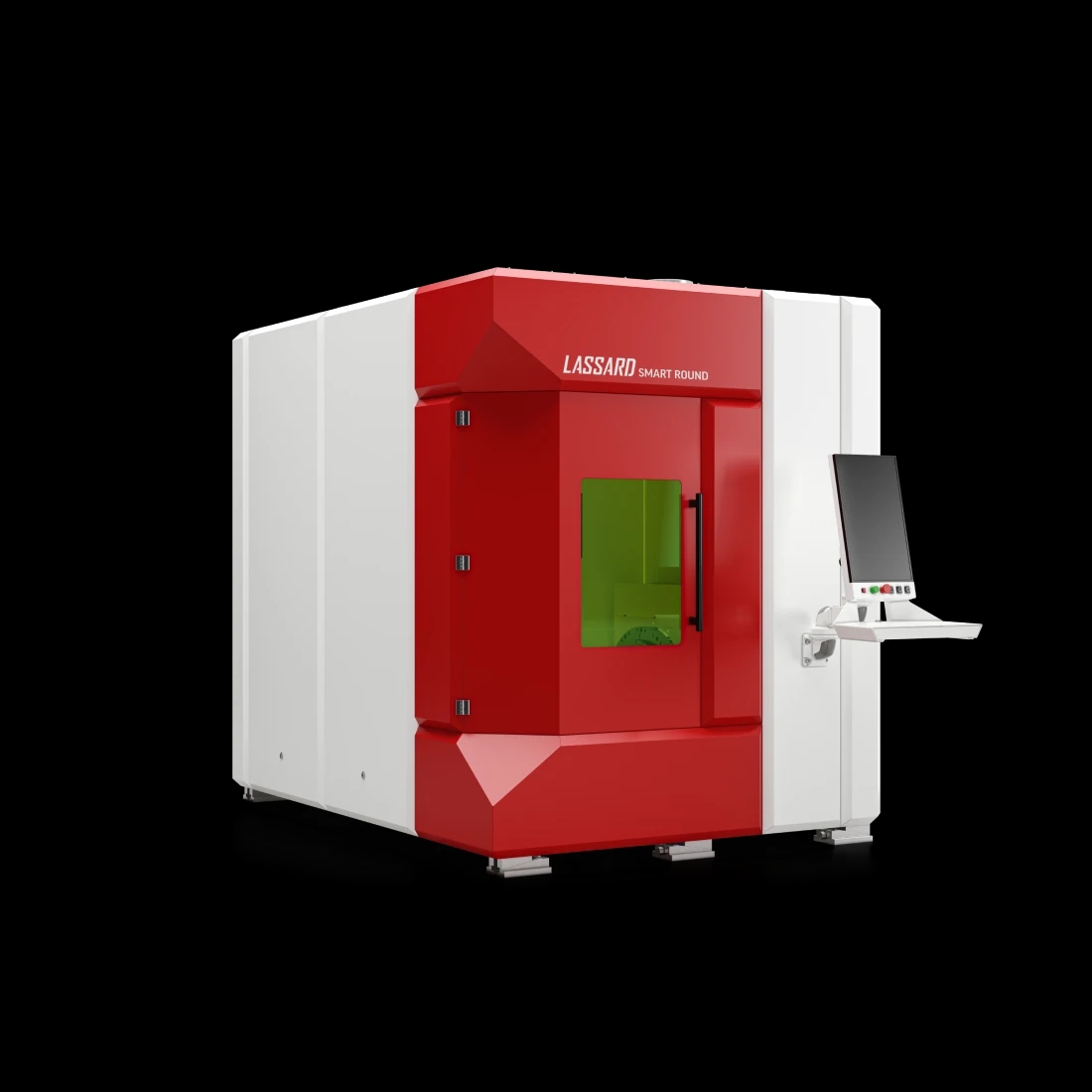

SMART ROUND
Five-axis laser machine for rotary cutting
The SMART ROUND five-axis laser machine specializes in cutting stainless and titanium alloys, heat-resistant steels, and non-ferrous metals.
It has 5 interpolated axes. The software synchronizes the operation of all axes, laser and optical head.
- Designed for cutting stainless and titanium alloys, heat-resistant steels, non-ferrous metals
- Optimized optical head movement design along XYZ axes
- Precision table for tilting and rotating the workpiece
- Workpiece size: diameter up to 300 mm, height without equipment up to 270 mm
- The machine is equipped with cabinet protection for the safety of operating personnel and noise insulation
Compressor

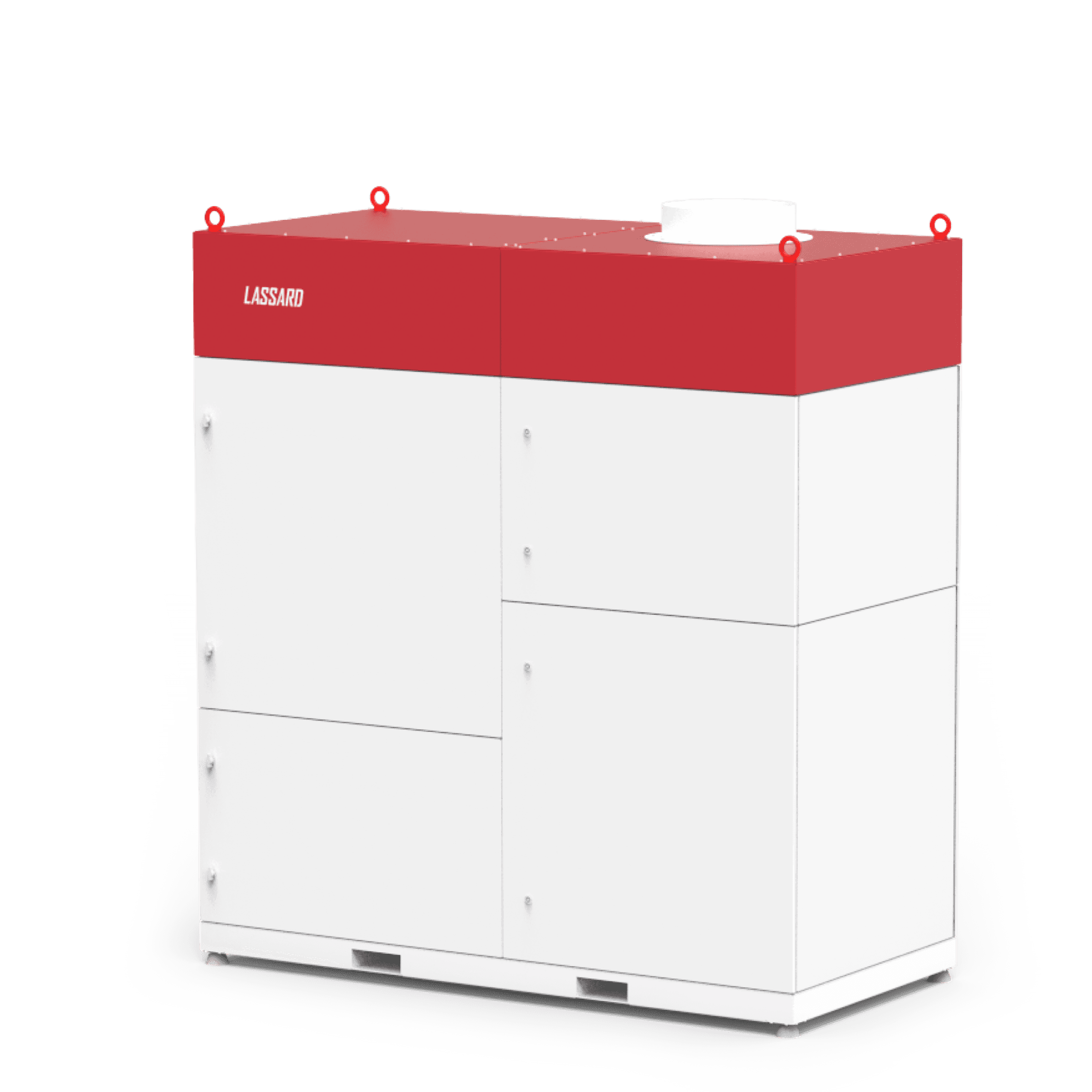

Filter ventilation unit
Video measuring system
| Radiation source | Fiber laser |
| Source power | 150/1500; 300/3000; 450/4500 |
| Overall dimensions of the workpiece, mm | Diameter up to 300 Height without equipment up to 270 |
| Roughness of machined surfaces | Ra 6.3 |
| Accuracy, mm | 0.03 |
| Drives | HIWIN |
| Cooling type | Water / Air |
| Processed sheet materials | Brass, stainless steel, black steel, copper, aluminum, aluminum alloys, gold, titanium, diamond-coated materials, ceramics, paronite, stone |
