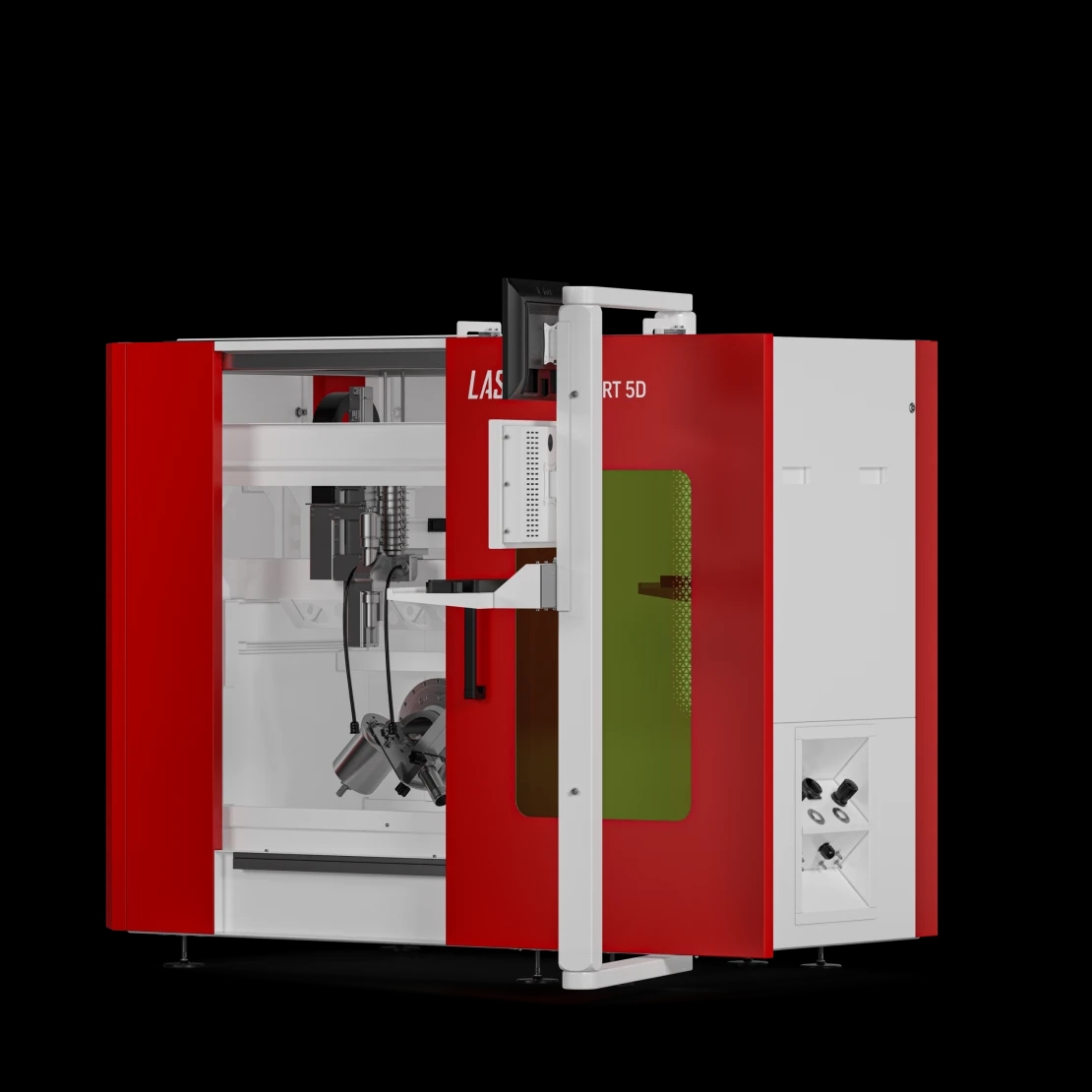

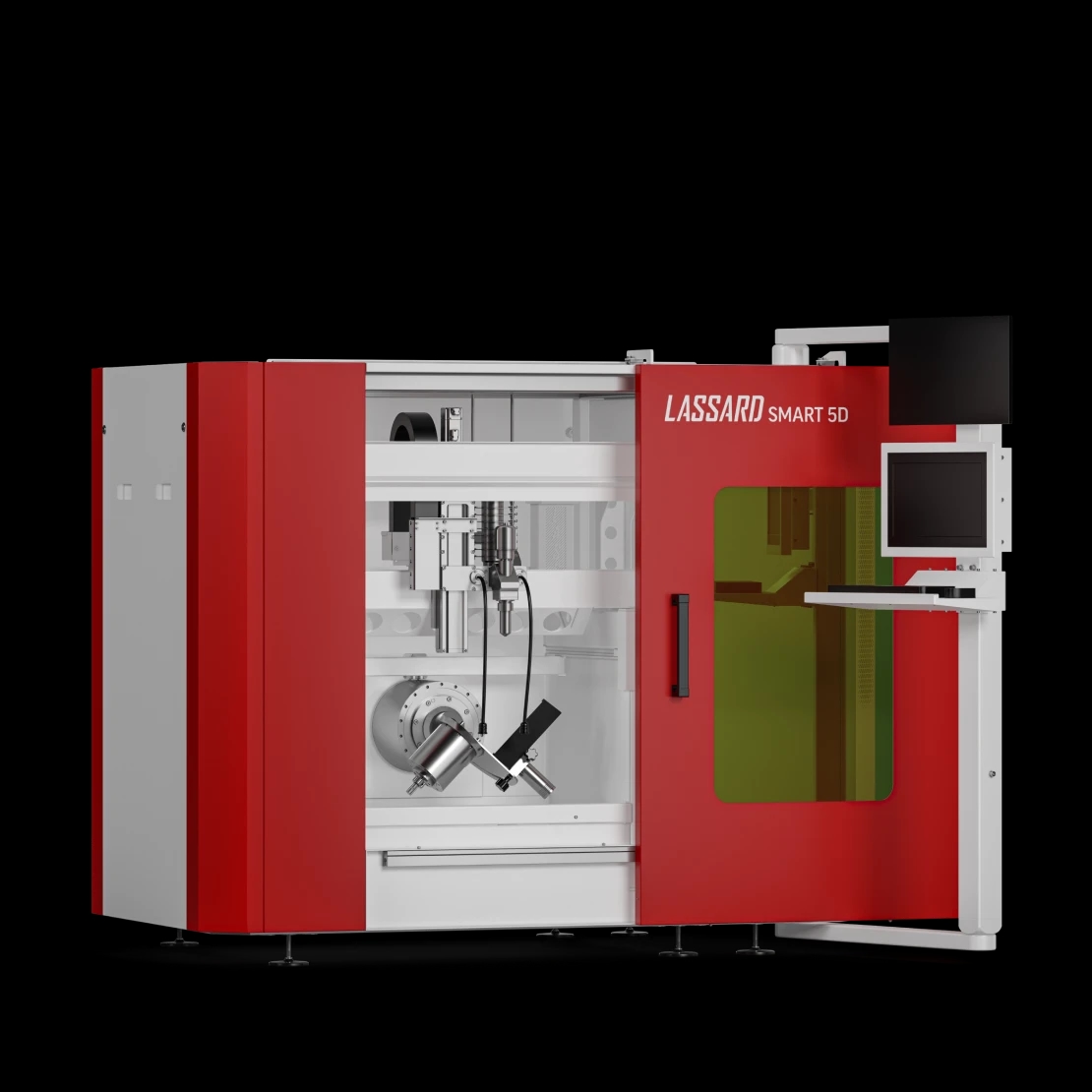

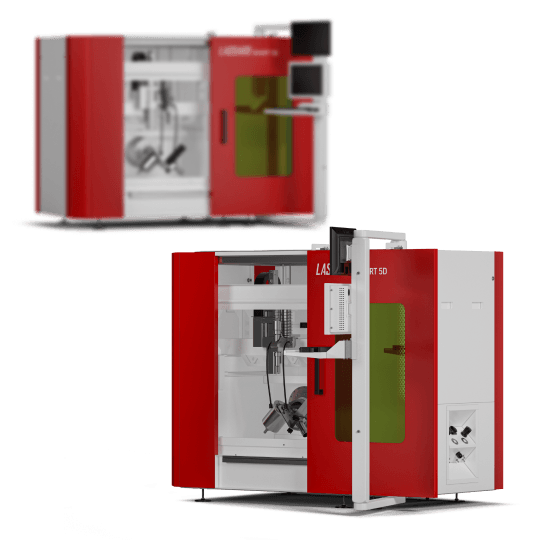

SMART 5D
Five-axis laser machine
SMART 5D five-axis laser machine specializes in cutting ceramics and parts used in engine construction.
It has 5 interpolated axes, and the software synchronizes the operation of all axes, laser, and optical head.
- SMART 5D specializes in cutting ceramics and engine parts
- Has 5 interpolated axes
- Processes three-dimensional parts and parts of non-standard shapes
- The software synchronizes the operation of all five axes, laser, and optical head
- The machine is equipped with both a solid-state and fiber laser
- The machine is equipped with cabinet protection for noise insulation and safety of operators
Filter ventilation unit LFILTER SMART
Automatic gas console for 4 types of gas
Compressor
Protective eyewear
| Radiation source | Fiber laser (LASSARD), ytterbium fiber laser (VPG Laserone), solid-state laser (LASSARD), Raycus |
| Source power | 150/1500; 300/3000; 450/4500; 500; 1000; 2000; 3000 |
| Processing field, mm | 400×300 |
| Positioning accuracy, mm | ±0.01 |
| Axis rotation ranges, ° | 360° и 45° |
| Synchronous speed of idle movements along the XYZ axes, m/min | up to 2 |
| Acceleration along the XYZ axes | up to 1 |
| Processed sheet materials | Stainless steel, black steel, copper, aluminum alloys, brass, ceramics |
| Radiation wavelength, µm | 532 |
