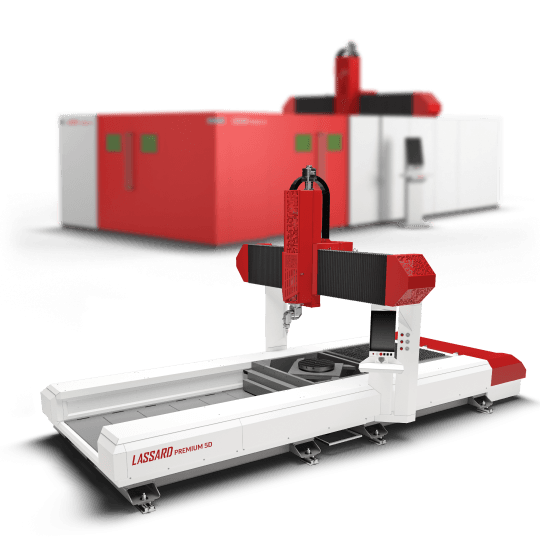

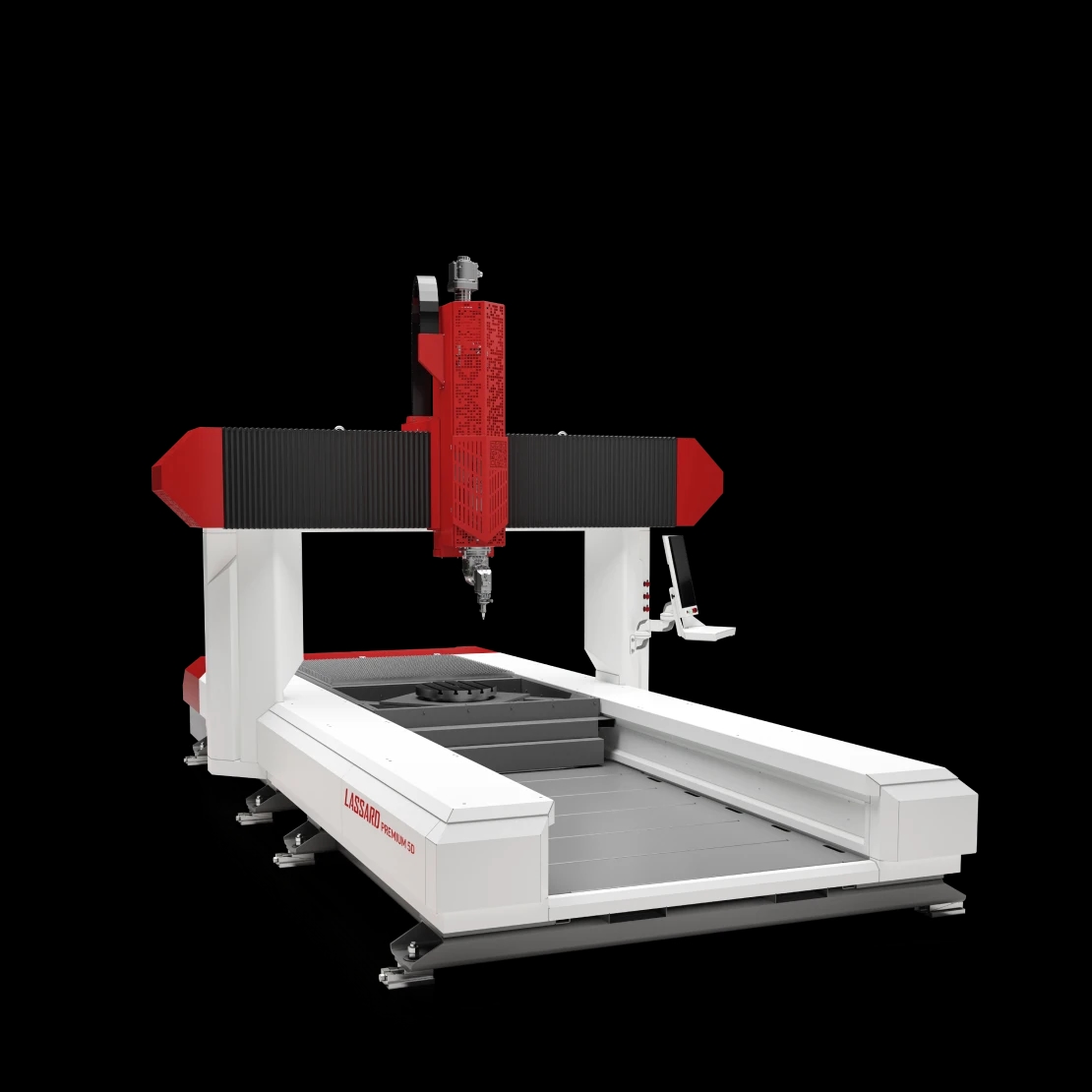

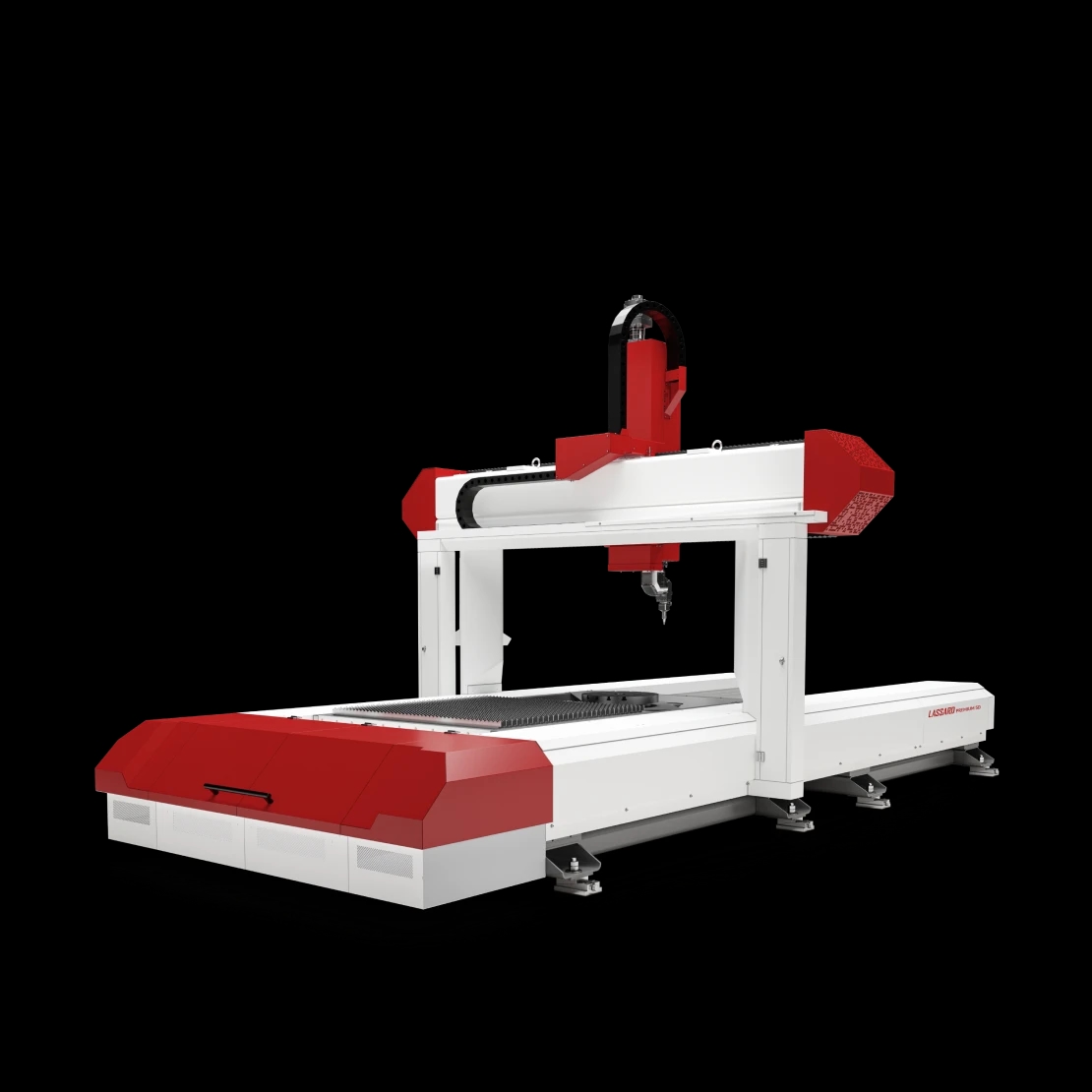

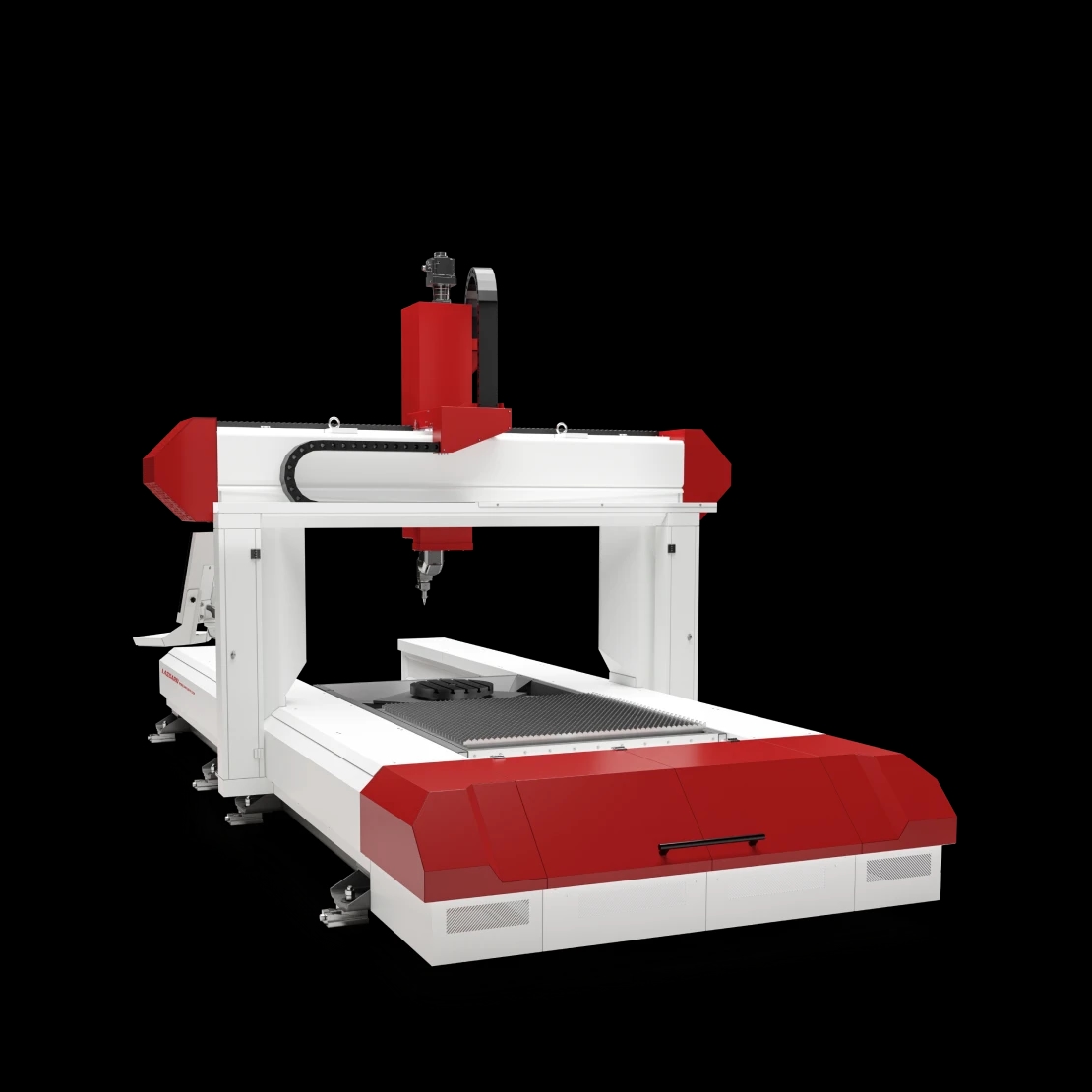

Five-axis 3D laser processing machine
It is in demand where production tasks can only be solved by a specialized high-precision 3D processing center due to its high accuracy, cutting speed and process automation with specialized software.
| Radiation source | Fiber laser (IPG Photonics) |
| Processing field, mm | 1500×1500 |
| Minimum cutting width, µm | 100 |
| Positioning accuracy, mm | ±0.05 |
| Cooling type, mm | 0.02 |
| Rotation range for positioning items along “A” axis, ° | 360 |
| Rotation range for positioning items along “C” axis, ° | ±135° |
| Travel along X, Y axes | Rack-and-pinion / Ball screw |
| Travel along Z axis | Ball screw, up to 700 mm |
| Rotary table diameter, mm | |
| Synchronous speed of idle movements along the XYZ axes, m/min | до 20 |
| Processed sheet materials | Brass, stainless steel, heat-resistant steel, high-hardness steel, black steel, copper, aluminum alloys, gold, titanium, diamond-coated materials, ceramics, paronite, polycor (alumina ceramic), glass-ceramic (sitall) |
| Source power | 300/3000; 150/1500 |
