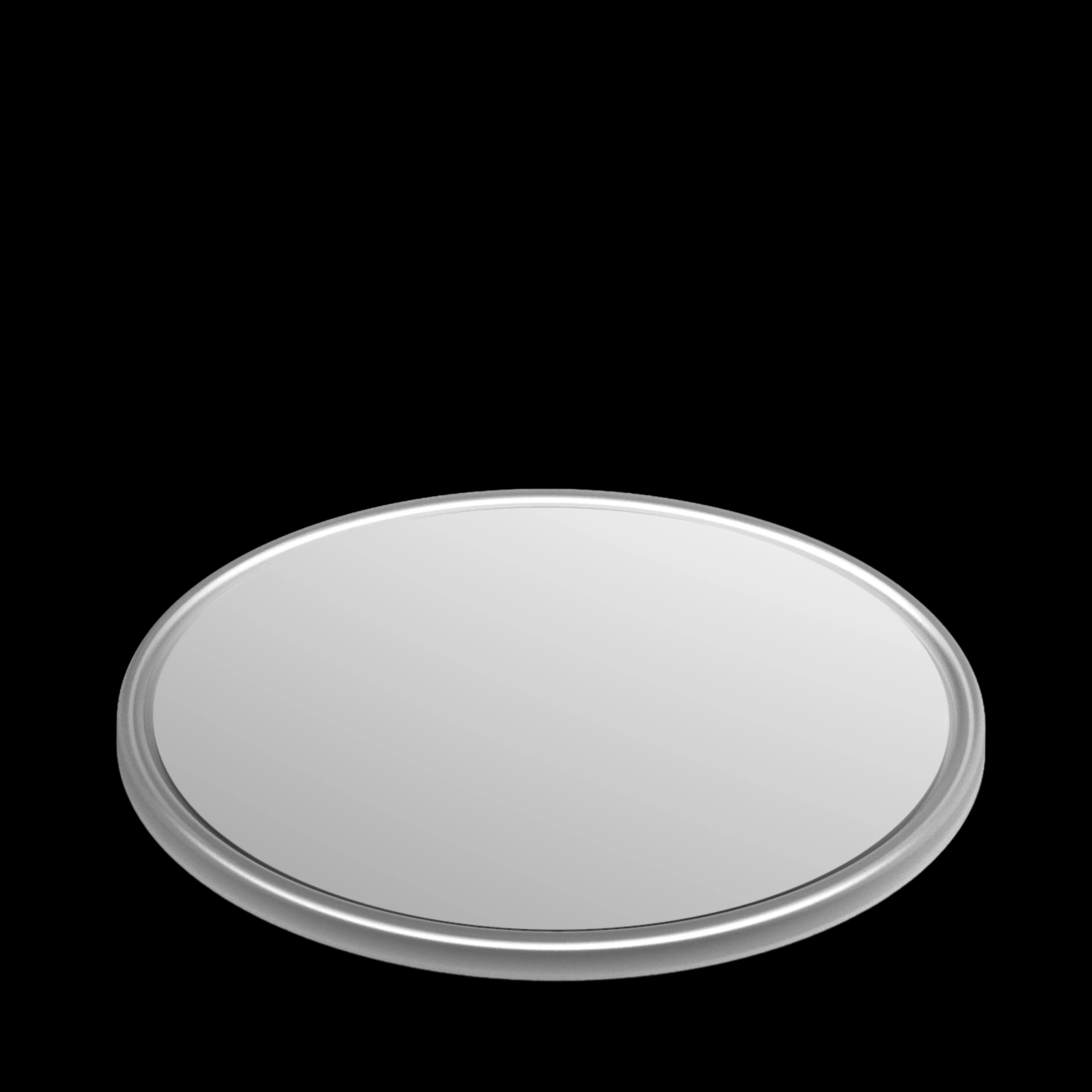

Si Wafers

Application

Microwave technology
Optoelectronics and photonics
Semiconductor devices and sensors
Photovoltaic converters (solar batteries)
Single and matrix photodetector devices
Silicon wafers are used for the manufacture of discrete semiconductor devices (diodes, transistors), ultra-large-scale integrated circuits (VLSI) with thousands of semiconductor and passive elements, and microelectromechanical systems (MEMS).

The size range includes wafers with a thickness of 380, 420, and 460 microns and a diameter of 100 mm.
