Fiber patchcords
LASSARD produces quartz optical fibers and fiber optic cables based on them:
fibers with a core diameter from 4 to 1000 µm, length up to 1 km, single-mode and multimode; with preservation of polarization; with acrylate, aluminum and copper coating; with double shell (DC).
The diameter of the reflective sheath of the fibers is from 110 µm to 1100 µm, the protective coating is from 140 µm to 1500 µm.

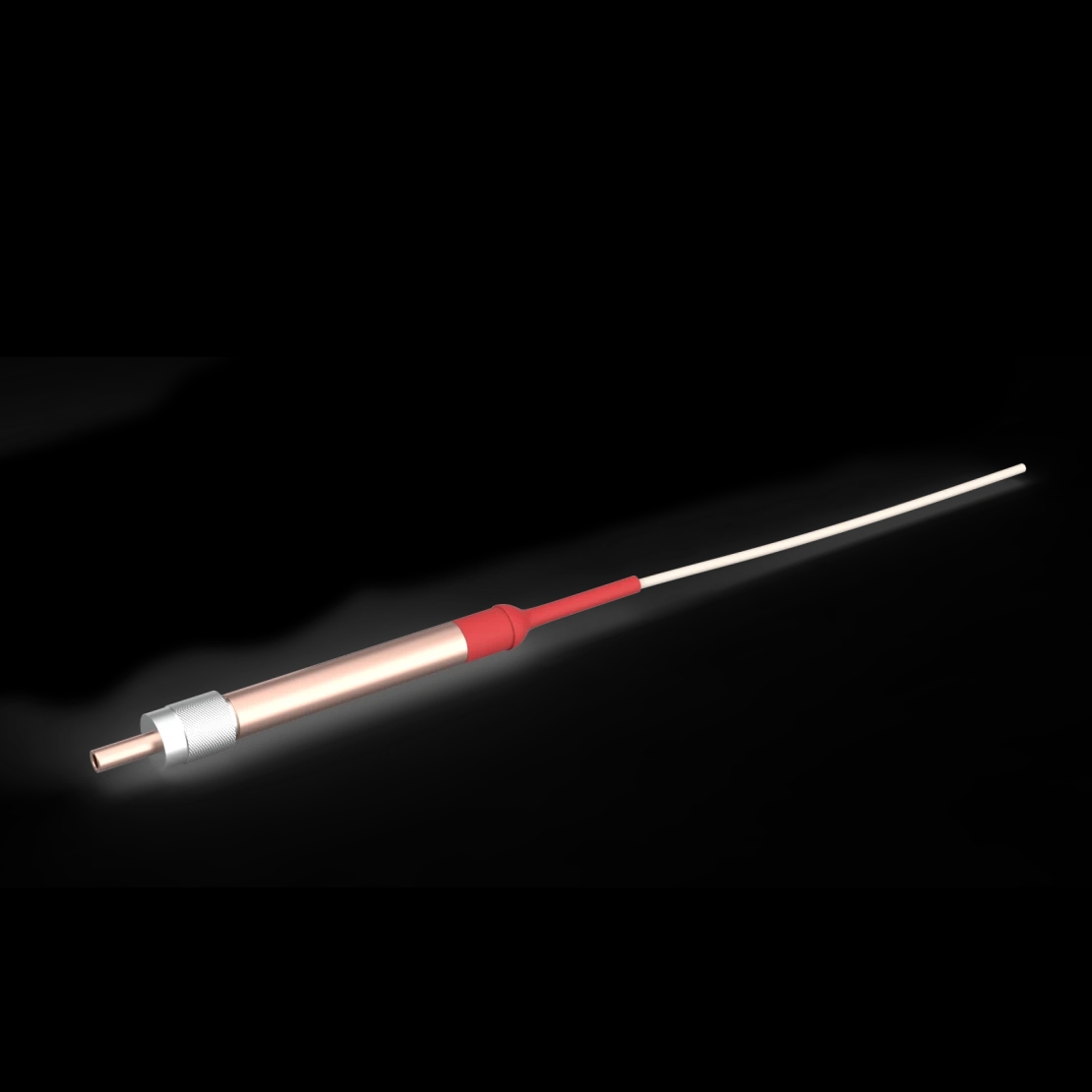

Optical fibers are used for making patch cords with lengths from 1 m to 50 m (up to 100 m on request) with SMA-905, D-80, FC and ST connectors. Possible types of fiber end polishing: FLAT, PC, UPC (APC polishing is optional).
