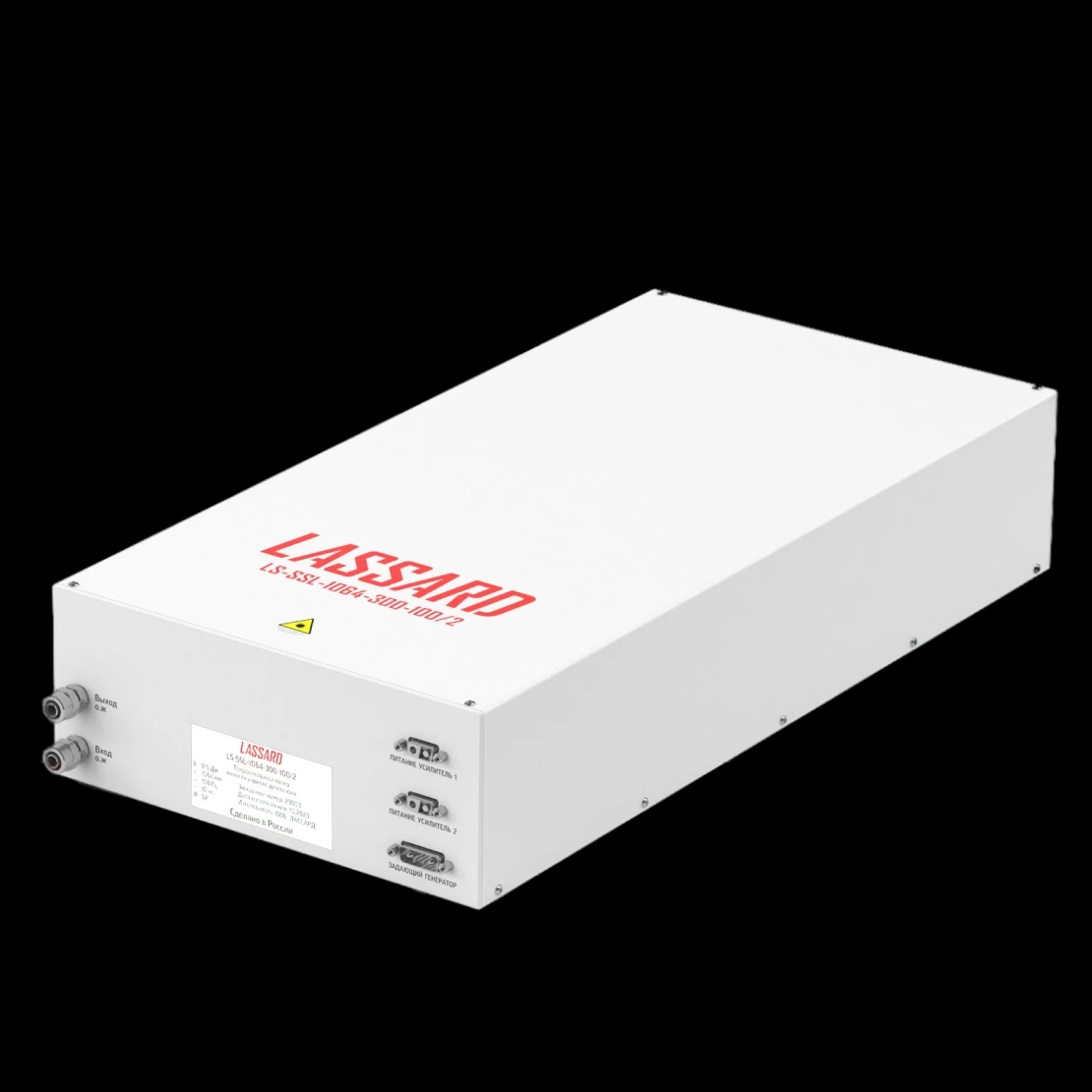

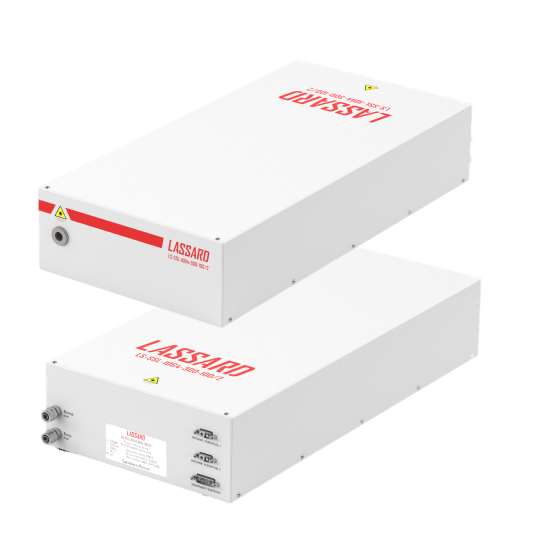

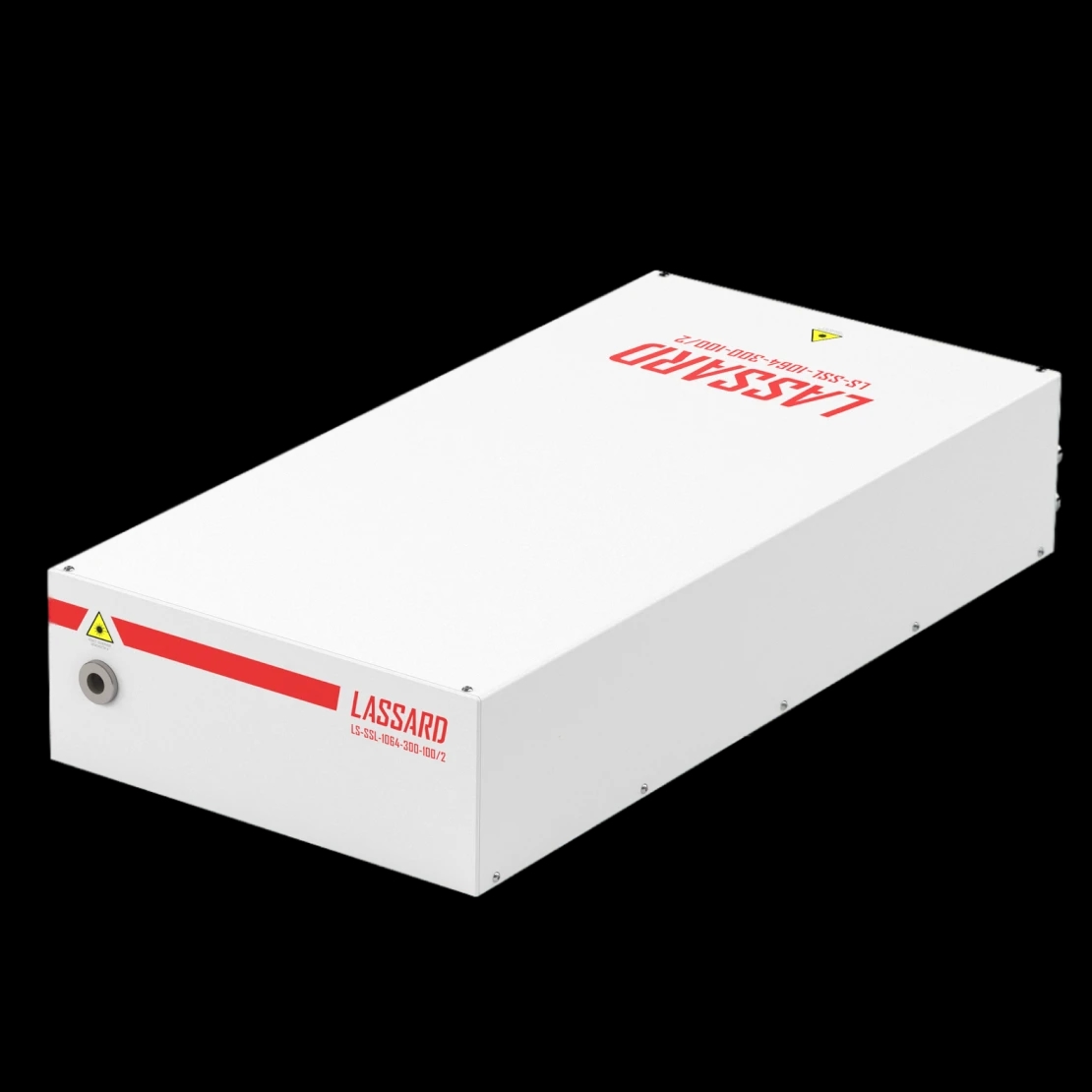

Diode-pumped pulsed solid-state lasers
Nanosecond lasers operating in a pulsed mode with a frequency of up to 100 Hz based on proprietary diode pump chambers are LASSARD's in-house products.
They are used in rangefinders and remote sensing systems, nonlinear frequency converters, as well as laser systems for cutting, marking, and cleaning.
- Emission of energy in short pulses of 1–10 ns
- Pulse repetition rate up to 100 Hz
- Ultra-high peak power (1 GW)
- Second harmonic generation (optional)
Merge identical values
| SKU | LS-L05–1064 | LS-S02–532 |
| Radiation wavelength, µm | 1064 | 532 |
| Laser operating mode | Pulsed | Pulsed |
| Pulse energy, J | 1.5 | 0.5 |
| Cooling type | Water | Water |
| Coolant flow rate, L/min | 10–12 | 10–12 |
| Overall dimensions of the laser, mm | 933×296×149 | 933×296×149 |
| Overall dimensions of the power supply, mm | 370×435×270 | 370×435×270 |
| Overall dimensions of the master generator, mm | 295×290×105 | 295×290×105 |
| Pulse duration, ns | 1–10 | 1–10 |
