    Single crystal gallium arsenide

    Optical and mechanical products

    opto.lassard.ru

    Equipment demonstration

    Visit the showroom

    Service center

    24/7

    Catalogs and certificates

    View

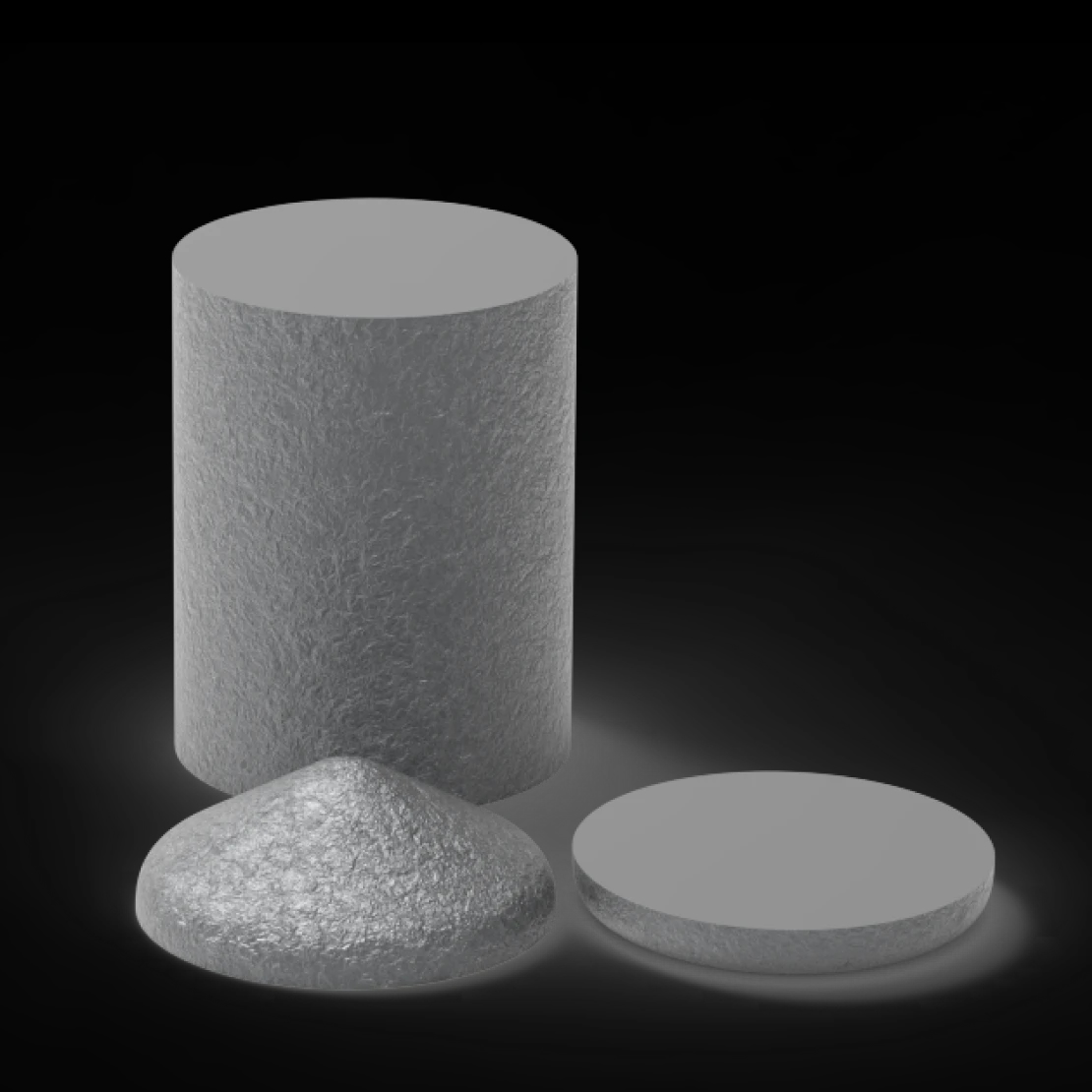

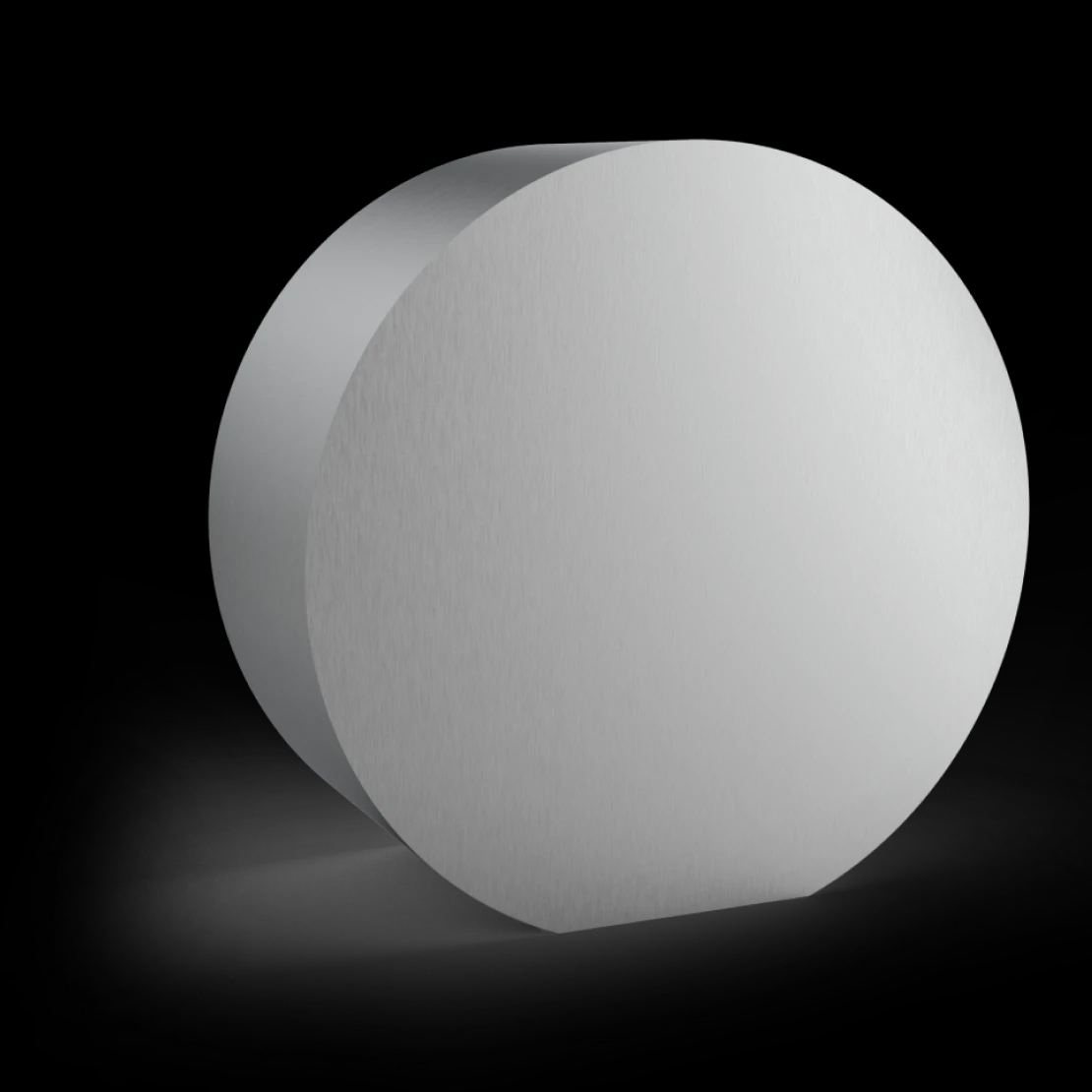

    Monocrystals of silicon-doped gallium arsenide are grown by the VGF method. They feature high n-type conductivity and low dislocation density. They are used for the manufacture of wafers for optoelectronics.

    Download PDF
    Growing methodVGF
    Nominal diameter, mm100
    Deviation from nominal value, µm+1/-0
    Crystallographic orientation, °(100)
    Conductivity typeN
    DopantSi
    Charge carrier mobility, cm²/V·sec> 1200
    Charge carrier concentration, cm-3From 1·10¹⁷ to 3·10¹⁸
    Dislocation density, cm-2< 500

    Nominal diameter, mm

    100

    Dopant

    Si
