IR Visualizers

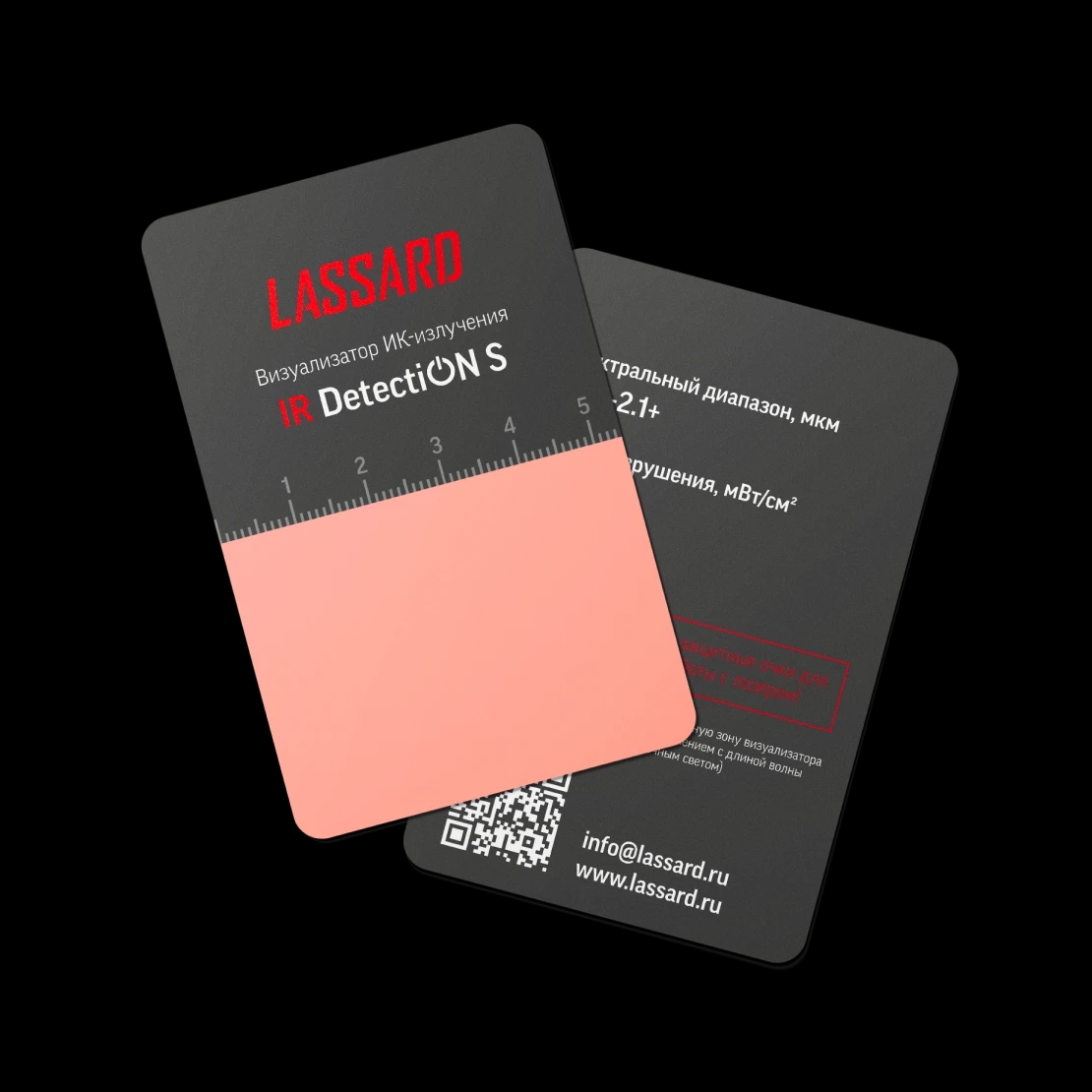

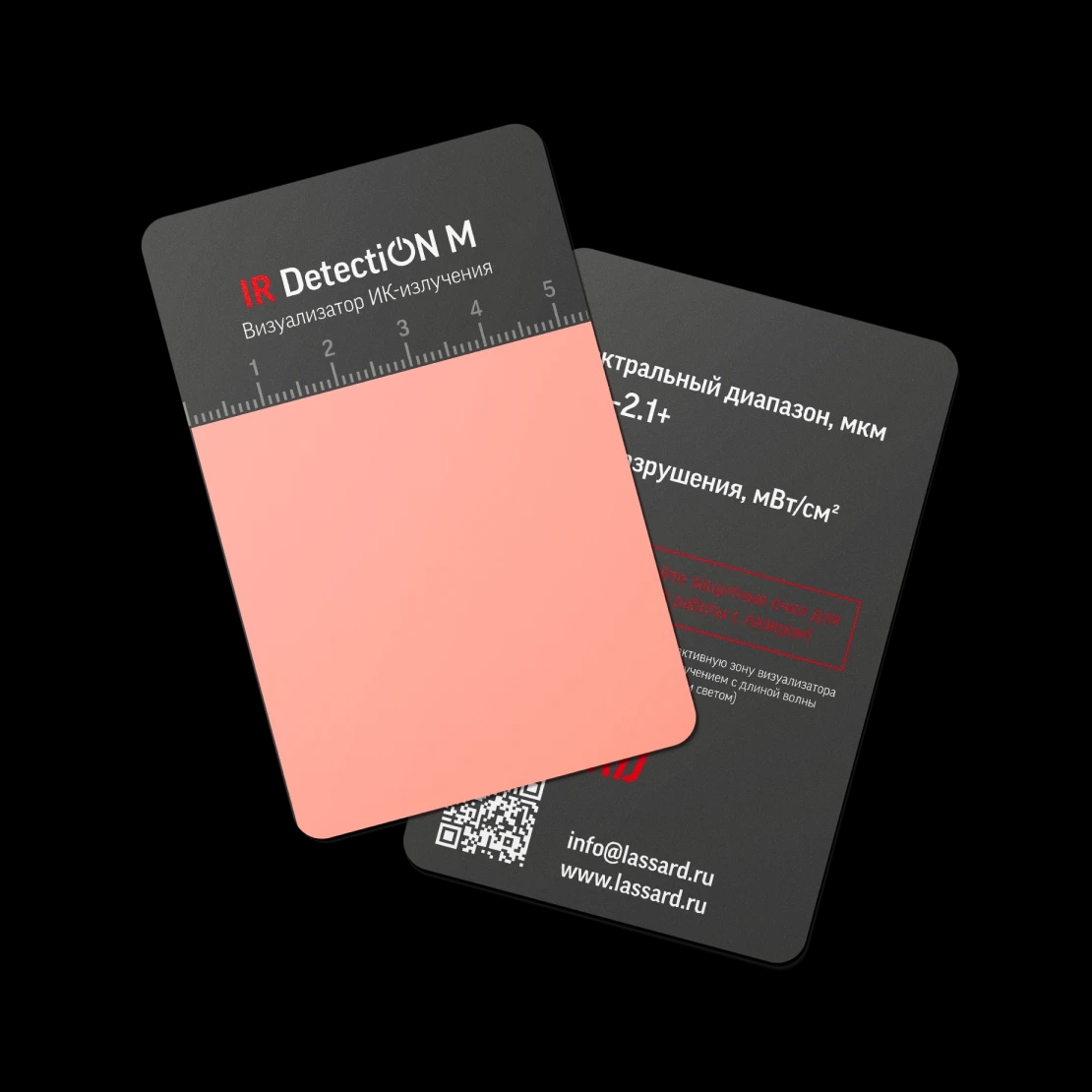

LASSARD offers polymer-based visualizers with photosensitive area sizes of 54×40 and 57×54 mm. Visualizers with a different size of the photosensitive area can be manufactured on a customized basis.
Visualizers convert infrared laser radiation into the visible range, help to align optical circuits and visually assess the size and shape of laser beams. They are used with lasers based on active media doped with Nd, Yb ions, etc., as well as with laser diodes, bars, and arrays in the IR range.
| Item No | 91LSOV-02, 91LSOV-01 |
| Visualizer type | Card |
| Overall dimensions, mm | 86×54 |
| Size of photosensitive area, mm | 54×40, 57×54 |
| Spectral range, nm | 750–2100 |
| Damage threshold, mW/cm² | > 700 (continuous mode), >700 (continuous mode) |
| Features, nm | Additional irradiation (pumping) required at a wavelength of 200–280 nm or 450–470 nm, or daylight |
