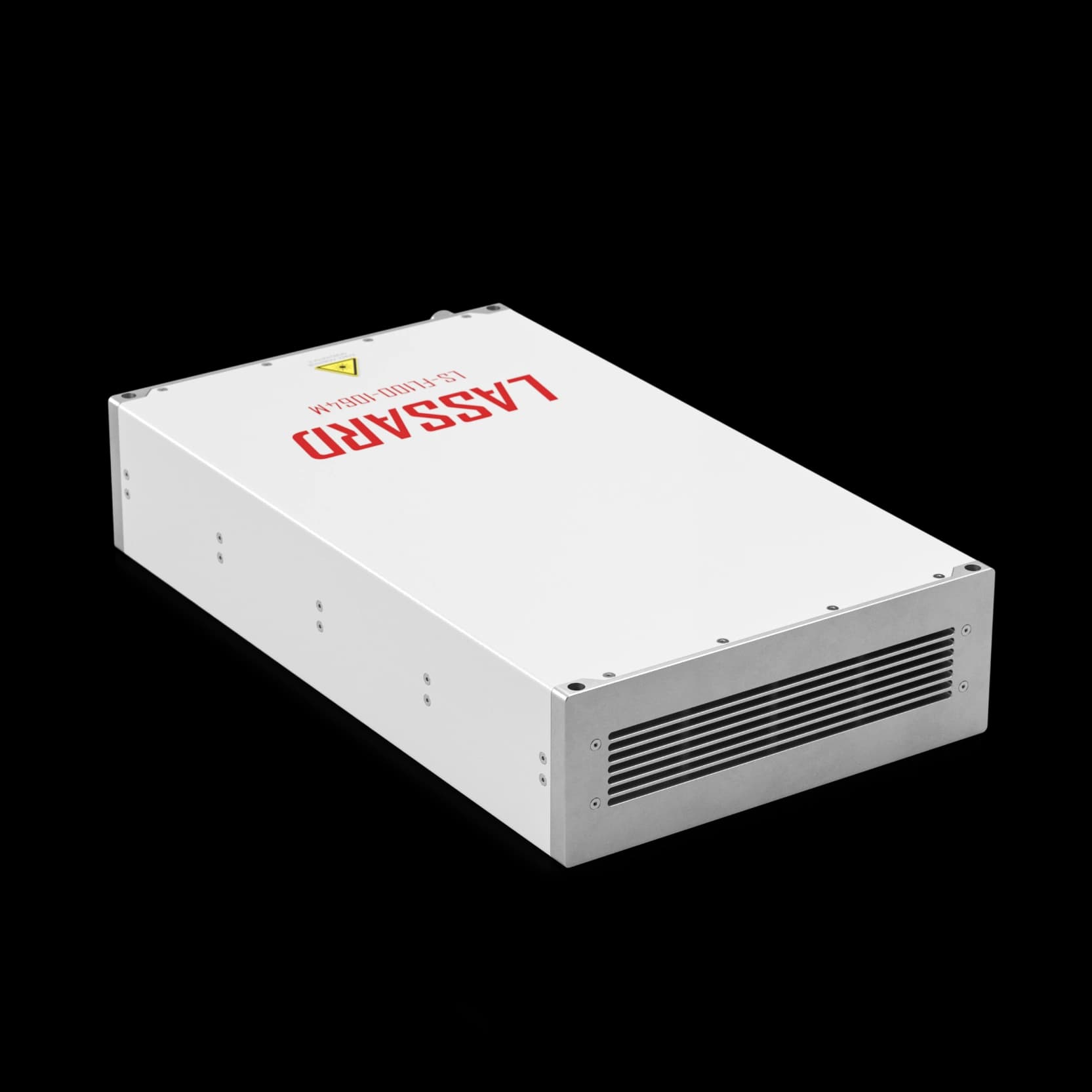

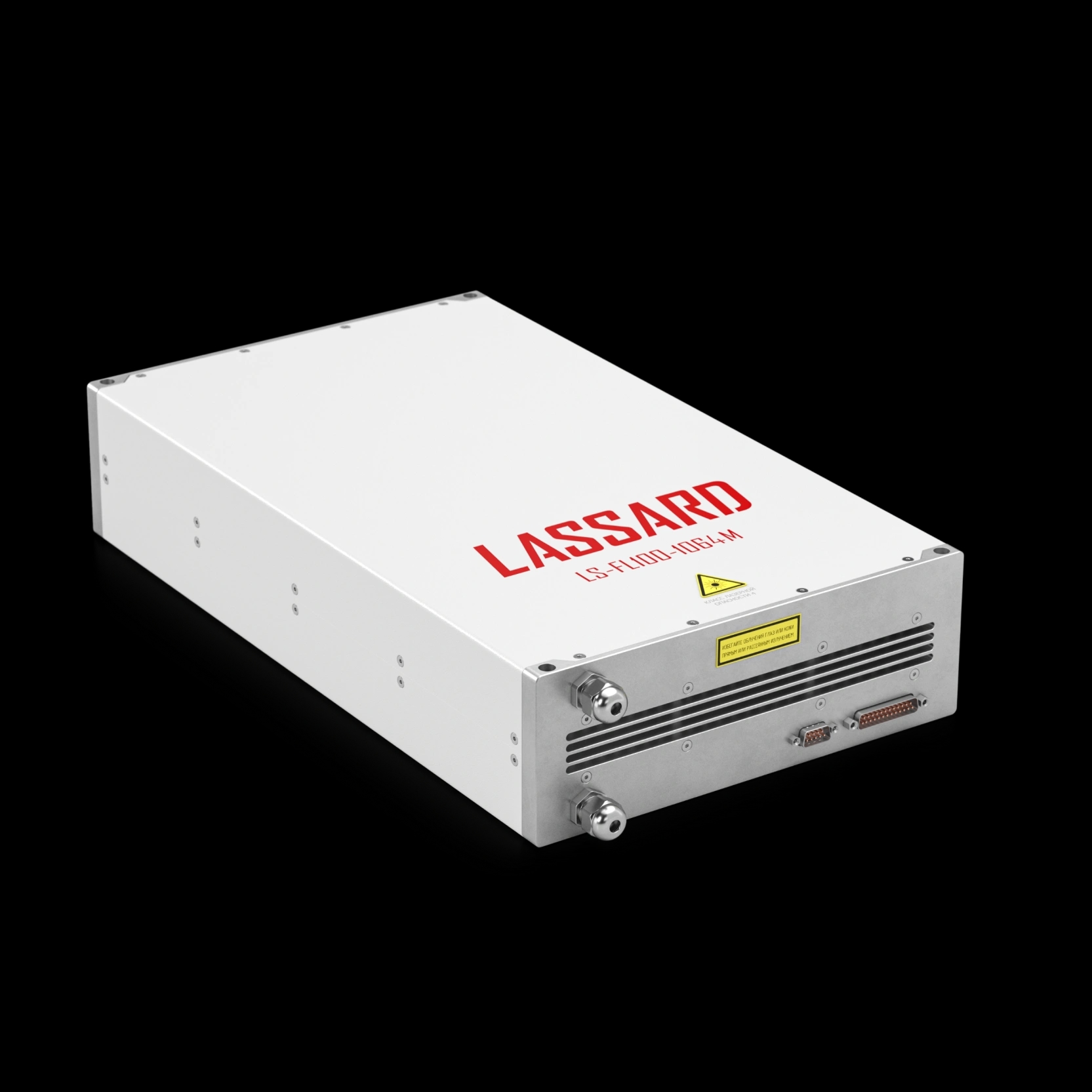

The laser operates in pulsed mode. It has a high power of laser radiation per pulse with the efficiency of converting pump radiation into laser radiation.
Applications: laser cutting, welding and engraving, heat treatment of metals, additive technologies, communication systems.
| Laser operating mode | Pulsed |
| Average output power | 30–100 |
| Maximum pulse energy, mJ | 1 |
| Pulse repetition frequency, kHz | 1–4000 |
| Radiation wavelength, µm | 1064 |
| Beam quality parameter, М² | |
| Overall dimensions, mm | |
| Cooling type | Air |
| Output beam dimensions, mm | 6–8 |
| Output power adjustment range, % | 1–100 |
| Power stability, % | |
| Weight, kg | до 10 |
| Power supply, Hz | 24 V |
| Pilot laser wavelength, nm | 630–660 |
| Control interfaces | RS-232, analog |
| Operating temperature, °C | 15 ~ 35 |
| Humidity, % | до 70 |
| Storage temperature | |
| Pulse duration, ns | 2–350 |
