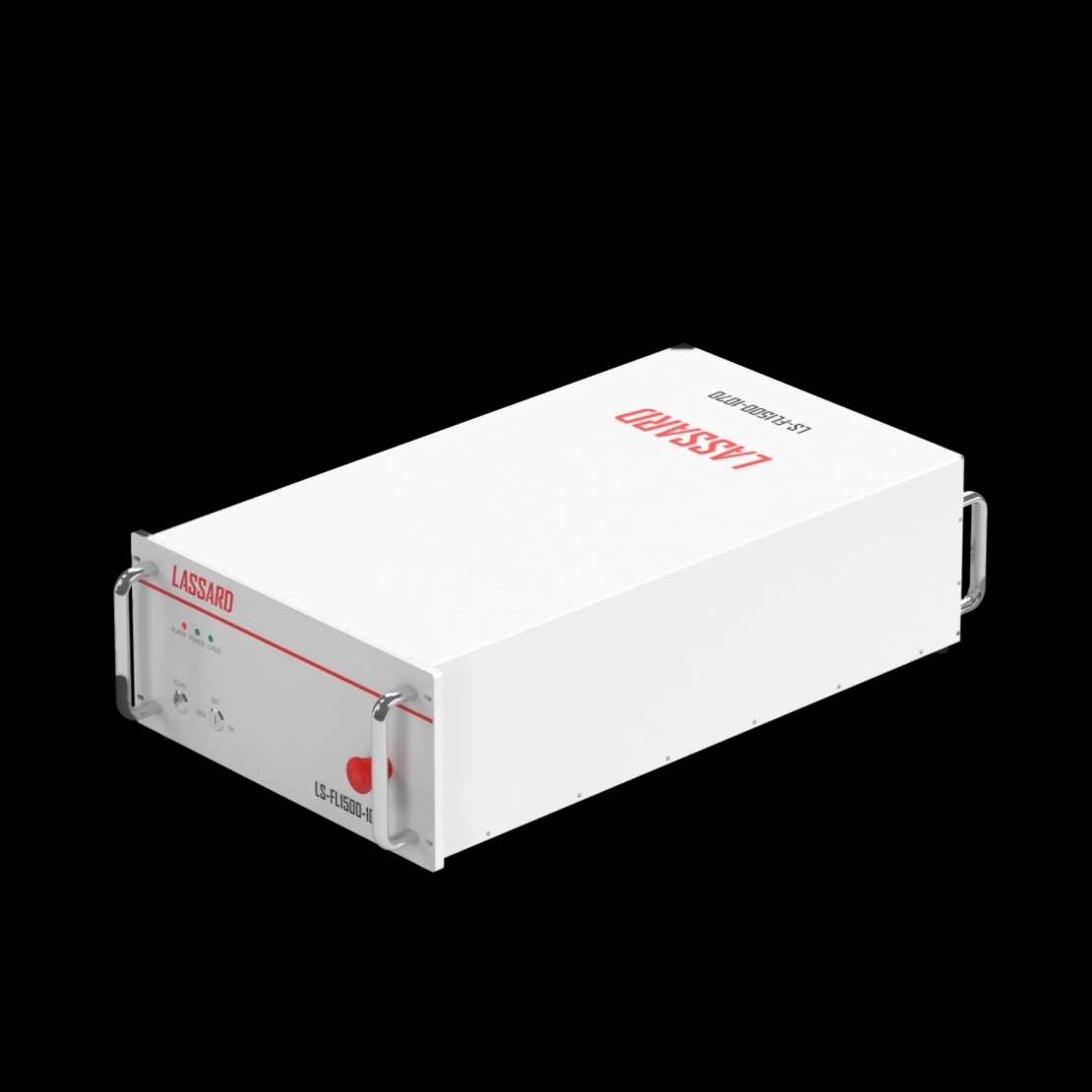

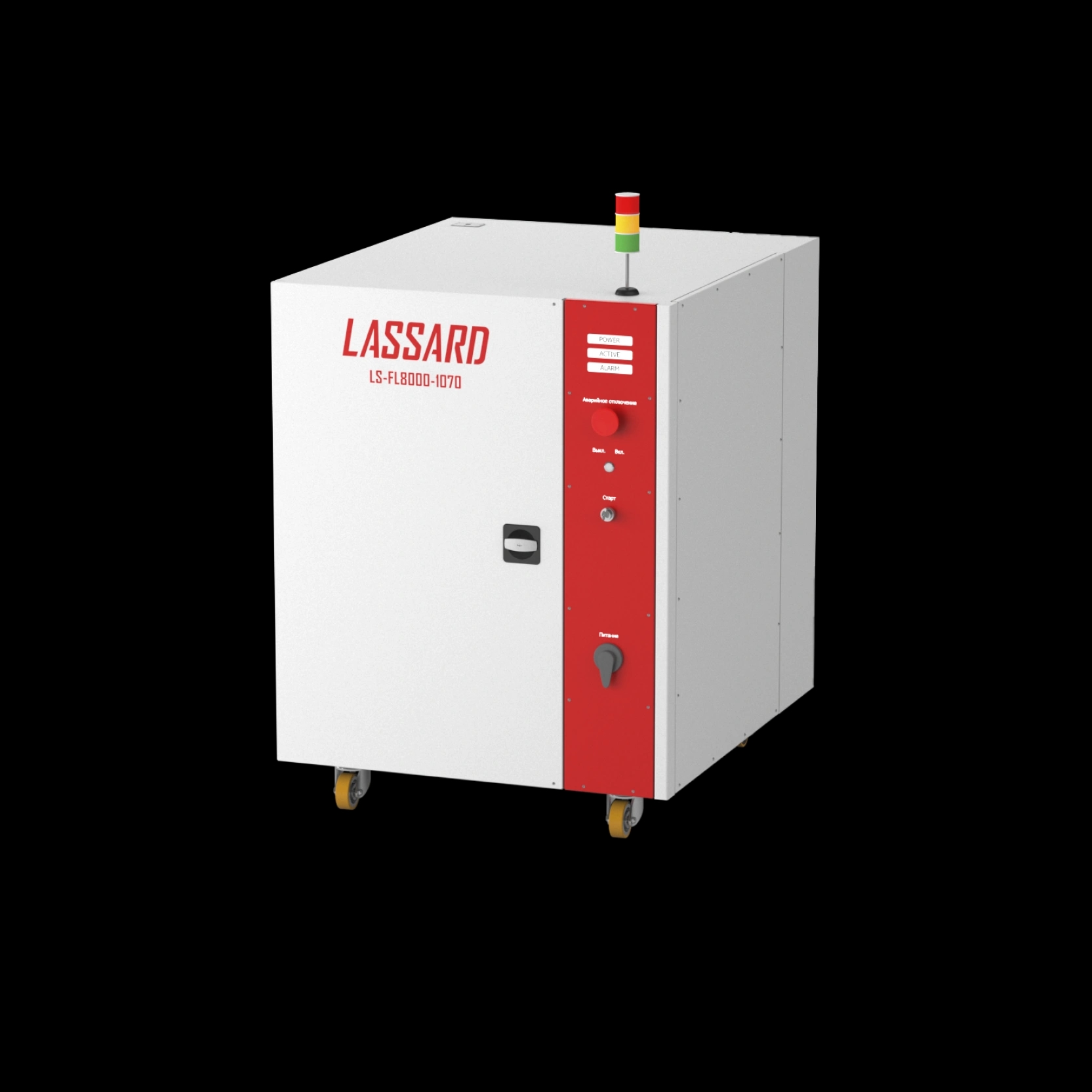

CW/QCW Yb Fiber Laser
The laser can operate in CW/QCW mode.
High laser radiation power with a conversion efficiency of pump radiation into laser radiation (light-to-light) of up to 70%.
Applications: laser cutting, welding and engraving, heat treatment of metals, additive technologies, communication systems.
- High beam quality
- Small weight and compact size
- Possibility of integration into equipment
- Easy operation and adaptability to automation
Cutting of metal products
Welding
Marking
Additive technologies
| Laser operating mode | CW, modulated |
| Optical power of generated laser radiation, W, min | 1000–8000 |
| Radiation wavelength, µm | 1060–1080 |
| Beam quality parameter, М² | <1.15, <1.3, <8 |
| Cooling type | Water |
| Output power adjustment range, % | 10–100 |
| Power stability, % | ± 2 |
| Maximum modulation frequency, kHz | 10 |
| Power supply, Hz | 220 V ± 10%, 50 Hz, 380 V ± 10%, 50 Hz |
| Humidity, % | up to 70 |
