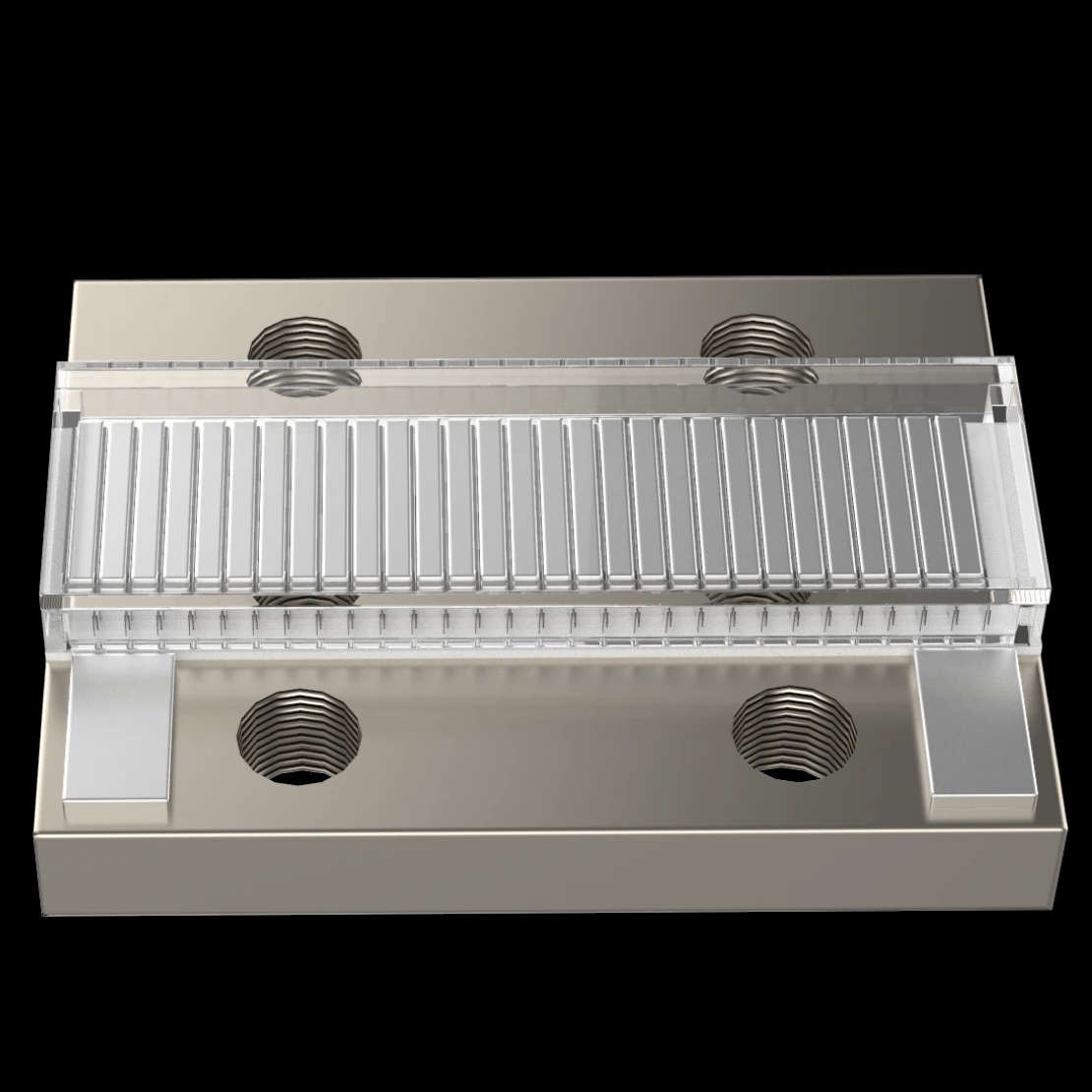

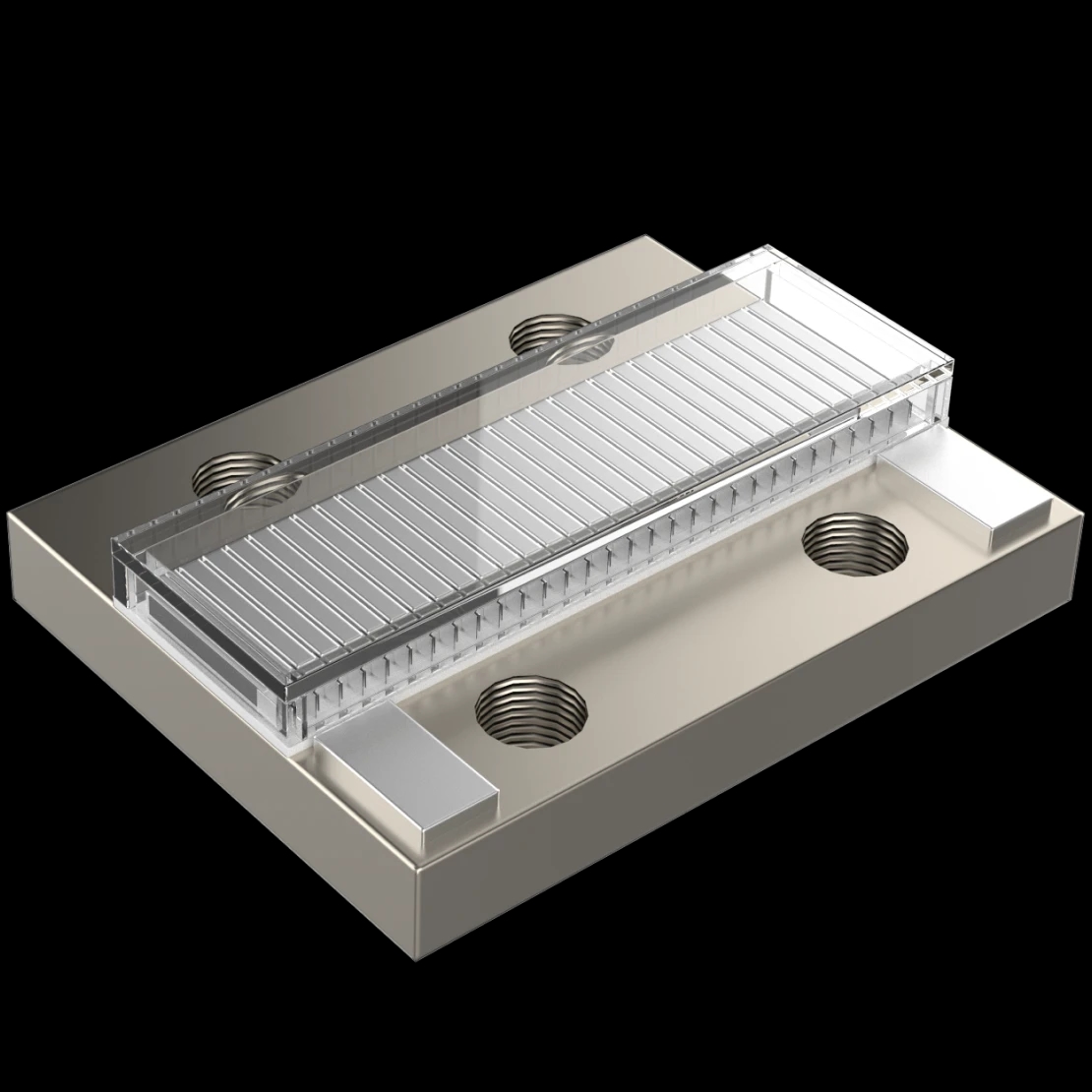

Vertical assemblies of laser diode bars (arrays) operating in pulsed mode feature high efficiency and high power density and are used for pumping lasers. The arrays are manufactured in various form factors, with a central radiation wavelength, as agreed with the customer. The most widely used values of the central radiation wavelength: 808 nm, 915 nm, 940 nm, 980 nm.
Diode laser arrays are used for pumping solid-state and liquid lasers, processing materials by direct radiation, etc.
Diode laser arrays are available in dust-proof or sealed (optional) versions.
A unique feature of LASSARD lasers and laser components is their adaptability to application systems - due to preliminary agreement with the customer on technical characteristics.
| Item No | LS-A4–808 |
| Laser operating mode | QCW |
| Pulse repetition frequency, kHz | до 100 |
| Pulse duration, µs | 250–700 |
| Output power density, kW/cm² | ≤ 8 |
| Radiation wavelength, µm | 770–980 |
| Spectral width (HWHM), nm | |
| Size of the glow body, mm | On request |
| Form-factor | On request |
| Laser diode array spacing, mm | ≥ 0.4 |
| Cooling type | |
| Operating current | 50–300 |
