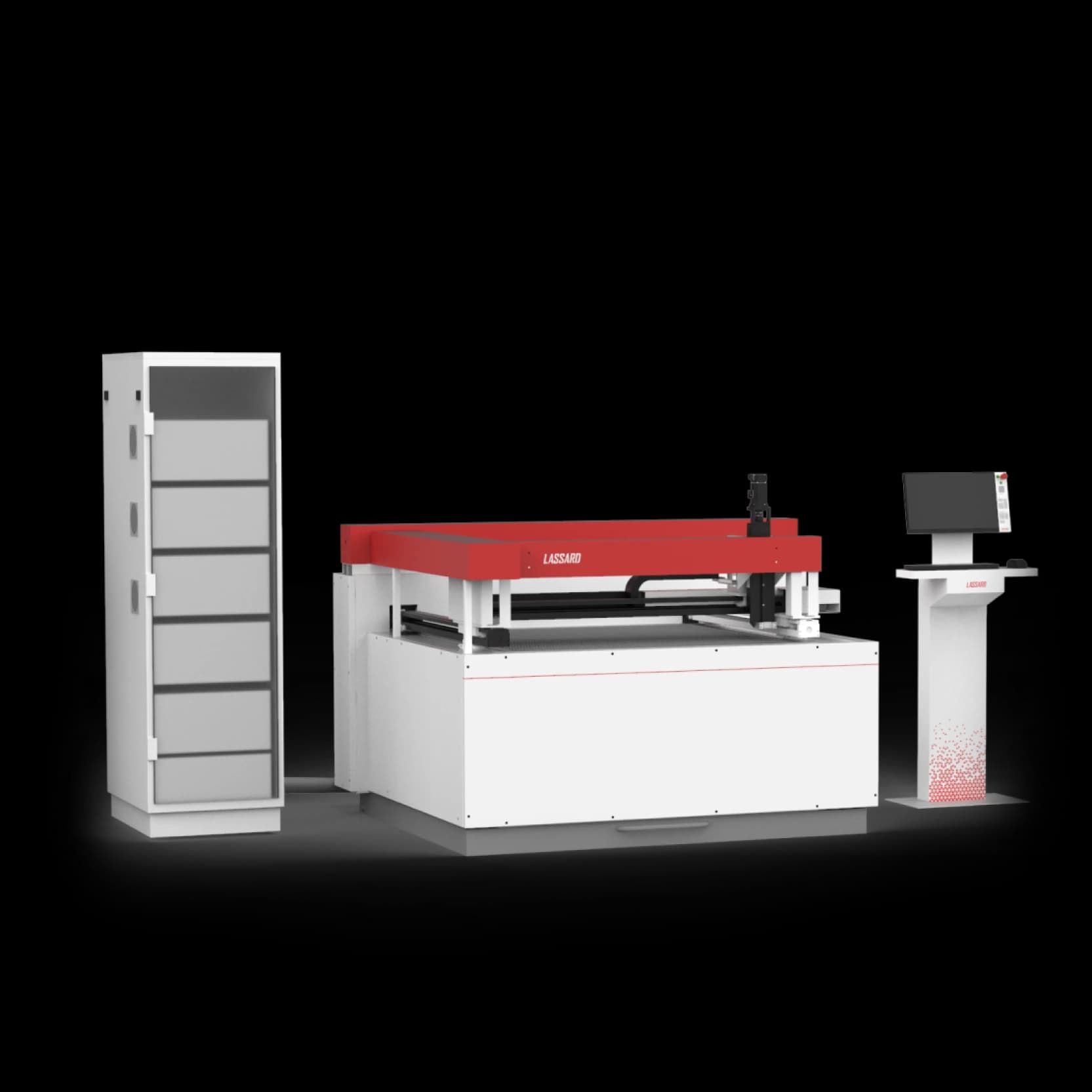

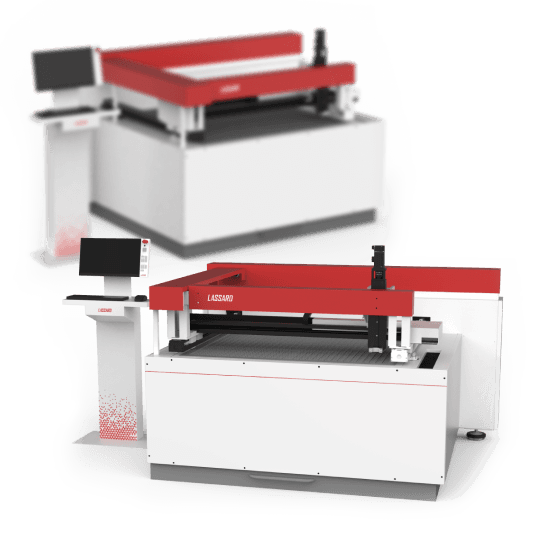

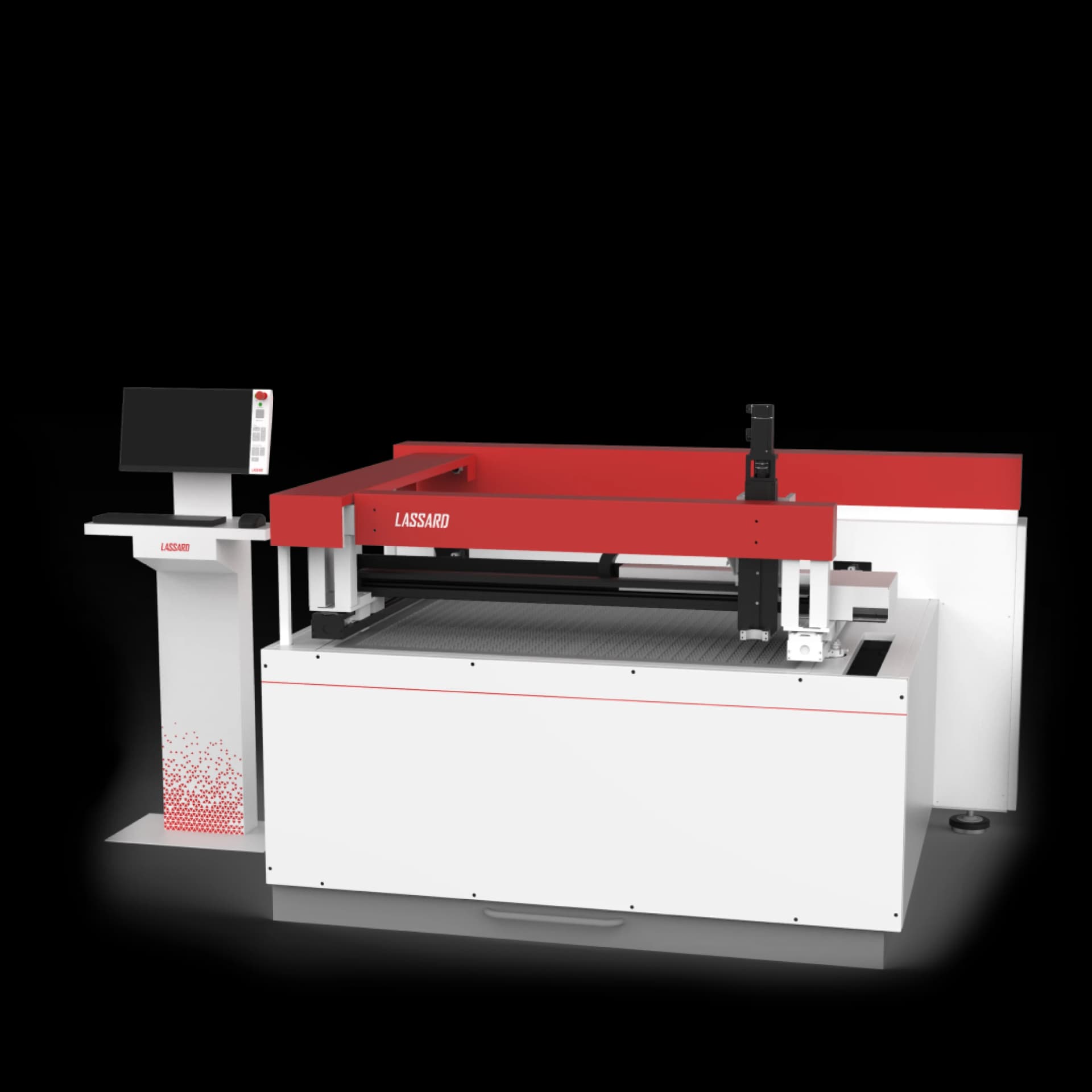

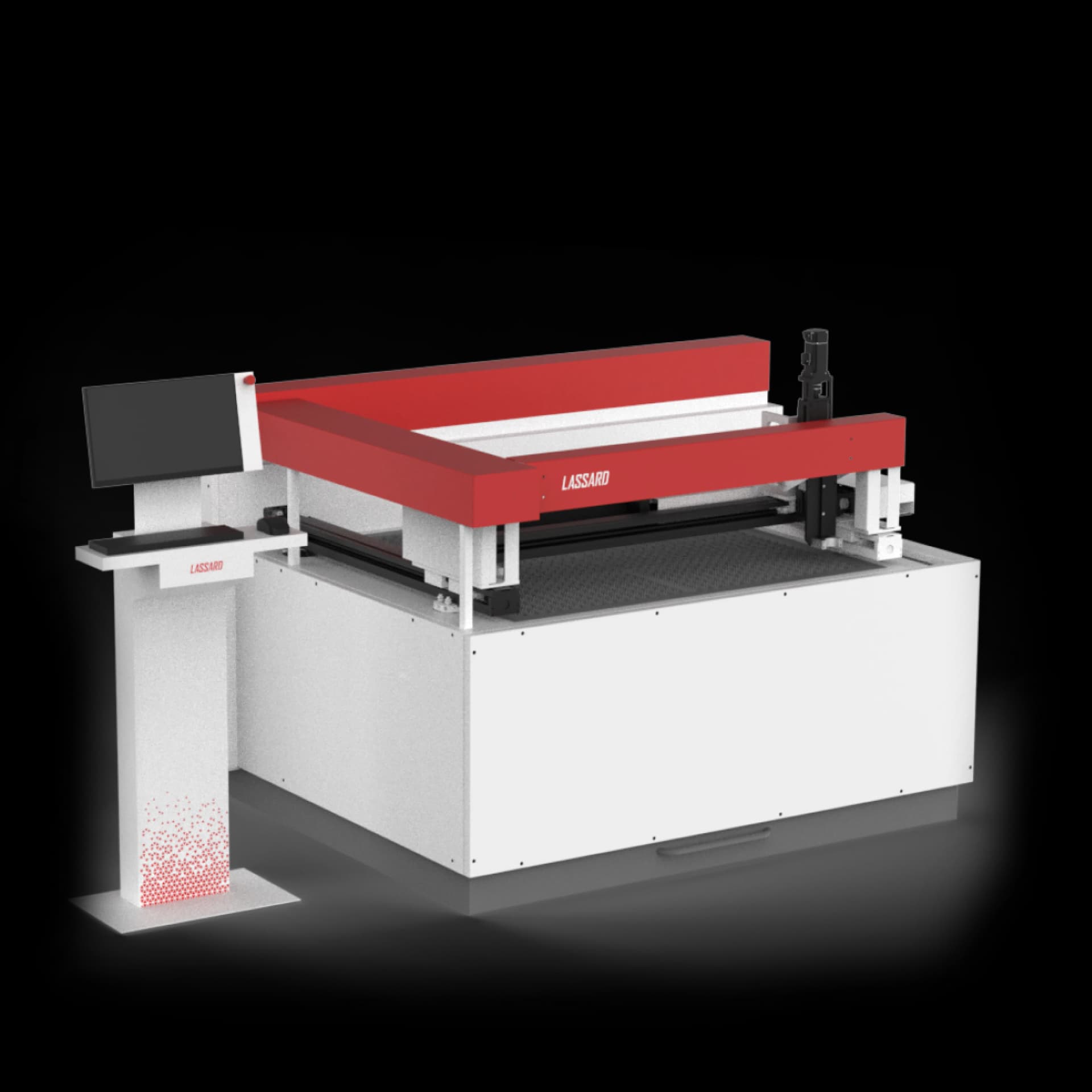

SMART TT
Cutting machine with solid-state laser
SMART TT operates on a solid-state laser.
With a speed of 3000-6000 mm/min it can process a wide range of materials: from hard alloys and stone to aluminum alloys and copper. The machine takes up only 5 m2 of space and does not require a specially equipped room.
- Peak power of SMART TT is up to 25 kW, which allows processing materials of increased thickness
- With a speed of 3000-6000 mm/min, the machine can process a wide range of materials — from hard alloys and stone to aluminum alloys and copper
- Cuts thick materials up to 10-16 mm
- Even at maximum power, SMART TT provides positioning accuracy of up to ±0.05 mm, and a cutting width of 200-300 µm
- The cutting width is always fixed, since the system itself monitors the surface of the material
Filter ventilation unit LFILTER SMART
Sheet material holder
Compressor
| Radiation source | Solid-state laser (LASSARD) |
| Source power | 500; 750 |
| Processing field, mm | 1500×1500 |
| Positioning accuracy, mm | ±0.05 |
| Linear movement | Ball screw |
| Processing speed, m/min | Up to 60 |
| Acceleration along the XYZ axes | up to 1 |
| Processed sheet materials | Brass, stainless steel, black steel, copper, aluminum alloys, gold, titanium, diamond-coated materials, ceramics, paronite, stone |
