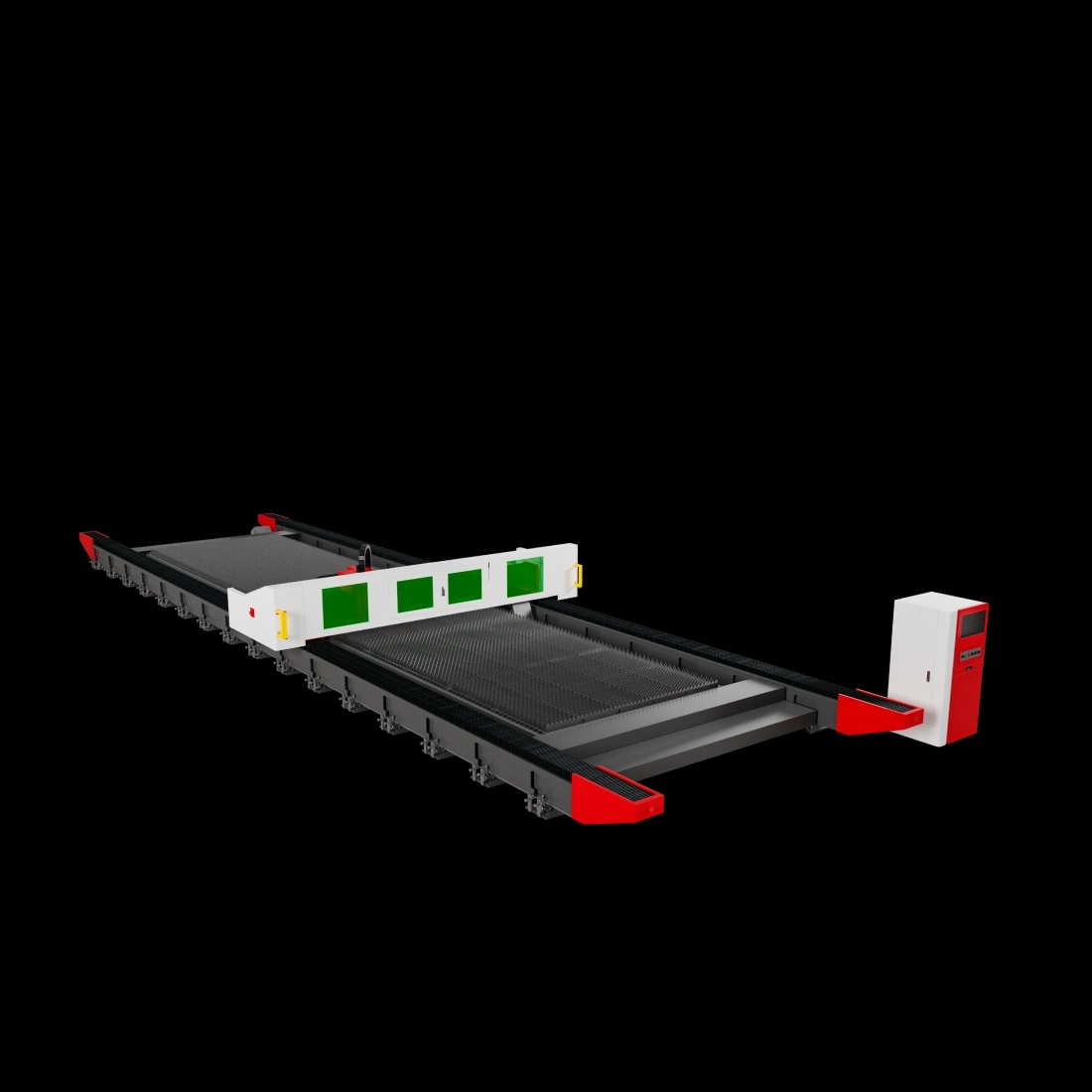

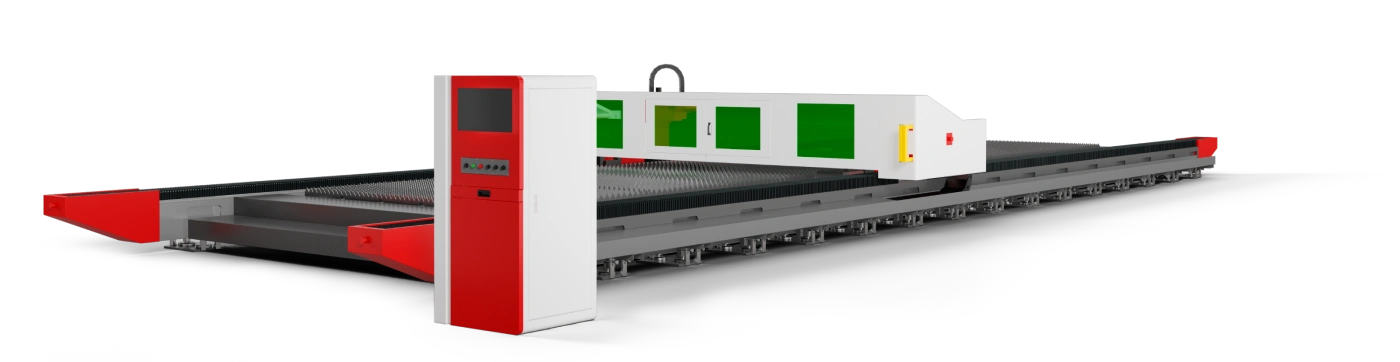

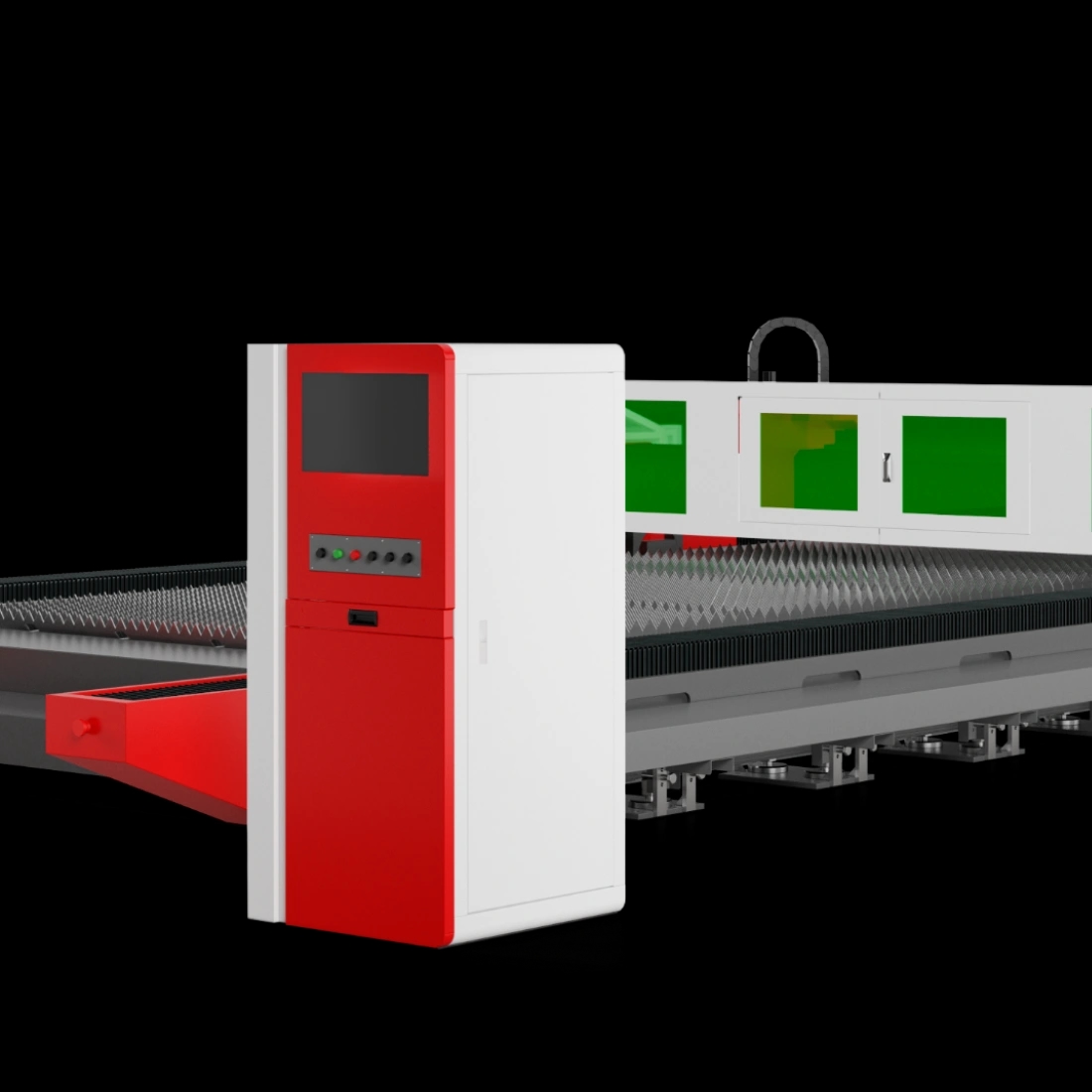

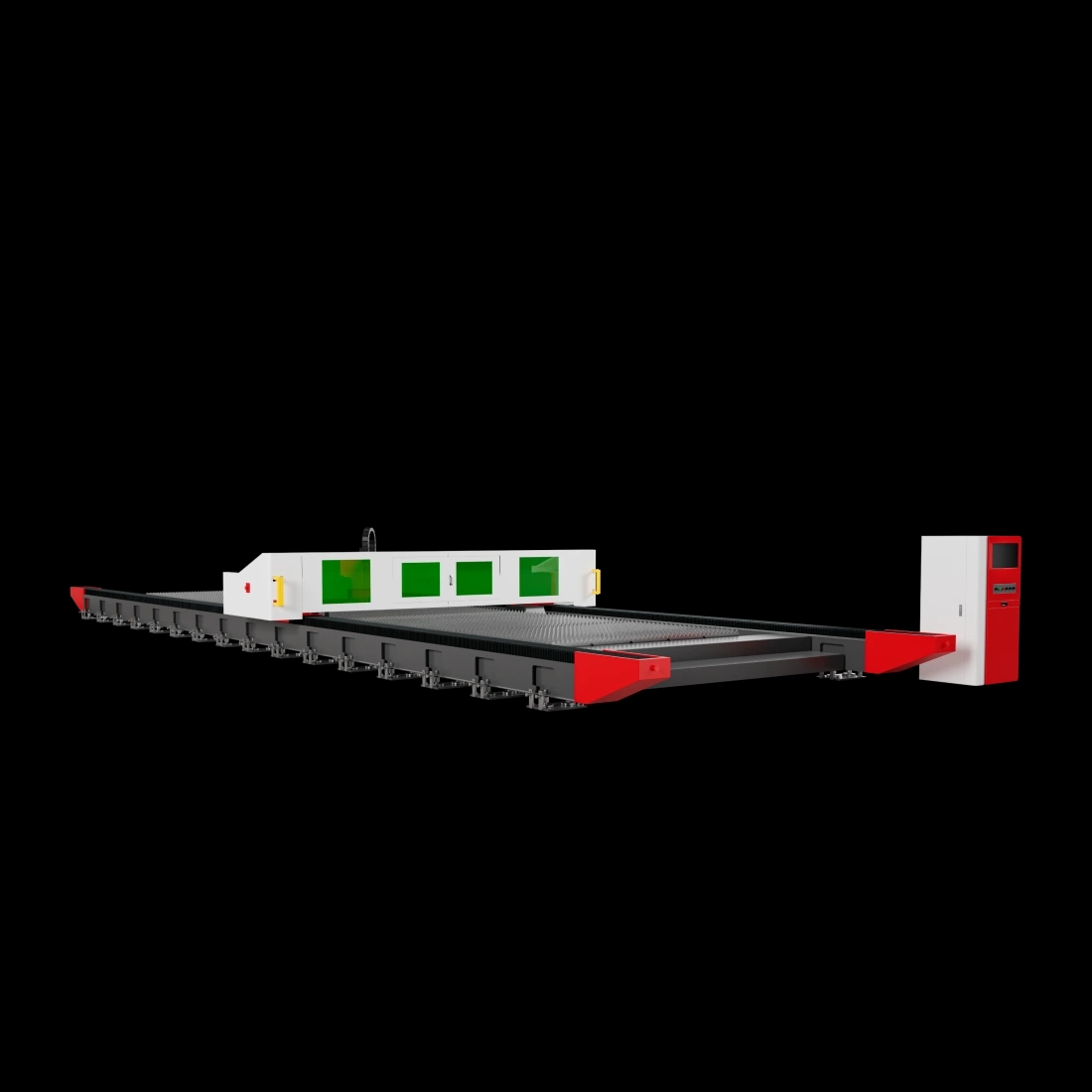

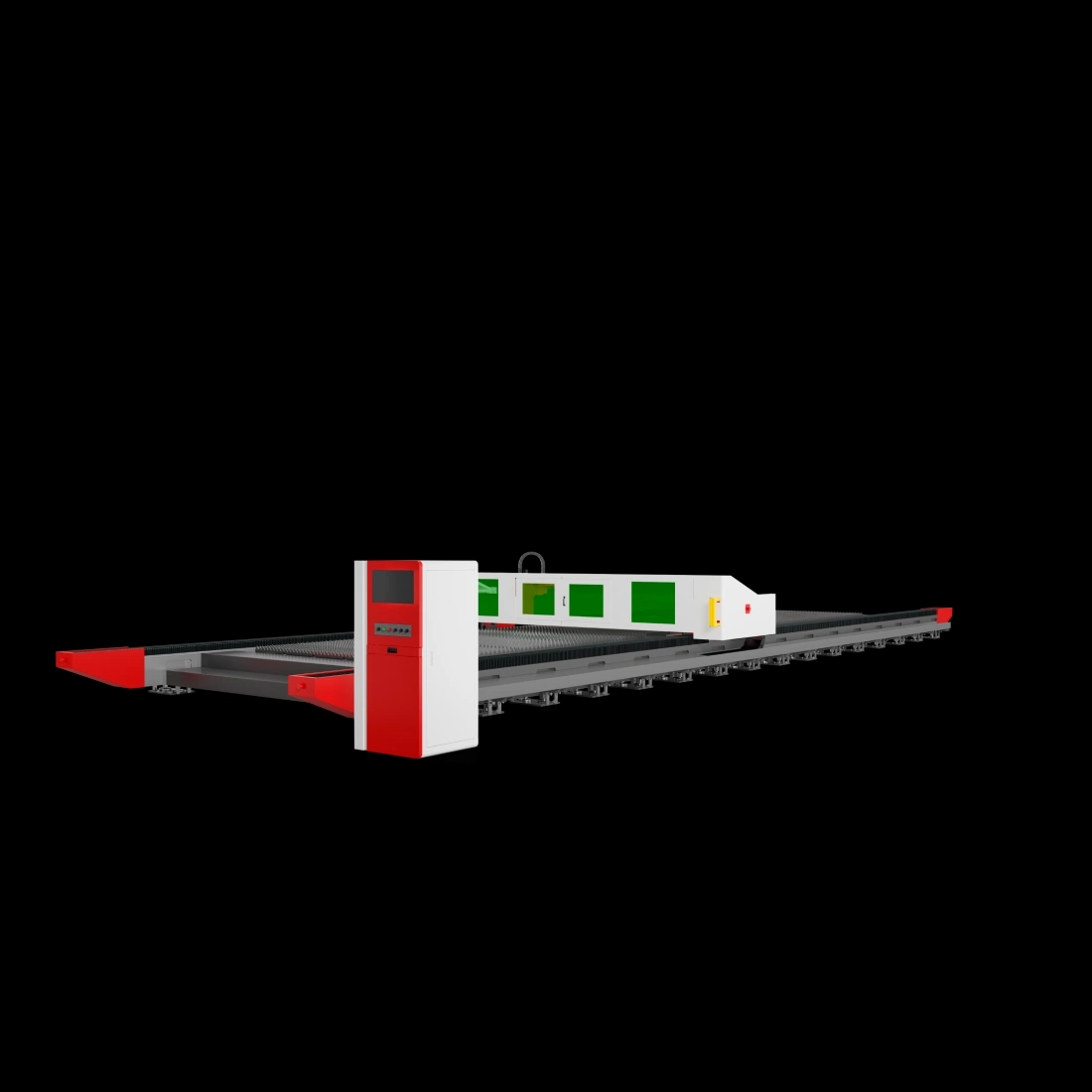

SIRIUS
Laser cutting machine for thick sheets
SIRIUS is a machine for processing thick sheet materials such as:
brass, stainless steel, black steel, copper, aluminum and aluminum alloys, gold, titanium, diamond-coated materials, ceramics, paronite, stone.
- The machine can be equipped with a fiber laser with a power of up to 30 kW
- Automatic centralized-grease system

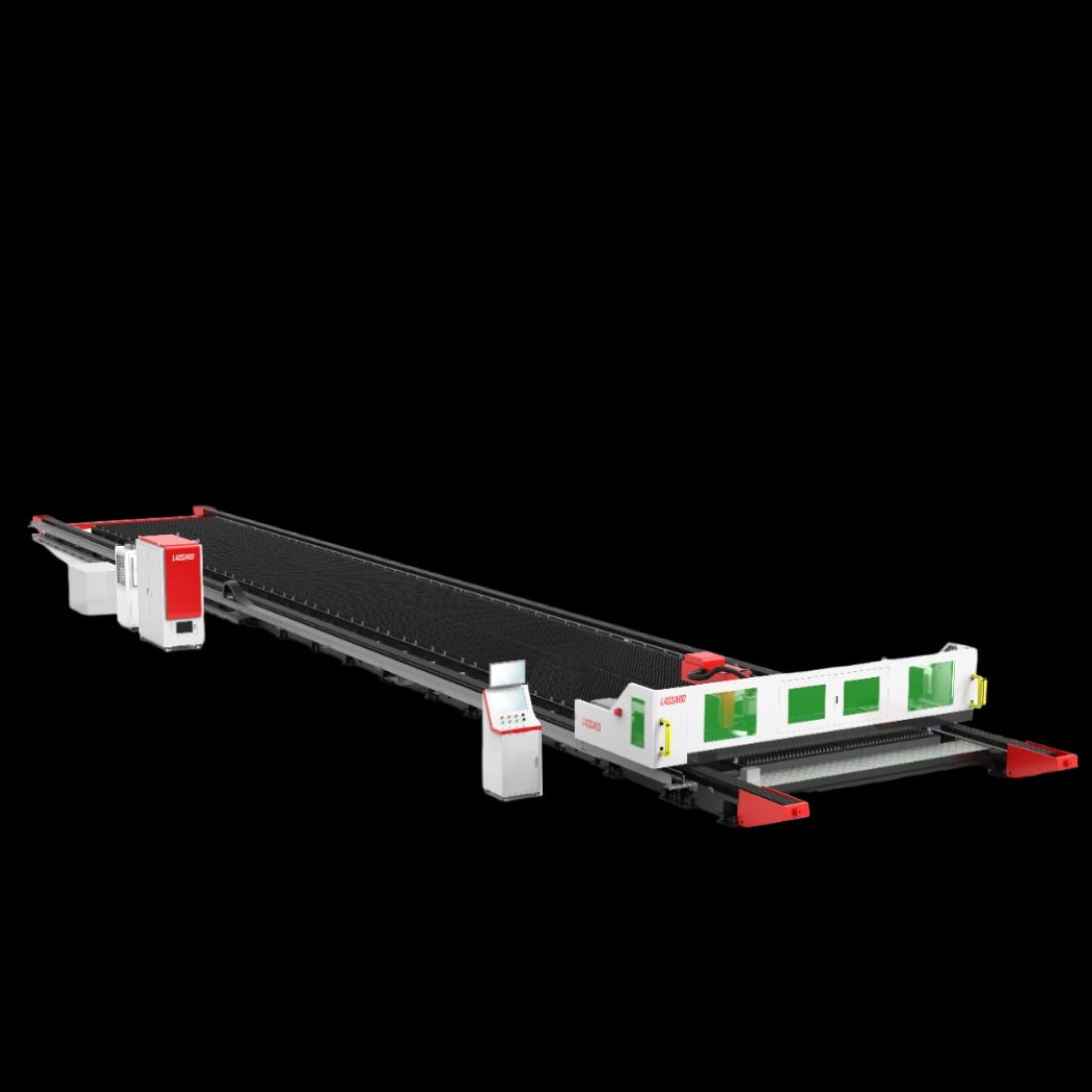

- Equipped with a modular system for the working field extension with 6000 mm sections
- 3D head provides angle cutting and circular chamfer cutting
- HypCut software is included in the basic package
Окружность диаметром 20 мм. Толщина 12 мм. Лицевая сторона
Угол 43,76°. Толщина 12 мм лицевая сторона
Окружность диаметром 20 мм. Толщина 16 мм. Лицевая сторона
Угол 43,76°. Толщина 16 мм лицевая сторона
Окружность диаметром 20 мм. Толщина 30 мм. Лицевая сторона
Скругление 1 мм. Толщина 30 мм лицевая сторона
Voltage stabilizer
Filter ventilation unit
Compressor
Video surveillance system
Extended set of spare parts
| Radiation source | Fiber laser (IPG Photonics / Raycus) |
| Processing field, mm | 3000×8000; 3000×14000; 3000×20000; 3000×26000; 3000×32000; 3000×38000; 3000×44000 |
| Positioning accuracy, mm | ±0.01 |
| Cooling type, mm | ±0.05 |
| Linear movement | HIWIN |
| Synchronous speed of idle movements along the XYZ axes, m/min | 170 |
| Acceleration along the XYZ axes | up to 1.3 |
| Cooling type | Water |
| Processed sheet materials | Brass, stainless steel, black steel, aluminum, aluminum alloys, gold, titanium, diamond-coated materials, ceramics, paronite, stone |
| Optical head | BOCI, raytools |
| Source power, kW | 6–60 |
