61AL-15

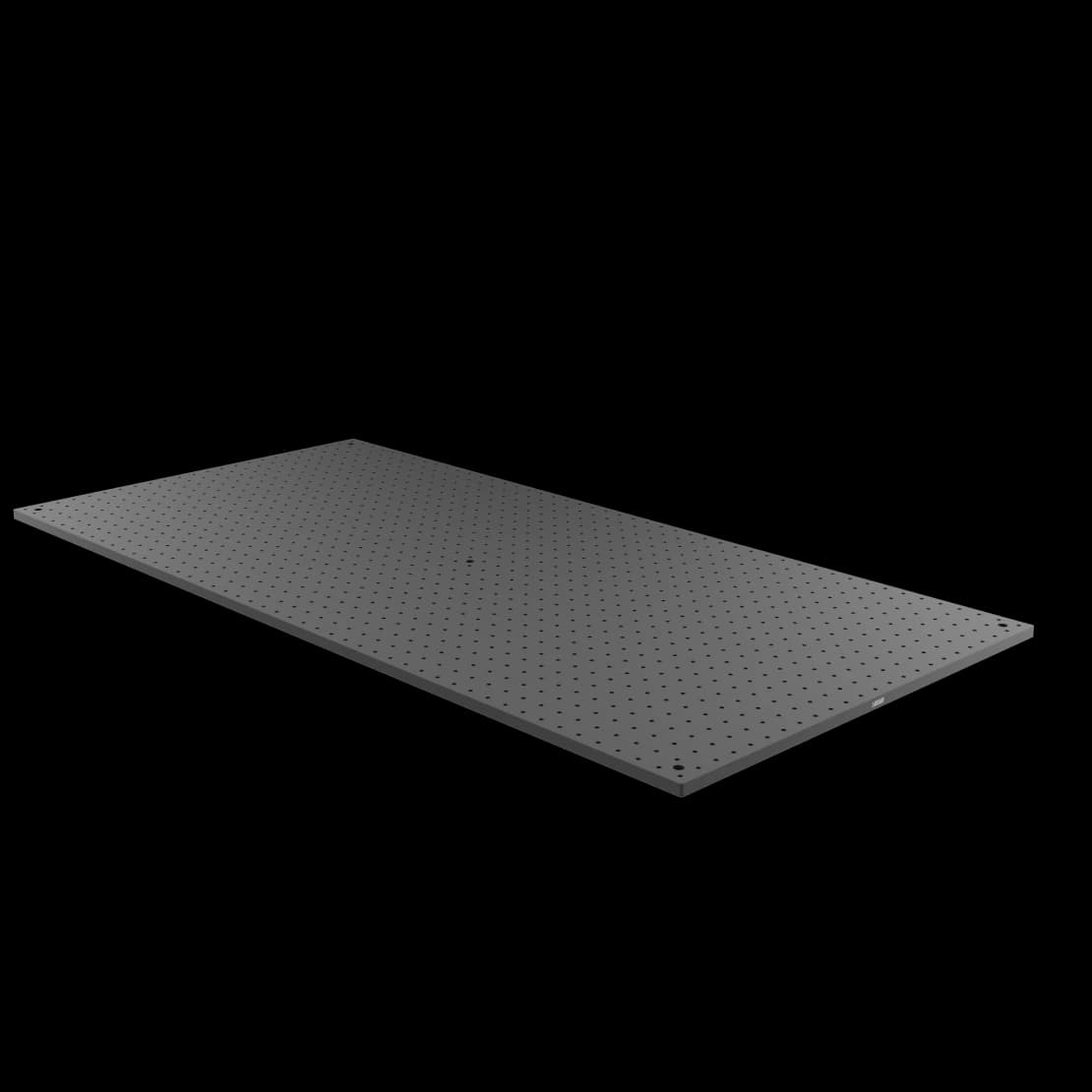

Solid Aluminum Optical Breadboard
The aluminum breadboard has a thickness of 15 mm. The breadboard is made with a grid of through threaded holes M6 with a pitch of 25 mm, located at a distance of 12.5 mm from the edge. Both working surfaces of the plate are made with flatness ±0.1 mm/m2.
The breadboard can be fixed on the optical table using clamps or mounted on steel rods with a diameter of 25 mm (for example, 11OPP25), for which it has 5 mounting holes for M6 screw.
The size range includes overall dimensions from 200×200 to 400×800 mm. Optical breadboards from different materials and of any size can be manufactured on request.
