32KM-3F
Large Aperture Mounts

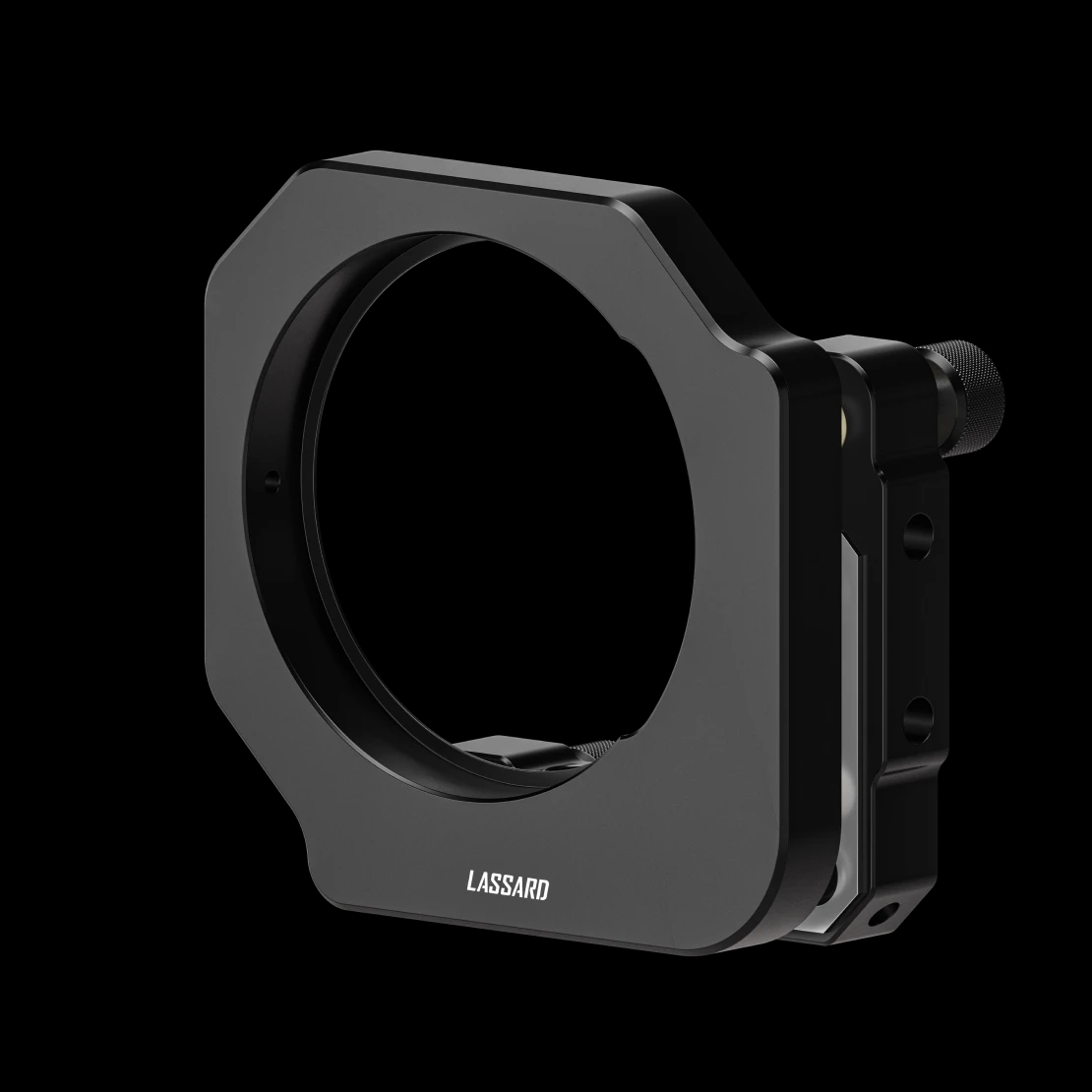

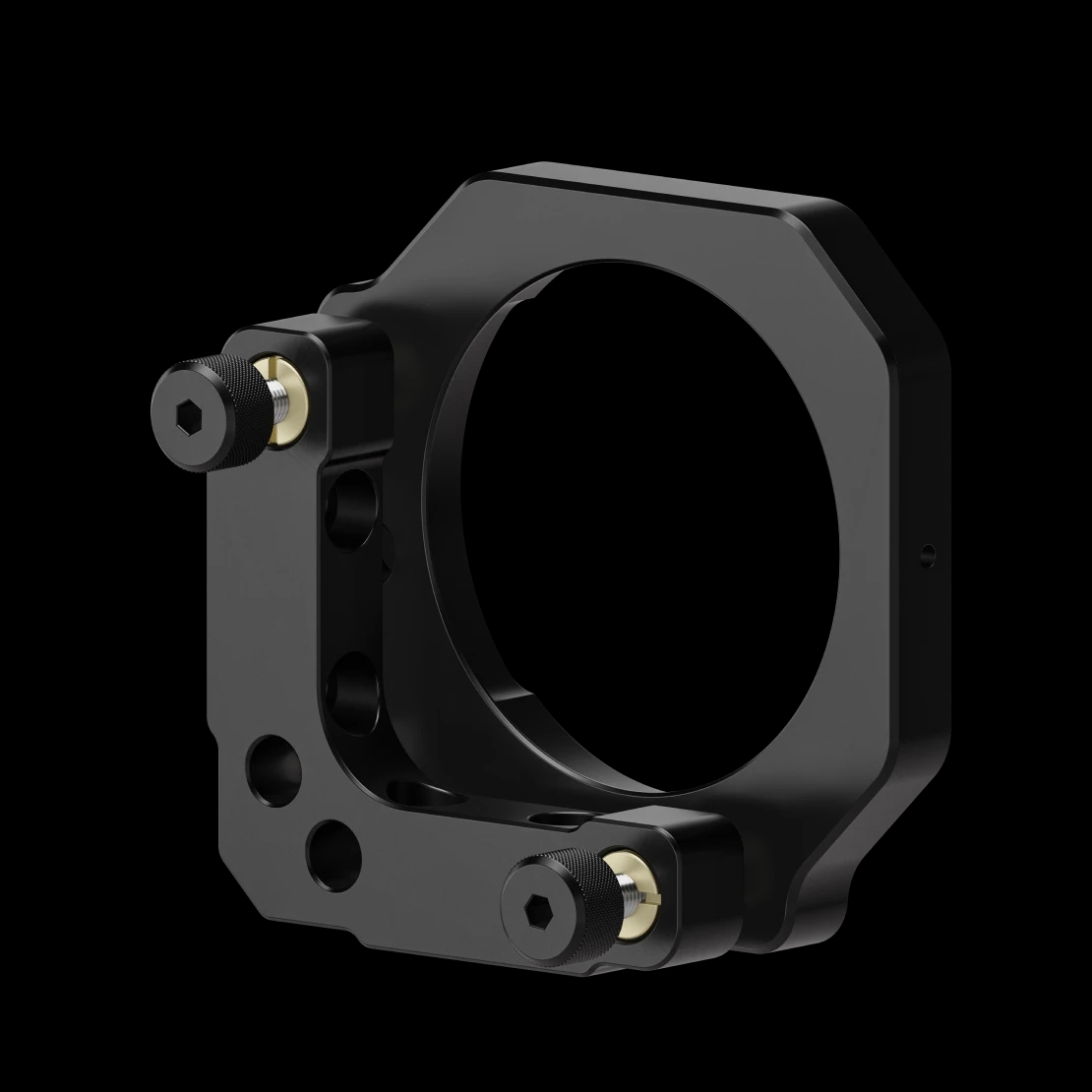

The 32KM-F series kinematic mounts are designed for mounting and adjusting optical elements with diameters from 1 to 6 inches at two angles. Unlike the 32KM mounts, this model has a flat spring. The optical element is mounted on two rigid supports and securely fixed with a screw with a plastic tip. The mounts can be mounted on adapter plates, platforms and rods using M6 holes. The mounts allow installation with a 45° rotation around the optical axis. Model 32KM-3F is suitable for optical elements with a diameter of 76.2 mm/3 inches.
The 32KM-F series kinematic mounts are designed for mounting and adjusting optical elements with diameters from 1 to 6 inches at two angles. Unlike the 32KM mounts, this model has a flat spring. The optical element is mounted on two rigid supports and securely fixed with a screw with a plastic tip. The mounts can be mounted on adapter plates, platforms and rods using M6 holes. The mounts allow installation with a 45° rotation around the optical axis. Model 32KM-3F is suitable for optical elements with a diameter of 76.2 mm/3 inches.
