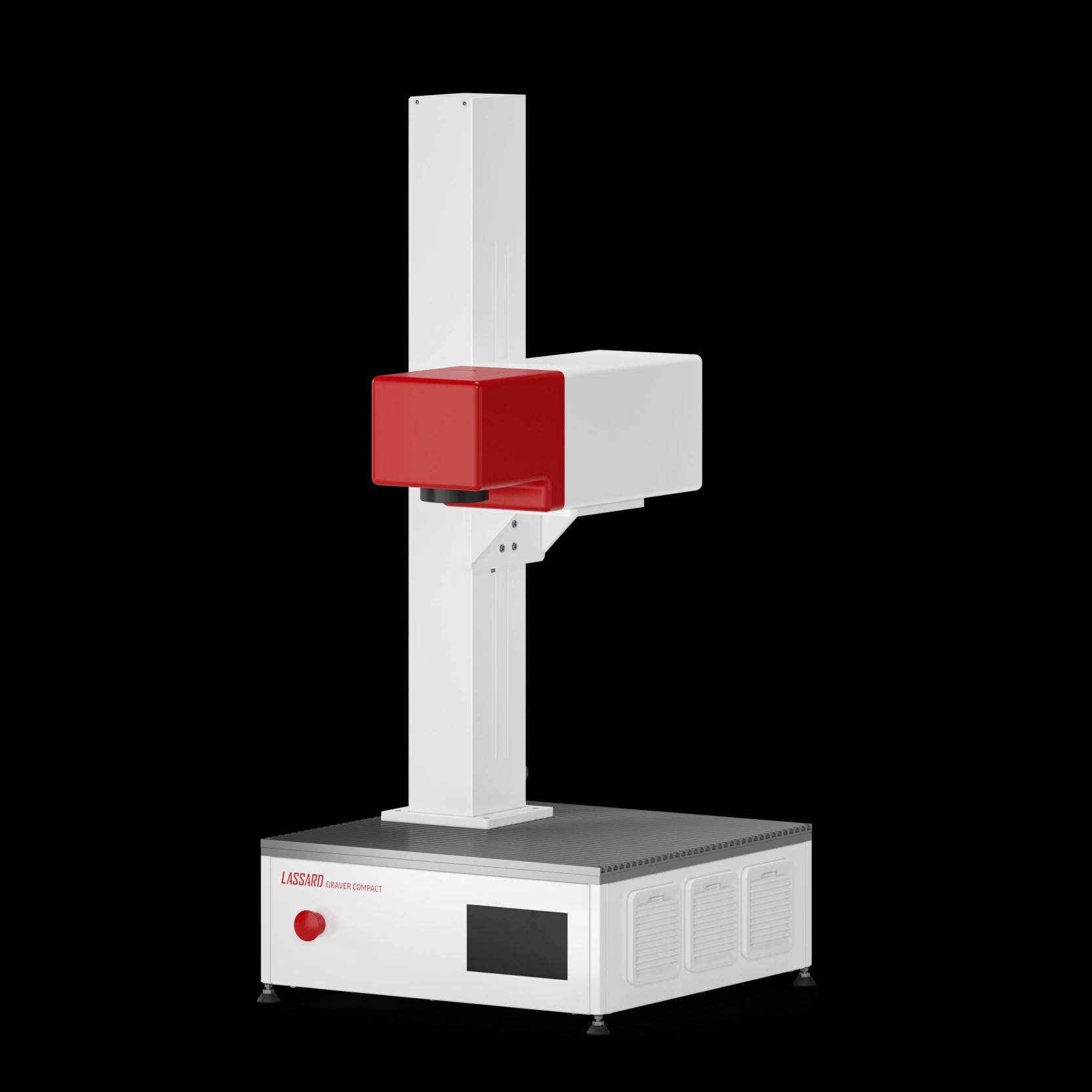

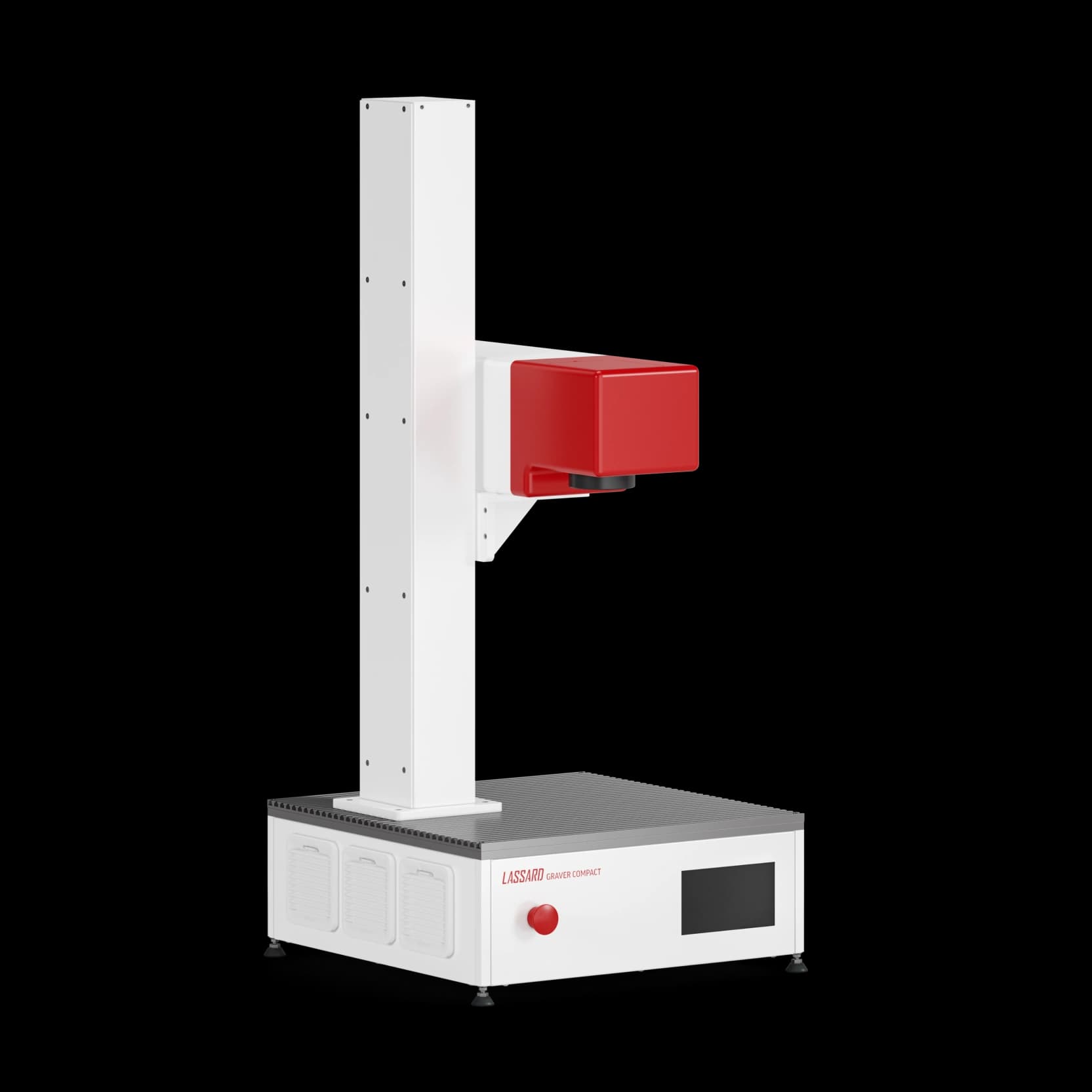

GRAVER COMPACT
Compact laser engraver
GRAVER COMPACT can apply company logos, barcodes, serial numbers, and current dates.
It can be used to produce and brand souvenirs, to create exclusive series of jewelry.
- High speed of image application with engraving line width of 0.02 mm and more
- GRAVER COMPACT performs high-contrast markings while preserving surface properties
- Seamless high-speed engraving of cylindrical surfaces
- The control unit is integrated into the housing
- Compact desktop design
Smart Focus Control — Fast, Accurate, Convenient
The machine is equipped with an automated Z‑axis control system for the engraving head. Upon startup, the head automatically moves to the zero position based on the signal from the limit switch, and then precisely shifts to the focal position corresponding to the selected lens — without any operator intervention. This eliminates errors and reduces setup time.
The control panel features a user‑friendly display and functional buttons for:
- switching the laser source on/off;
- selecting the working lens;
- automatic focus positioning;
- setting and recalling preset heights and workpiece heights;
- manual positioning of the head at a specific height.
The machine is ideally suited for tasks requiring high focusing accuracy and repeatability, while the controls remain intuitive and accessible to operators of any skill level.
Jewelry Industry
Souvenir products
Industrial production
Promotional materials
Dentistry
| Radiation source | Ultraviolet laser |
| Laser operating mode | Pulsed |
| Source power | 5; 10; 15 |
| Cooling type | Air |
| Processing speed, m/s | Up to 10 |
| Single scan field, mm | 110×110; 175×175; 220×220 |
| PC connection | USB 3.0 |
| Display | 7″ diagonal |
| Supported graphic formats | JPG, PNG, GIF, TGA, BMP, TIF, AI, DXF, DST, PLT, SVG |
| Supported fonts | TrueType, SHX, JSF |
| Power supply, Hz | 220_16 |
| Operating temperature range, °С | 10–45 |
| Weight, kg | 20 |
| Processed sheet materials | Stone, rubber, steel, aluminum, brass, titanium, painted (anodized) surfaces, plastics, plastic, polymers, semiconductors, films, concrete, ceramics, silicate materials |
| Type | Desktop |
