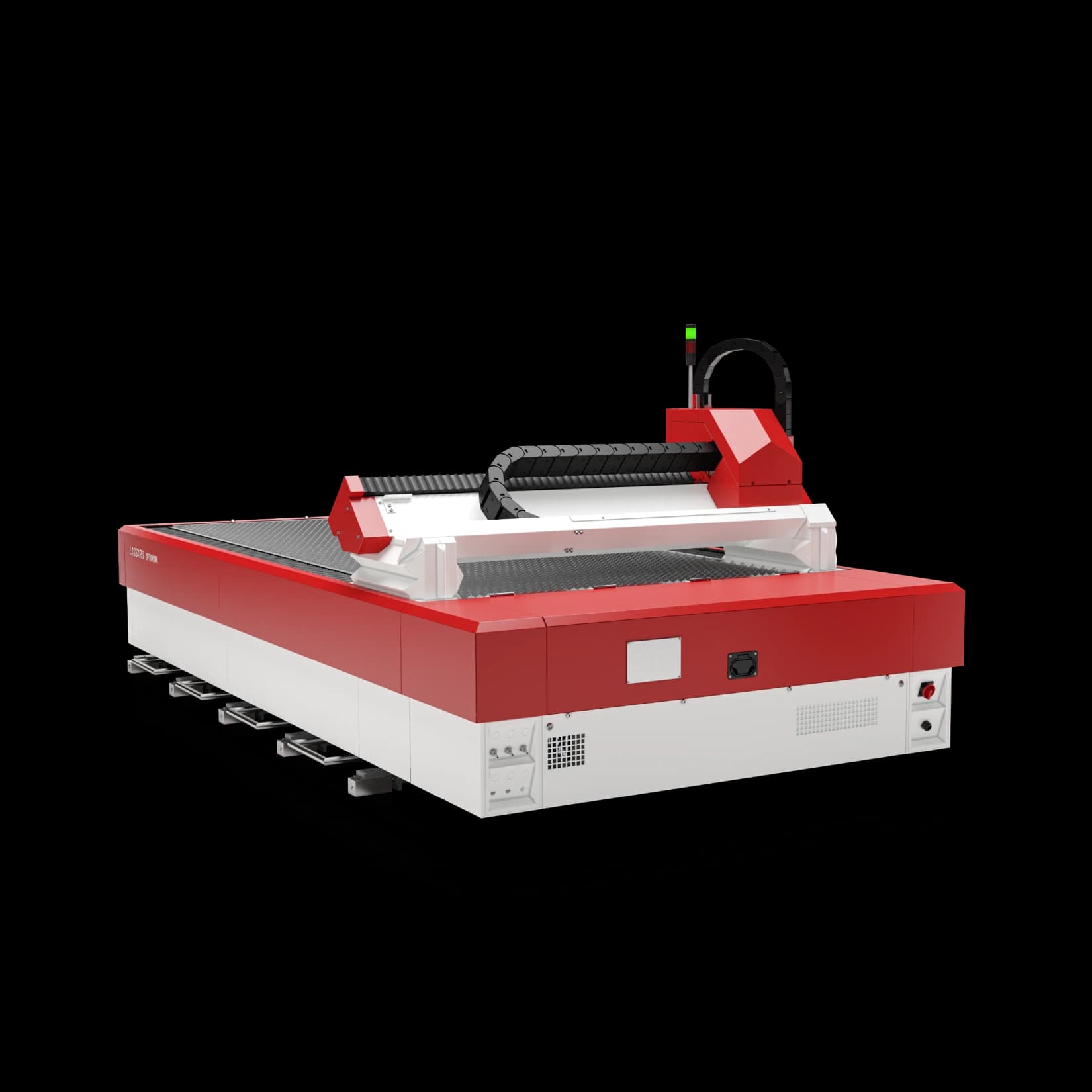

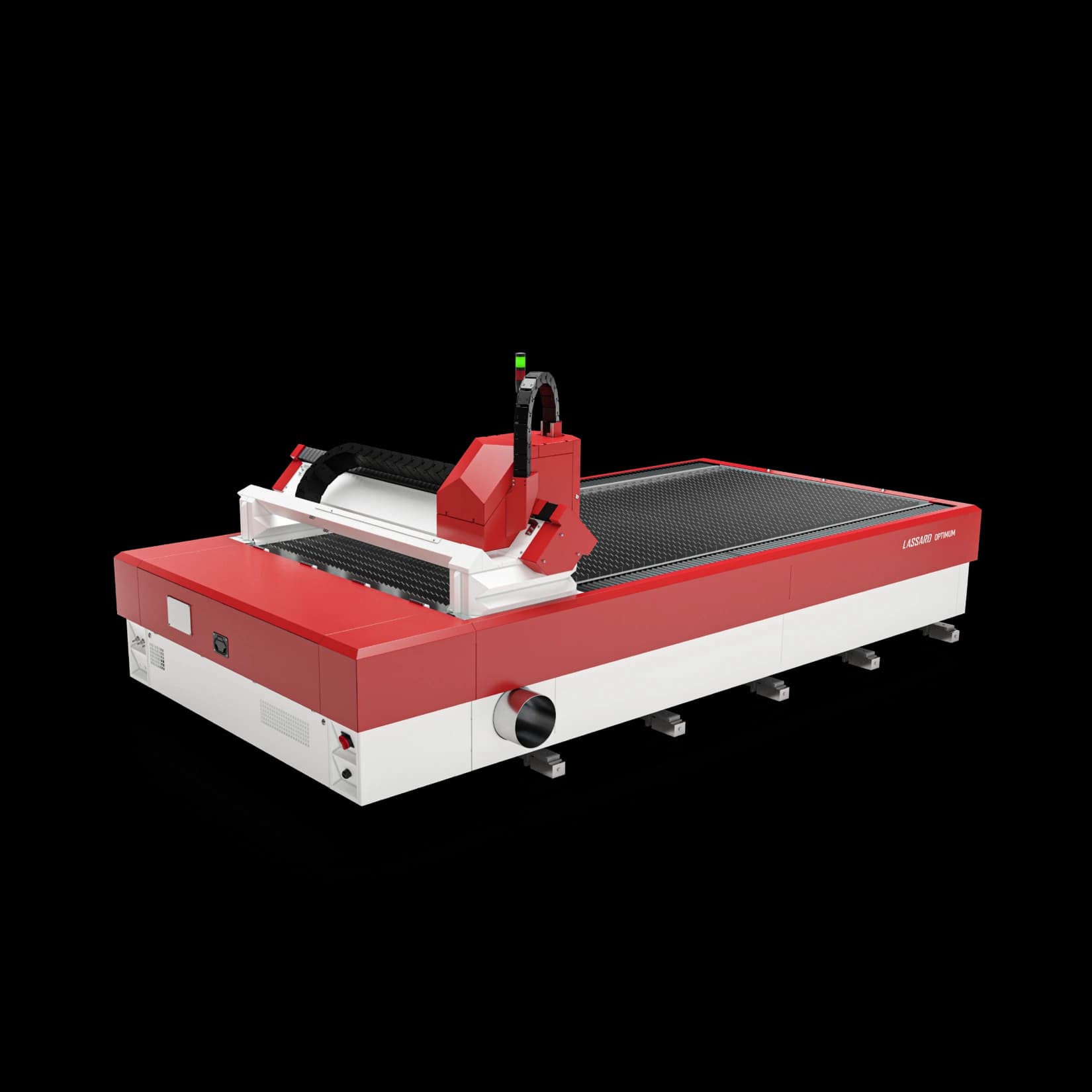

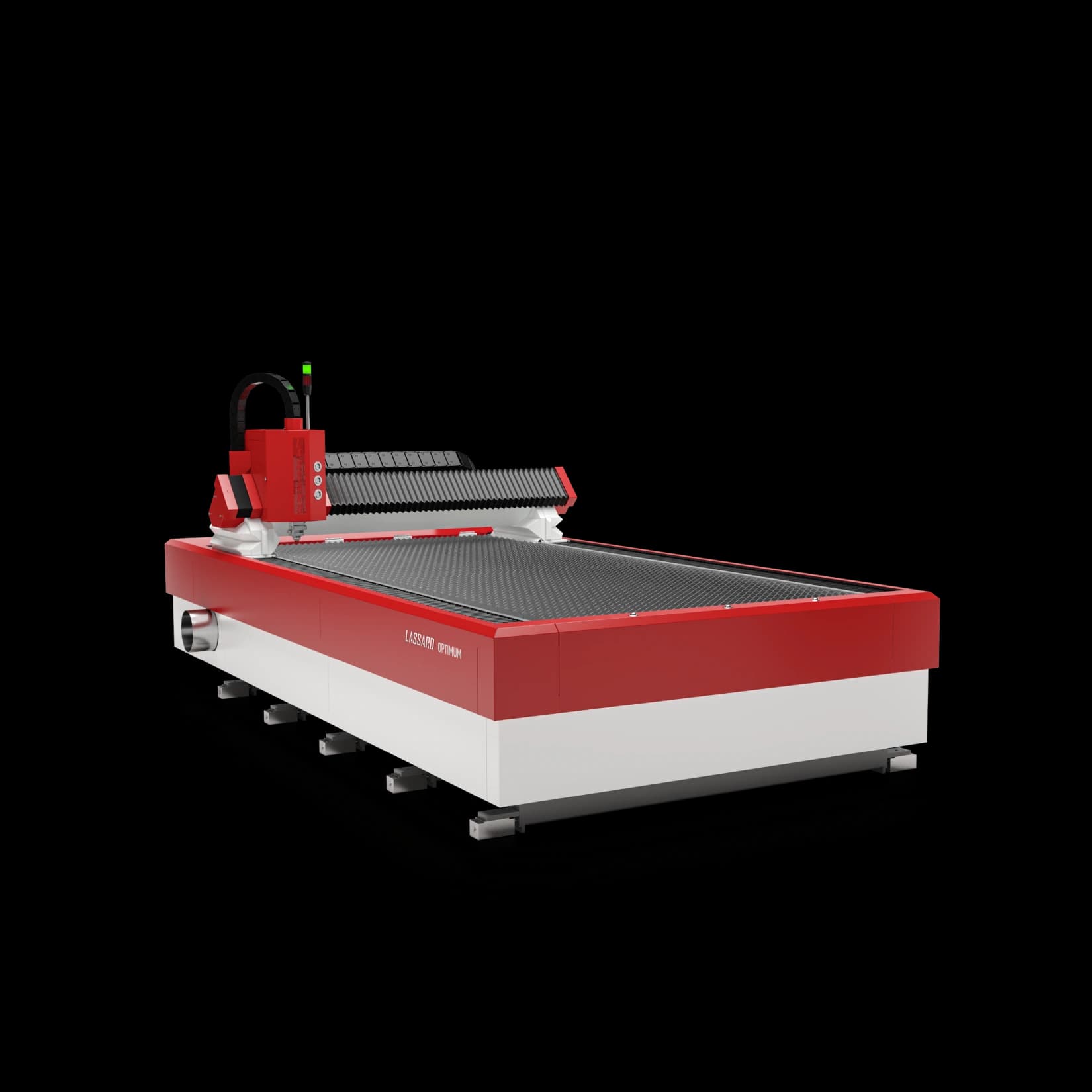

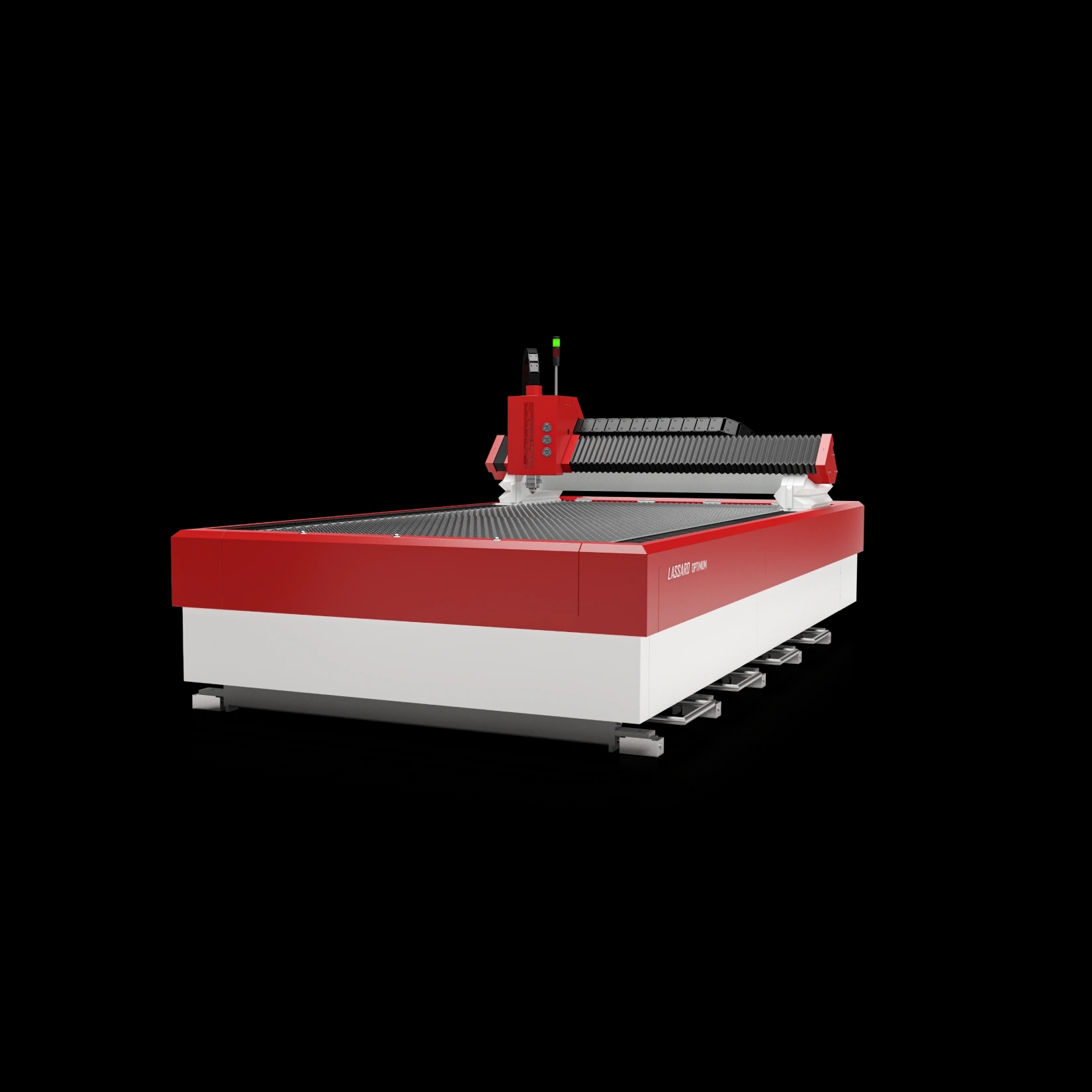

OPTIMUM F
Laser complex for high-speed cutting of sheet materials
* The stated price refers to the machine model registered in the State Industrial Information System (GISP)
The OPTIMUM F machine is an inexpensive and effective solution for small and medium-sized businesses.
Equipped with automatic devices for a wide range of tasks. Designed for high-speed and high-quality cutting of various types of sheet materials.
- OPTIMUM F provides precision cutting of “thick” materials up to 25 mm
- The edge of the part does not require additional processing, which significantly increases productivity
- Guarantees positioning repeatability up to ±0.03 mm with high cutting quality
- The focusing lens provides the cutting width of 100 µm
| Minimum cutting width, µm | 100 |
| Positioning accuracy, mm | ±0.05 |
| Cooling type, mm | 0.03 |
| Travel along X, Y axes | Helical rack-and-pinion / Linear motors |
| Travel along Z axis | Ball screw |
| Processing speed, m/min | Up to 100 |
| Processing speed, m/min | Up to 120 |
| Acceleration along the XYZ axes | up to 1.5 |
| Weight, kg | 3000 |
| Processed sheet materials | Brass, stainless steel, black steel, copper, aluminum alloys, gold, titanium, diamond-coated materials, ceramics, paronite, stone |
| Radiation source | Fiber laser (IPG Photonics / Raycus) |
| Source power | 150/1500; 300/3000; 500; 1000; 2000; 3000; 4000 |
| Optical head | Raytools |
| Processing field, mm | 1500×3000; 2000×6000 |
