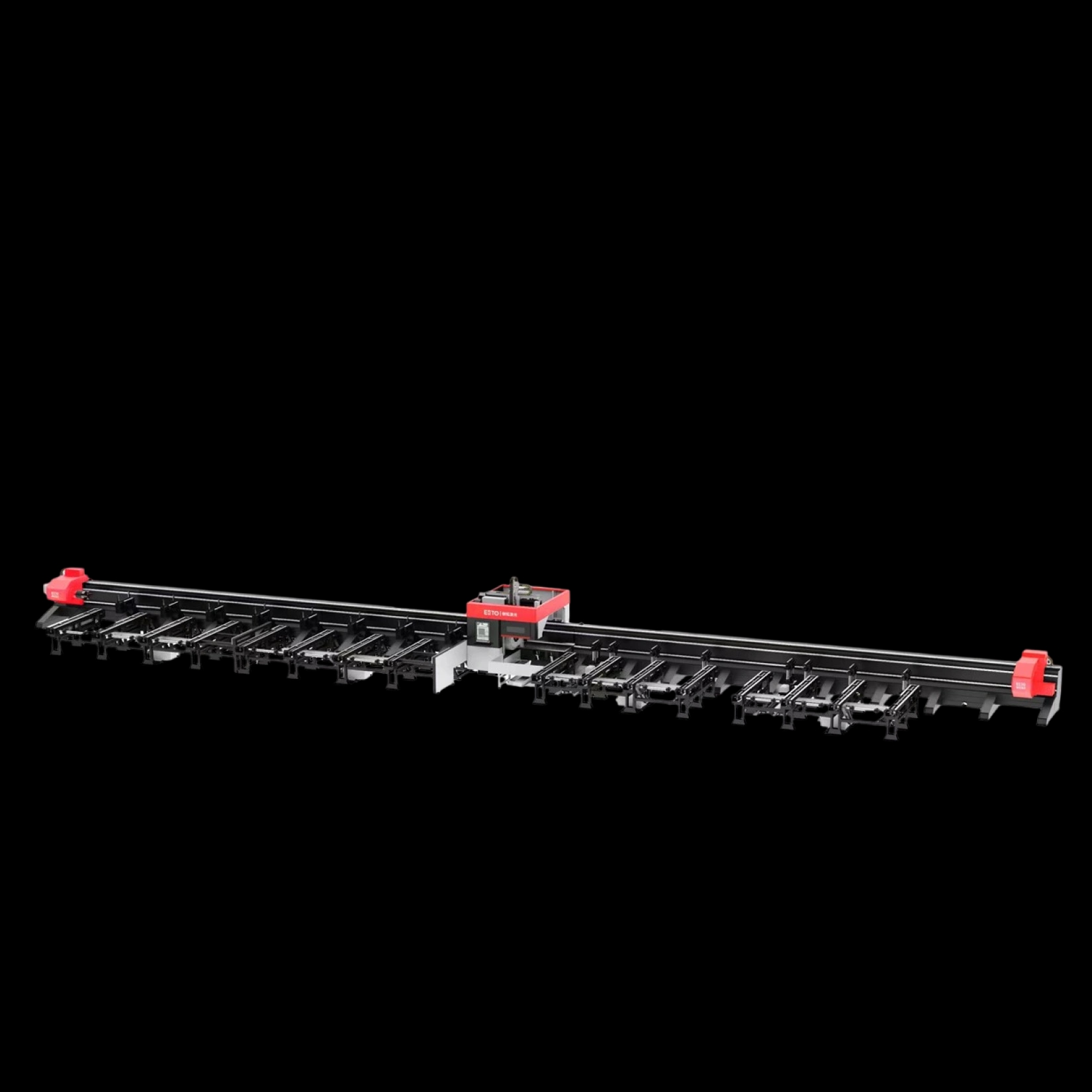

TUBE LONG
Laser cutting machine for standard tubes and pipes
TUBE LONG is a machine for high-speed cutting of pipes, channels and profiles.
It can process brass, stainless steel, black steel, copper, aluminum and aluminum alloys.
Section of processed profiles:
Closed - rectangular and ellipsoidal
Unclosed - channel, H-profile, angle
- Complete solution for cutting standard pipes, tubes and profiles
- Cuts steel pipes up to 20 mm thick and aluminum pipes up to 16 mm
- 3-chuck gripper system ensures waste-free cutting
- Equipped with cabinet protection and a window with a special light filter
Independent control console with industrial LCD display
Rigid all-welded frame
Additional set of spare parts, tools and accessories (SPTA)
Fiber laser (Raycus)
Extended spare parts kit
Compressor
Voltage stabilizer
X, Y – helical rack-and-pinion, Z – ball screw
MITSUBISHI ELECTRIC / HIWIN servo drives and drivers
Connection module for three gas types
Loading and unloading system
Tilting head for chamfering prior to welding
| Radiation source | Ytterbium fiber laser (VPG Laserone / Raycus / LASSARD) |
| Source power | 1000–20000 |
| Compatible pipe dimensions, mm | Diameter up to 320 Length up to 6000 |
| Maximum rotation speed, rpm | Up to 80 |
| Acceleration, kg | 1000 |
| Positioning accuracy, mm | ±0.05 |
| Cooling type, mm | 0.05 |
| Power supply | Industrial three-phase supply line Voltage 380 V Maximum deviation 10% Frequency 50 Hz |
| Cooling type | Water |
| Processed sheet materials | Brass, stainless steel, black steel, copper, aluminum, aluminum alloys |
