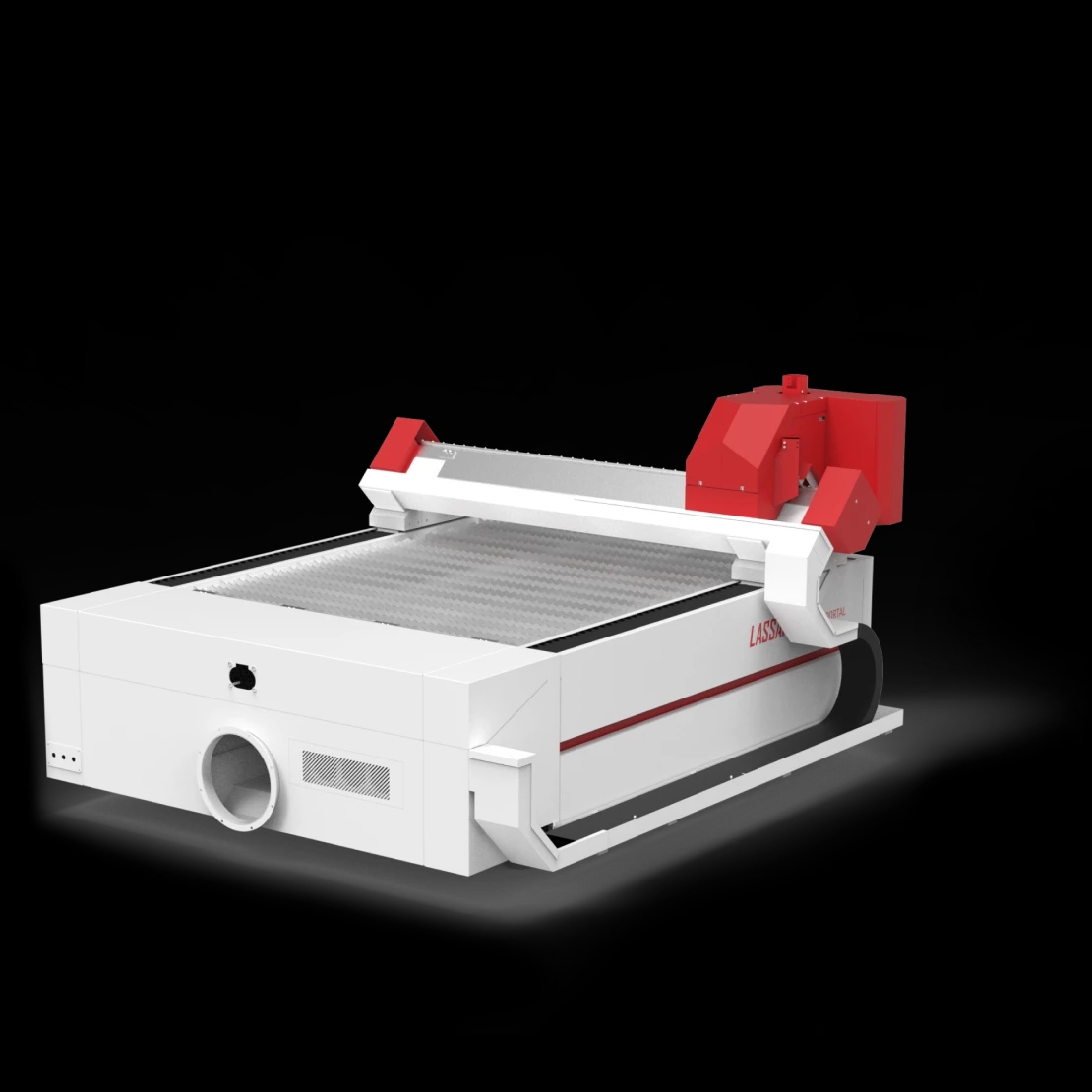

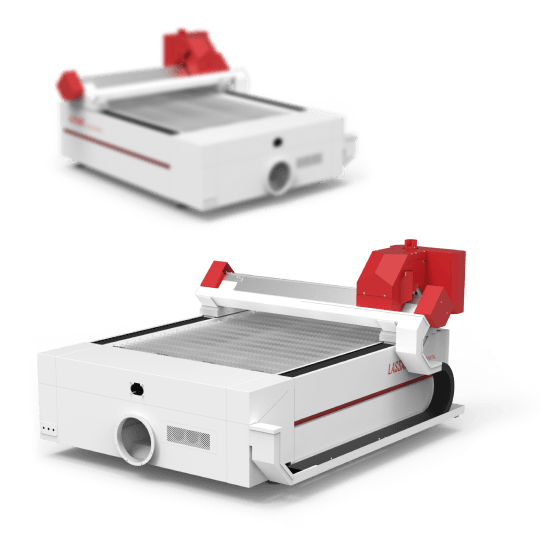

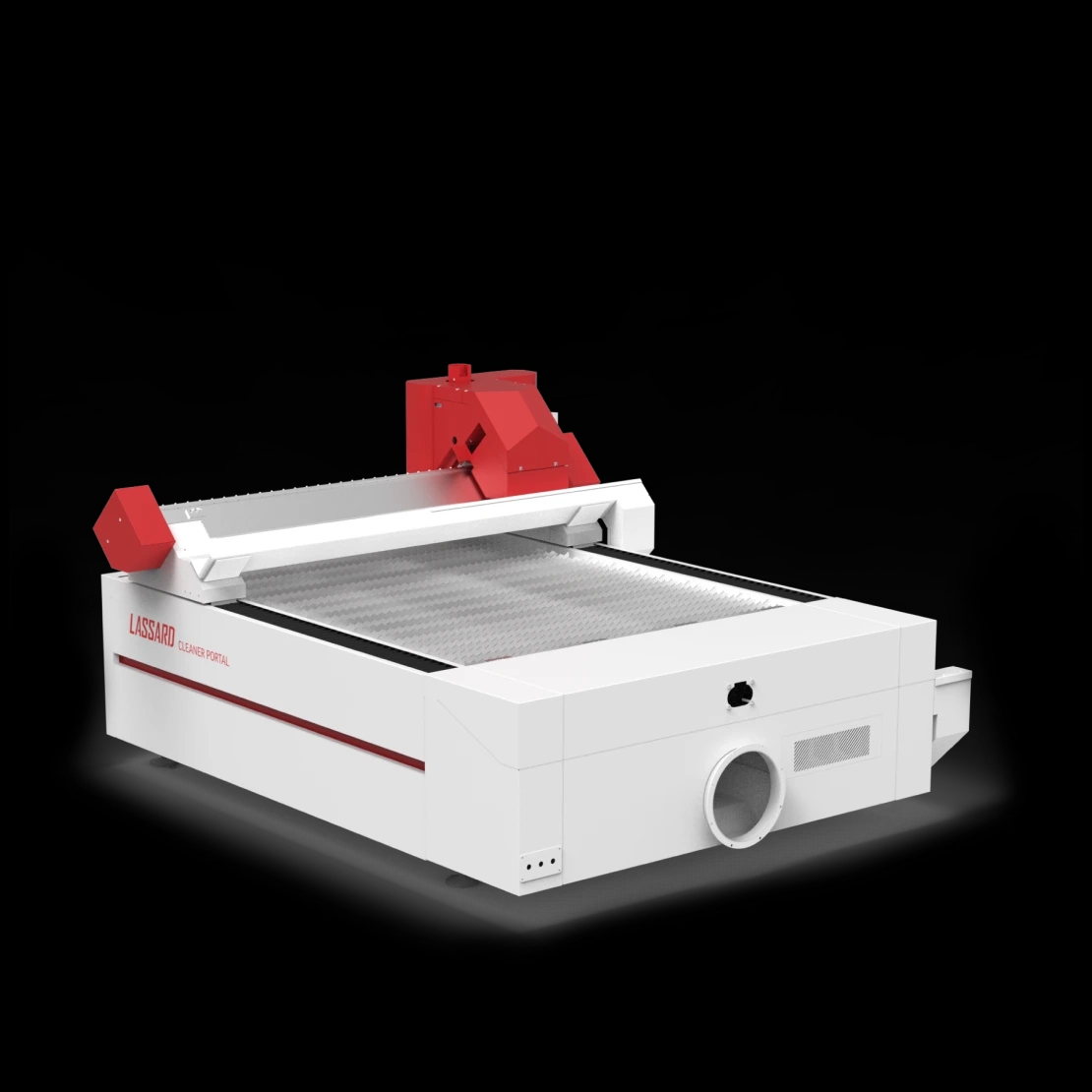

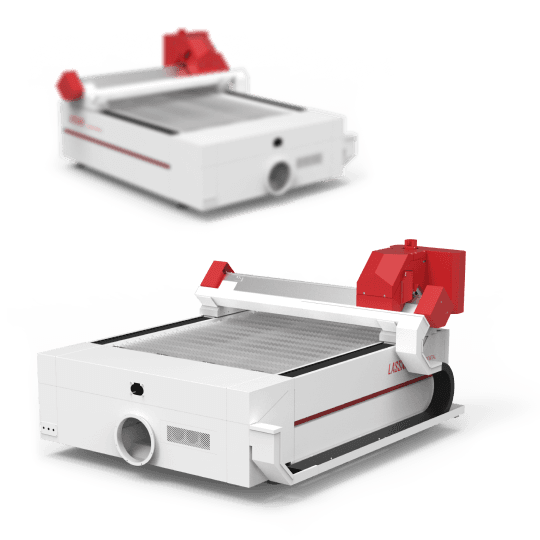

CLEANER PORTAL
Gantry installation for cleaning sheet materials
CLEANER PORTAL, the portal-type station based on the fiber laser, easy to maintain and operate, does not leave waste and dust.
It can be used both in large industrial enterprises and in small industries, wherever cleaning of sheet materials is required before further processing.
- CLEANER PORTAL is a portal-type station based on a fiber laser
- Maximum power consumption is 6 kW, focusing depth is 5 mm
- CLEANER PORTAL is effective for deep cleaning of rust and powder paint
- Equipped with a chiller that prevents overheating during laser cleaning
- It cleans materials from rust and dirt without damaging
Rust
Electroplating
Scale
Carbon deposits
Organic pollution
Ytterbium fiber laser (LASSARD / IPG Photonics / Raycus)
Chiller
CypCut software
MITSUBISHI ELECTRIC / HIWIN servo drives and drivers
Rigid all-welded frame
Work table
Optical system
Optical head protective housing
| Laser operating mode | CW, pulsed |
| Source power | 1000; 1500; 2000 |
| Cooling type | Water |
| Laser service life, h | 100000 |
| Processing speed, cm²/s | 30–150 |
| Pulse repetition frequency, kHz | Depending on the selected laser source, adjust in steps of 1 kHz |
| The highest speed of linear motion along the axis, m/min | 60 |
| Power supply, Hz | 220_240_50 |
| Radiation wavelength, µm | 1064 |
