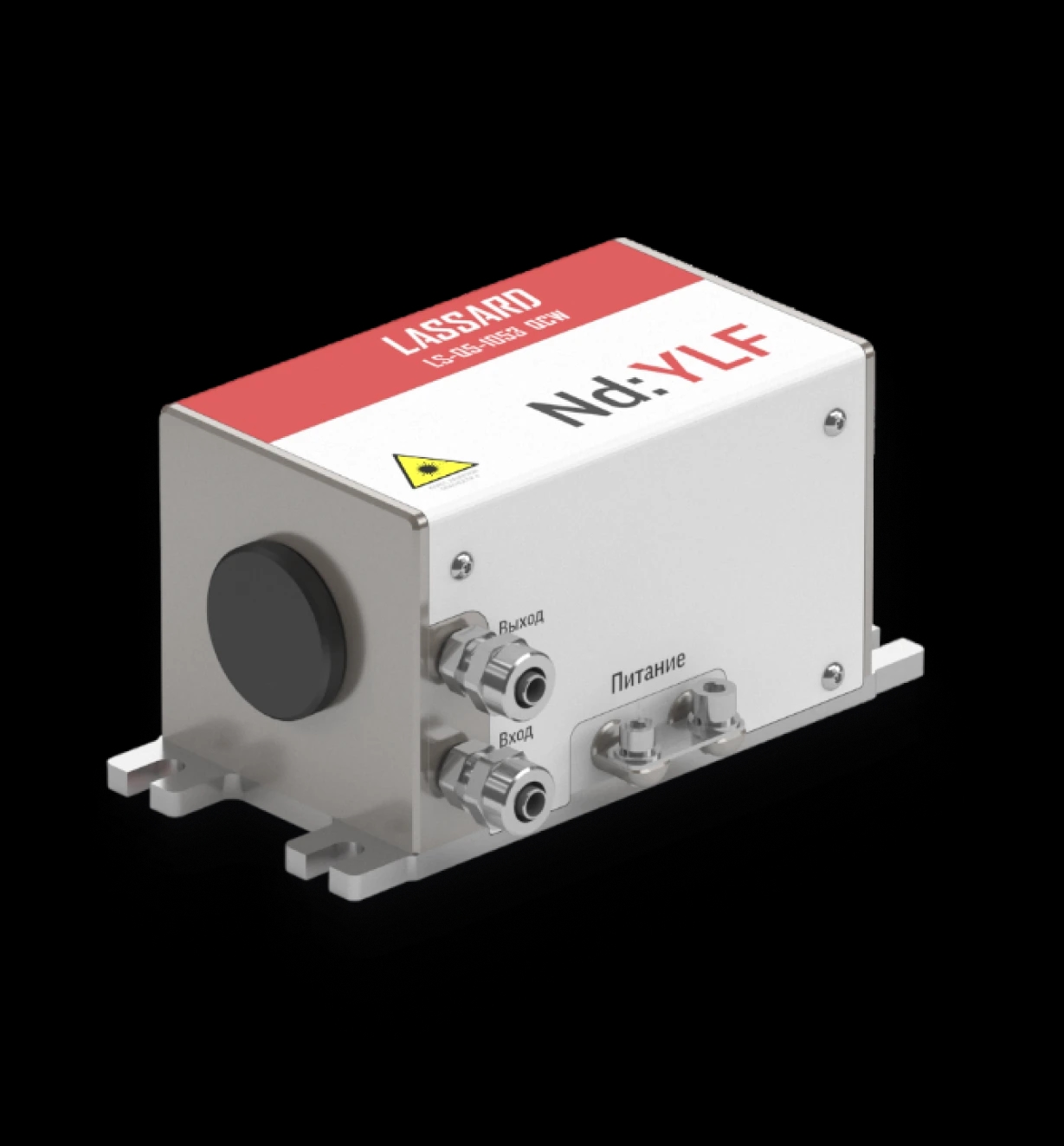

Nd:YLF

Quasi-continuous wave (QCW) diode pump chambers and solid-state lasers based on them are reliable sources of laser radiation.

Due to a number of advantages, such as high gain and output power, low divergence and the ability to generate short and ultrashort pulses, they have found application in various fields of science and technology.

QCW diode pump chambers are used in solid-state lasers and amplifiers, small-sized laser rangefinders, navigation control systems, guidance and control systems, measuring equipment, and laser medicine.

Optionally, diode pump chambers can be equipped with a power source and a cooling system.


*The energy value per pulse given in the table of characteristics is measured in an optical resonator 280 mm long with the characteristics of mirrors (for λ = 1053 nm):
- totally reflecting mirror R = 750 cm, r = 100%;
- flat output coupler, r = 40%.

Pulse repetition rate is up to 60 Hz with a pulse duration of 500–700 μs.

• Implementation of spatially uniform transverse pumping of cylindrical active elements by sets of diode laser arrays
• The nonuniformity of luminescence profile is no more than 30%
• Selection of laser arrays according to spectrum and radiation power
• Entirely domestic products
