Nd:YAG

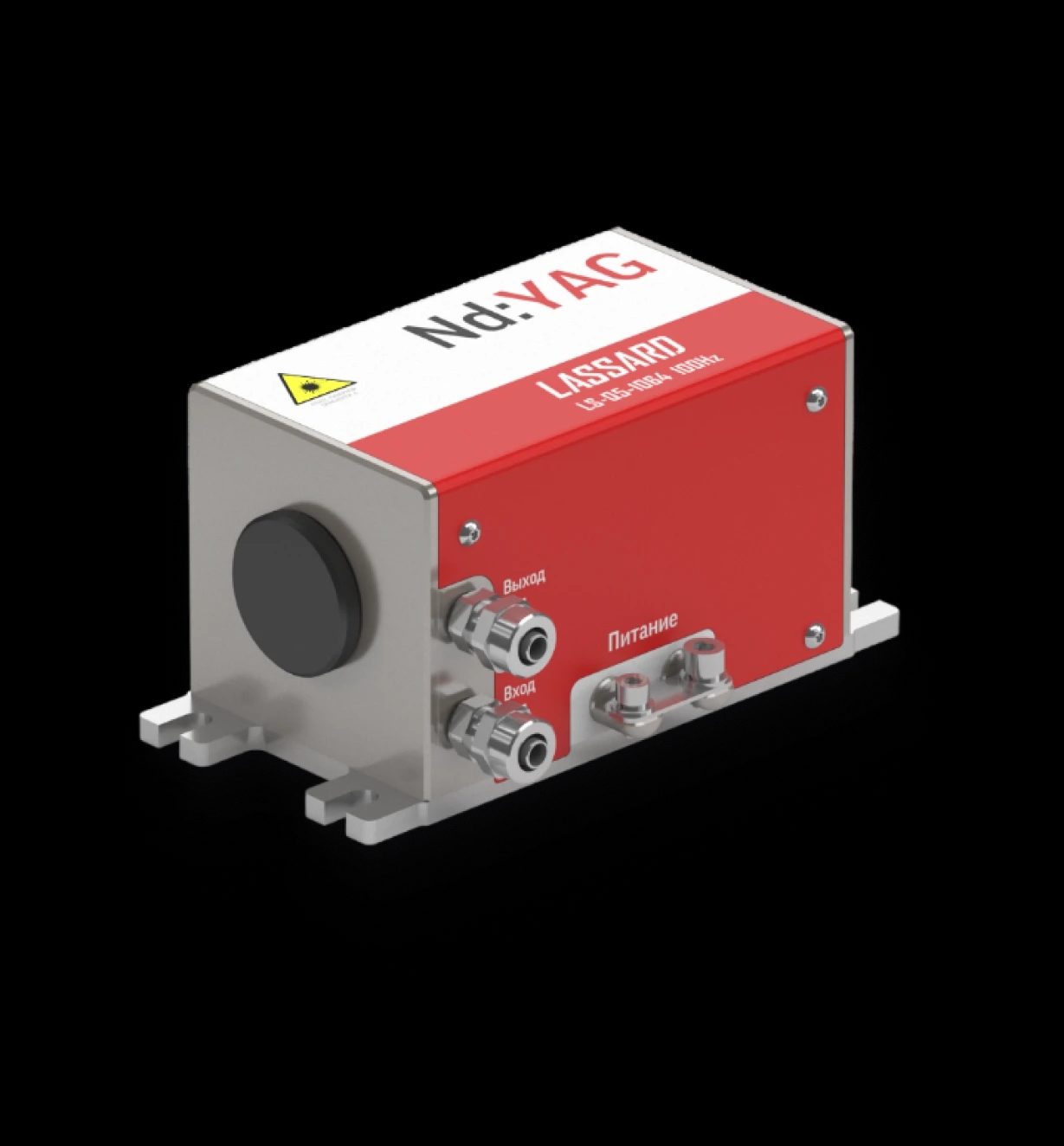

Quasi-continuous wave (QCW) diode pump chambers and solid-state lasers based on them are reliable sources of laser radiation.

Due to a number of advantages, such as high gain and output power, low divergence and the ability to generate short and ultra-short pulses, they have found application in various fields of science and technology.

QCW diode pump chambers are used in solid-state lasers and amplifiers, small-sized laser rangefinders, navigation control systems, guidance and control systems, measuring equipment, and laser medicine.

Optionally, diode pump chambers can be equipped with a power source and a cooling system.

*The energy value per pulse given in the table of characteristics is measured in an optical resonator 280 mm long with the characteristics of mirrors (for λ = 1064 nm):

- totally reflecting mirror R = 750 cm, r = 100%;
- output flat mirror r = 40%.

Pulse repetition rate is up to 25 Hz with a pulse duration of 250 μs.

• Implementation of spatially uniform transverse pumping of cylindrical active elements by sets of diode laser arrays
• The nonuniformity of luminescence profile is no more than 30%
• Selection of laser arrays according to spectrum and radiation power
• Entirely domestic products
